• Patented double-shear nailing design provides greater strength with fewer nails
• Speed prongs for fast and easy installation
• Angled joist nailing easier in tight spaces
• Do not bend or remove tabs
• Nominal joist size: Triple 2x10 and 2x12
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

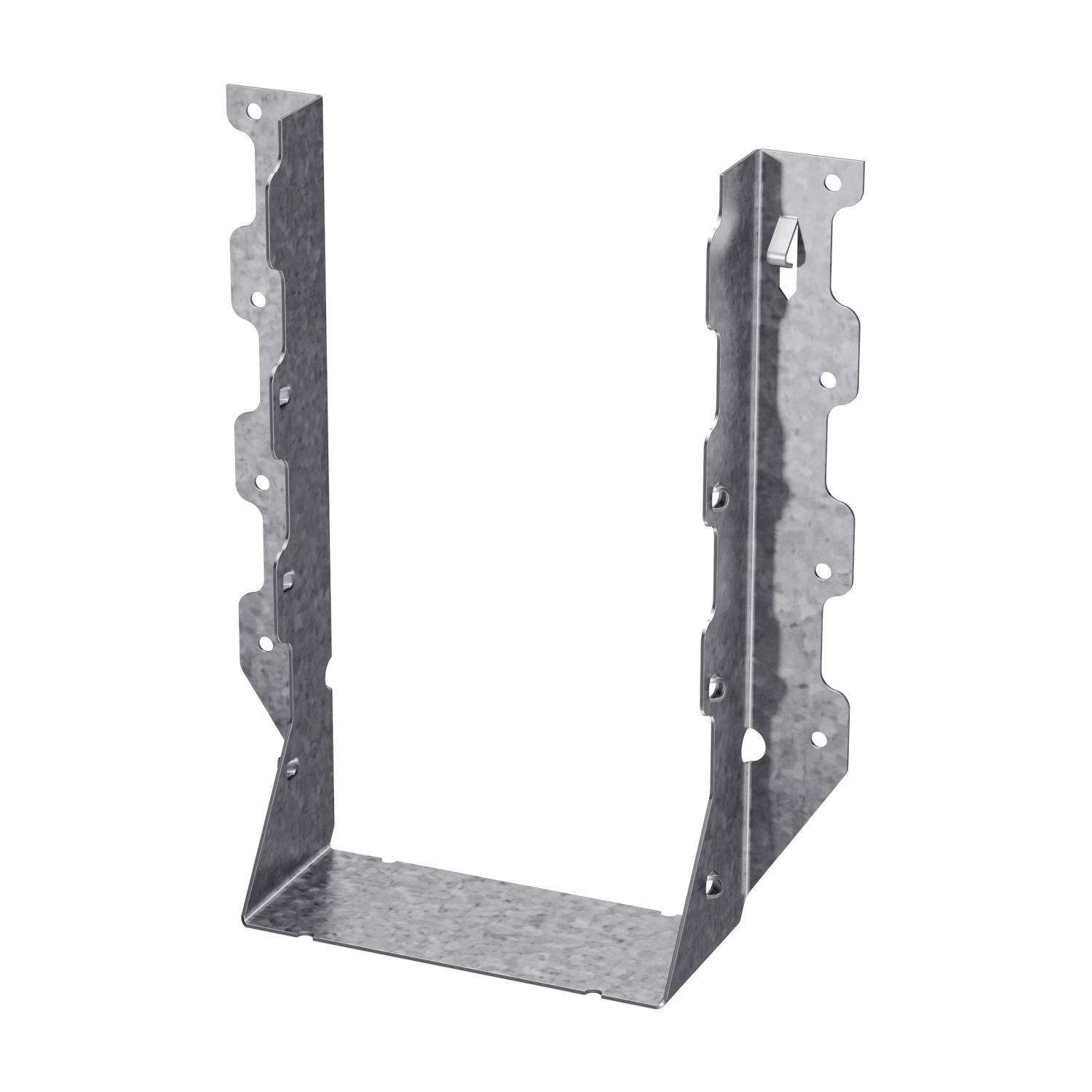

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

• Patented double-shear nailing design provides greater strength with fewer nails
• Speed prongs for fast and easy installation
• Angled joist nailing easier in tight spaces
• Do not bend or remove tabs
• Nominal joist size: Triple 2x10 and 2x12
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (8) #9 x 1-1/2 in. screws in the header AND (6) #9 x 2-1/2 in. screws in the joist, OR (14) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG)
