Simpson Strong-Tie MPBZ ZMAX Galvanized Moment Post Base for 4x4 with SDS Screws (MPB44Z)
Simpson Strong-Tie MPBZ ZMAX Galvanized Moment Post Base for 4x4 with SDS Screws (MPB44Z)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

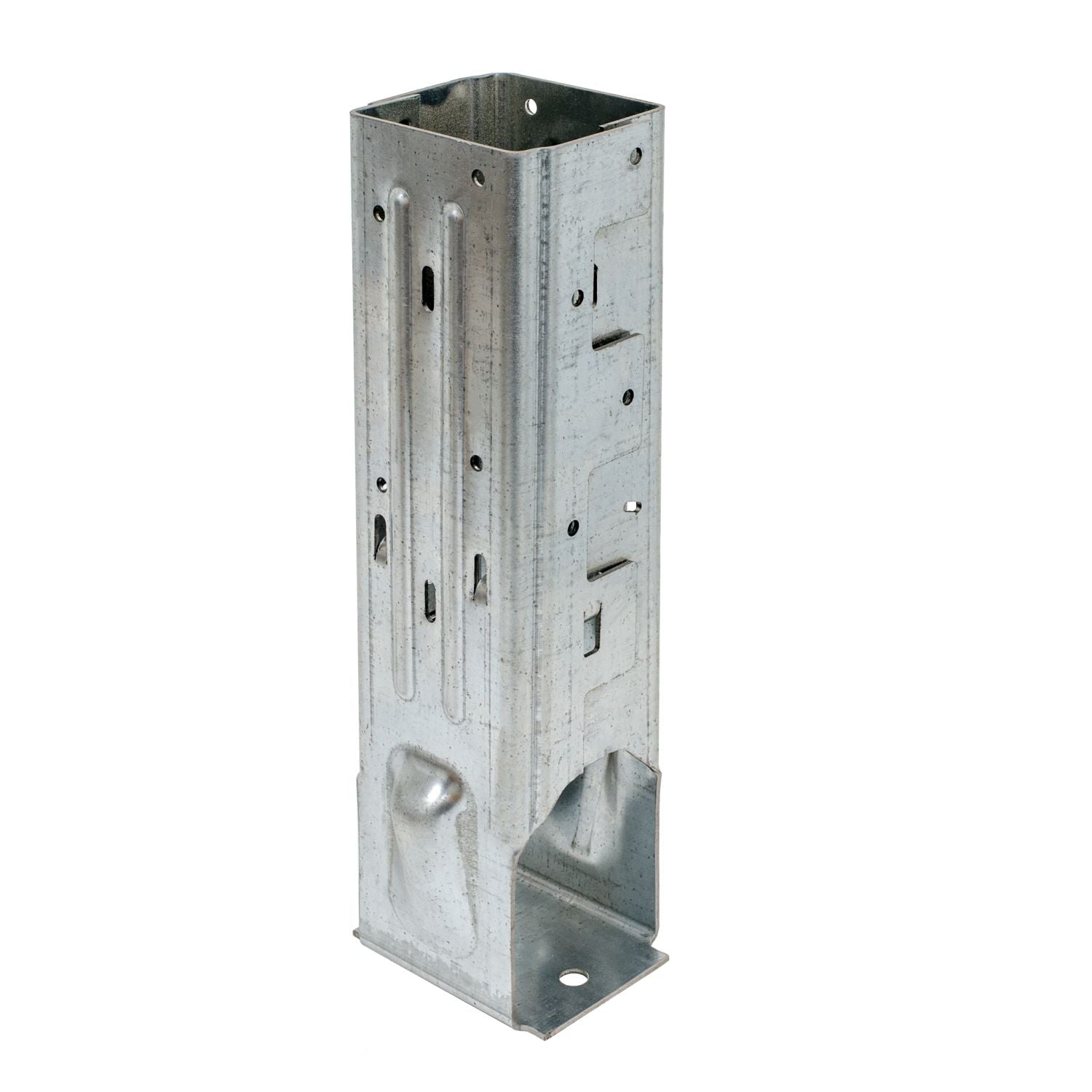

The Simpson Strong-Tie MPB44Z ZMAX Galvanized Moment Post Base for 4x4 Nominal Lumber with SDS Screws is a cast-in-place post base for anchoring a 4x4 nominal wood post to concrete. Model Number: MPB44Z. This is a moment post base designed for supporting wood posts where lateral load resistance and reduced base rotation matter. It is a good fit for deck and outdoor structure work where you want a stronger post-to-footing connection without moving into a custom-fabricated solution.
What separates this base from a standard post base is its overlapping sleeve design. Simpson Strong-Tie built the MPBZ series specifically to provide moment resistance for columns and posts, helping the post stay from rotating at the base when side loads are applied higher up. In practical terms, that matters on structures where stiffness and cleaner lines are part of the design. You get more flexibility in layout and, in some applications, less reliance on added bracing that can block sightlines.
The MPB44Z is sized for 4x4 nominal lumber and made from 12-gauge steel. Its engineering dimensions for this model are 3-9/16 inches W1, 3-9/16 inches W2, 7-1/4 inches H, and 7-1/4 inches D. That geometry is part of what gives the connector its strength and stability in concrete-anchored post applications. For builders, that means you are not just buying a bracket that holds a post off the slab. You are buying a purpose-built wood-to-concrete connector meant to handle higher lateral and uplift demands than a basic base.

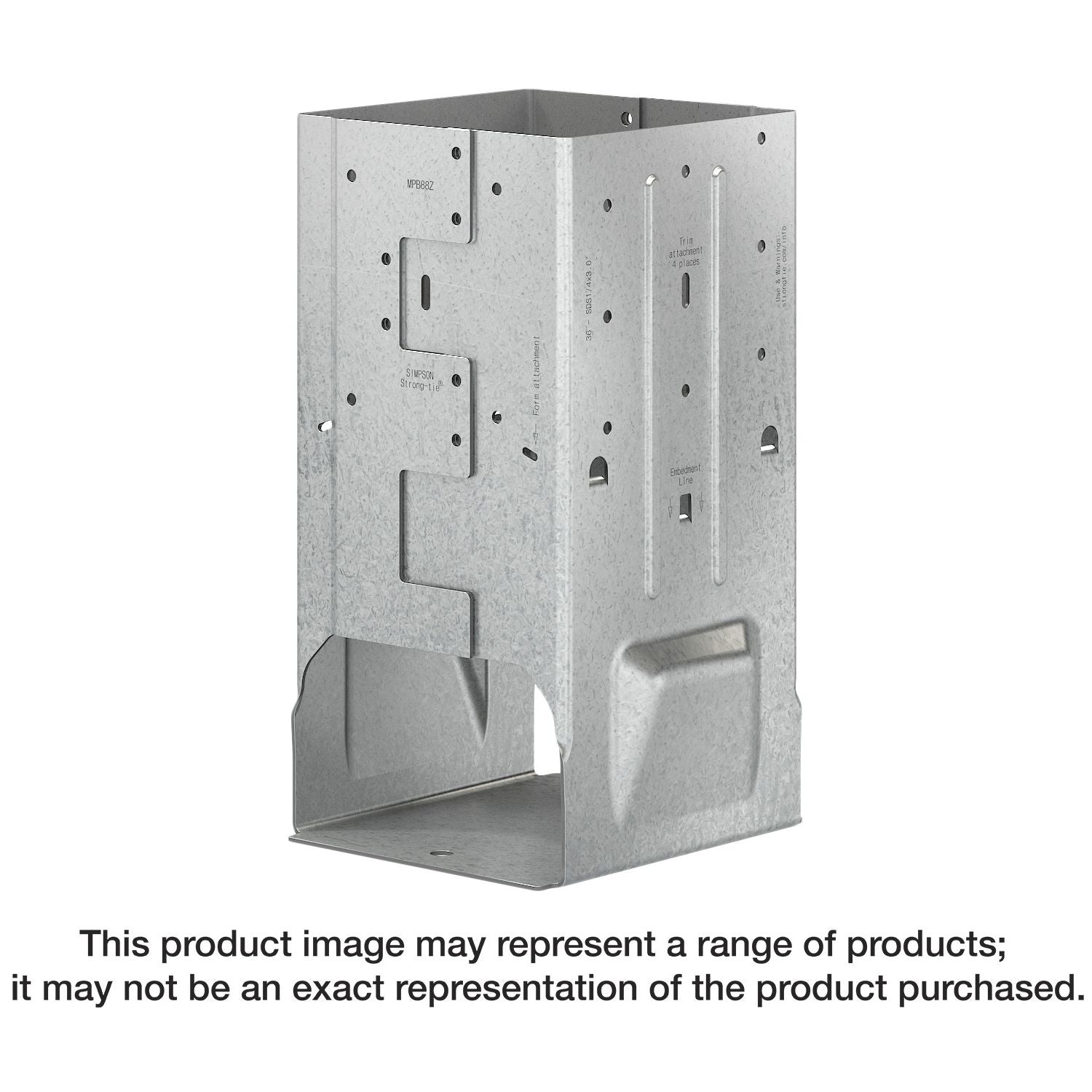

Jobsite usability is clearly part of the design. Internal top-of-concrete tabs, stamped embedment indicators, and form-board attachment holes make it easier to position the base before the pour. Once the concrete is placed, the post sits on tabs that create the required 1 inch standoff above the concrete. That gap is important because it helps reduce moisture contact at the post end, which is one of the main causes of premature deterioration in exterior wood post installations.

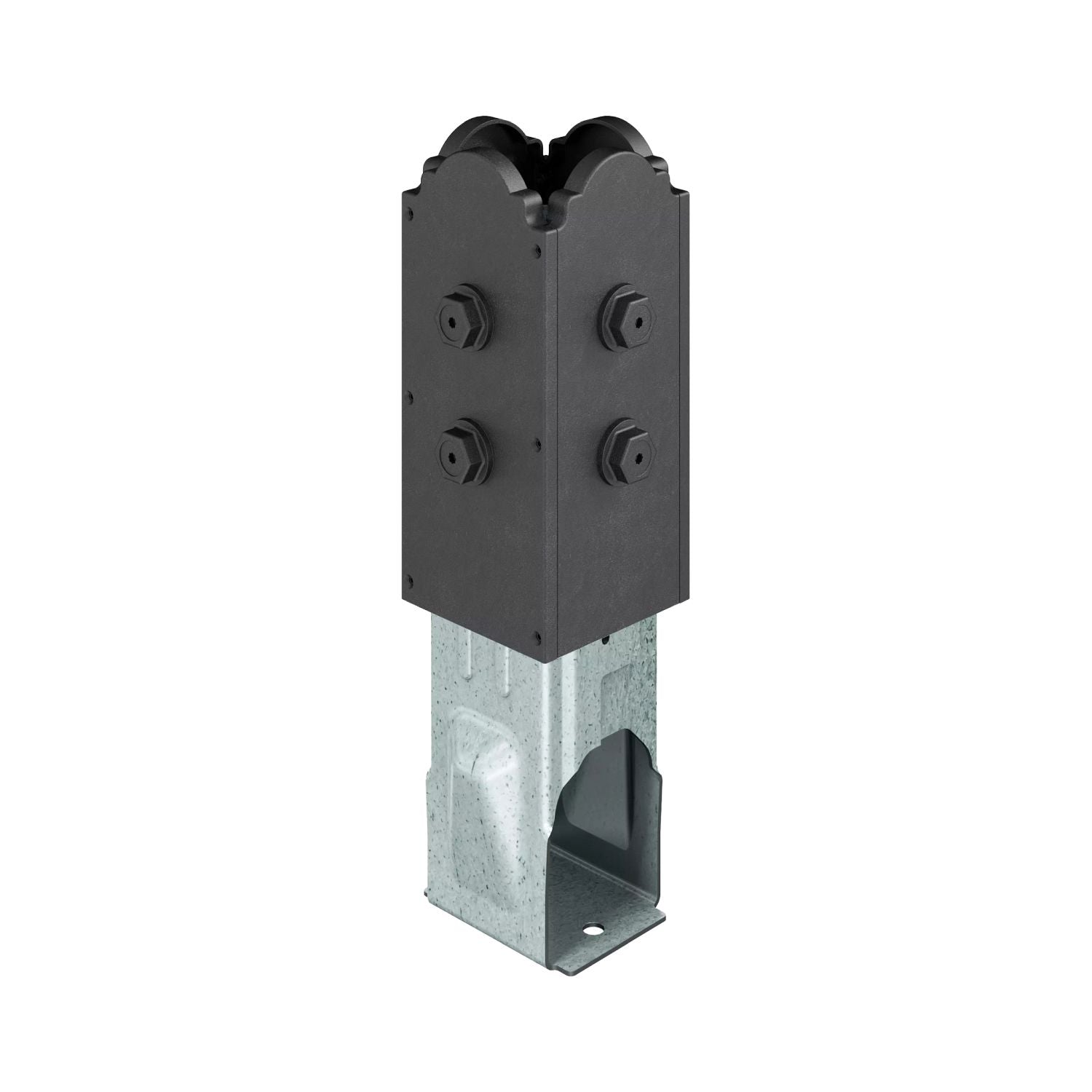

Simpson Strong-Tie also added details that make this connector easier to live with after the job is done. A weep hole at the embedment line allows water to drain out and gives you a visual inspection point. There are also additional holes for attaching trim material, which is useful when the finished structure needs a cleaner look. Those details matter on decks and exposed outdoor builds where the connection is visible and long-term water management is not optional.
For corrosion resistance, the MPB44Z uses a ZMAX coating, also referred to as G185 galvanized finish in supplementary data. That makes it a practical choice for exterior and treated-wood applications where a basic finish would not be enough. It also comes with the required 1/4 inch x 2-1/2 inch Strong-Drive SDS heavy-duty connector screws, which simplifies installation and avoids the common mistake of substituting lag screws. Simpson specifically notes that lag screws will not achieve the same load.
This post base is best suited for deck builders, framing crews, remodelers, and contractors handling outdoor structures that tie wood posts to concrete footings. If you are building a standard low-demand post connection, a regular post base may be enough. If you need a cast-in-place 4x4 post base with built-in standoff, drainage, corrosion resistance, and real moment-resisting intent, this is the more serious option.
Designed to Pour In and Hold Fast
This base is set before the concrete pour, which gives you a cleaner install path for post-to-footing work than drilling in hardware later. The one-piece body, embedment indicators, and form attachment holes help keep placement consistent when layout accuracy matters.
- Cast-in-place design for wood post to concrete footing connections
- Stamped embedment indicators help position the base at the correct depth
- One-piece construction simplifies setup before concrete placement
Protect the Post from Moisture at the Base
The built-in standoff is not a throwaway detail. Keeping the post 1 inch above the concrete helps reduce moisture exposure at the end grain, and the drainage opening gives trapped water a way out instead of letting it sit where rot starts.
- Internal tabs create the code-required 1 inch post standoff
- Weep hole supports drainage and visual inspection
- Good fit for exterior and treated-wood applications thanks to ZMAX coating
What's in the Box
- (1) Simpson Strong-Tie MPB44Z moment post base
- Strong-Drive SDS heavy-duty connector screws, 1/4 inch x 2-1/2 inch
Key Specifications
| Nominal Post Size | 4x4 |
|---|---|
| Material | 12-gauge steel |
| Finish | ZMAX galvanized |
| Connector Finish | G185 galvanized |
| W1 | 3-9/16 in. |
| W2 | 3-9/16 in. |
| H | 7-1/4 in. |
| D | 7-1/4 in. |
| Weight | 6.86 lbs |
| Package Quantity | 1 |
Compatibility
Built For
Pro Tip
Set the MPB44Z before the pour using the embedment indicators and keep the concrete level inside the base no more than 1/4 inch above the embedment line. That preserves the drainage path so the standoff and weep hole can do their job.
Warranty & Support
Tool Nut's Take
Simpson Strong-Tie MPB44Z Moment Post Base That Solves Real Layout Problems
If you need more than a basic post bracket, this is the kind of connector that earns its keep by giving you standoff, drainage, cast-in-place installation, and real resistance to post rotation in one package.
- Who it's for: Contractors and serious DIY builders working on decks and outdoor structures where a 4x4 post needs a stronger wood-to-concrete connection.
- Why it stands out: The moment-resisting sleeve design is the big deal here, and the built-in 1 inch standoff plus drainage details show Simpson thought about long-term performance, not just lab numbers.
- Worth knowing: This is a cast-in-place base, so planning matters. Use the included SDS screws as specified, because Simpson is clear that lag screws do not deliver the same load performance.
Common Questions
- What size post is this base made for? The MPB44Z is designed for 4x4 nominal lumber.
- Is this a cast-in-place or retrofit post base? It is a cast-in-place post base and should be installed before the concrete is placed.
- Does it include fasteners? Yes. This model includes Strong-Drive SDS heavy-duty connector screws in 1/4 inch x 2-1/2 inch size.
- What helps protect the post from moisture? Internal tabs create a 1 inch standoff above the concrete, and a weep hole is provided for water drainage.
