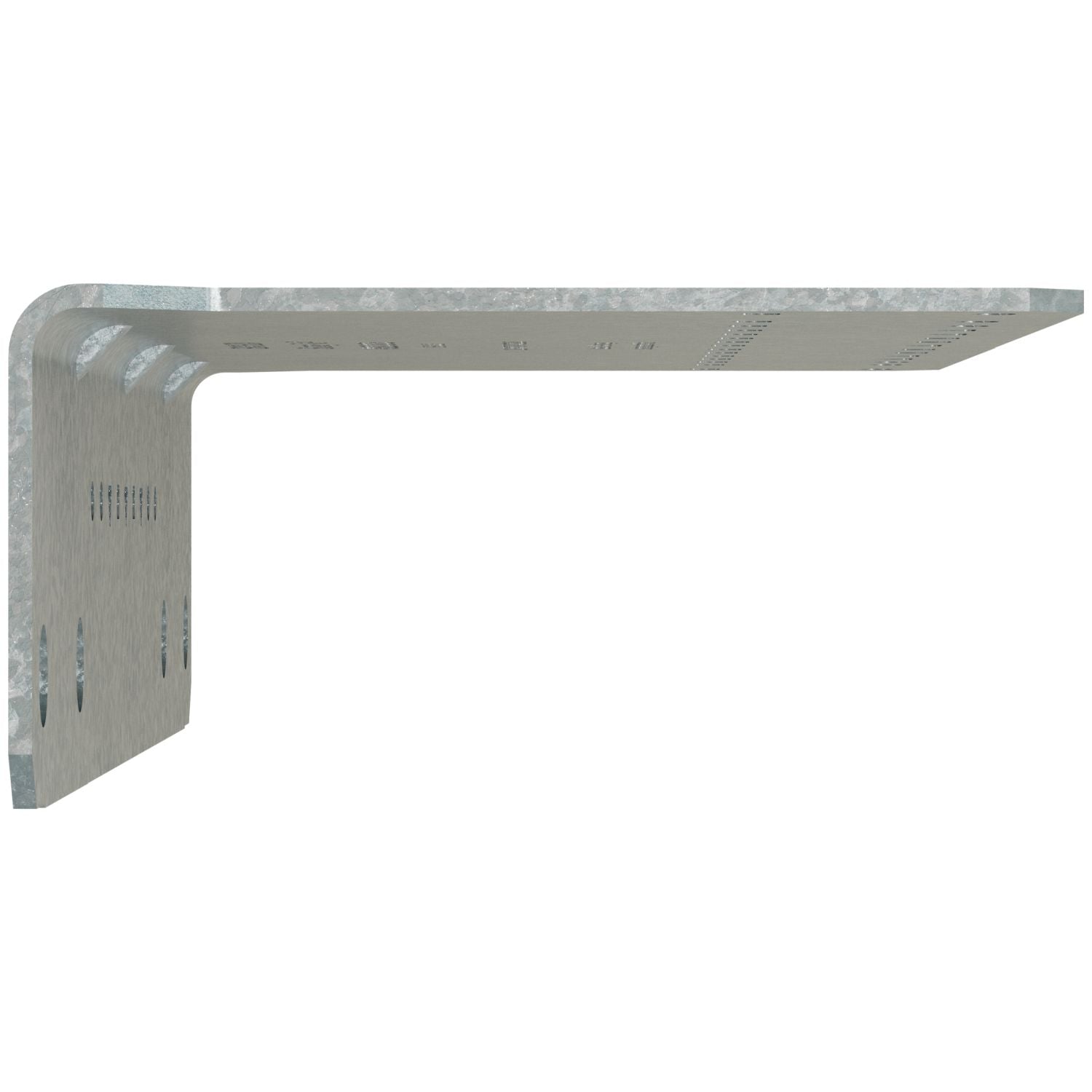

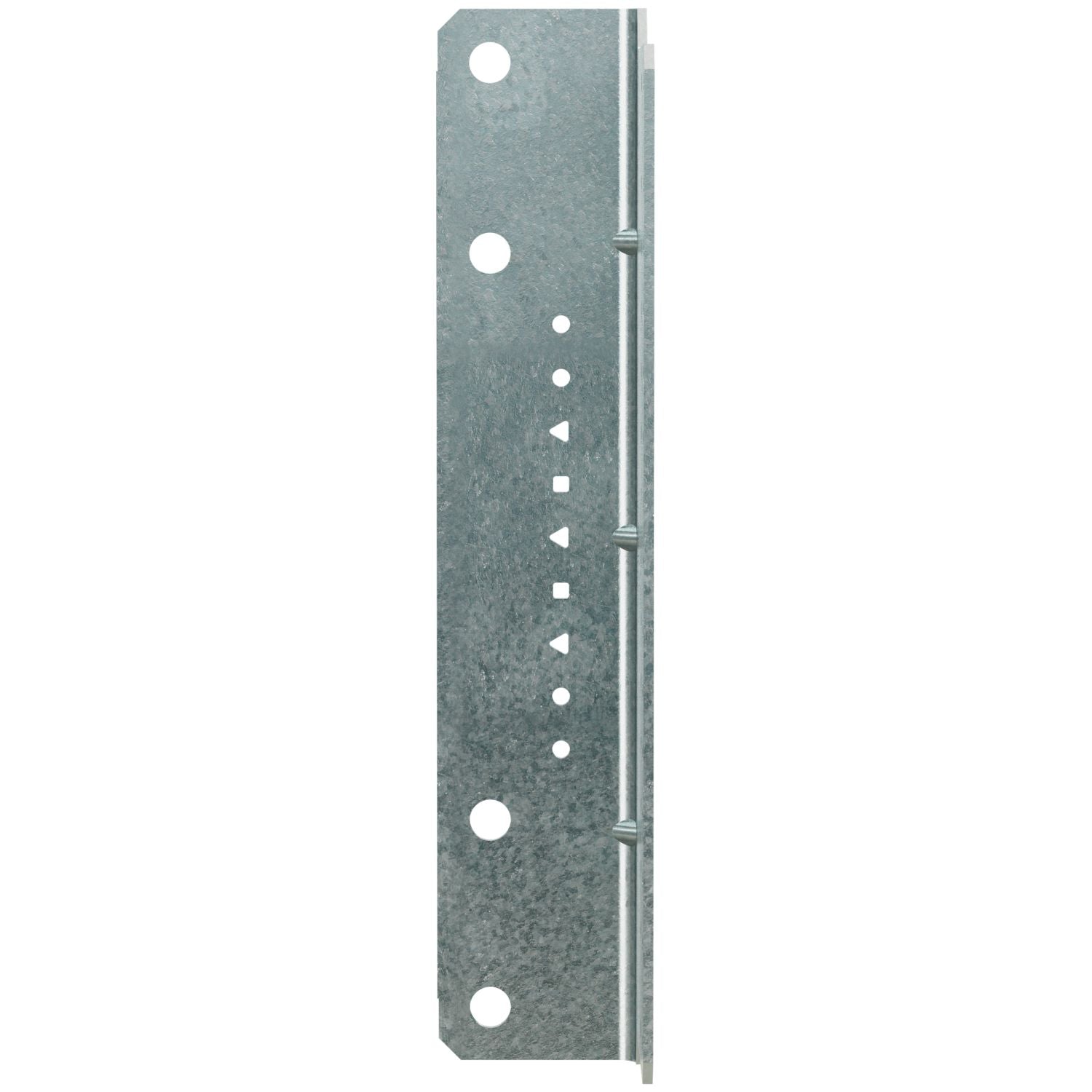

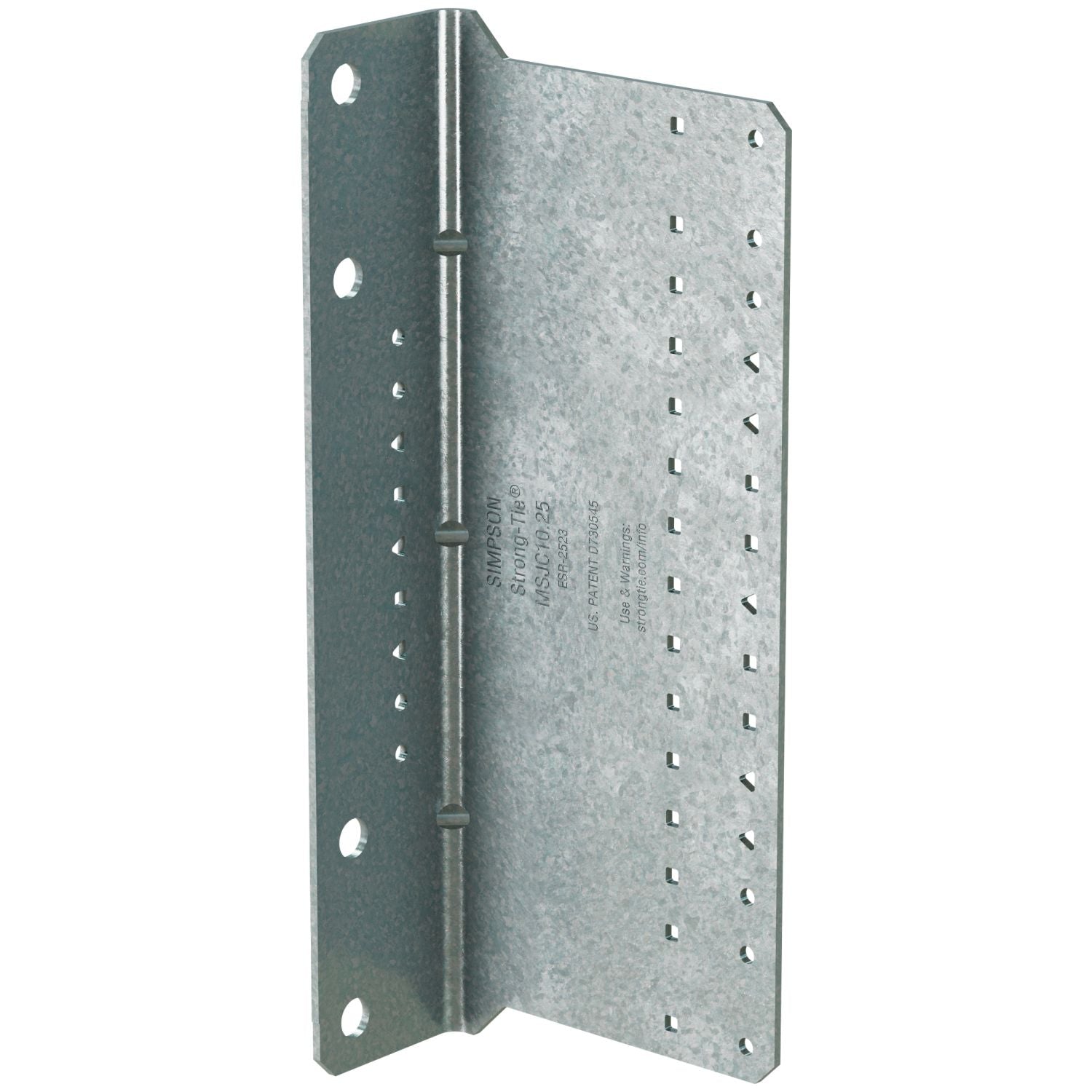

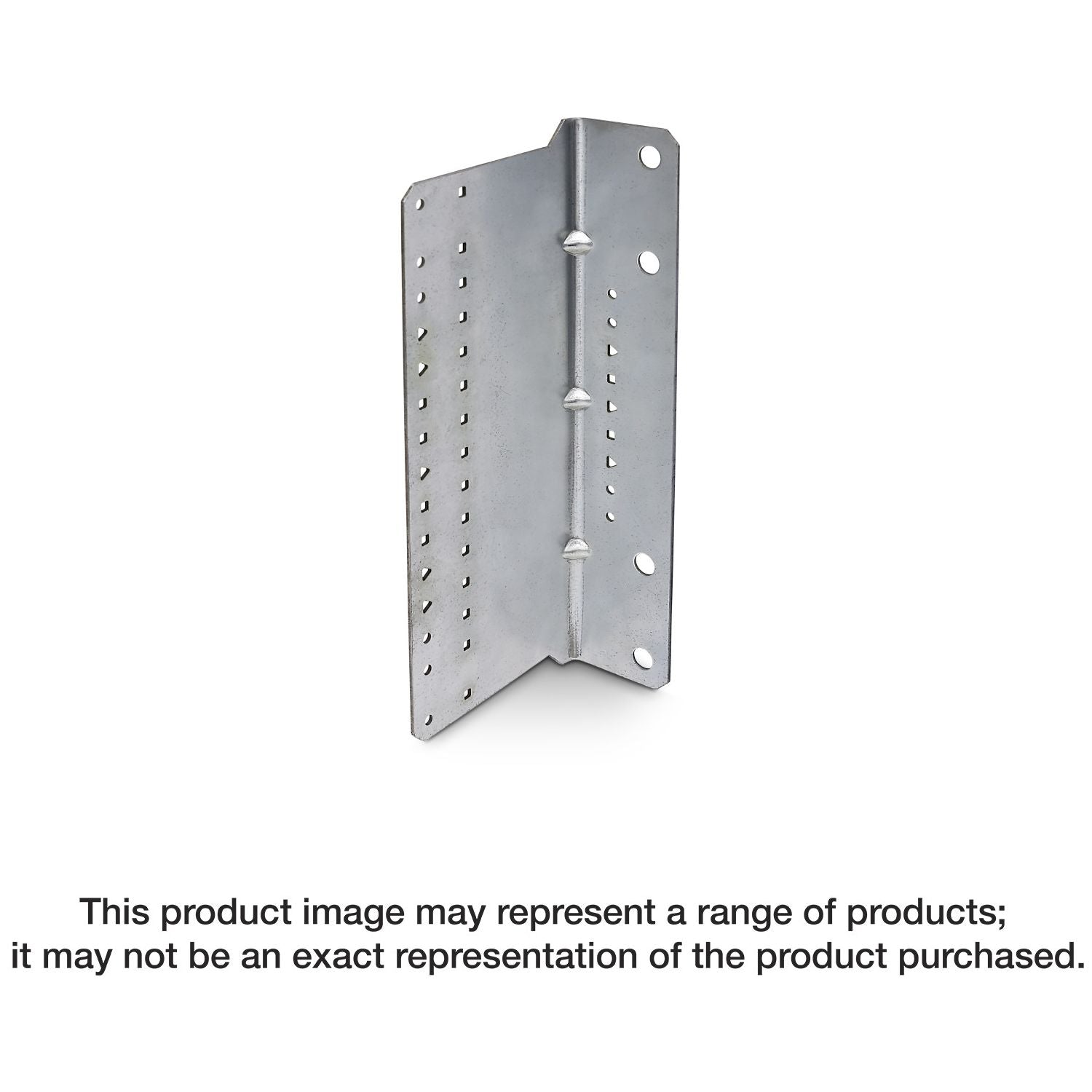

Simpson Strong-Tie MSJC10.25-R15 MSJC 2-in. x 4-1/2-in. x 10-1/4-in. 12-Gauge Galvanized Steel-Joist Connector, 15-Pack
Simpson Strong-Tie MSJC10.25-R15 MSJC 2-in. x 4-1/2-in. x 10-1/4-in. 12-Gauge Galvanized Steel-Joist Connector, 15-Pack
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
- Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
- 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
- Also accommodates kicker-to-metal-deck applications
- Made from 12-gauge (97 mil) steel
- Galvanized (G90) for extra corrosion resistance
- Size: 2 in. x 4-1/2 in. x 10-1/4 in.
- Quantity: 15
Simpson Strong-Tie SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3-1/2 in. flanges and return lips up to 3/4 in. For metal-deck applications, the prepunched 3/8-in. holes easily accommodate 6-in., 8-in., 10-in. and 12-in. on-center metal-deck flutes.
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
- Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
- 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
- Also accommodates kicker-to-metal-deck applications
- Made from 12-gauge (97 mil) steel
- Galvanized (G90) for extra corrosion resistance
- Size: 2 in. x 4-1/2 in. x 10-1/4 in.
- Quantity: 15
Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
