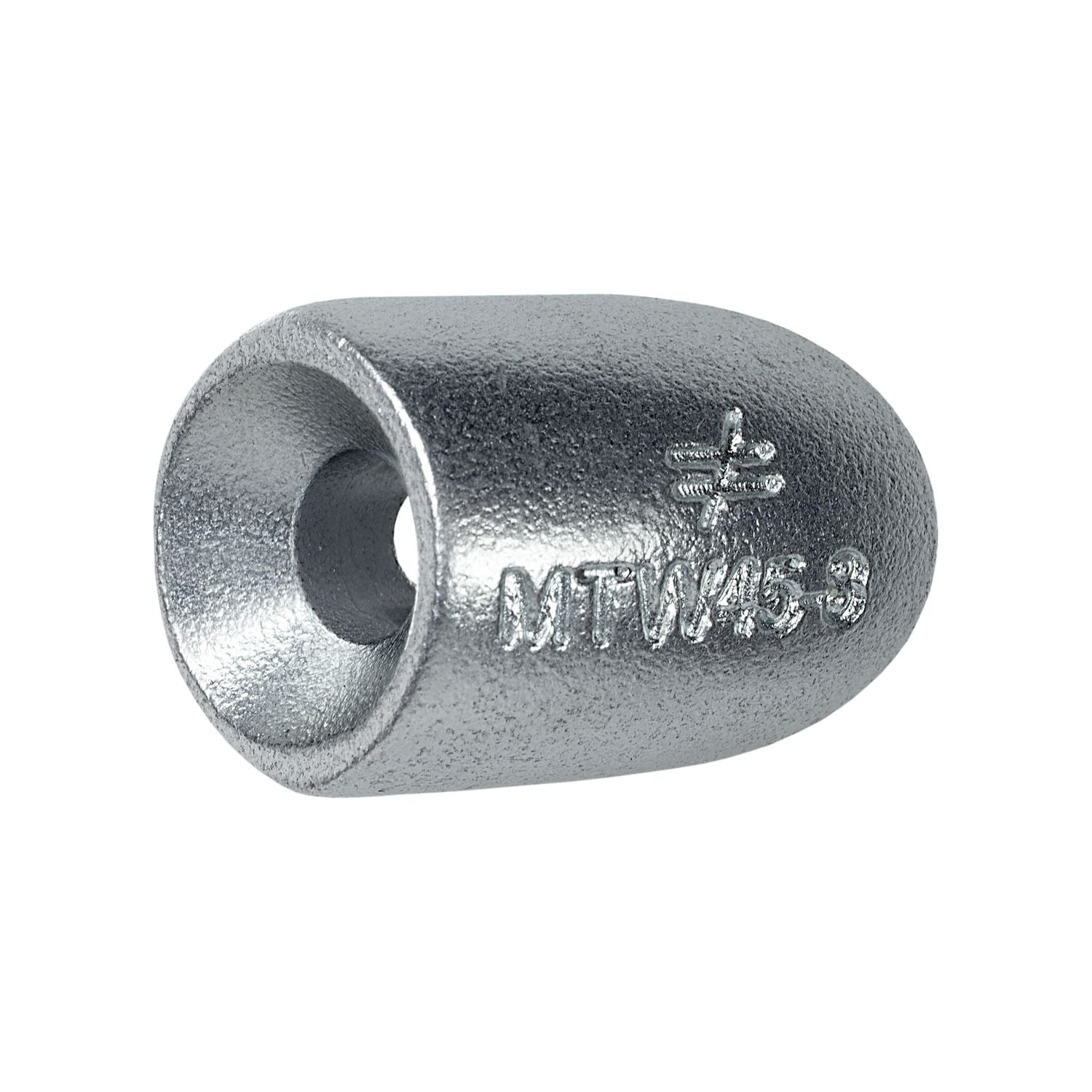

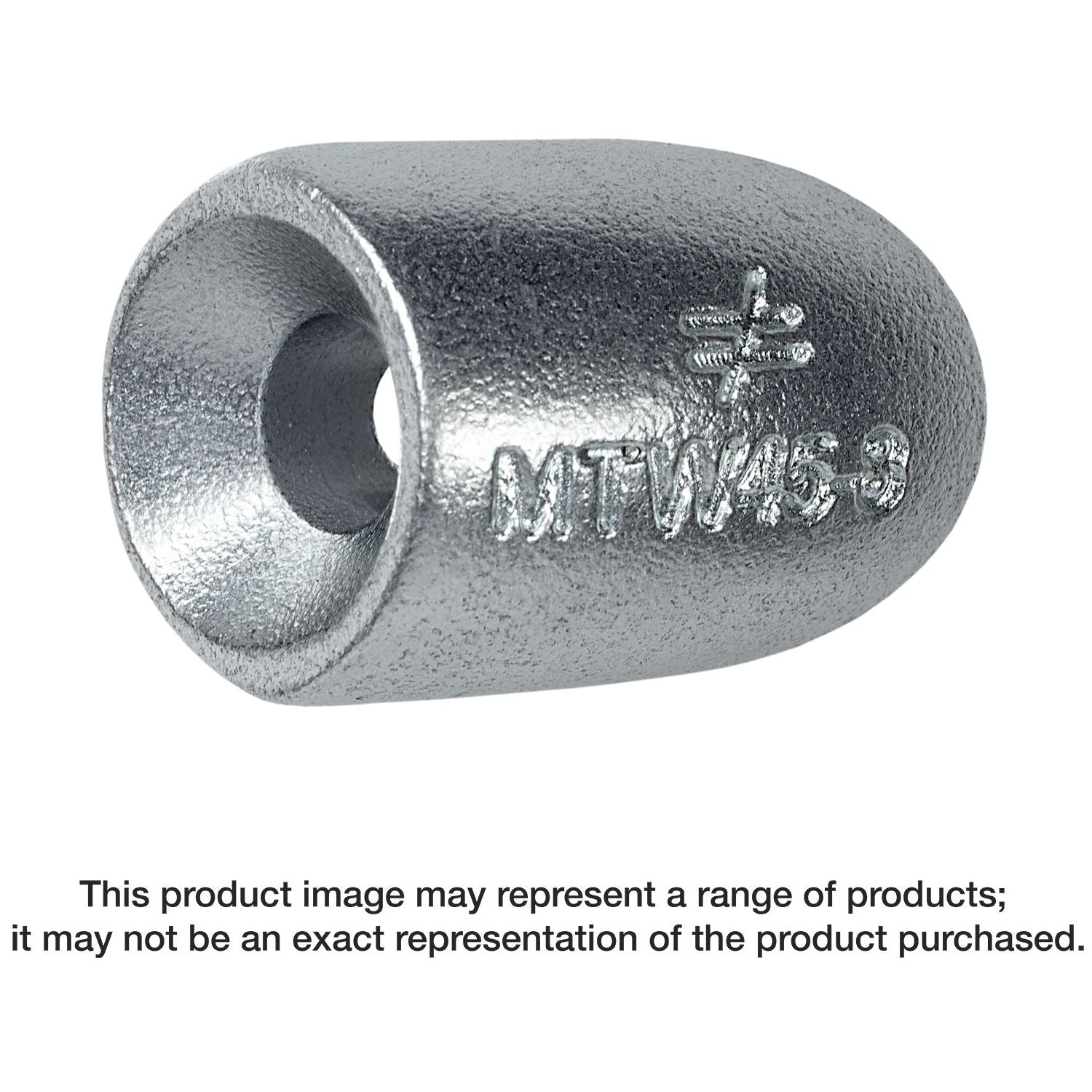

Simpson Strong-Tie MTW45-8-R10 MTW Mass Timber Angled Washer, 10-Pack
Simpson Strong-Tie MTW45-8-R10 MTW Mass Timber Angled Washer, 10-Pack
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Recessed hole provides a clean finish with the SDCF countersunk head
- Guides screw to an accurate 45° angle
- High capacity reduces number of screws required in a connection
- Material: ASTM A27, Grade 70–40
- Galvanized for extra corrosion resistance
- Quantity: 10
Angled screws greatly increase the strength and stiffness of mass timber connections. The Simpson Strong-Tie MTW45-8 is designed for use with a wide variety of 10 gauge–33 ksi connection plates and 8 mm-diameter Simpson Strong-Tie Strong-Drive SDCF Timber-CF screws driven at a 45° angle.
- Recessed hole provides a clean finish with the SDCF countersunk head
- Guides screw to an accurate 45° angle
- High capacity reduces number of screws required in a connection
- Material: ASTM A27, Grade 70–40
- Galvanized for extra corrosion resistance
- Quantity: 10
Install With: Install with 8 mm-diameter Strong-Drive SDCF Timber-CF screws
