Simpson Strong-Tie NRUZ ZMAX Galvanized Retrofit Hanger for Double 2x6 (NRU26-2Z)
Simpson Strong-Tie NRUZ ZMAX Galvanized Retrofit Hanger for Double 2x6 (NRU26-2Z)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

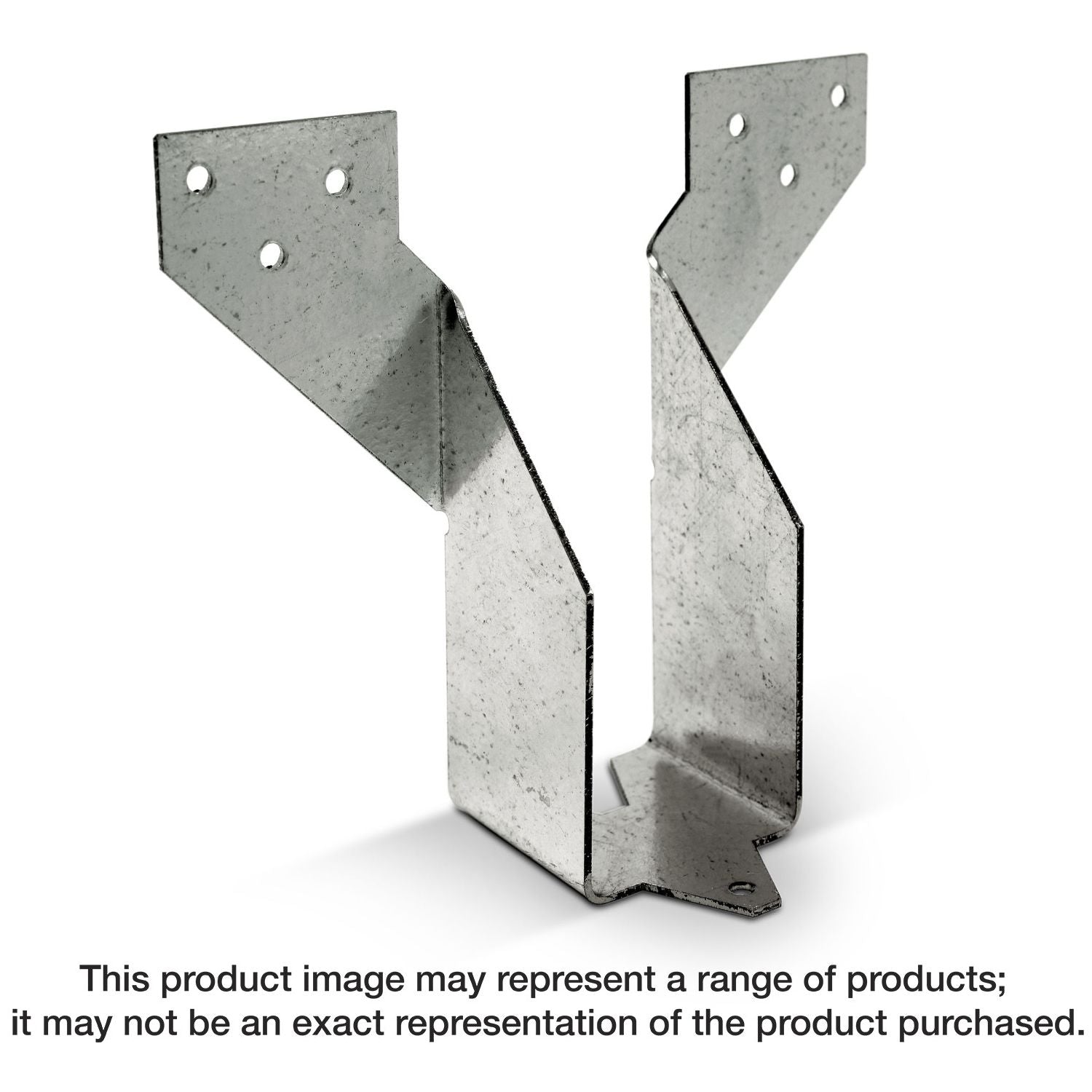

The Simpson Strong-Tie NRU26-2Z NRUZ ZMAX Galvanized Retrofit Hanger is a retrofit hanger for double 2x6 members used in panelized roof systems. This is a retrofit hanger designed for panelized roof repairs and reinforcement around existing roof hanger connections. Model Number NRU26-2Z. If you are working on a steel truss roof with existing Simpson panelized roof hangers in place, this connector is built for that specific kind of repair instead of forcing a standard joist hanger into a job it was never made to do.
What matters here is the jobsite problem it solves. The NRUZ series is designed specifically for use on nailers on steel trusses and to fit around existing Simpson panelized roof hangers such as the F or HFN series. In plain terms, this gives you a way to retrofit a hanger connection where an existing hanger is already part of the roof assembly. That is a lot different than starting from scratch on new framing.
For this exact model, the fit is for a double 2x6 member. The listed dimensions are 3-1/4 inches wide by 5-1/4 inches high, and the hanger is made from 16 gauge steel. Those numbers matter because retrofit hardware only works when the geometry is right. If the width or height is off, installation gets ugly fast. With the correct size, the hanger seats properly around the member and existing hardware layout.
The ZMAX coating is another important part of the package. Roof framing connectors can deal with moisture and long-term exposure issues, so finish is not just a line on a spec sheet. The G185 ZMAX galvanized coating gives this hanger added corrosion resistance compared to plain steel, which is exactly what you want in roof work where durability matters over time.
Installation is straightforward, but it is not a place to freelance. Simpson specifies using all required fasteners, tightly installing the NRUZ hanger around the existing panelized roof hanger, and installing fasteners as referenced in the tables. That tells you this connector is part of a system, not a universal bracket. It is meant to be installed to the published fastening schedule so the connection performs the way it is supposed to.
This retrofit hanger also makes sense when repair conditions are less than perfect. If the existing hanger is corroded, Simpson specifically notes that the source of moisture intrusion needs to be identified and fixed before installing the retrofit. That is good practical guidance because no new connector can solve a roof leak by itself. Fix the cause first, then install the hardware.
Who should buy it? This is for contractors, building repair crews, and roof framing professionals working on panelized roof structures over steel trusses. If your work involves replacing or reinforcing an existing hanger connection on a double 2x6 sub-purlin or similar member, the Simpson Strong-Tie NRU26-2Z NRUZ ZMAX Galvanized Retrofit Hanger is the purpose-built part. If you are doing general wood framing with all-new connections, this is probably not the hanger you need.
Built for Retrofit Roof Work
This hanger is meant for repair and retrofit conditions where existing roof hardware is already in place. That saves time on jobs where tearing out the full connection is not the practical move.
- Designed specifically to fit around existing Simpson panelized roof hangers
- Made for use on nailers on steel trusses in panelized roof applications
Correct Fit Matters
Retrofit connectors are all about geometry. The NRU26-2Z is sized for double 2x6 framing, so you are not guessing your way through a structural repair.
- Joist size: Double 2x6
- Dimensions: 3-1/4 in. width and 5-1/4 in. height
Made for Panelized Roof Systems
This is not a general-purpose framing hanger. It is aimed at panelized roof construction where wood members, nailers, and steel truss supports all have to work together.
- Application: Panelized Roof
- ZMAX coating helps the connector hold up better in demanding roof environments
What's in the Box
- (1) Simpson Strong-Tie NRU26-2Z NRUZ ZMAX Galvanized Retrofit Hanger for Double 2x6
Key Specifications
| Joist Size | Double 2x6 |
|---|---|
| Gauge | 16 ga. |
| Width (in.) | 3-1/4 in. |
| Height (in.) | 5-1/4 in. |
| Finish | ZMAX coating (G185) |
| Application | Panelized Roof |
| Packaging Quantity | 1 |
| Brand | Simpson Strong-Tie |
Compatibility
Built For
Pro Tip
If you are installing this over a corroded existing hanger, fix the source of moisture intrusion first. The new retrofit hanger can reinforce the connection, but it will not solve the reason the original hardware started failing.
Tool Nut's Take
Simpson Strong-Tie NRU26-2Z NRUZ ZMAX Galvanized Retrofit Hanger That Solves a Very Specific Problem
This is the kind of connector you buy when you need the right retrofit part, not a maybe-it-fits workaround.
- Who it's for: Contractors and repair crews working on panelized roof systems over steel trusses with existing Simpson hanger hardware already in place.
- Why it stands out: It is purpose-built to wrap around existing F or HFN series style panelized roof hangers and sized specifically for double 2x6 members.
- Worth knowing: This is a specialized retrofit hanger sold as a single piece, so make sure your member size and existing connection type match before ordering.
Common Questions
- What member size is this hanger made for? The NRU26-2Z is sized for double 2x6 members.
- What type of application is it designed for? It is designed for panelized roof applications, specifically on nailers on steel trusses.
- What finish does it use? This model uses a ZMAX coating with a G185 galvanized finish for added corrosion resistance.
- Can it be used with existing Simpson roof hangers? Yes. The NRUZ series is designed to fit around existing Simpson panelized roof hangers such as the F or HFN series.
