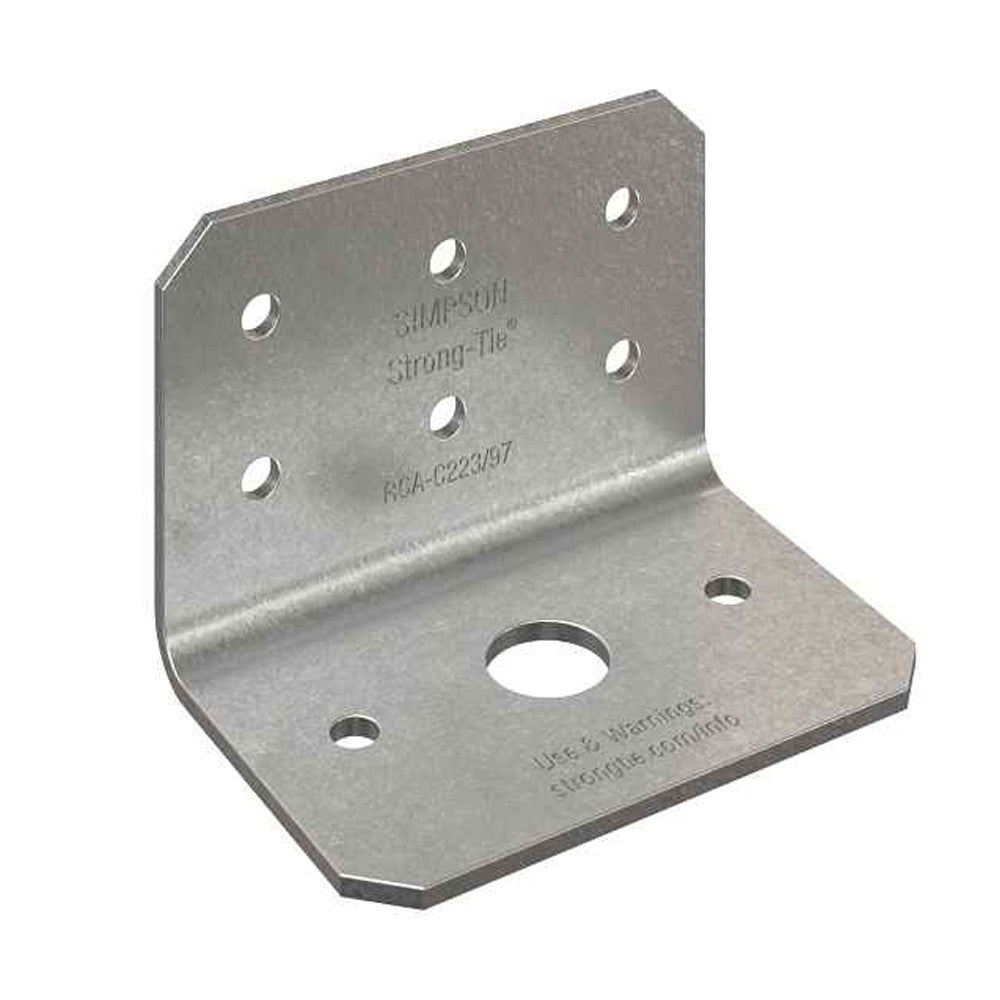

Simpson Strong-Tie RCA-C223/97-R90 RCA-C 2-in. x 2-in. x 3-in. 12-Gauge Rigid Connector Angle for Concrete, 90-Pack
Simpson Strong-Tie RCA-C223/97-R90 RCA-C 2-in. x 2-in. x 3-in. 12-Gauge Rigid Connector Angle for Concrete, 90-Pack
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- 2-in. x 2 -in. legs provide plenty of room to make attachments to structure and stud framing
- Multiple screw pattern options to stud framing for different load rating
- Can be used as either a heavy-duty shear and tension connector or light-duty moment connection
- Prepunched holes for screws to stud framing and attachment to concrete; prepunched holes on anchor leg provide options for (1) 1/2 -in. diameter anchor, (2) 1/4-in. diameter anchors, or (2) 1/4-in. diameter concrete screws
- Attachment to concrete or masonry can be achieved with 1/2-in. diameter Titen HD, 1/2-in. diameter Strong-Bolt 2, 1/4-in. diameter Titen HD, or 1/4-in. diameter Titen Turbo™
- Made from 12-gauge (97 mil) steel
- Galvanized (G90) for corrosion resistance
- Size: 2 in. x 2 in. x 3 in.
- Quantity: 90
The Simpson Strong-Tie RCA-C is an ideal solution for attaching stud framing to concrete supports. The connector’s design includes holes for a 1/2-in. diameter anchor screw or bolt, or for two 1/4-in. diameter concrete screws, positioned in a wide array of fastening options — thus saving the installer the time and cost of drilling connector holes at the jobsite. In addition, the RCA-C connector has been rigorously tested and load rated, giving you the confidence of quality and performance for your job.
- 2-in. x 2 -in. legs provide plenty of room to make attachments to structure and stud framing
- Multiple screw pattern options to stud framing for different load rating
- Can be used as either a heavy-duty shear and tension connector or light-duty moment connection
- Prepunched holes for screws to stud framing and attachment to concrete; prepunched holes on anchor leg provide options for (1) 1/2 -in. diameter anchor, (2) 1/4-in. diameter anchors, or (2) 1/4-in. diameter concrete screws
- Attachment to concrete or masonry can be achieved with 1/2-in. diameter Titen HD, 1/2-in. diameter Strong-Bolt 2, 1/4-in. diameter Titen HD, or 1/4-in. diameter Titen Turbo™
- Made from 12-gauge (97 mil) steel
- Galvanized (G90) for corrosion resistance
- Size: 2 in. x 2 in. x 3 in.
- Quantity: 90
Install With: Install with (1) 1/2-in. diameter anchor screw or bolt OR (2) 1/4-in. concrete screws into concrete, AND 4 or 6 screws into stud
