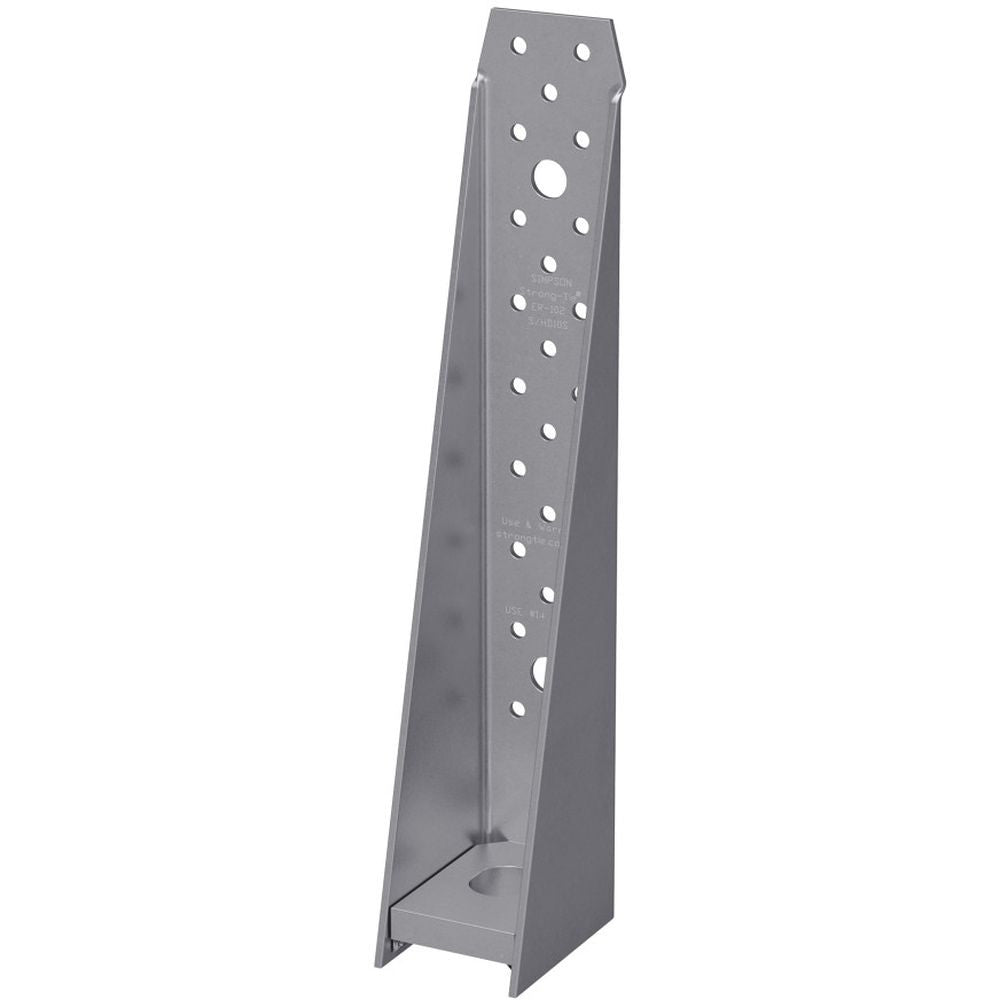

Simpson Strong-Tie S/HD10S S/HDS 13-1/2-in. 10-Gauge Steel Holdown
Simpson Strong-Tie S/HD10S S/HDS 13-1/2-in. 10-Gauge Steel Holdown
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern.
- Features a unique seat that greatly minimizes deflection under load.
- The S/HDS model is designed for installation with screws. Refer to S/HDB for attachment to post/column with bolts.
- Height: 13-1/2 in.
- Width: 2-5/16 in.
- Made from 10-gauge (118 mil) steel
- Simpson Strong-Tie gray paint finish
The S/HDS is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications. The holdown features a unique seat that greatly minimizes deflection under load. The S/HDS has been designed to utilize fewer fasteners and reduce installation time.
- Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern.
- Features a unique seat that greatly minimizes deflection under load.
- The S/HDS model is designed for installation with screws. Refer to S/HDB for attachment to post/column with bolts.
- Height: 13-1/2 in.
- Width: 2-5/16 in.
- Made from 10-gauge (118 mil) steel
- Simpson Strong-Tie gray paint finish
Install With: Installs with #14 screws and has been designed to utilize fewer fasteners to reduce installation time
