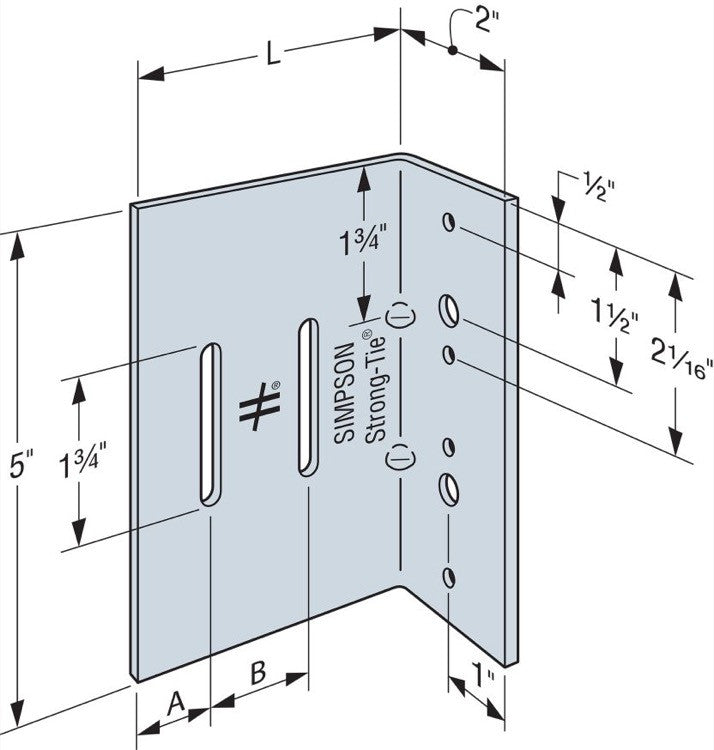

Simpson Strong-Tie SC32-5/97-KT25 SC 3-1/2-in. 12 ga. Bypass Framing Slide-Clip Connector w/ Screws, 25-Pack

• Provides a full 3/4 in. of both upward and downward deflection
• Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
• Prepunched large-diameter anchor holes accommodate 1/4 in. diameter concrete screws like the Simpson Strong-Tie Titen HD
• Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive XL Large-Head Metal screw
• Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
• 3-1/2 in. clip length, suitable for 3-5/8 in. stud; the maximum standoff distance is 1 in. for 3-5/8 in. studs
• Made from 97 mil (12 ga.) steel; 50 ksi
• Quantity: 25 connectors per package

Ideal for high-seismic areas, Simpson Strong-Tie SC connectors are the optimal solution for slide-clip bypass framing. SC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to anchorage versatility, the SC clips include No-Equal stamps at the center of the slots to ensure proper shouldered screw placement. SC connectors are manufactured using heavy-duty steel to provide exceptional resistance to in-plane seismic load.

• Provides a full 3/4 in. of both upward and downward deflection
• Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
• Prepunched large-diameter anchor holes accommodate 1/4 in. diameter concrete screws like the Simpson Strong-Tie Titen HD
• Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive XL Large-Head Metal screw
• Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
• 3-1/2 in. clip length, suitable for 3-5/8 in. stud; the maximum standoff distance is 1 in. for 3-5/8 in. studs
• Made from 97 mil (12 ga.) steel; 50 ksi
• Quantity: 25 connectors per package

Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
