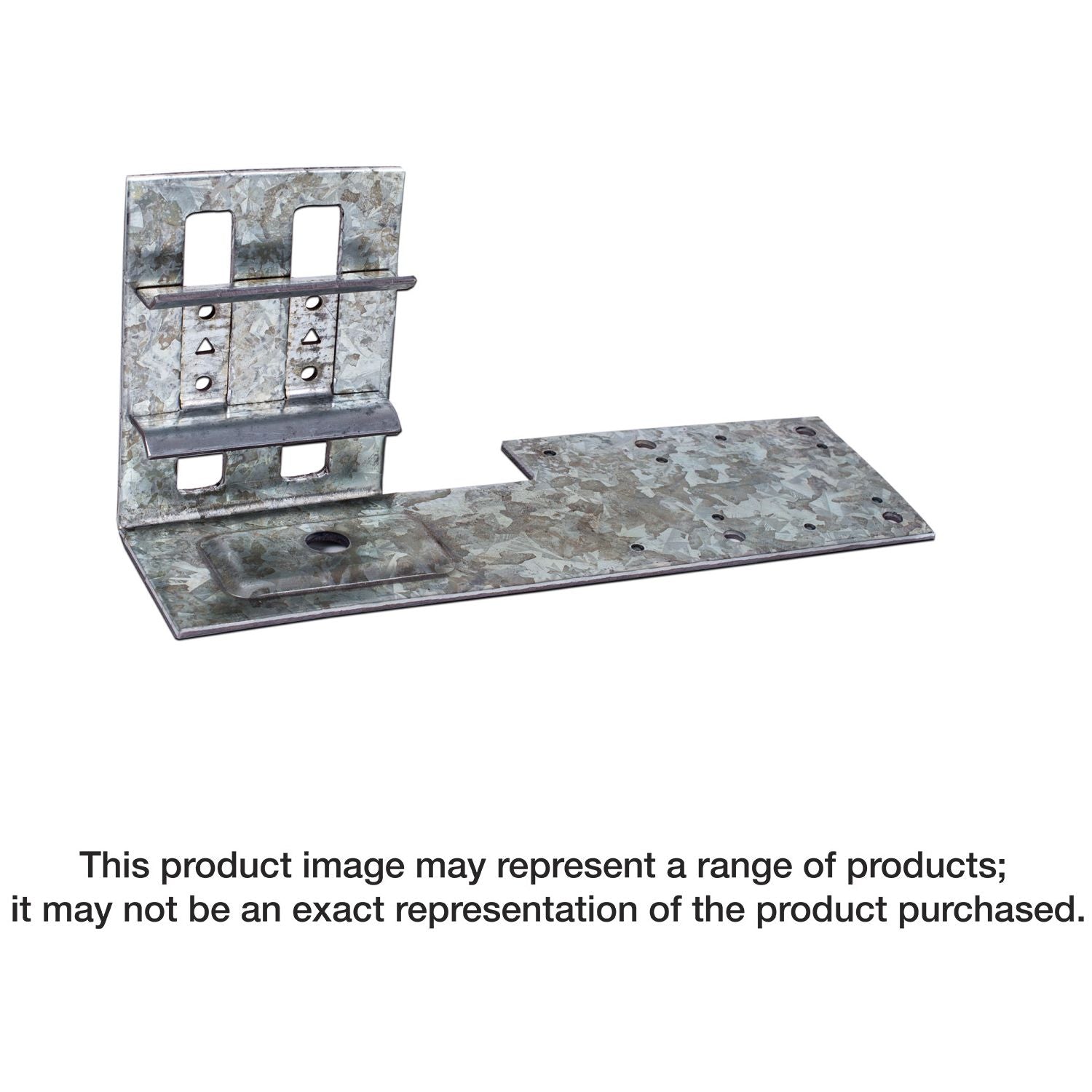

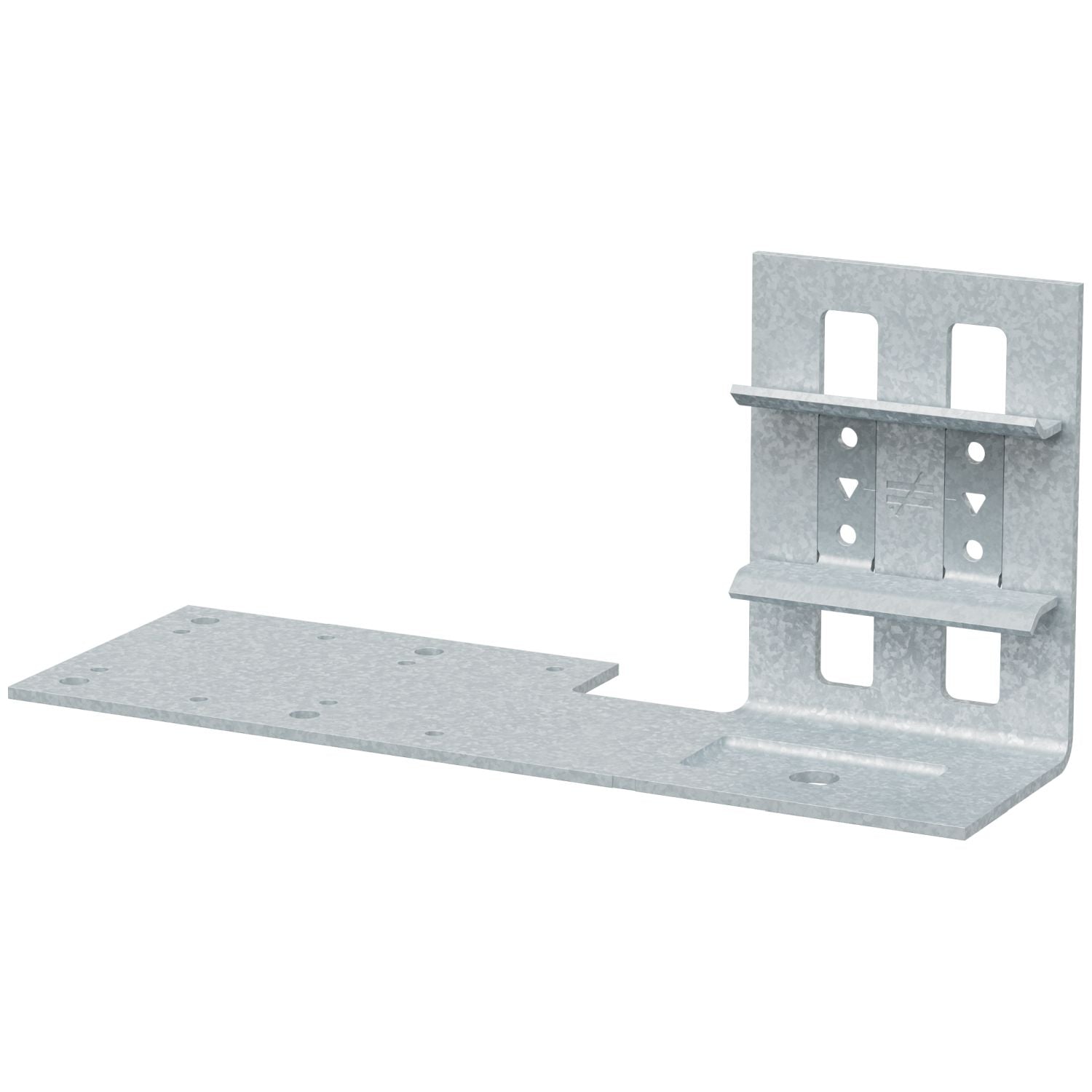

Simpson Strong-Tie SCHA10.75L-KT15 SCHA 10-3/4-in. Slide-Clip Connector for Horizontal Anchorage, Left-Facing, 15-Pack
Simpson Strong-Tie SCHA10.75L-KT15 SCHA 10-3/4-in. Slide-Clip Connector for Horizontal Anchorage, Left-Facing, 15-Pack
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- SCHA left-facing clip; for right-facing clip, see model SCHA10.75-KT15
- Provides a full 1 in. of both upward and downward movement
- Either face of anchorage leg can be used against the support
- Accommodates standoff distances up to 4-3/4 in.
- Can be used with 3-5/8 in., 4 in., 6 in. and 8 in. studs
- Prepunched anchor holes accommodate 1/4 in. diameter Titen HD or other 1/4 in. diameter concrete screw anchors, and 0.157 in. diameter powder-actuated fasteners such as the Simpson Strong-Tie PDPAT-62KP
- Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
- SCHA made from 118 mil (10 ga.) steel (33 ksi); SCVS made from 97 mil (12 ga.) steel (33 ksi)
- Quantity: 15 connectors and sliders per package
Simpson Strong-Tie cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. The SCHA connector is an ideal solution for panelized or stick-frame construction where the CFS framing anchors to the top of a concrete floor slab or the bottom of a steel beam. The connector features a wide support leg to decrease eccentricity on anchors and provide a variety of anchorage options. The included SCVS vertical slider helps to strengthen the connector for higher tension and compression loads.
- SCHA left-facing clip; for right-facing clip, see model SCHA10.75-KT15
- Provides a full 1 in. of both upward and downward movement
- Either face of anchorage leg can be used against the support
- Accommodates standoff distances up to 4-3/4 in.
- Can be used with 3-5/8 in., 4 in., 6 in. and 8 in. studs
- Prepunched anchor holes accommodate 1/4 in. diameter Titen HD or other 1/4 in. diameter concrete screw anchors, and 0.157 in. diameter powder-actuated fasteners such as the Simpson Strong-Tie PDPAT-62KP
- Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
- SCHA made from 118 mil (10 ga.) steel (33 ksi); SCVS made from 97 mil (12 ga.) steel (33 ksi)
- Quantity: 15 connectors and sliders per package
Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
