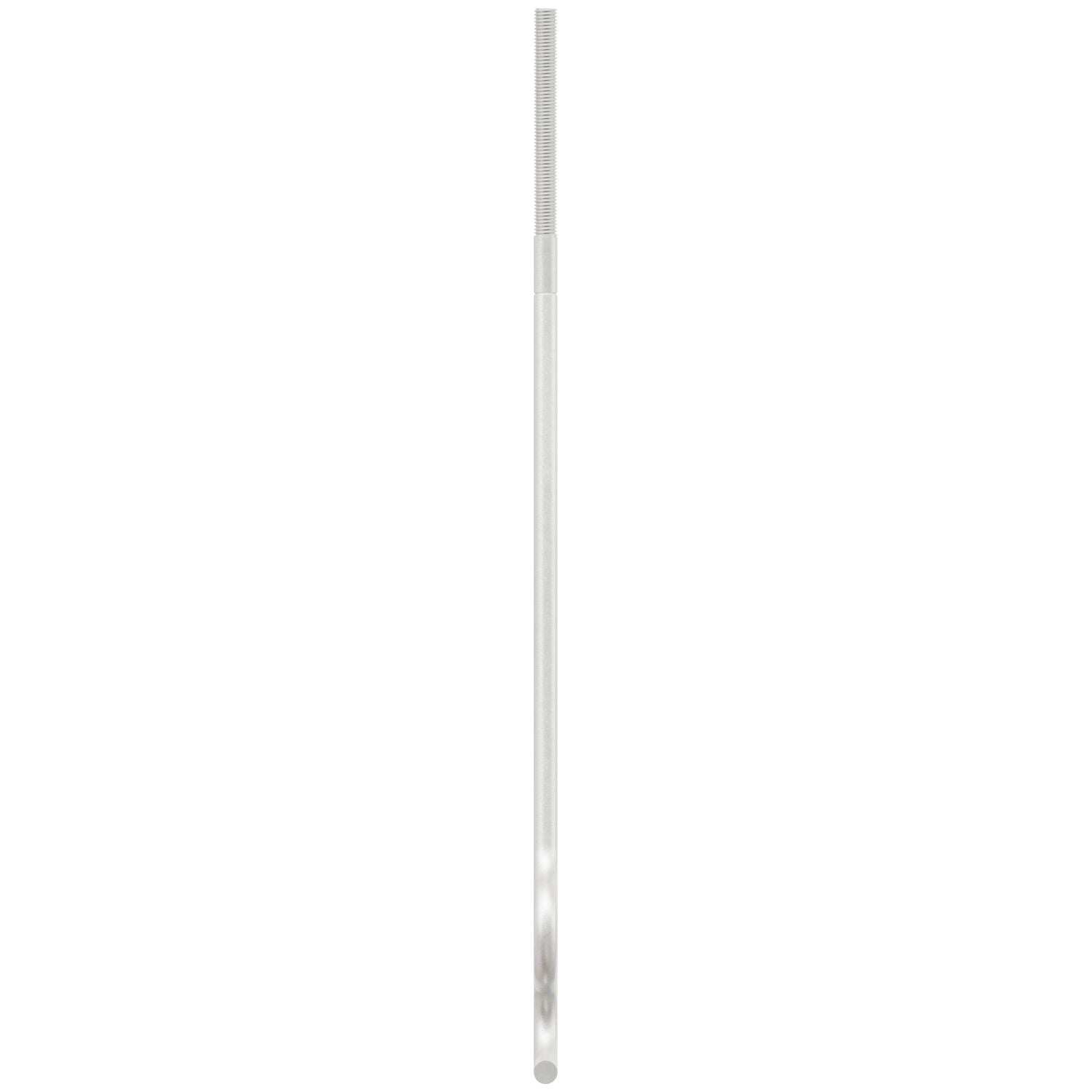

Simpson Strong-Tie SSTB24LHDG SSTB 5/8-in. x 28-1/8-in. Hot-Dip Galvanized Anchor Bolt
Simpson Strong-Tie SSTB24LHDG SSTB 5/8-in. x 28-1/8-in. Hot-Dip Galvanized Anchor Bolt
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- SSTB is suitable for monolithic and two-pour concrete applications
- Diameter: 5/8 in.
- Length: 28-1/8 in.
- Thread Length: 6 in.
- Material: ASTM F-1554, Grade 36
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie Strong-Wall shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC and IRC.
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- SSTB is suitable for monolithic and two-pour concrete applications
- Diameter: 5/8 in.
- Length: 28-1/8 in.
- Thread Length: 6 in.
- Material: ASTM F-1554, Grade 36
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Install With: Nuts and washers for holdown attachment are not supplied with the SSTB; on HDG SSTB anchors, chase the threads to use standard nuts or couplers
