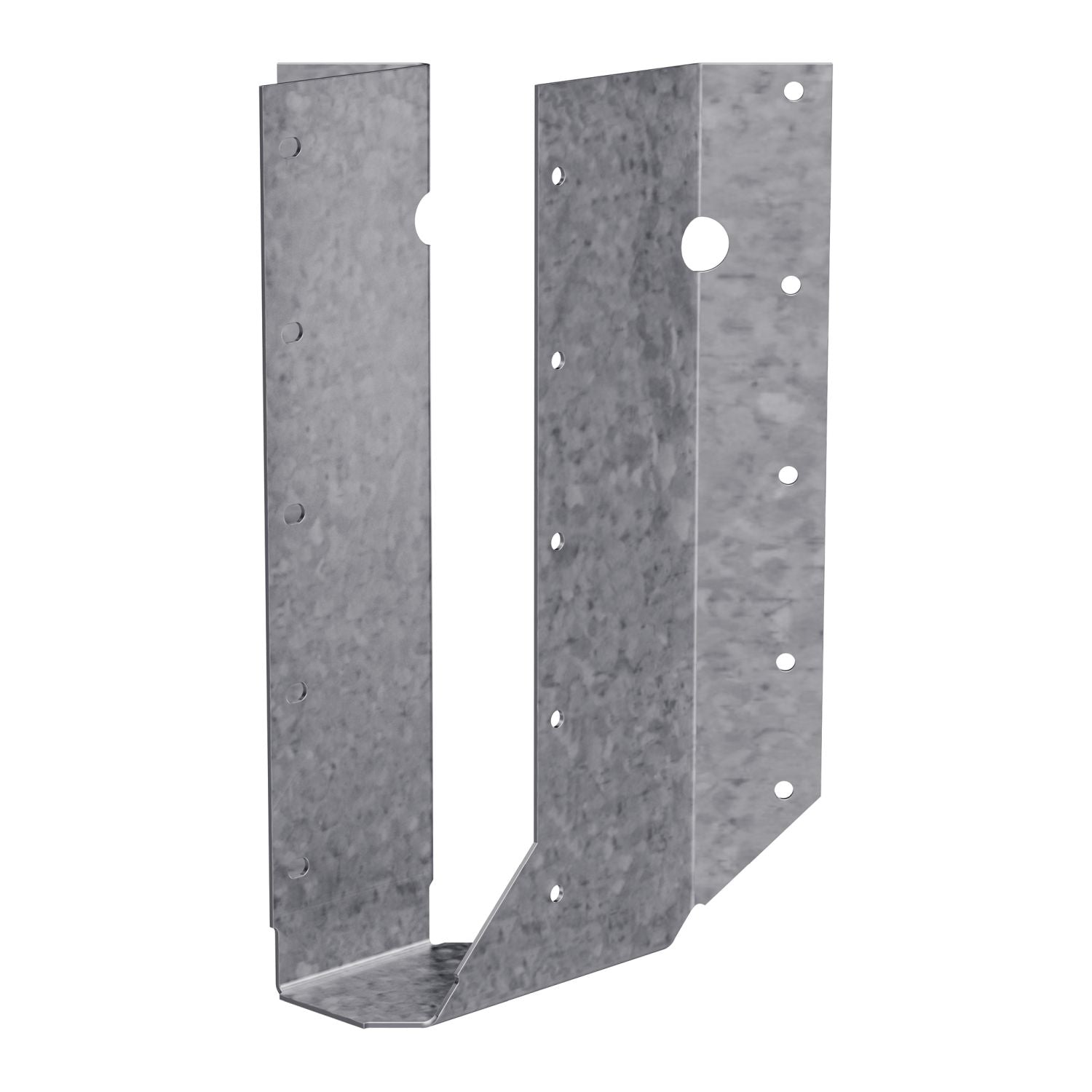

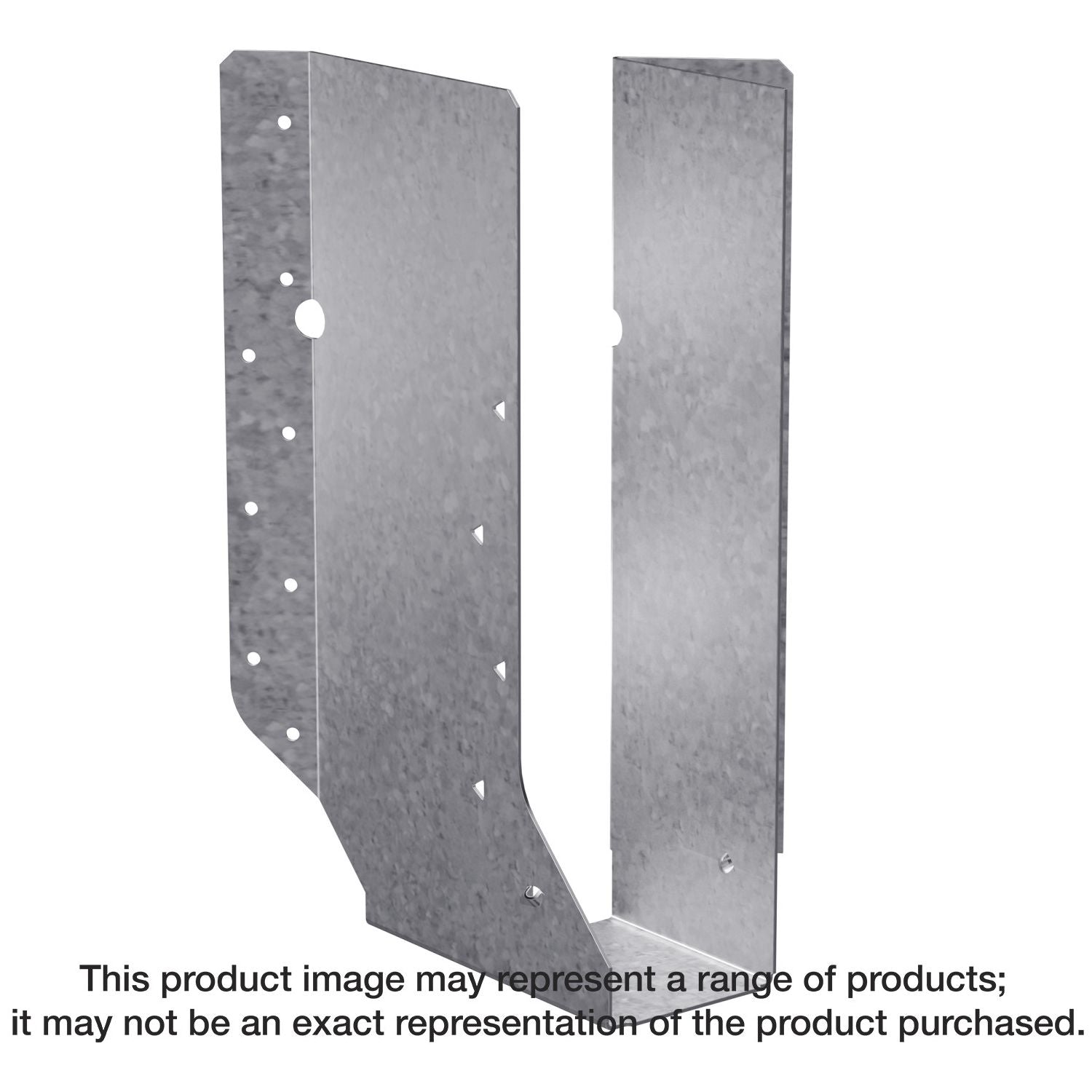

Simpson Strong-Tie SUL210 SUL Galvanized Joist Hanger for 2x10, Skewed Left
Simpson Strong-Tie SUL210 SUL Galvanized Joist Hanger for 2x10, Skewed Left
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
- Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
- The joist end may be square cut or bevel cut
- Nominal joist size: 2x10 or 2x12
- Galvanized (G90) for extra corrosion resistance
The SUR/L are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
- Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
- The joist end may be square cut or bevel cut
- Nominal joist size: 2x10 or 2x12
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
