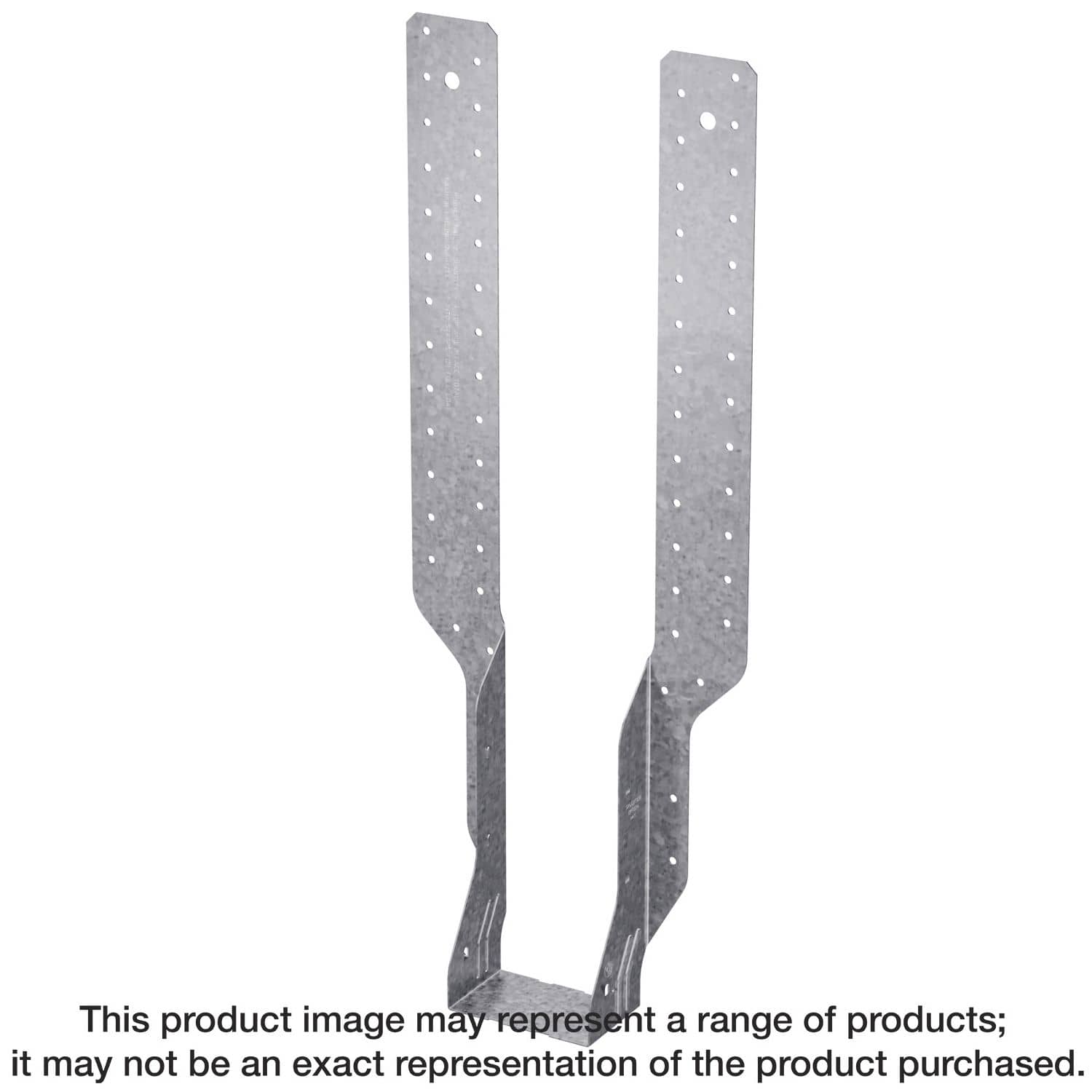

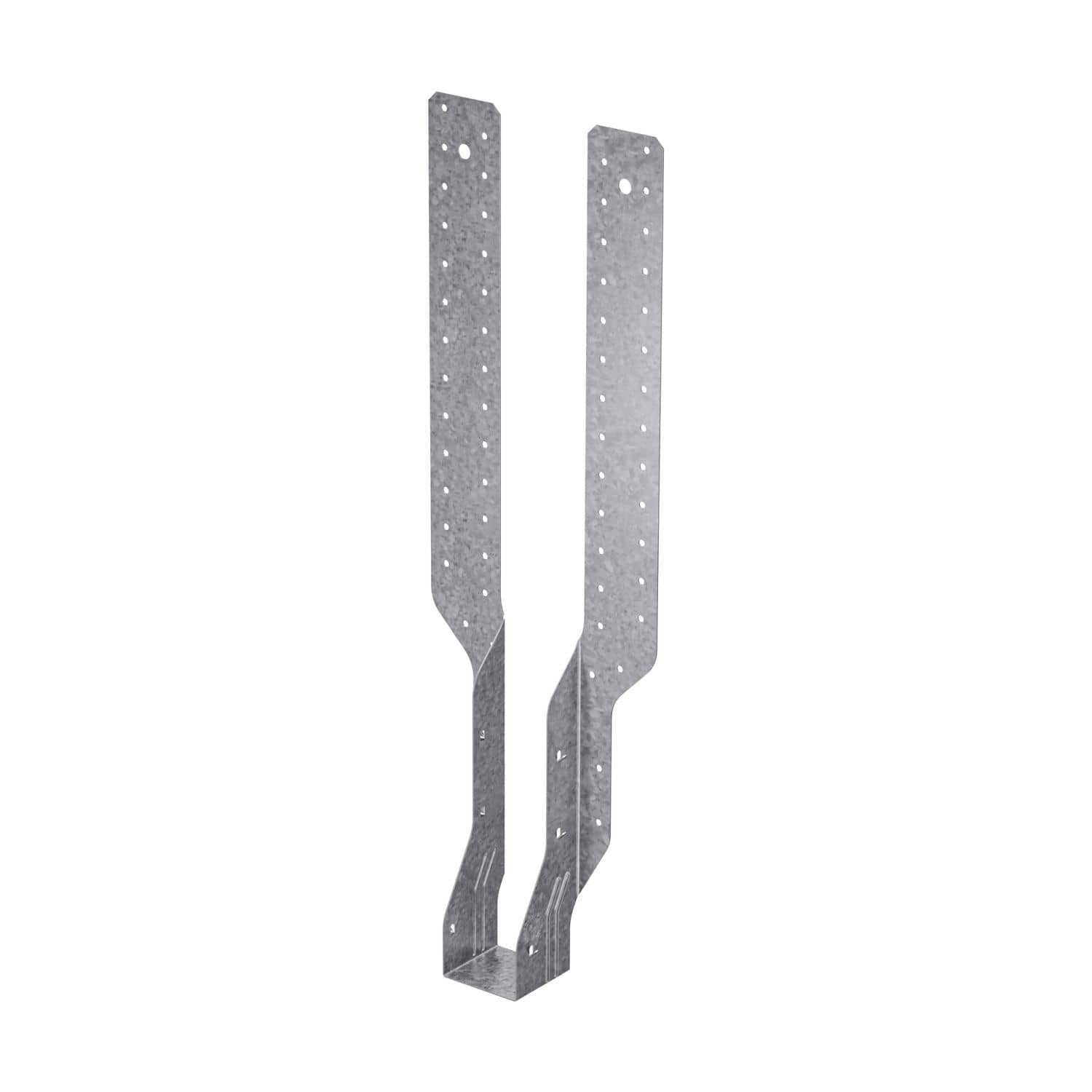

Simpson Strong-Tie THAI3522 THAI Galvanized Adjustable Truss Hanger for 2-1/4-in. to 2-5/16-in. Engineered Wood
Simpson Strong-Tie THAI3522 THAI Galvanized Adjustable Truss Hanger for 2-1/4-in. to 2-5/16-in. Engineered Wood
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Positive-angle nailing (PAN) helps eliminate splitting of the I-joist's bottom flange
- Joist width: 2-1/4 in. to 2-5/16 in.
- Joist depth: 9-1/4 in. to 14 in.
- Seat width: 2-5/16 in.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. Designed for I-joists, the THAI has extra long straps and can be field-formed to give height adjustability and top-flange hanger convenience.
- Positive-angle nailing (PAN) helps eliminate splitting of the I-joist's bottom flange
- Joist width: 2-1/4 in. to 2-5/16 in.
- Joist depth: 9-1/4 in. to 14 in.
- Seat width: 2-5/16 in.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: (6-20) 0.148 in. x 3 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist
