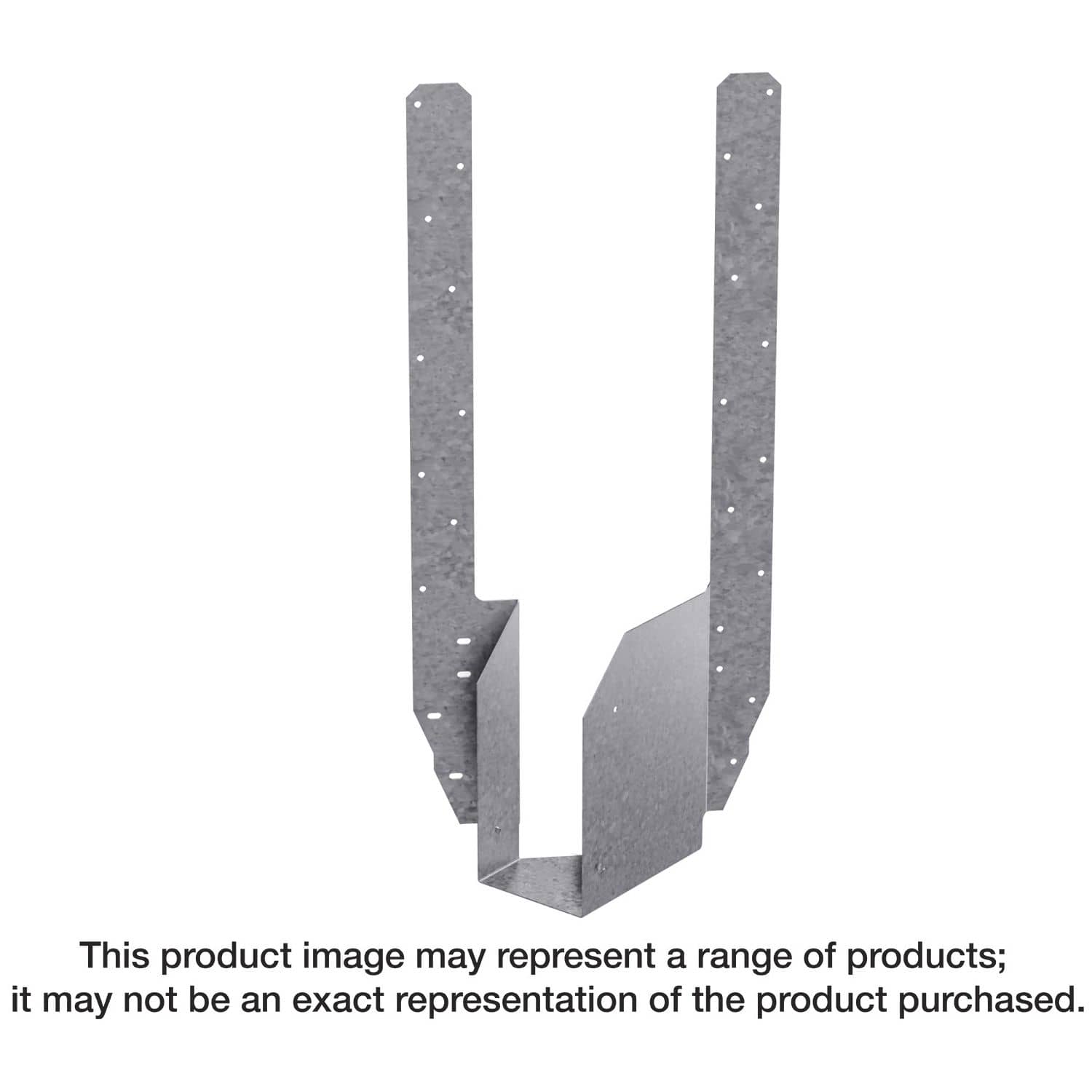

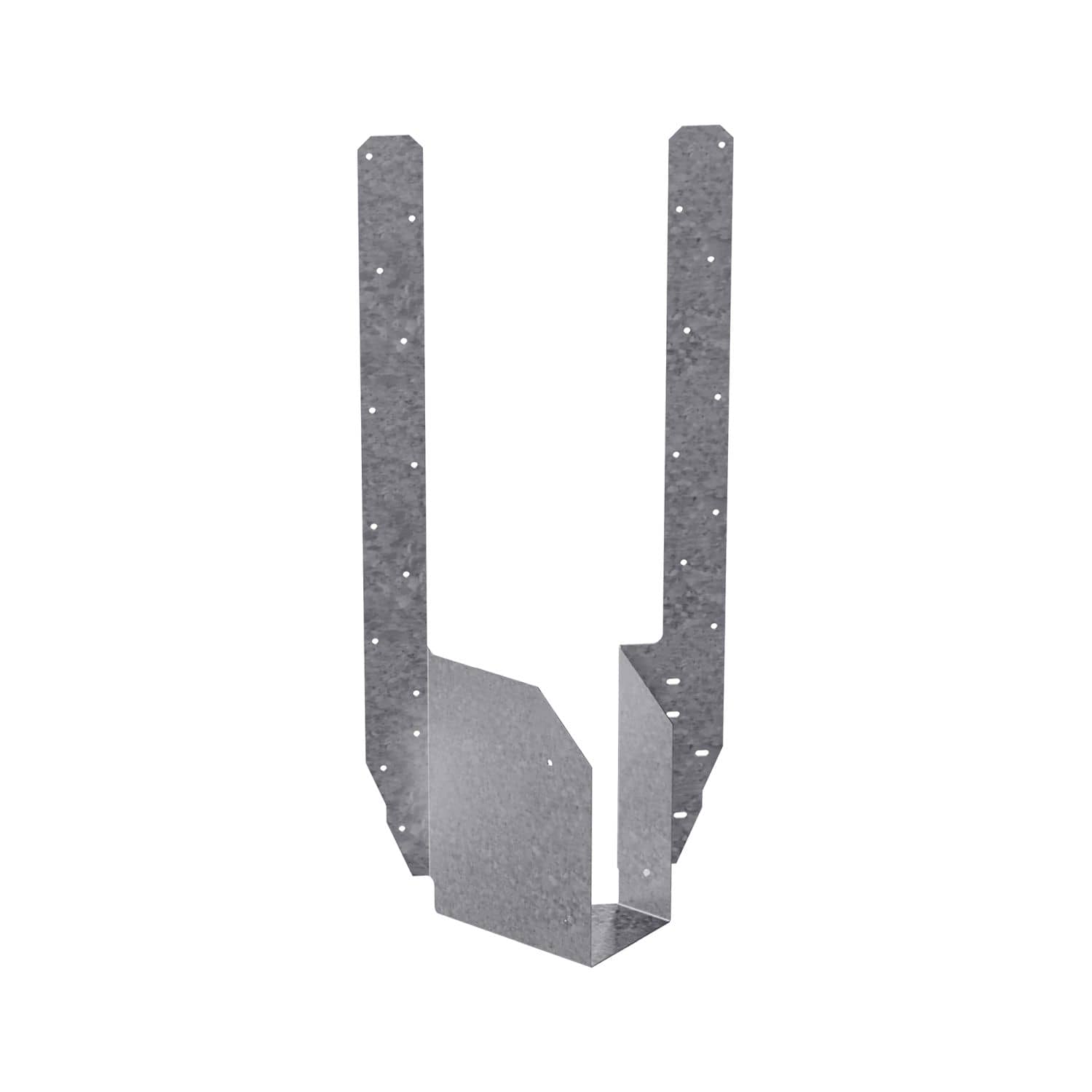

Simpson Strong-Tie THAR422 THAR 22-5/8-in. Galvanized Adjustable Hanger for 4x Floor Truss, Skewed Right 45°
Simpson Strong-Tie THAR422 THAR 22-5/8-in. Galvanized Adjustable Hanger for 4x Floor Truss, Skewed Right 45°
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Eliminates the need for special orders
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Skewed right; for skewed-left hanger, order THAL422
- Minimum carried member: 4x10
- Seat width: 3-5/8 in.
- Height: 22-5/8 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
The THAR/THAL is designed to support 4x2 trusses and 4x beams. This versatile U-shaped truss hanger features positive-angle nailing (PAN) to help eliminate splitting of truss bottom chords. The field-adjustable THAR has a 45° skew to the right, while the THAL has a 45° skew to the left.
- Eliminates the need for special orders
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Skewed right; for skewed-left hanger, order THAL422
- Minimum carried member: 4x10
- Seat width: 3-5/8 in.
- Height: 22-5/8 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: 0.148 x 1-1/2 in. nails and 0.148 in. x 3 in. nails
