Simpson Strong-Tie THASR29-2 THASR Galvanized Adjustable Truss Hanger for Double 2x9, Skewed Right
Simpson Strong-Tie THASR29-2 THASR Galvanized Adjustable Truss Hanger for Double 2x9, Skewed Right
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Eliminates the need for special orders
- Replaces the former THASR218-2
- One acute side bend line to ease design and installation
- Joist fasteners are only required from one side for skews greater than 22-1/2°
- Rated for installation with either nails or Simpson Strong-Tie Strong-Drive SD Connector screws
- Minimum carried member: Double 2x truss
- Width: 3-1/8 in.
- Height: 9-7/8 in.
- Made from 16-gauge steel

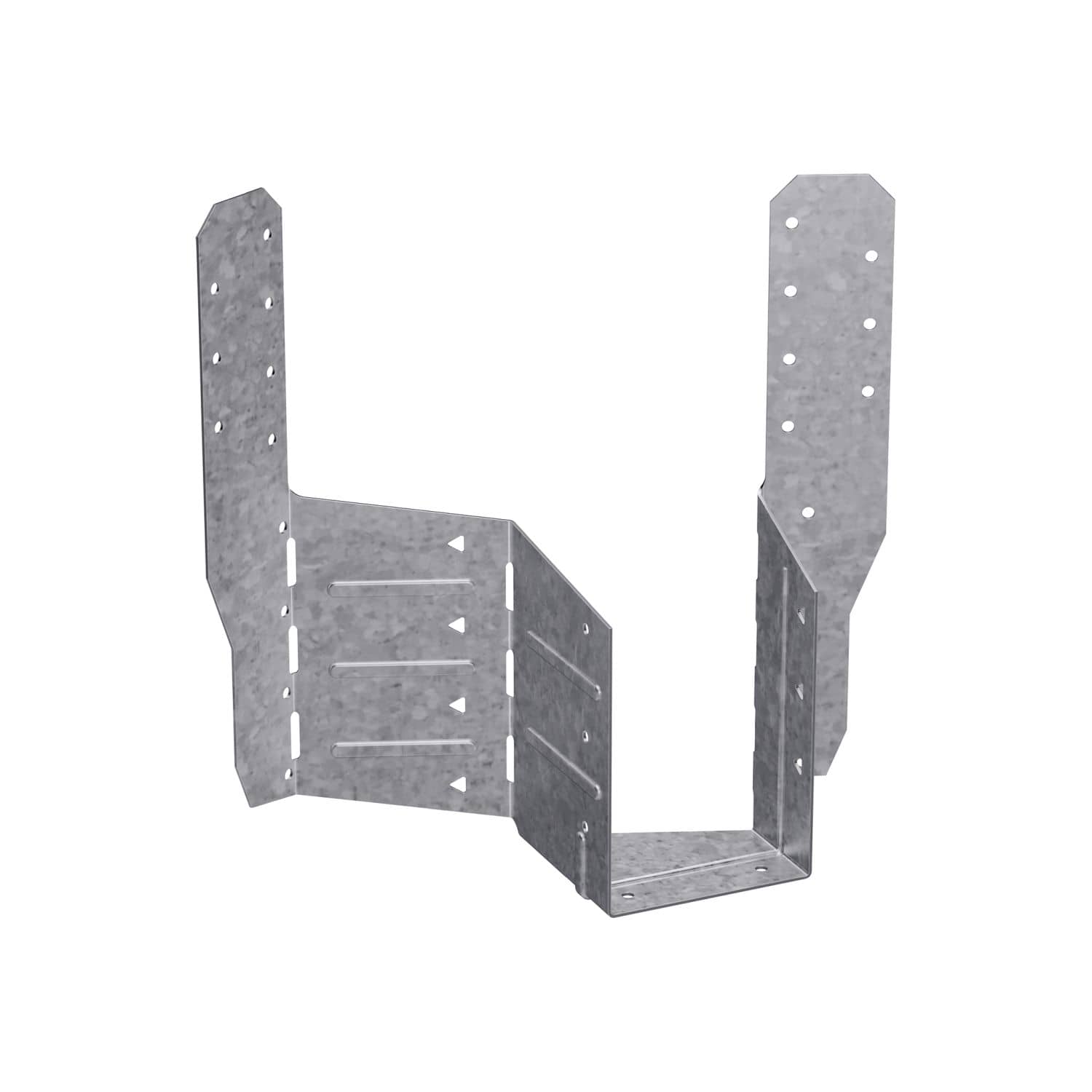

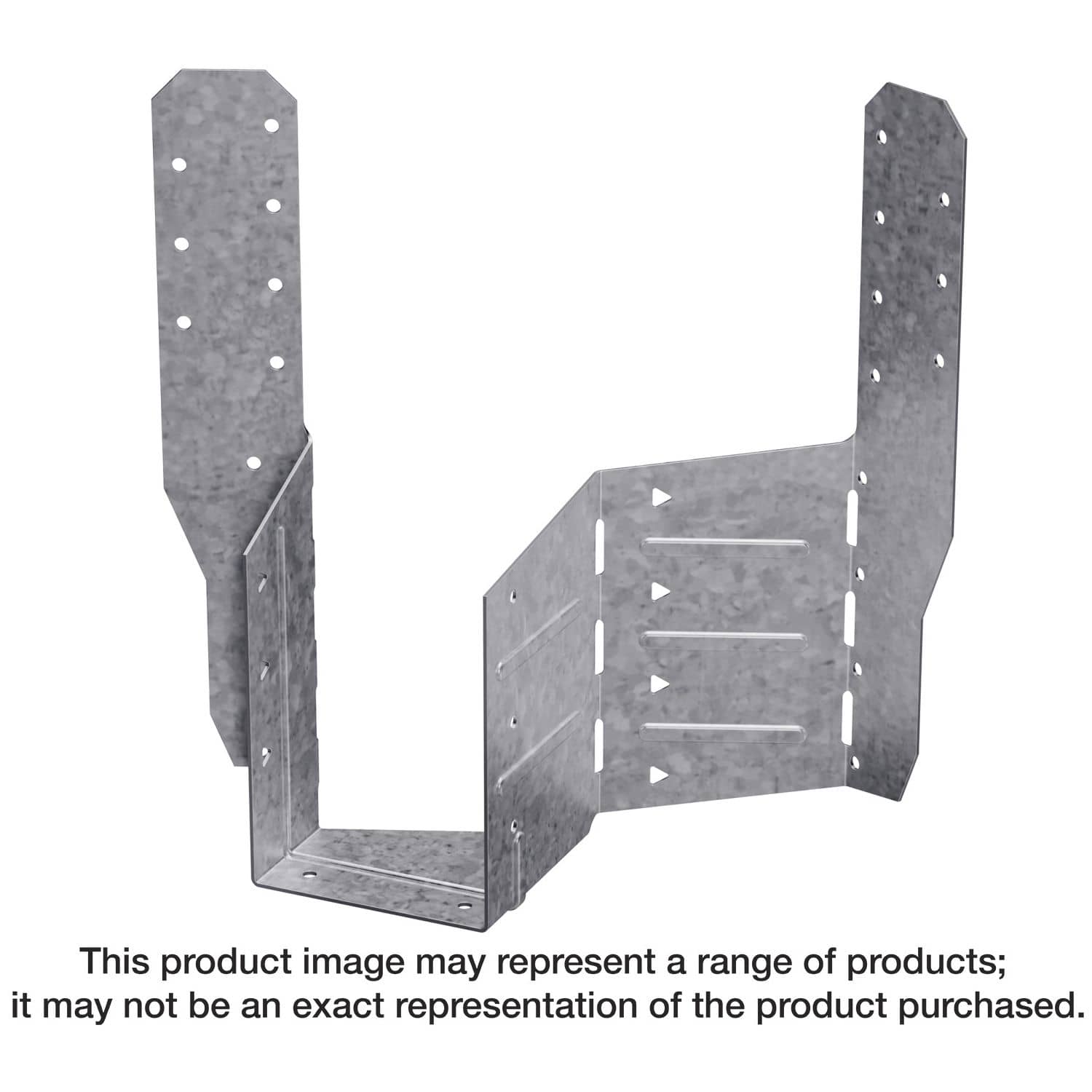

The THASR/L is designed to support trusses and beams. This versatile U-shaped hanger combines the height adjustability of the THA with field adjustability. These key features provide maximum flexibility for the installer. Shipped at 22-1/2° right or left, the THASR/L hangers can be field-skewed from 22-1/2° to 75°.
- Eliminates the need for special orders
- Replaces the former THASR218-2
- One acute side bend line to ease design and installation
- Joist fasteners are only required from one side for skews greater than 22-1/2°
- Rated for installation with either nails or Simpson Strong-Tie Strong-Drive SD Connector screws
- Minimum carried member: Double 2x truss
- Width: 3-1/8 in.
- Height: 9-7/8 in.
- Made from 16-gauge steel
Install With: (12) 0.148 in. x 3 in. nails in the header and (5-8) 0.148 in. x 3 in. nails in the joist OR (12) #9 x 2-1/2 in. Strong-Drive SD Connector screws in the header and (5-8) #9 x 2-1/2 in. Strong-Drive SD Connector screws in the joist
