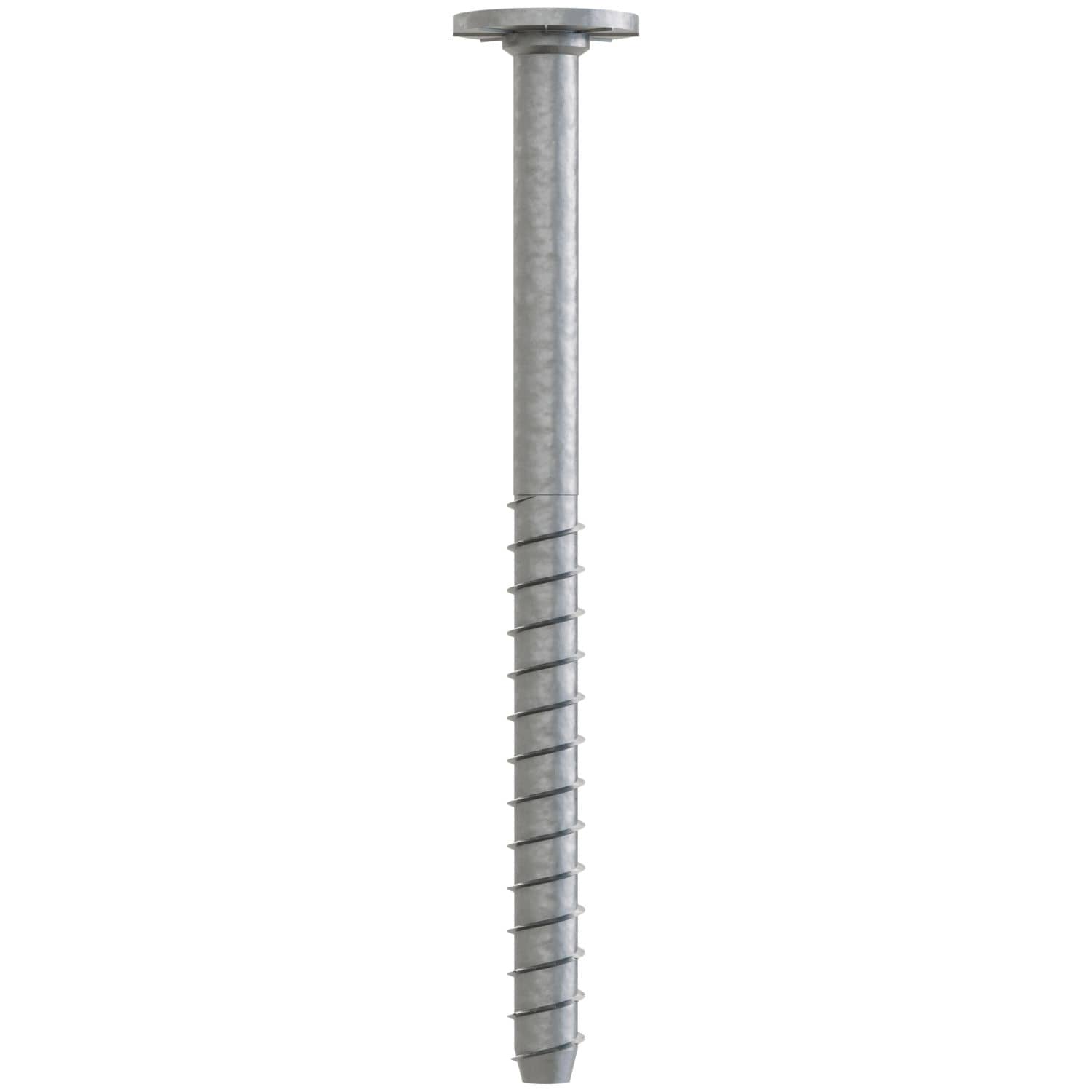

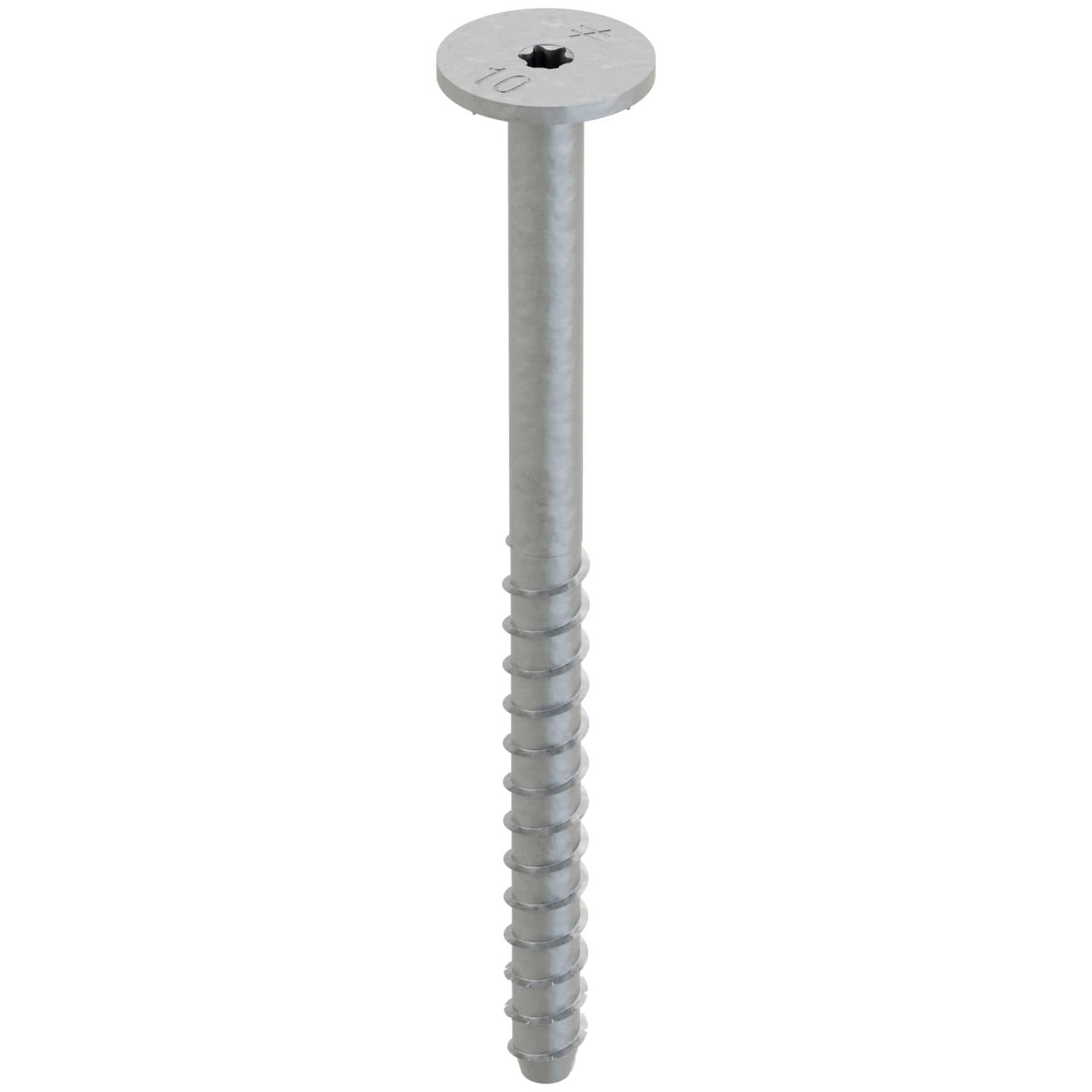

Simpson Strong-Tie THDB62100WHMG Titen HD 5/8-in. x 10-in. Mech. Galv. Washer-Head Heavy-Duty Screw Anchor, 10-Pack
Simpson Strong-Tie THDB62100WHMG Titen HD 5/8-in. x 10-in. Mech. Galv. Washer-Head Heavy-Duty Screw Anchor, 10-Pack
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- For added convenience, a 1/2-in. socket adapter and two T-drive bits included in each box
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- Washer head allows screw anchor applications incompatible with a hex head
- Mechanically galvanized Titen HD is code listed for exterior applications
- Anchor size: 5/8 in. x 10 in.
- Quantity: 10 per package

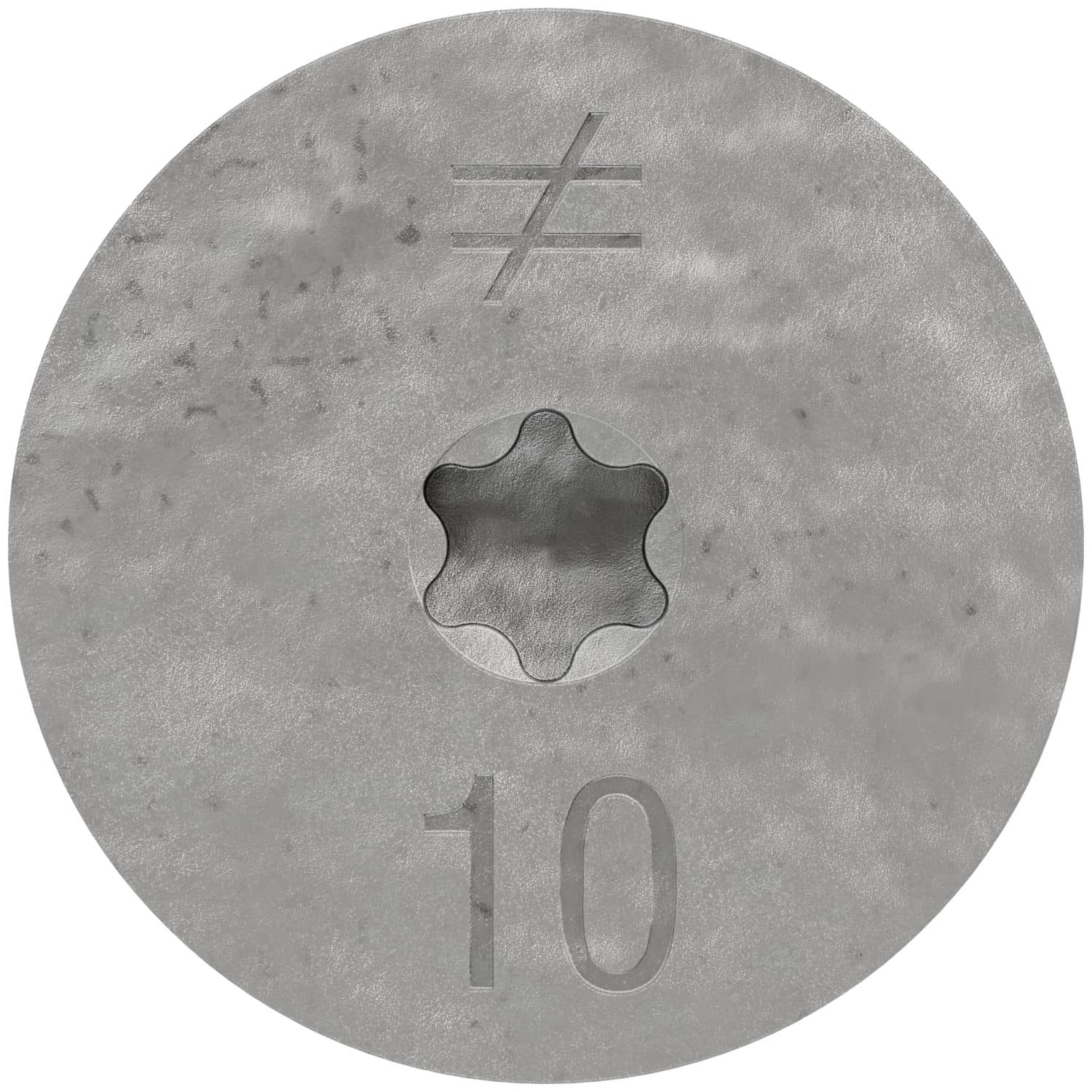

The Simpson Strong-Tie Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor's 6-lobe drive eases driving and is less prone to stripping.
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- For added convenience, a 1/2-in. socket adapter and two T-drive bits included in each box
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- Washer head allows screw anchor applications incompatible with a hex head
- Mechanically galvanized Titen HD is code listed for exterior applications
- Anchor size: 5/8 in. x 10 in.
- Quantity: 10 per package
