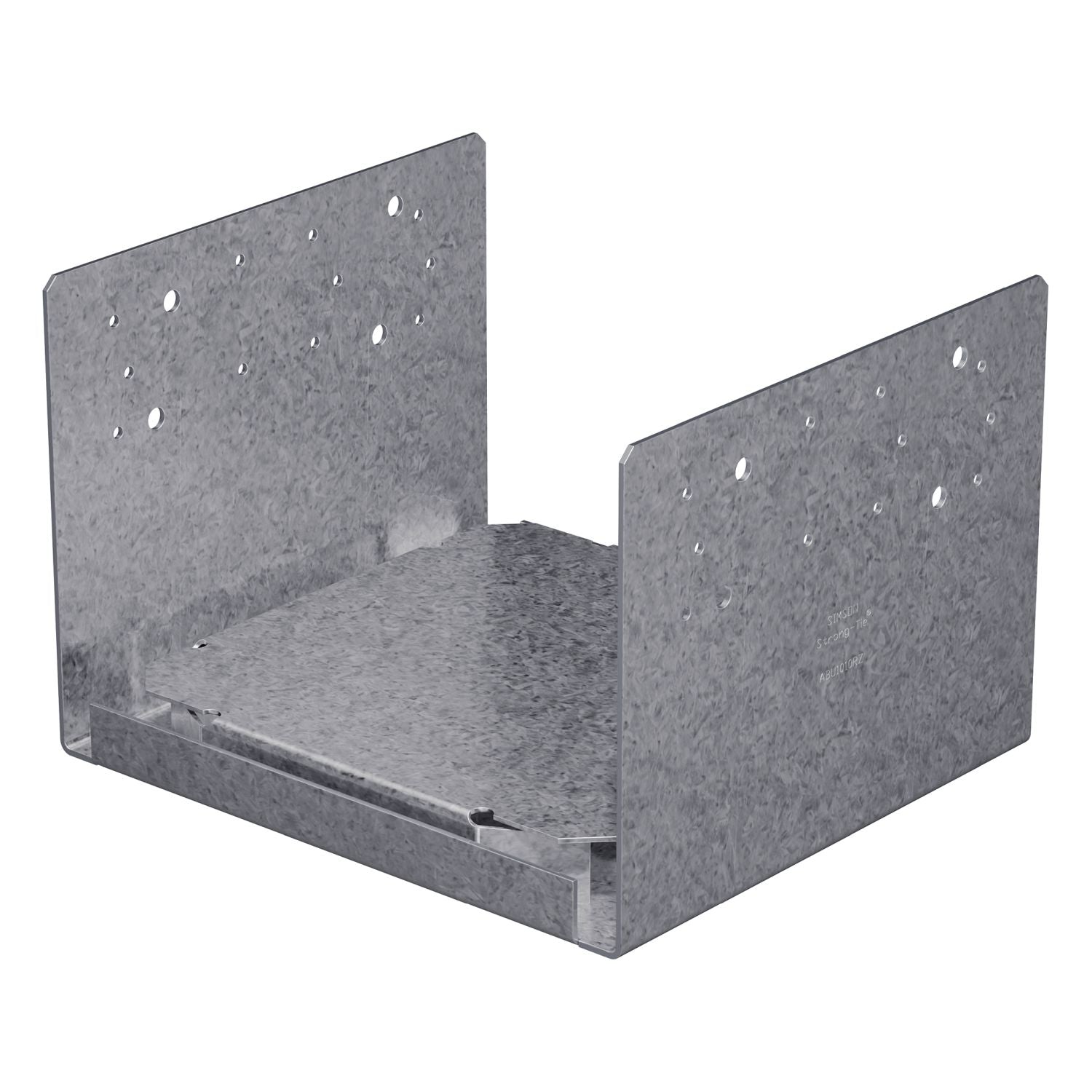

The Simpson Strong-Tie ABU1010RZ Adjustable Post Base is a retrofit post base for attaching a rough 10x10 wood post to existing concrete. This is a post base designed for high-capacity wood-to-concrete post connections. Model Number: ABU1010RZ. If you're building or repairing a deck, patio cover, or other top-supported structure and need a clean way to anchor a large post to cured concrete, this is the hardware that handles that job.

What makes the ABU series useful in the real world is the slotted anchor hole in the base. On paper that sounds simple, but on the job it means you get some movement around the anchor bolt so you can line up the post where it needs to be instead of being locked into one exact bolt location. That saves time during layout, especially when working with existing footings or retrofit conditions where concrete is already in place and perfection is not guaranteed.

This model is sized for a rough 10x10 post and uses a 14-gauge steel body with a ZMAX finish. For exterior framing and treated lumber work, that corrosion-resistant coating matters. It is built for deck and post-to-footing applications where hardware needs to hold up outdoors and keep doing its job after the structure is loaded.

The built-in 1 inch standoff is another feature that matters more than it first appears. By lifting the post off the concrete, the base helps reduce moisture contact at the end grain. That is important in basements, exposed outdoor locations, and anywhere water can sit or splash at the bottom of the post. It also helps the connection meet code requirements called out by Simpson Strong-Tie for structural posts in those conditions.

For fastening, the ABU1010RZ is designed to work with a retrofit anchor in concrete and with post fasteners through the side plates. Load data for this model calls out (2) 5/8 inch anchor diameters at the base and (22) 0.162 x 3-1/2 inch nails for the post connection. Simpson also states that installation can be done with nails, Strong-Drive SD Connector screws, or bolts, depending on the approved installation for the application. In other words, this is not decorative hardware. It is structural connection hardware that needs to be installed with the specified fasteners.

Capacity is the reason someone steps up to this style of base. For the ABU1010RZ, published allowable loads list 1,830 lb uplift and 31,650 lb download in the referenced load table. That makes it a strong fit for bigger posts and heavier supported assemblies where a light-duty post bracket is not enough. It is also specifically noted by Simpson Strong-Tie as having increased uplift loads for earthquake or wind loading.

As far as use case goes, this base is meant for top-supported structures such as decks and patio covers. Simpson Strong-Tie specifically notes that post bases do not provide adequate resistance to prevent members from rotating about the base, so they are not recommended for non-top-supported installations like fences or unbraced carports. That is an important distinction and one worth paying attention to before ordering hardware.

If you are framing with rough-sawn or true-size 10x10 material and need a heavy-duty retrofit post base that gives you adjustability during placement, this is the right kind of connector. It is best suited to deck builders, general contractors, remodelers, and serious DIYers working on structural exterior wood framing where post alignment, uplift resistance, and moisture separation all matter.

Why the Simpson Strong-Tie ABU1010RZ Adjustable Post Base Earns Its Keep

If you're anchoring a rough 10x10 post to existing concrete and you want adjustability, uplift performance, and a proper standoff in one connector, this is the one you buy instead of trying to make a lighter bracket do a heavy job.

• Who it's for: Deck builders, framing contractors, remodelers, and serious DIYers working on structural post connections in cured concrete.
• Why it stands out: The slotted base makes placement easier, the 1 inch standoff helps with moisture separation, and the published load numbers put it in serious structural territory.
• Worth knowing: This is for top-supported structures, not free-standing posts that can rotate at the base, and it needs the specified fasteners and anchors to perform the way the load table says it will.

• What size post does this base fit? This model is sized for a rough 10x10 wood post.
• Is this a retrofit post base? Yes. The ABU series is designed to attach wood posts to existing concrete.
• Can it be used where moisture is a concern? Yes. It has a built-in 1 inch standoff to keep the post end off the concrete, which helps in exposed or splash-prone conditions.
• Is it suitable for fences or other non-top-supported posts? No. Simpson Strong-Tie states that post bases like this are not recommended for non-top-supported installations because they do not provide adequate resistance to post rotation about the base.
