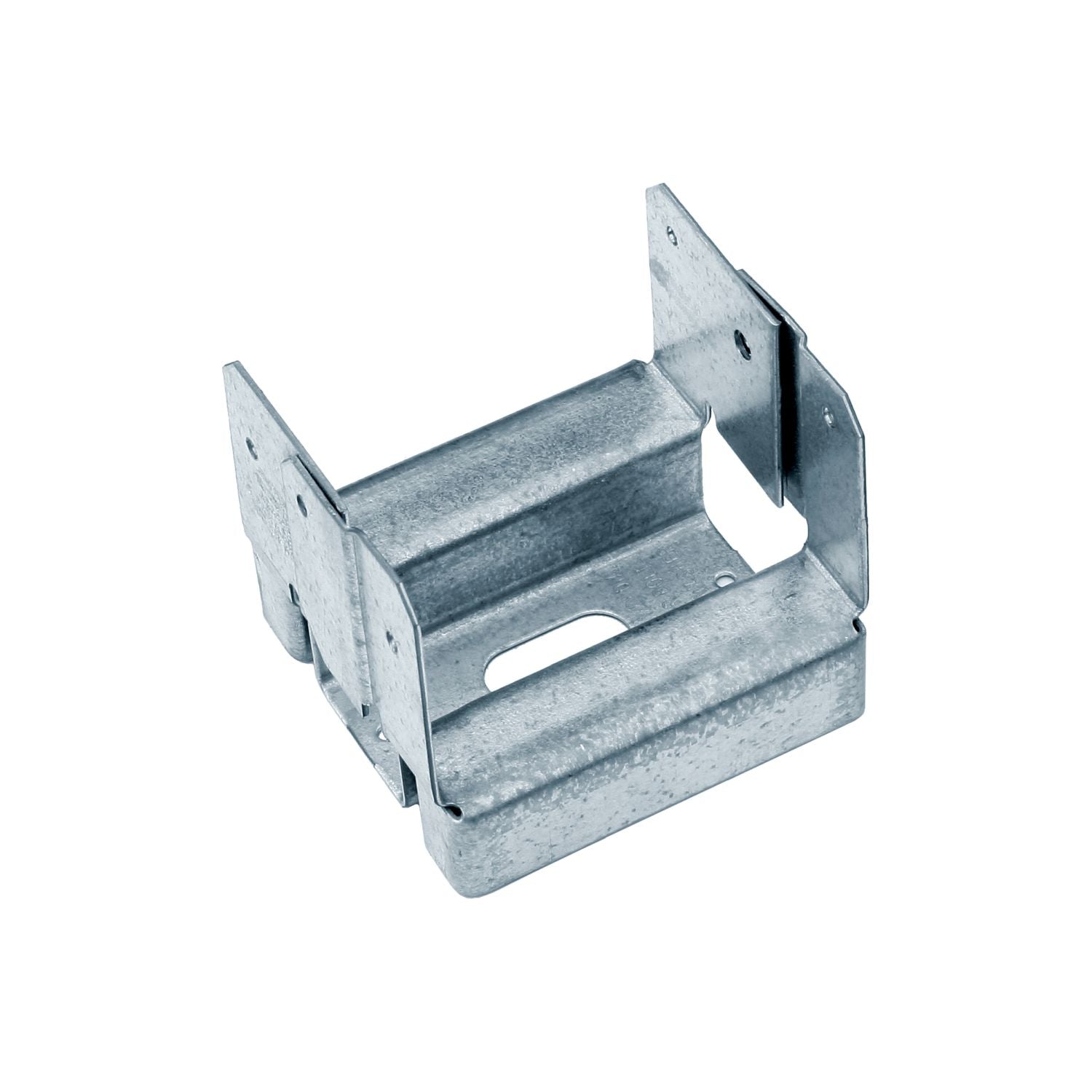

The Simpson Strong-Tie ABA44Z Adjustable Post Base is a retrofit post base for securing a nominal 4x4 wood post to existing concrete. This is a post base designed for attaching wooden posts to existing concrete footings or pads. Model Number: ABA44Z. If you are setting a structural post for a deck or similar top-supported build and need a cleaner way to work around an existing anchor bolt, this bracket is built for that job.

What separates the ABA44Z from a fixed base is the slotted anchor hole in the bottom. On a real install, that matters because anchor bolts are not always dead-on. The slot gives you adjustment during placement, which helps you center the post and avoid fighting the hardware. Simpson also builds in a 1 inch standoff, so the bottom of the post stays up off the concrete instead of sitting in moisture.

For the ABA44Z size, Simpson lists a nominal post size of 4x4 and a 16-gauge steel body with ZMAX galvanization. The ZMAX finish is intended for added corrosion resistance, especially in exterior and treated-wood applications. In practical terms, that makes this a better fit for deck work, exposed framing, and other locations where the connector will see weather or splash.

Load data is where this connector earns its keep. Simpson lists allowable loads for the ABA44Z at 690 lb uplift and 5,925 lb download for DF/SP conditions, with a 1/2 inch anchor diameter. That makes it a solid choice when you need a post-to-footing connection that is more than just a piece of bent metal. It is still important to use the specified fasteners and install it in a top-supported assembly, because Simpson specifically notes these bases are not intended to keep a post from rotating in non-top-supported applications such as fences or unbraced carports.

Installation is straightforward if the concrete side is planned correctly. Simpson notes the base anchor must extend less than 1 inch from the concrete so it does not interfere with the standoff. Once the base is set over the anchor bolt, you can make final post placement adjustments, tighten the nut, and then fasten the post using the specified nails or approved Strong-Drive SD connector screws. For the ABA44Z, the listed nail schedule is (6) 0.148 x 3 in. nails.

In terms of size, the ABA44Z measures approximately 3-9/16 in. W x 3-3/8 in. L x 3-1/16 in. H. That keeps it compact while still fitting a standard 4x4 post. It is a good match for deck posts, porch posts, and similar structural wood-to-concrete retrofit connections where code-minded spacing from concrete and easier alignment both matter.

If you are a contractor, deck builder, or serious DIYer working on a post replacement or new top-supported structure over existing concrete, this is the kind of hardware that saves time and avoids rework. The ABA44Z is not flashy. It is just a smart connector that solves two common problems at once: keeping wood off concrete and giving you some adjustment around the anchor bolt.

Simpson Strong-Tie ABA44Z Adjustable Post Base: Small Part, Important Job

The Simpson Strong-Tie ABA44Z Adjustable Post Base is the kind of connector that makes a retrofit post install go smoother and last longer.

• Who it's for: Builders and homeowners setting nominal 4x4 structural posts on existing concrete for decks, porch work, and similar top-supported framing.
• Why it stands out: The slotted base helps with alignment, the 1 inch standoff keeps the post off the concrete, and the published uplift and download values give you real engineering data to work from.
• Worth knowing: This is not the bracket to use where the base has to stop the post from rotating by itself. Use it where the structure is top supported, and pay attention to anchor projection and the required fasteners.

• What size post does this fit? The ABA44Z is sized for a nominal 4x4 post.
• Can it be used on existing concrete? Yes. This is a retrofit post base designed to attach a wood post to existing concrete.
• Does it keep the post off the concrete? Yes. It has a built-in 1 inch standoff to raise the post above the concrete surface.
• What anchor size does it use? Simpson lists a 1/2 inch anchor diameter for the ABA44Z.
• Is it intended for free-standing posts like fences? No. Simpson notes that post bases like this are not recommended for non-top-supported installations because they do not provide adequate resistance to post rotation at the base.
