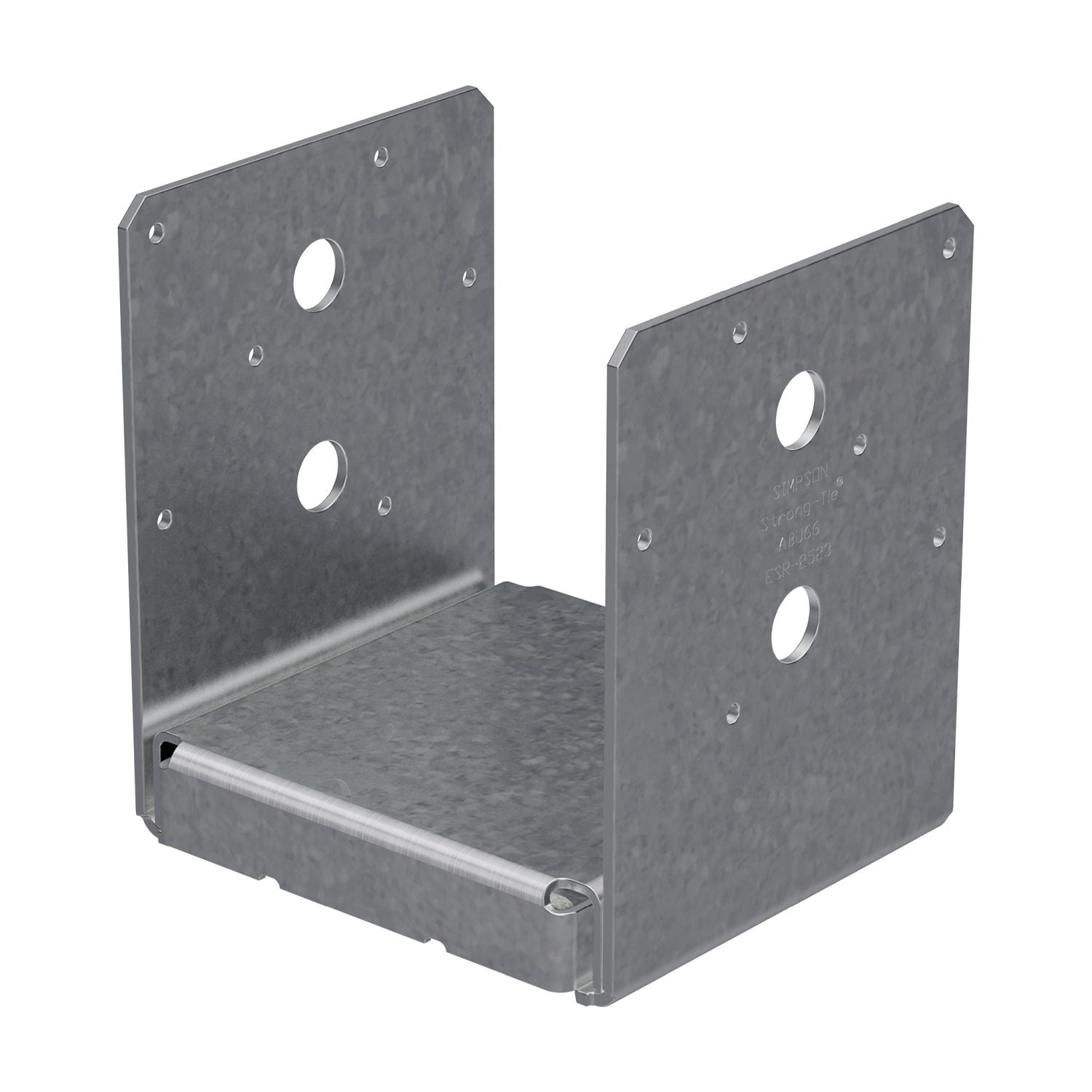

The Simpson Strong-Tie ABU66RZ Adjustable Standoff Post Base is a retrofit post base for attaching a rough 6x6 wood post to existing concrete. This is a post base designed for securing structural wood posts to concrete footings in high-capacity applications. Model Number: ABU66RZ. If you are building or repairing a deck, patio cover, pergola, or other top-supported structure and need a connector sized for true rough-cut 6x6 material, this is the right kind of hardware.

What makes the ABU66RZ useful on the job is the slotted anchor hole in the base. Instead of needing the anchor bolt in one exact spot, you get some adjustment room during installation. That saves time when you're working over existing concrete where anchor placement is not always perfect. The built-in 1 inch standoff also keeps the post off the concrete, which helps reduce moisture contact at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash.

This Simpson Strong-Tie ABU66RZ adjustable standoff post base is built from steel with a ZMAX finish for corrosion resistance. For this specific rough 6x6 version, the listed dimensions are 6-1/16 inches wide, 5 inches long, 5-13/16 inches high, with a 1-1/2 inch standoff dimension. That rough-cut sizing matters. This is not just a standard 6x6 base with a different label. It is made to fit rough 6x6 lumber, so it is the better choice when actual post dimensions run larger than surfaced stock.

Load numbers are a big part of why someone buys this connector instead of a lighter option. For the ABU66RZ, the published allowable loads include 2,475 lb uplift, 2,190 lb download, and 18,205 lb down load at 100% based on the manufacturer load table shown for DF/SP. That makes it a solid choice where uplift resistance matters, including areas dealing with wind or seismic demands. It is intended for high-capacity post-to-footing connections, not just light decorative work.

Installation flexibility is another strong point. The ABU66RZ can be fastened to the post with either (12) 0.162 x 3-1/2 inch nails or (2) 1/2 inch bolts, and it uses a 5/8 inch concrete anchor at the base. Simpson also notes that nails, Strong-Drive SD Connector screws, or bolts may be used depending on the application. If you are already working within the Simpson connector system, that gives you options to match your build method and inspection requirements.

There is one limitation worth being clear about: post bases in this series do not provide adequate resistance to prevent members from rotating about the base. In plain terms, this connector is meant for top-supported structures where the post is laterally braced by the framing above. It is not the right pick for a free-standing post situation that needs moment resistance at the base, such as an unbraced fence or carport post.

For contractors, deck builders, and serious DIYers working with rough-cut 6x6 treated lumber, the ABU66RZ solves a specific fit problem while still giving you the standoff and uplift performance you want in a structural connector. It is especially useful in deck framing and post-to-footing work where actual lumber dimensions do not match standard dressed sizes. If you need a Simpson post base that fits rough material correctly and gives you some forgiveness around the anchor bolt, this is the one to look at.

Why the Simpson Strong-Tie ABU66RZ Adjustable Standoff Post Base Earns Its Spot

This is the one you buy when standard 6x6 hardware is too tight, rough lumber is part of the job, and you still want a real structural post base instead of making something work.

• Who it's for: Deck builders, contractors, and serious DIYers installing rough 6x6 posts on existing concrete for top-supported structures.
• Why it stands out: You get rough-cut fit, a built-in 1 inch standoff, and slotted anchor-bolt adjustment in one connector, plus strong published uplift numbers.
• Worth knowing: Fasteners and anchor are separate, and like other ABU bases, this one is not meant to stop post rotation by itself in an unbraced setup.

• Is this post base for standard 6x6 lumber? No. The ABU66RZ is sized for rough 6x6 lumber.
• What size concrete anchor does it use? The published load table lists a 5/8 inch anchor diameter.
• Can it be installed with nails or bolts at the post? Yes. The listed post fasteners are (12) 0.162 x 3-1/2 inch nails or (2) 1/2 inch bolts.
• Does this base prevent the post from rotating on its own? No. Simpson states ABU post bases do not provide adequate resistance to prevent rotation and are not recommended for non-top-supported installations.
