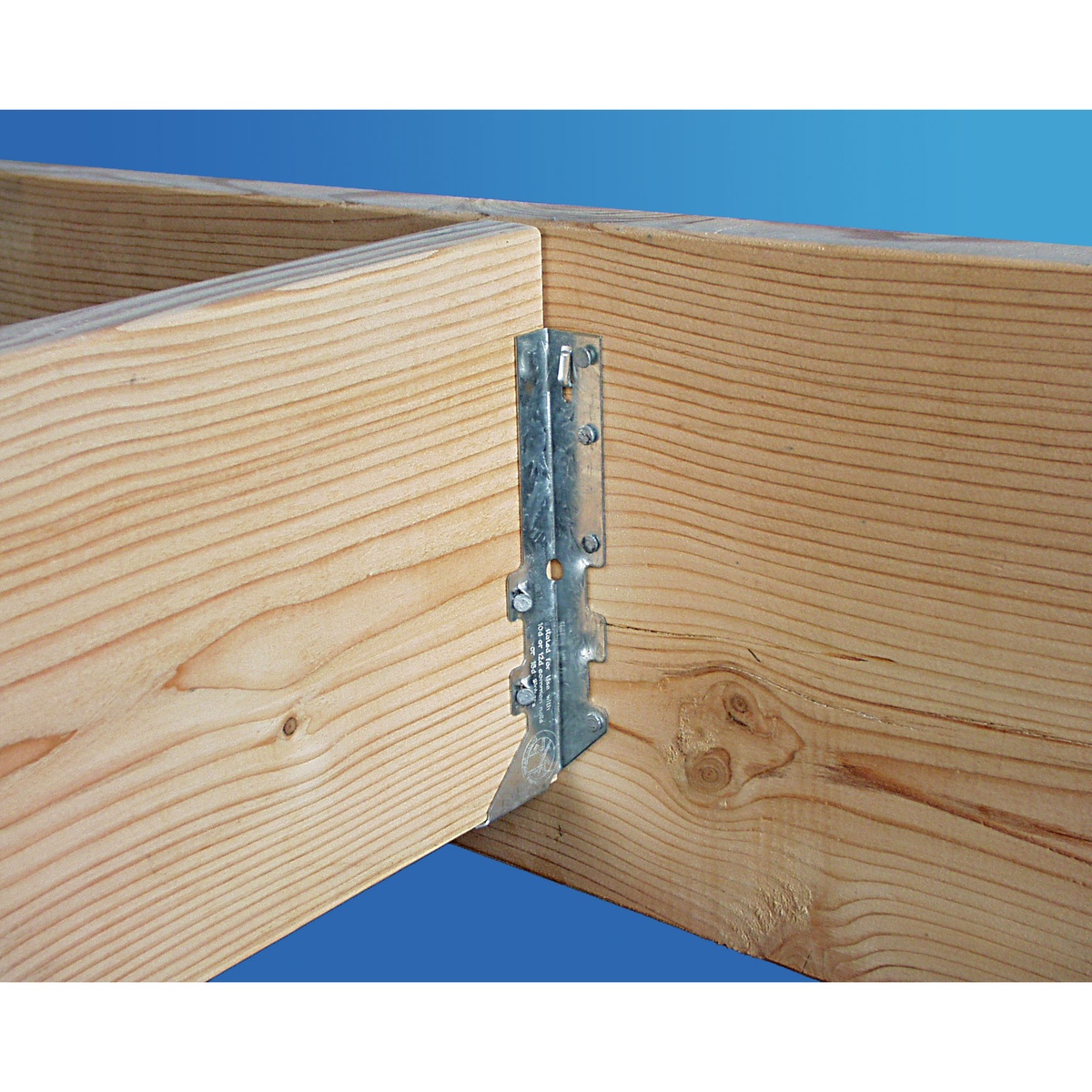

The Simpson Strong-Tie LUS24Z face-mount joist hanger is a steel connector made to support a nominal 2x4 joist in wood-to-wood framing. This is a face-mount joist hanger designed for fastening 2x4 members to a header or beam. Model Number: LUS24Z. If you are framing decks, small platforms, blocking, or general residential wood connections and want a hanger that installs quickly without giving up strength, this is the right kind of hardware.

What makes the LUS24Z matter is the way it gets strength without overcomplicating the install. Simpson's double-shear nailing design drives the joist nails at an angle so the load is transferred through two points on each nail. In plain terms, that means a stronger connection with fewer nails than older hanger styles that need more straight-shot fasteners. On the job, fewer nails and easier nailing angles means less time fighting the connector and more time moving down the line.

The hanger also uses speed prongs to help temporarily position and secure it before full fastening. That is a small feature, but anybody who has tried to hold a hanger, keep layout marks lined up, and start nails at the same time knows why it matters. The speed prongs help the hanger stay put while you start your fasteners, which is especially useful when you are working overhead or building out repeated joist bays.

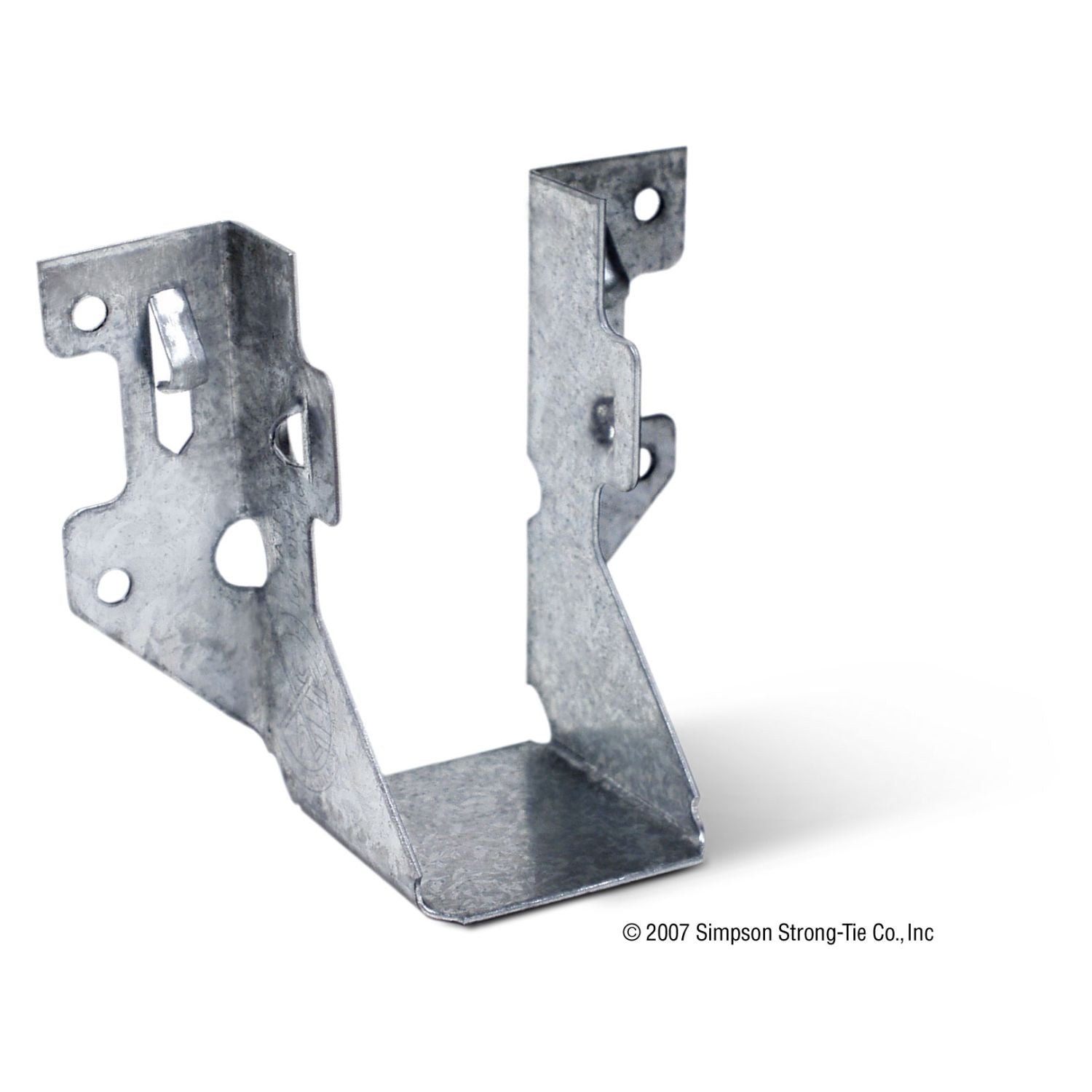

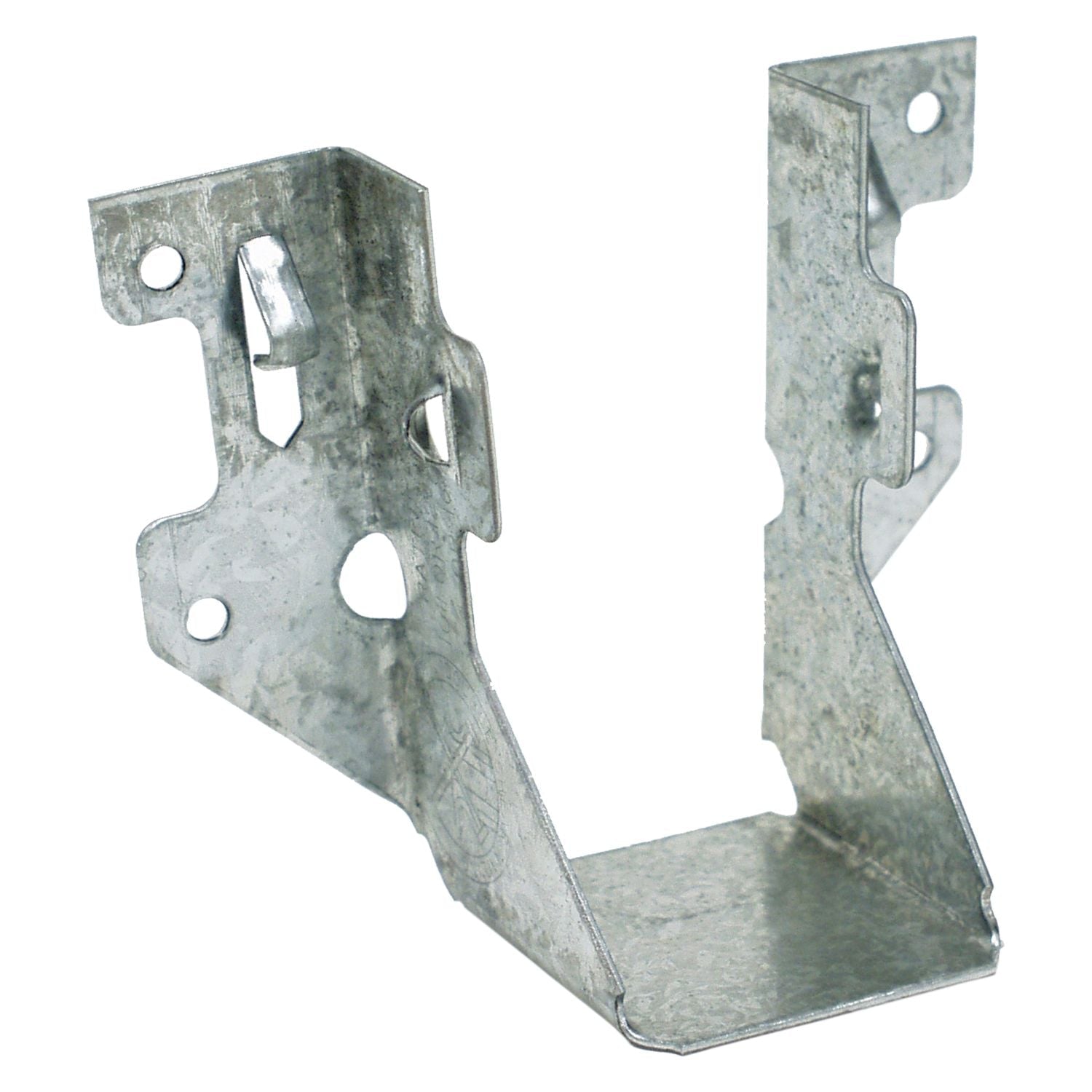

This LUS-series connector is built from 18-gauge steel and uses a face-mount format for common lumber sizes. For the LUS24Z variant, the engineering dimensions listed are 1-9/16 inches wide, 3-1/8 inches high, and 1-3/4 inches for seat depth. That size matches nominal 2x4 framing members. It is not an adjustable hanger and it cannot be modified, so the fit stays consistent with the tested design. That matters because hanger performance depends on using the connector as engineered, not bending tabs or making field changes.

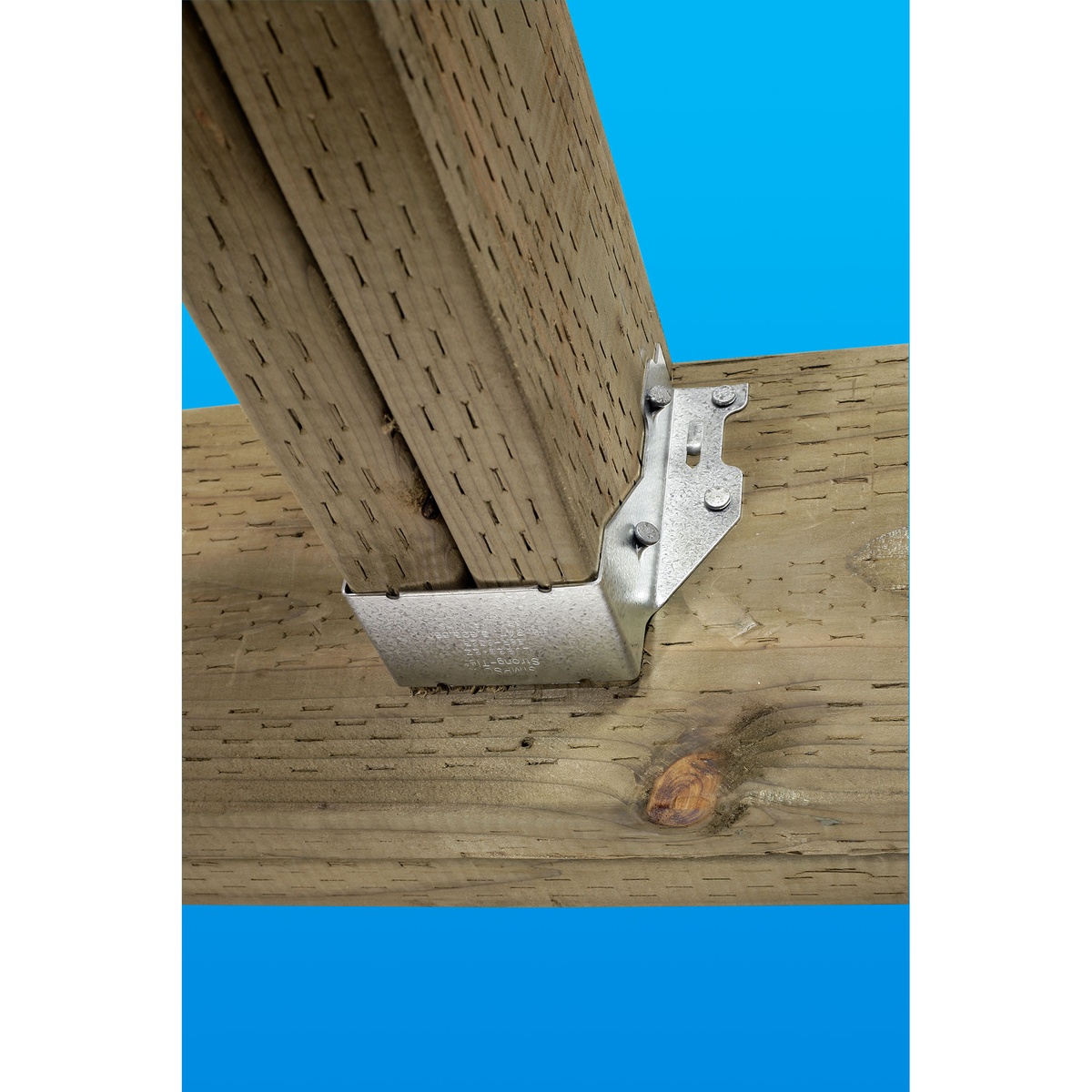

The ZMAX finish is the other big reason to choose this exact version over a standard galvanized hanger. Simpson lists this model as ZMAX coated, and Lowe's specifically calls out the added corrosion resistance for exterior and treated-wood applications. If you are working on a deck, porch framing, or any project using pressure-treated stock, the coating is doing real work for you. It helps the hardware hold up better where moisture and treated lumber chemistry would be harder on a lighter coating.

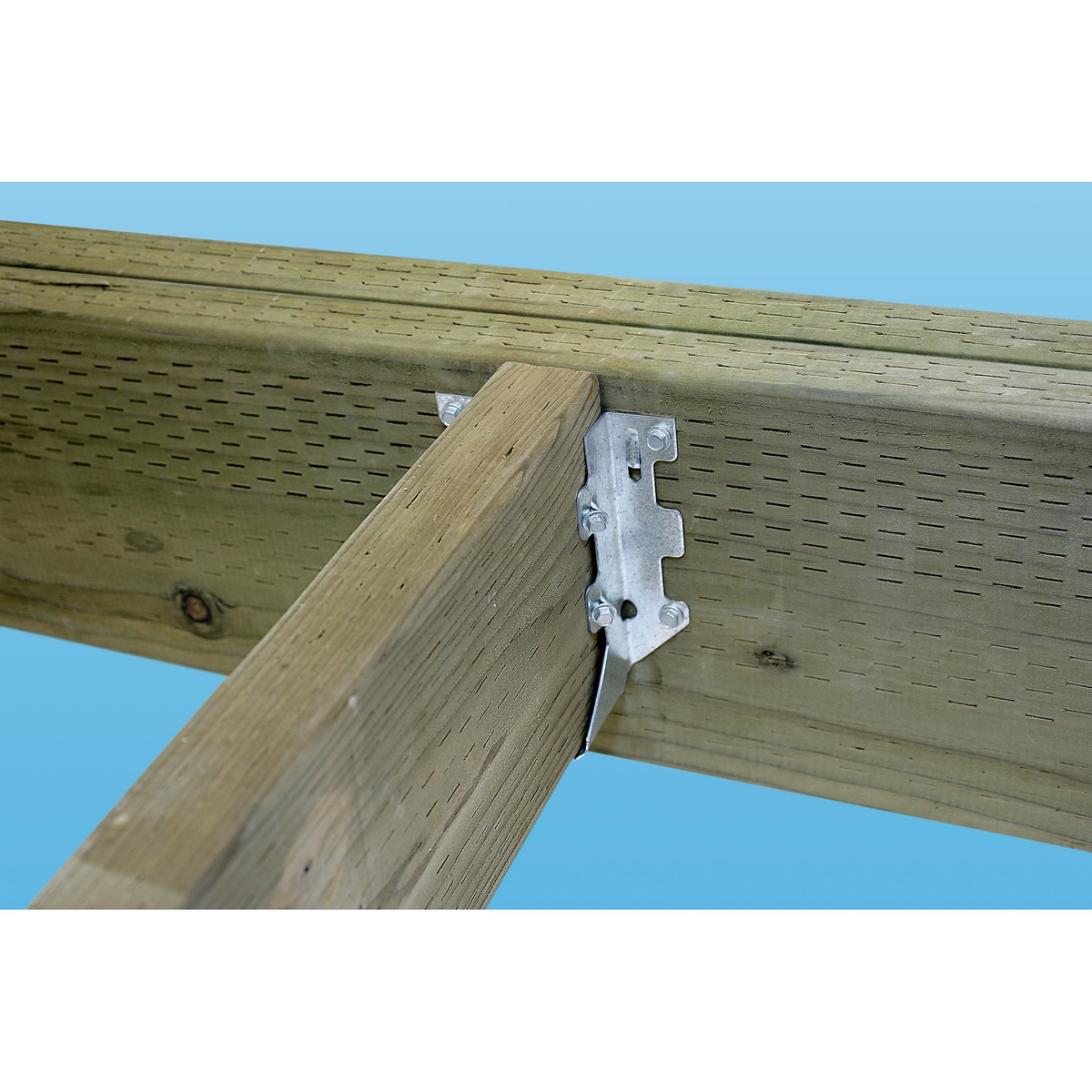

Installation is straightforward, but it needs to be done by the book. Simpson notes that all specified fasteners must be used, and Lowe's lists installation with 10d common nails or #9 x 2-1/2 inch Strong-Drive SD screws. Simpson also notes the angled joist nailing requirement to achieve listed loads. This is not a connector you want to freestyle with. Use the proper fastener pattern, do not bend or remove tabs, and do not modify the hanger if you want the connection to perform the way it was tested and rated.

For real-world use, this connector fits builders, remodelers, deck crews, and serious DIYers who need a dependable 2x4 joist hanger for code-minded wood framing. It is a good choice when you want a common-size hanger that installs fast, resists corrosion better than basic galvanized options, and comes from a line that is tested, load rated, and code compliant. If the job is standard wood framing and the member size is 2x4, the Simpson Strong-Tie LUS24Z face-mount joist hanger is the practical no-nonsense pick.

Simpson Strong-Tie LUS24Z Face-Mount Joist Hanger Keeps 2x4 Framing Simple

This is the kind of connector you buy when you want a common 2x4 hanger that installs fast, holds strong, and makes sense for treated lumber and outdoor work.

• Who it's for: Deck builders, framers, remodelers, and DIYers working with nominal 2x4 wood framing.
• Why it stands out: Double-shear nailing, speed prongs, and ZMAX corrosion resistance give you a better install without stepping up to a more specialized hanger.
• Worth knowing: This is not a bend-it-to-fit part. Use the correct fasteners, follow the specified pattern, and leave the tabs alone if you want the rated connection.

• What size lumber is this hanger designed for? The LUS24Z is designed for a nominal 2 x 4 joist.
• Can this joist hanger be used with treated lumber or exterior projects? Yes. The ZMAX finish is intended to provide extra corrosion resistance for exterior and treated-wood applications.
• Can the hanger be bent or modified in the field? No. Simpson states that the connector cannot be modified.
• What fasteners does it use? Listed installation options include 10d common nails or #9 x 2-1/2 inch Strong-Drive SD screws, and all specified fasteners should be used.
