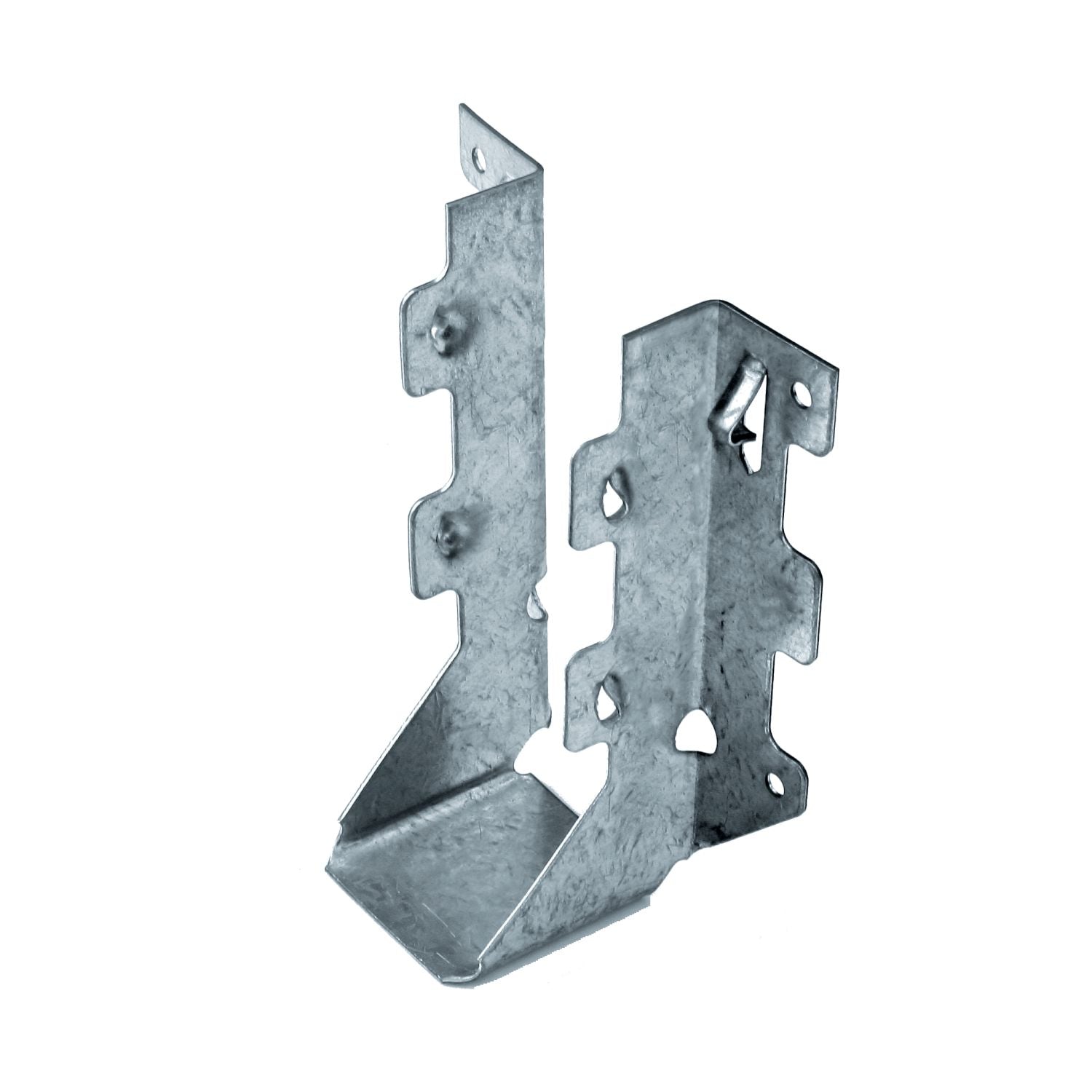

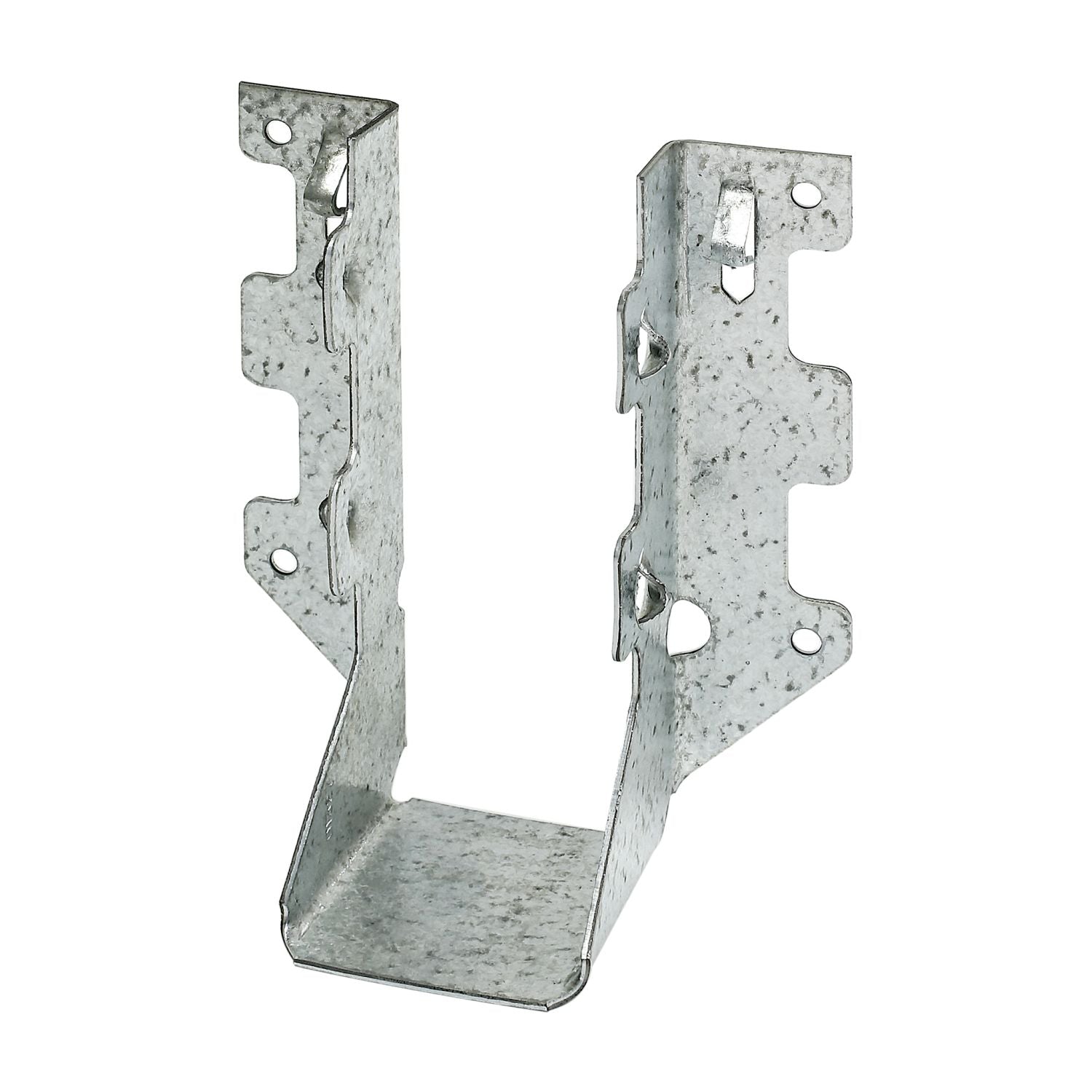

The Simpson Strong-Tie LUS26Z face-mount joist hanger is a light-duty wood connector made for securing nominal 2x6 members in wood-framed construction. This is a face-mount joist hanger designed for supporting a joist from a header or beam in wood-to-wood framing. Model Number: LUS26Z. If you need a common-size hanger that installs quickly, fits standard framing work, and gives you extra corrosion resistance for exterior or treated-lumber jobs, this is the right type of connector.

What matters most here is how the LUS design works on the job. Simpson's double-shear nailing setup distributes the load through two points on each joist nail, which helps deliver a strong connection while reducing the total number of nails compared to more basic hanger styles. That means less time fastening and less fighting the connector in tight framing bays. It is one of the reasons this series is used so often for decks, additions, general framing, and repair work.

The LUS26Z is made from 18-gauge steel and sized at 1 9/16 inches wide, 4 3/4 inches high, with a 1 3/4 inch seat depth. Those numbers matter because they tell you this hanger is built around common nominal 2x lumber dimensions, not oddball framing. The face-mount format keeps installation straightforward, and the formed seat gives the joist a solid bearing point instead of asking the fasteners to do all the work.

Another practical feature is the built-in speed prongs. They temporarily position and secure the connector before full fastening, which is exactly the kind of small detail that saves time when you are laying out multiple hangers on a header. Instead of holding the hanger, the joist, and a fastener all at once, you can get the piece located, then move on to final fastening. On repetitive framing work, that adds up fast.

For jobsite conditions, the ZMAX coating is the big differentiator on this model. Simpson lists this finish for extra corrosion resistance, and Lowe's specifically calls out exterior and treated-wood applications. If you are working with pressure-treated material, exposed framing, or deck structures where moisture and preservatives are part of the equation, the coating matters. This is not just a color difference. It is the reason to choose the Z version over a standard galvanized option when the environment is tougher.

Installation flexibility is another plus. This hanger is intended for wood-to-wood connections and can be installed with 10d common nails or #9 x 2-1/2 inch Strong-Drive SD connector screws. That gives you options based on the job and inspection requirements. Simpson also notes that LUS hangers are tested, load rated, and code compliant, and that the connector should not be modified. In plain terms: install it as designed, use the specified fasteners, and let the connector do the work it was engineered to do.

As for fit, Lowe's lists this model with a common measurement of 2-inch by 6-inch and notes a maximum size of 2x8 and minimum size of 2x6. The strong tie product table for LUS26Z confirms the dimensional profile for the LUS26Z variant. For most buyers, the main takeaway is simple: this is a standard face-mount hanger for common framing lumber, not an adjustable bracket and not something you bend to make fit. Simpson explicitly says it cannot be modified.

Who should buy it? Contractors building decks, remodelers tying in new floor framing, carpenters doing repairs, and serious DIY users who want the right connector instead of a shortcut. If you are hanging joists from a wood header and want a corrosion-resistant 2x6 hanger from a manufacturer that engineers and tests these connections for real structural use, the Simpson Strong-Tie LUS26Z face-mount joist hanger makes a lot of sense.

Simpson Strong-Tie LUS26Z Face-Mount Joist Hanger for Real-World Framing

This is the kind of connector you buy when you want the right hanger, the right coating, and none of the guessing.

• Who it's for: Framers, deck builders, remodelers, and serious DIY users working with wood headers and nominal 2x6 joists.
• Why it stands out: The double-shear nailing design and speed prongs make installation faster, and the ZMAX finish makes this version the better pick for exterior and treated-lumber jobs.
• Worth knowing: This is not an adjustable bracket. Buy the right size, use the specified fasteners, and do not modify the hanger in the field.

• What is the Simpson Strong-Tie LUS26Z used for? It is a face-mount joist hanger used to connect and support a wood joist from a wood header or beam in wood-framed construction.
• Can this hanger be modified or bent to fit? No. Simpson states that LUS-series hangers cannot be modified.
• Is this a good choice for treated lumber or exterior framing? Yes. The ZMAX finish is intended to provide extra corrosion resistance for exterior and treated-wood applications.
• What fasteners can be used with this hanger? Lowe's lists 10d common nails or #9 x 2-1/2 inch Strong-Drive SD connector screws.
