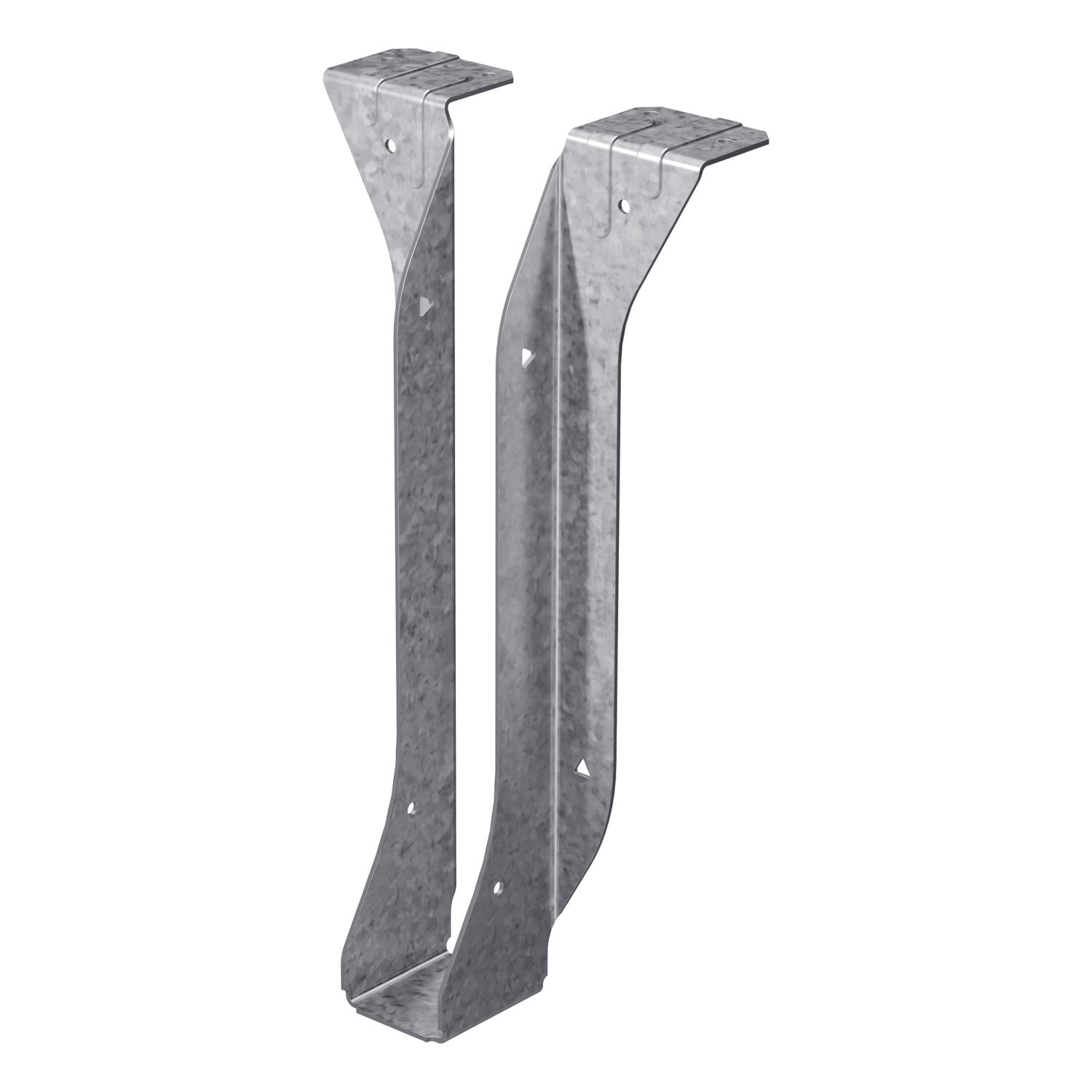

The Simpson Strong-Tie LB212AZ Top Flange Joist Hanger is a 14 gauge top-mount framing connector made for nominal 2x12 solid sawn lumber. This is a top flange joist hanger designed for supporting joist-to-header connections in general framing. Model Number: LB212AZ. If you need a hanger that supports light-to-medium loads and also addresses uplift demands, this is the kind of connector you spec when standard light-duty hardware is not enough.

What makes the LB212AZ matter is that it is not just a basic wood connector. Simpson Strong-Tie built the LBAZ series with increased uplift performance for earthquake or high-wind loading, and the published product information calls out that it is engineered specifically with that in mind. For a framer, deck builder, or contractor working on a structure where uplift matters, that means this hanger is doing more than simply holding a joist in place. It is part of the load path.

This LB212AZ version is sized for a 2x12 member, with a seat width of 1 9/16 inches, a height of 11 1/8 inches, and a top flange depth of 1 7/16 inches. In practical terms, that gives you the geometry needed for a nominal 2x12 connection while keeping the profile lean enough for applications where a top flange hanger makes more sense than a face-mount option. The two-level embossment in the top flange adds stiffness, which helps the hanger resist deformation under load and keeps the connection feeling more solid during installation.

The 14 gauge steel construction puts this hanger in the right spot for light-to-medium framing loads without overcomplicating the install. It is also acceptable for weld-on applications, which gives you more flexibility when tying wood members into structural steel. Simpson Strong-Tie notes that weld-on applications can be used on steel headers with weld sizing matched to material thickness, and that matters on mixed-material jobs where standard fastening alone is not the best route.

From a jobsite standpoint, the ZMAX coating is a big part of why you would choose this exact model over a plain finish version. ZMAX galvanization is intended for better corrosion resistance, and supplementary product data specifically notes it is suitable for exterior and treated-wood applications. If this connector is going into deck framing, exposed conditions, or modern pressure-treated lumber, that coating is not a throwaway feature. It is part of the reason the connection lasts.

Installation details matter with connectors, and Simpson Strong-Tie is clear about using the specified fasteners in the specified locations to achieve published load values. The listed fastening schedule for one published configuration includes six 0.162 x 3 1/2 inch header fasteners and two 0.148 x 1 1/2 inch joist fasteners, while another listed configuration uses six 0.148 x 3 inch header fasteners and the same two joist fasteners. That is worth paying attention to, because with hangers like this, the hardware and placement are part of the rating. No shortcuts.

For load data, the product information shows a published uplift value of 355 pounds for the LB212AZ, along with allowable download values that vary by header material and fastener choice. That is exactly how serious connector selection should work. You do not buy this hanger by appearance alone. You buy it because it matches the member size, the framing layout, the fastener schedule, and the load path your job calls for.

The best fit for this Simpson Strong-Tie framing connector is anyone doing residential framing, deck construction, roof framing, remodel work, or general structural wood connections where a 2x12 top flange hanger is required. It is a good choice for contractors who want a corrosion-resistant hanger with published uplift performance, and for serious DIY builders who are following plans and connector schedules correctly. If the job calls for a 2x12 top mount joist hanger and you need something that is load-rated, coated, and jobsite-proven, the LB212AZ is the right kind of hardware to reach for.

Simpson Strong-Tie LB212AZ Top Flange Joist Hanger Gets the Spec Right

If your plans call for a 2x12 top flange hanger with corrosion resistance and real uplift capability, this is the kind of connector you buy once and install correctly.

• Who it's for: Framers, deck builders, remodelers, and serious DIY builders working with nominal 2x12 members in wood framing or wood-to-steel connection details.
• Why it stands out: The two-level embossment stiffens the top flange, the ZMAX coating makes sense for tougher environments, and the published uplift-focused design gives it more purpose than a basic hanger.
• Worth knowing: This is not a grab-any-nails connector. Follow the Simpson Strong-Tie fastening schedule and installation notes if you want the rated performance the LB212AZ is built for.

• What size framing member is this hanger made for? The LB212AZ is designed for a nominal 2x12 joist or purlin.
• Can this hanger be used with treated lumber? Yes. Supplementary product data indicates it is approved for treated lumber, and the ZMAX coating is intended for added corrosion resistance.
• Are fasteners included? No. Fasteners are not included and must match the manufacturer's published requirements.
• Can it be welded to steel? Yes. Simpson Strong-Tie lists the LBAZ as acceptable for weld-on applications when installed according to its published welding guidance.
