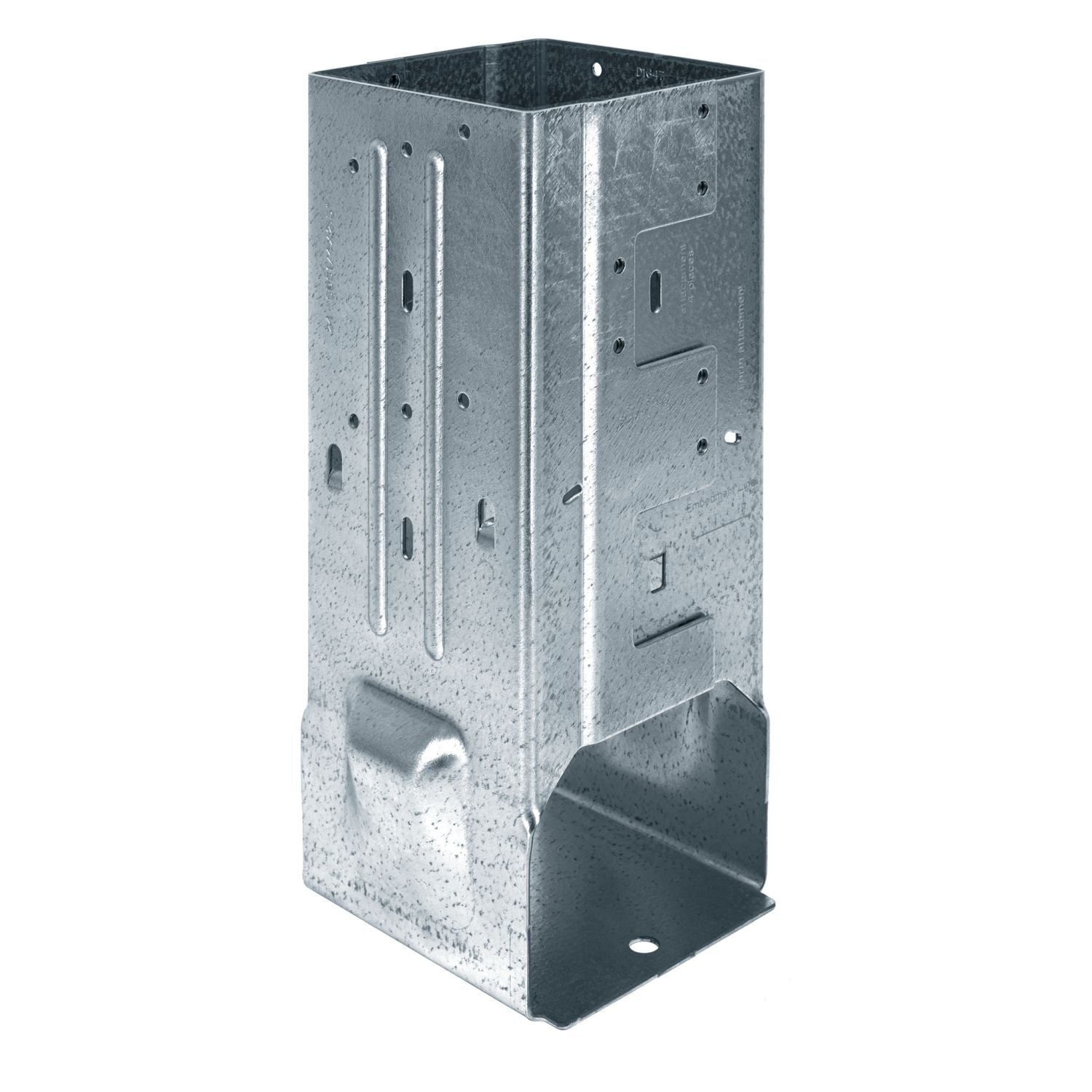

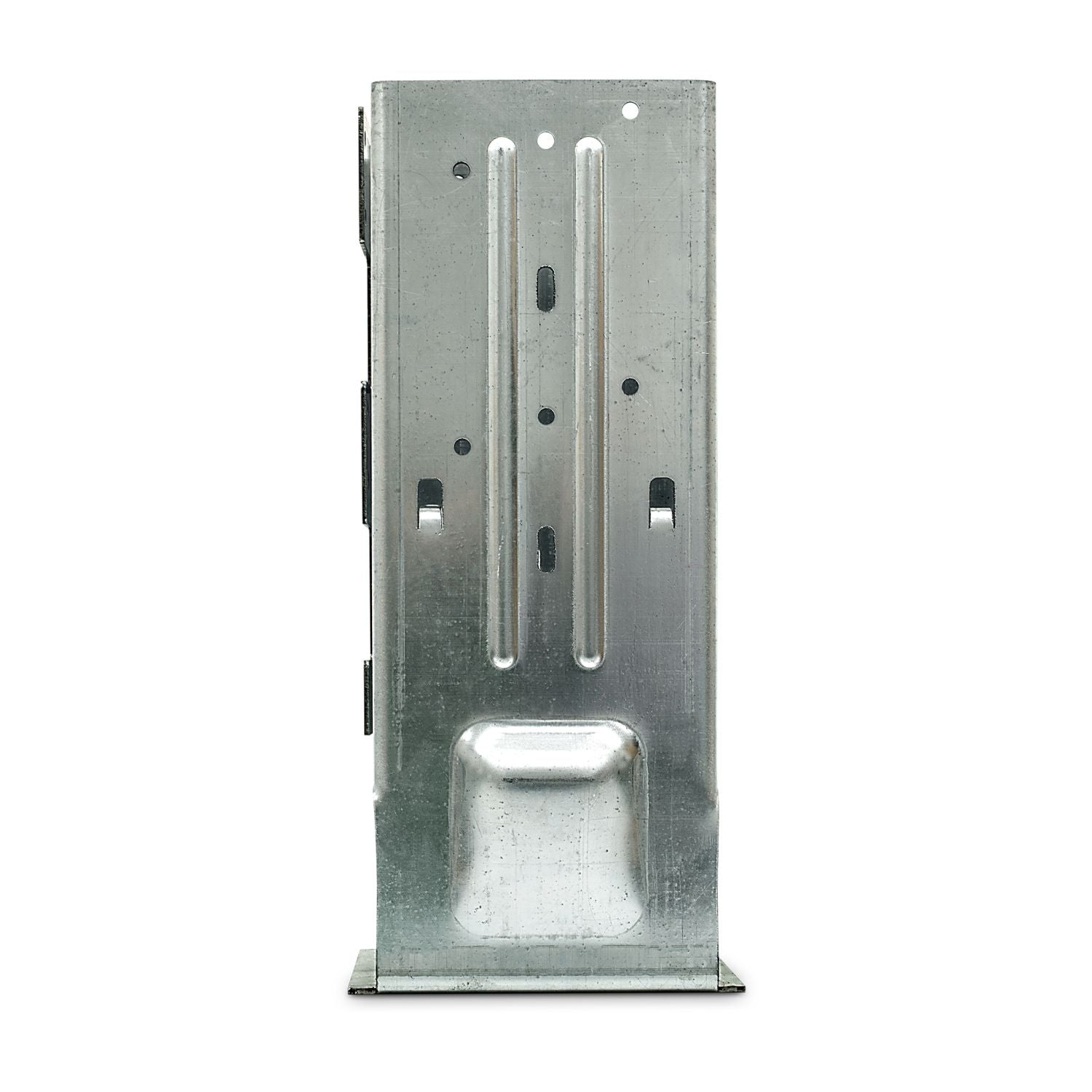

The Simpson Strong-Tie MPB66Z MPBZ ZMAX Galvanized Moment Post Base for 6x6 is a cast-in-place wood-to-concrete post base made for supporting 6x6 wood posts in deck and column applications. This is a moment post base designed for post-to-footing connections where resistance to rotation matters. Model Number: MPB66Z.

What separates this connector from a basic post base is the sleeve-style body that wraps the post and helps keep it from rotating when lateral loads are applied higher up the column. In practical terms, that gives designers and builders another way to handle freestanding or lightly braced post conditions without jumping straight to custom-fabricated hardware. Simpson positions the MPBZ line specifically for moment resistance, and that is the reason this part exists.

The MPB66Z is built from 12-gauge steel and finished with ZMAX coating for added corrosion resistance in exterior and treated-wood applications. For a connector that lives at the concrete line, that matters. The base is also a one-piece design, which keeps installation simpler than piecing together multiple parts and helps keep the geometry consistent when you are setting forms and checking embedment.

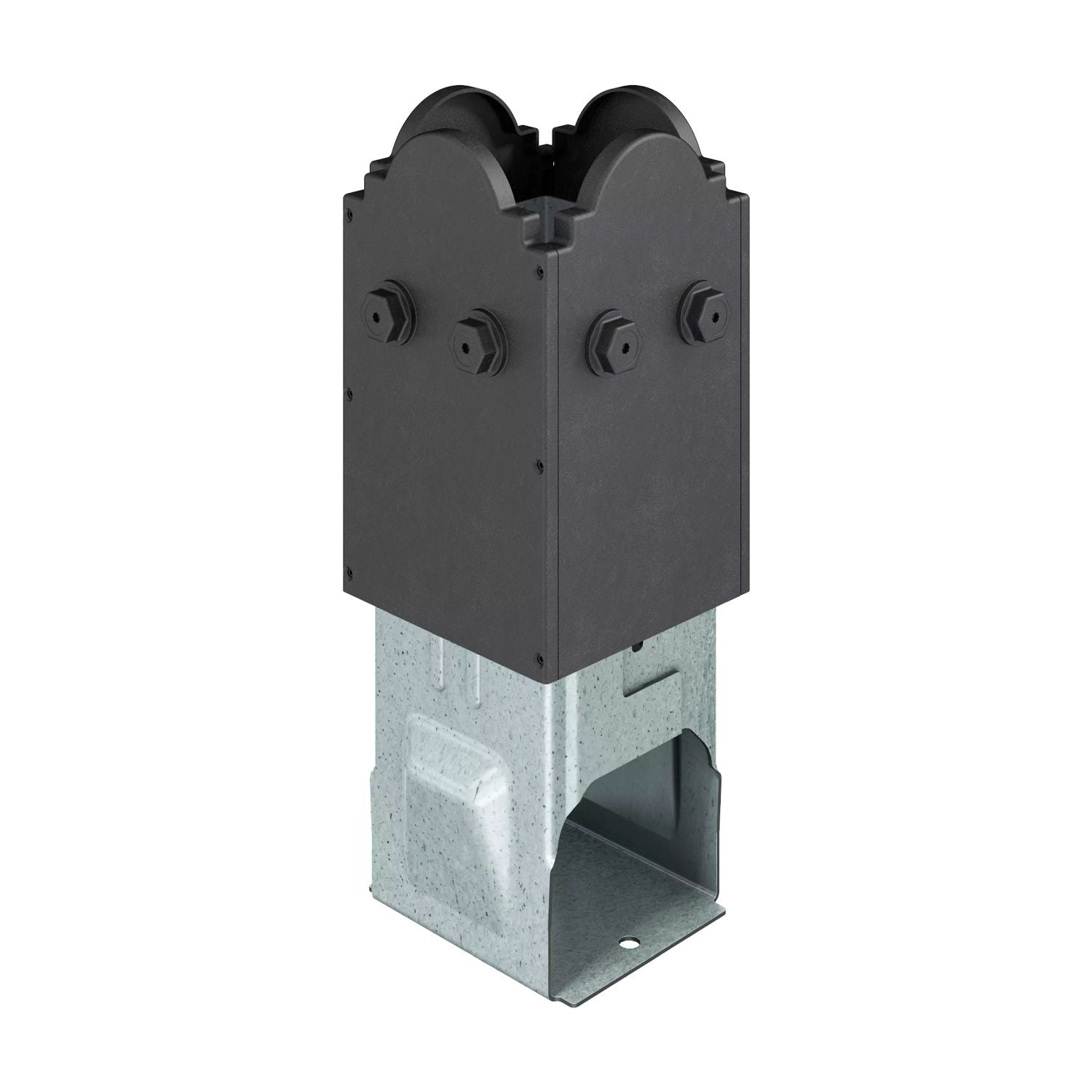

Simpson added several jobsite-friendly details that are easy to miss until you are the one installing it. Internal top-of-concrete tabs and stamped embedment indicators help you position the base before the pour. Strategically placed holes allow template attachment, which makes layout easier during form work. Optional holes for trim attachment are there if appearance matters on a finished column wrap.

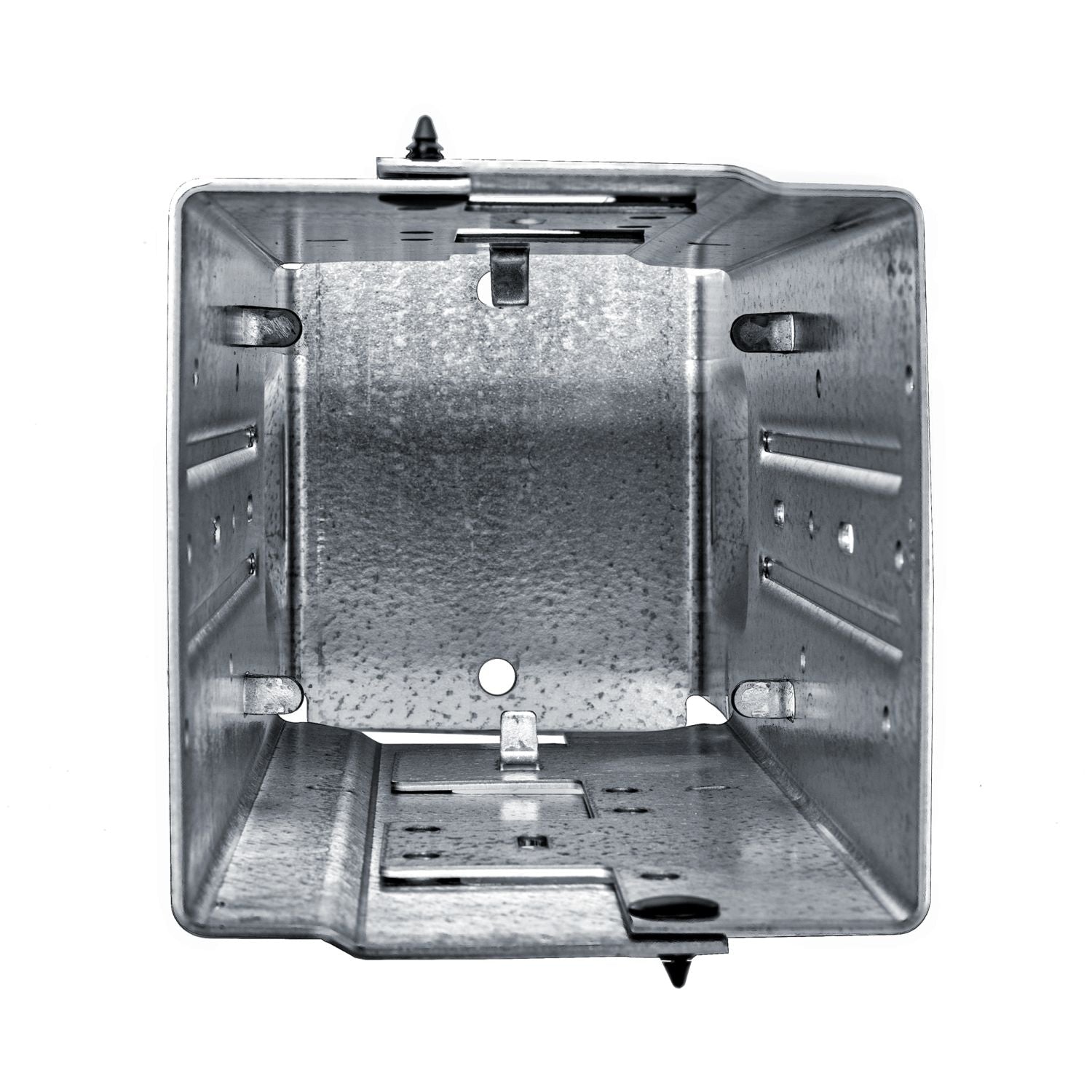

Moisture management is another strong point here. The internal tabs create the code-required 1 inch standoff between the wood post and the concrete surface, helping reduce direct exposure to standing water and ground moisture. Simpson also includes weep and drain openings at the embedment line so water can exit and so the installer has a visual reference point after the concrete cures. That is the kind of detail that matters long term, not just on install day.

This post base is intended to be installed before concrete is placed. The manufacturer also specifies using the supplied Strong-Drive SDS heavy-duty connector screws rather than substituting lag screws, because lag screws will not achieve the same load. For contractors, that means faster fastening and fewer surprises. For inspectors and specifiers, it means the connection is being assembled the way the tested system was intended.

The MPB66Z is a good fit for decks, post-to-footing work, outdoor structures, and other projects using a 6x6 wood column over a cast-in-place concrete footing. It is best suited for builders, deck contractors, general contractors, and serious DIY users who need a stronger engineered base than a standard standoff connector. If your project needs a 6x6 post base that helps manage rotation, keeps the post off the concrete, and comes with the right screws, this is the one to look at.

A serious post base for jobs where a basic saddle is not enough

The Simpson Strong-Tie MPB66Z is the kind of connector you buy when you need engineered rotation resistance, cleaner post support, and a better long-term detail at the concrete line.

• Who it's for: Deck builders, contractors, and owner-builders setting 6x6 posts into cast-in-place footings where stability and moisture separation both matter.
• Why it stands out: The sleeve design, 1 inch standoff, drainage detail, and included SDS screws make it more complete than a standard post base.
• Worth knowing: This one rewards careful layout and concrete work. Follow the install instructions closely and use the specified screws, because this is a tested system, not a place to improvise.

• What size post does the MPB66Z fit? It is designed for a nominal 6x6 wood post.
• Is this a cast-in-place post base? Yes. The MPB66Z is installed before the concrete is placed and is intended for wood-to-concrete cast-in-place applications.
• Does it keep the post off the concrete? Yes. Internal tabs create a 1 inch standoff above the top of the concrete to help reduce moisture exposure at the end of the post.
• Can lag screws be used instead of the supplied SDS connector screws? No. Simpson specifically states that lag screws will not achieve the same load.
