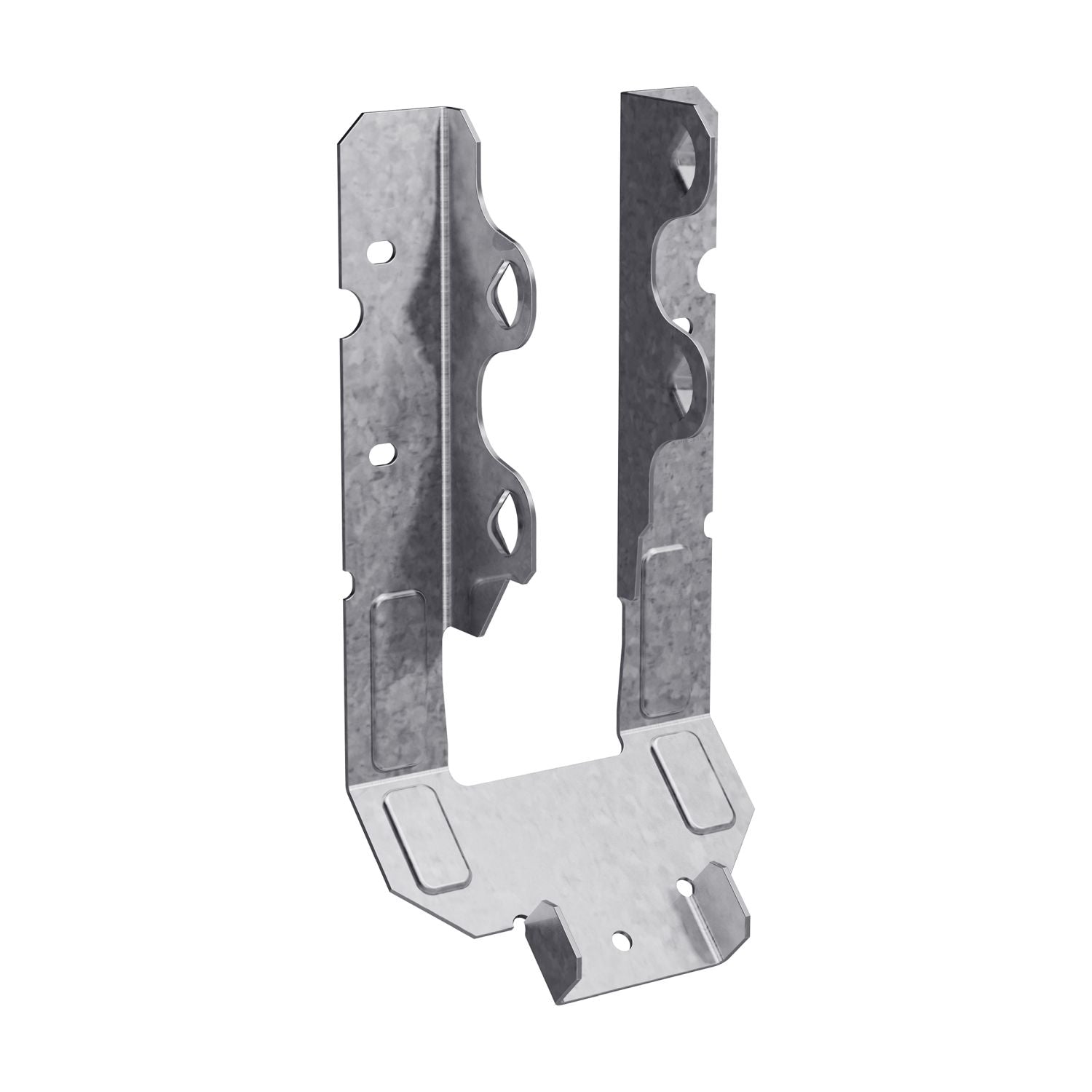

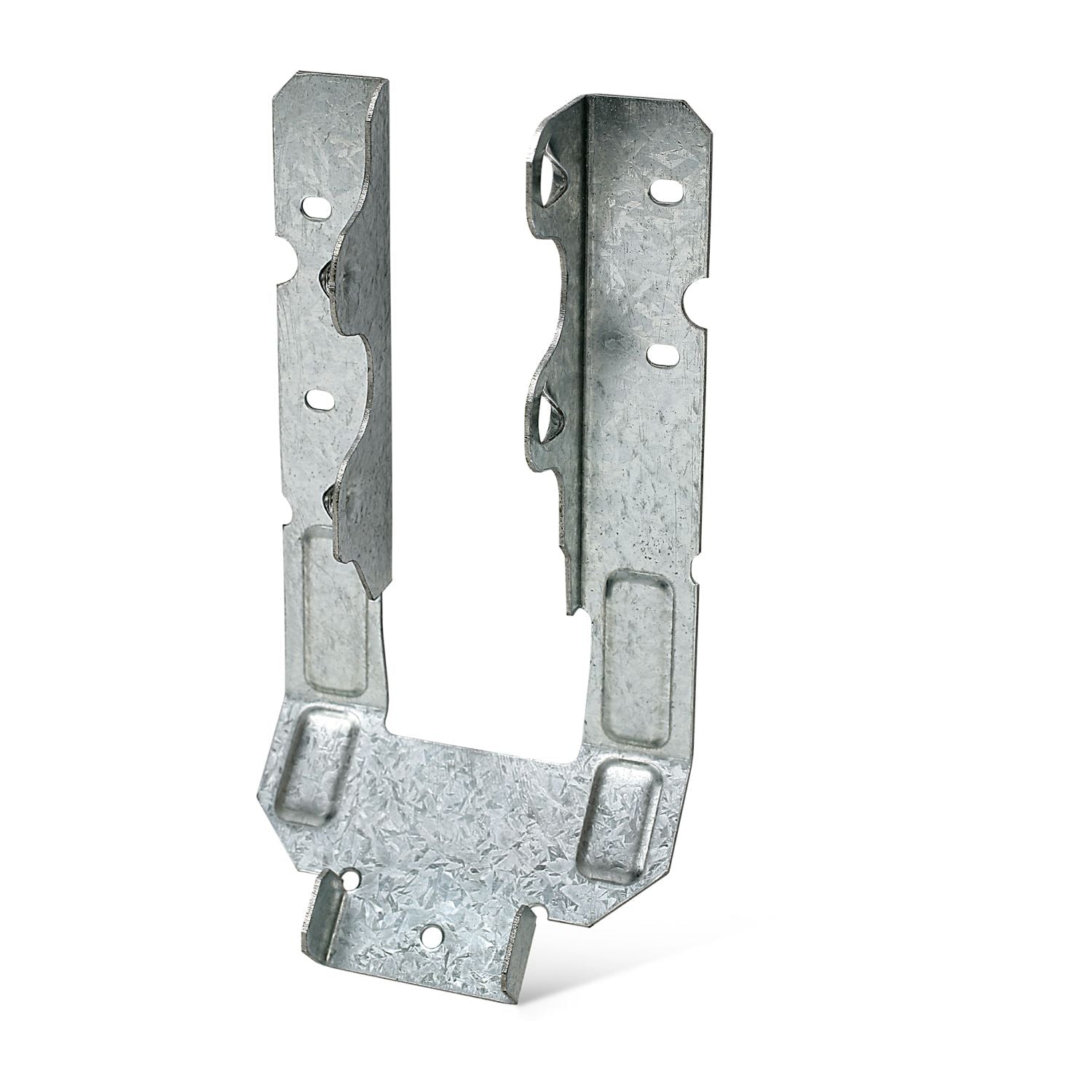

The Simpson Strong-Tie LRU26Z LRUZ ZMAX Galvanized Slopeable Light Rafter U Hanger is a sloped rafter hanger for wood-to-wood framing connections at the ridge. This is a rafter hanger designed for rafter-to-ridge connections in new construction and retrofit roof framing. Model Number: LRU26Z. It is sized for nominal 2x6 and 2x8 rafters and gives builders a way to handle changing roof pitch without moving to a custom connector.

What makes this hanger useful on the job is the field-adjustable design. The LRUZ series can be sloped down from 0 degrees to 49 degrees and sloped up from 0 degrees to 45 degrees, which covers roof pitches from 0:12 through 14:12. In plain terms, that means you can adapt to the actual roof condition in front of you instead of hoping the framing matches the plan perfectly. That is especially helpful on additions, porches, lean-tos, and other retrofit fastening work where existing framing rarely behaves like new stock.

The open design also lets the connector be installed before or after the rafter is in place. That matters because access at the ridge is not always ideal, especially when you are working around an existing roof deck. Simpson Strong-Tie also places the face fasteners high on the hanger, which allows the bottom of the rafter to hang below the ridge beam when needed. For roof framing layouts where clearance and fit-up are tight, that extra flexibility can save time and rework.

Material and finish are straightforward and jobsite-relevant. The LRU26Z is made from 18-gauge steel and uses Simpson Strong-Tie's ZMAX coating, identified as G185. That coating is intended for extra corrosion resistance, which is why this connector is commonly specified for exterior framing and treated-wood applications. If the connection will be exposed to weathering or moisture during service, the coating is not just a line on a spec sheet, it is part of the reason this hanger makes sense over a basic painted or lighter-protected option.

Installation options are another strong point. Simpson specifies that the hanger can be installed with nails or with Strong-Drive SD Connector screws, and the approved fastener list includes 0.148 inch by 3 inch nails, 0.162 inch by 3-1/2 inch nails, and #10 Strong-Drive SD Connector screws in 1-1/2 inch or 2-1/2 inch lengths depending on location and application. For standard installation, joist or rafter fasteners are installed at an angle through the member into the header to achieve table loads. For retrofit applications where an existing roof deck blocks a horizontal path, the alternate installation allows #10 x 2-1/2 inch Strong-Drive SD Connector screws to be angled upward to match the roof pitch up to 49 degrees.

Dimensionally, the LRU26Z uses a 1-9/16 inch seat width, a 5-1/4 inch height, and a 1-15/16 inch seat depth dimension. Those numbers matter because they tell you this is a light rafter hanger built around specific member sizes, not a catch-all bracket. The narrower seat and compact body make it a fit for common residential roof framing where you need a dedicated connector without adding bulk at the ridge.

This connector is best for carpenters, framers, remodelers, and builders handling roof framing where the pitch changes, the deck is already on, or the framing sequence is less than perfect. If you are tying nominal 2x6 or 2x8 rafters into a ridge beam and want a code-oriented connector with real installation flexibility, this is the kind of hardware that solves a specific problem cleanly. If your project uses a different rafter size or needs a heavier connector, step up to the correct LRUZ model rather than forcing the LRU26Z into a job it was not sized for.

Simpson Strong-Tie LRU26Z LRUZ ZMAX Galvanized Slopeable Light Rafter U Hanger for tricky roof framing

This is the connector you buy when a standard hanger stops making sense and the roof pitch starts calling the shots.

• Who it's for: Framers, remodelers, and builders tying nominal 2x6 or 2x8 rafters into a ridge beam, especially on additions and retrofit work.
• Why it stands out: The field-adjustable slope, install-before-or-after flexibility, and ZMAX finish make it more useful than a basic fixed hanger in real roof framing conditions.
• Worth knowing: This is a size-specific connector, so make sure your rafter size and fastener schedule match the spec tables. Also, use the specified nails or SD Connector screws if you want the published performance.

• What member sizes does this hanger fit? The LRU26Z is sized for nominal 2x6 and 2x8 rafters.
• Can it be used on retrofit jobs? Yes. The open design and alternate installation method are intended to support retrofit applications as well as new framing.
• How much roof pitch can it handle? It accommodates roof pitches from 0:12 to 14:12, with downward adjustment to 49 degrees and upward adjustment to 45 degrees.
• What fasteners can be used? Simpson specifies installation with nails or Strong-Drive SD Connector screws, including 0.148 in. x 3 in. nails, 0.162 in. x 3-1/2 in. nails, and #10 SD Connector screws in approved lengths depending on the installation.
