The SKIL DL6300D-12 12V/20V Brushless Flip Drill, 20V Kit is built for users who want to drill pilot holes and drive screws without carrying two separate tools. This is a flip drill designed for drilling and fastening in light-duty to medium-duty work where speed and convenience matter. Model Number: DL6300D-12. If your jobs involve repeated bit changes, this setup cuts that wasted motion down fast.

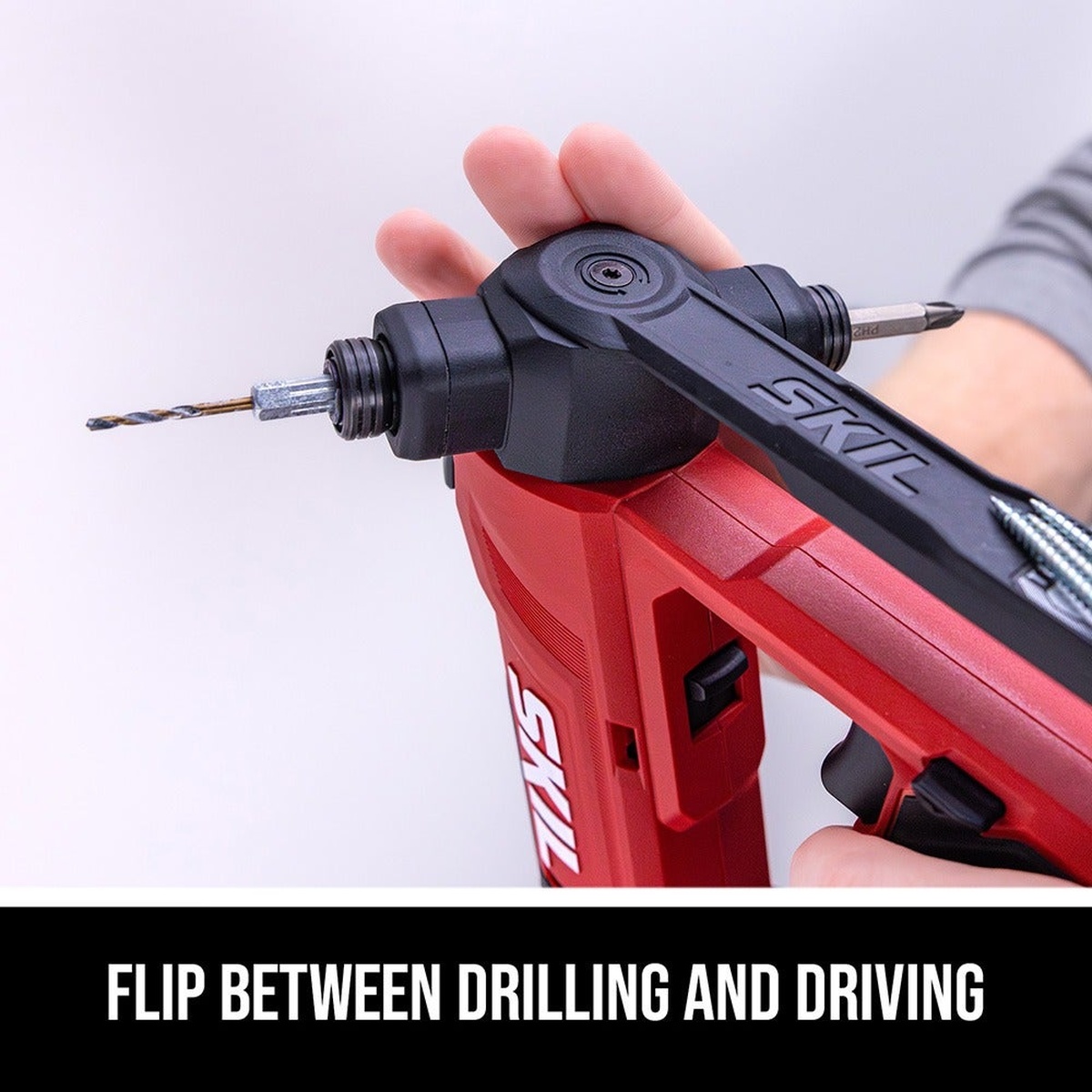

The big story here is the double collet flip head. Keep a drill bit loaded on one end and a driver bit on the other, then rotate the head when it is time to switch tasks. For cabinet installation, hardware mounting, hinge work, basic property maintenance, and shop assembly, that is a practical feature, not a gimmick. You spend less time changing bits and more time moving through the work.

SKIL backs that setup with a brushless motor, 2 gear speeds, and electronically controlled torque settings. In 12V mode, no-load speed is 0 to 420 / 0 to 1,550 RPM with up to 300 in-lbs of torque. In 20V mode, it steps up to 0 to 450 / 0 to 1,700 RPM with up to 350 in-lbs of torque. That gives the tool enough range for pilot holes, small drilling jobs, and everyday screwdriving without turning it into a bulky full-size drill.

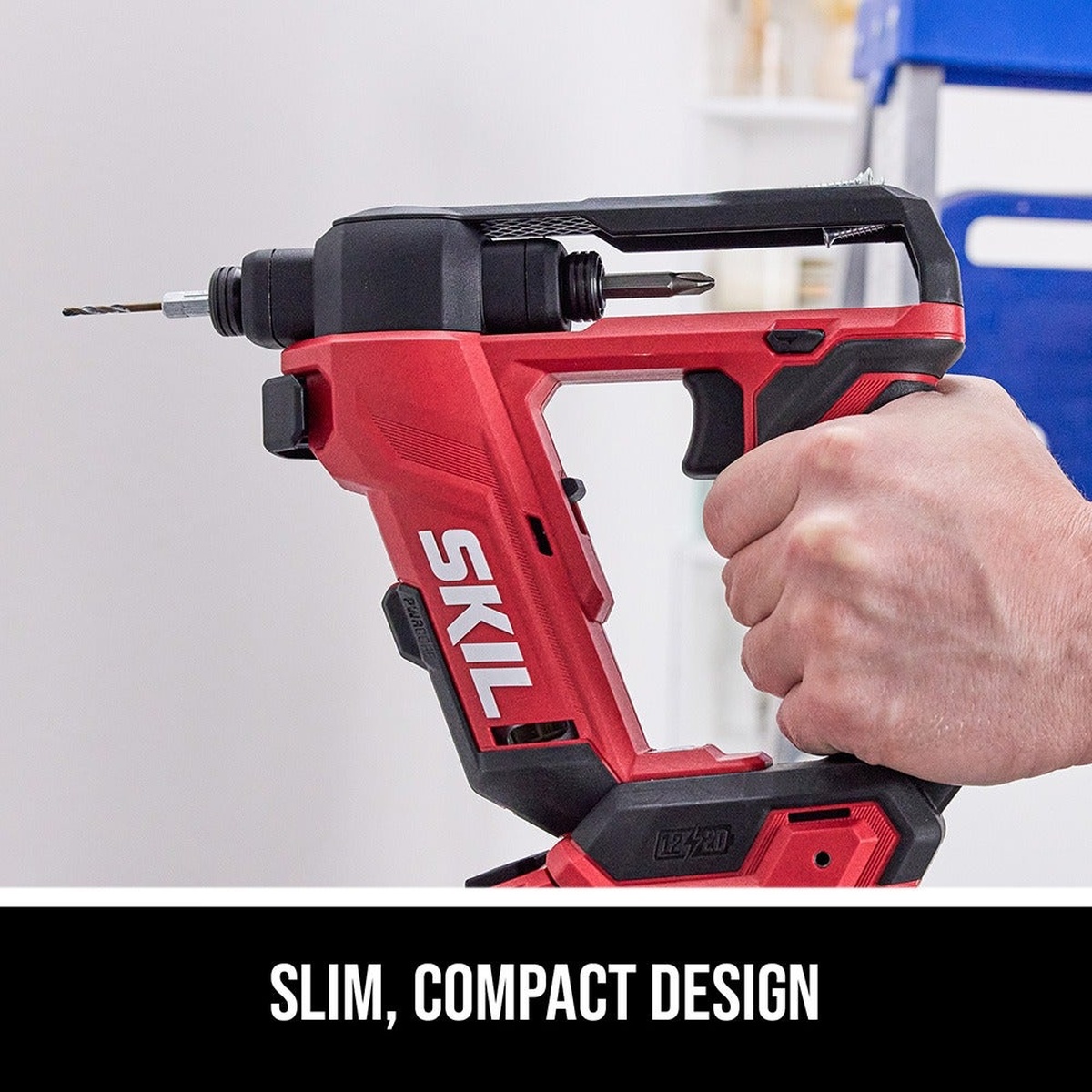

The layout is clearly aimed at tight spaces and one-handed control. At 7.87 inches long, 2.64 inches wide, 7.39 inches high, and 2.03 lbs tool weight, it stays compact enough for corners, edges, and overhead or ladder work where a larger drill can feel awkward. The one-finger switch style, soft grip, forward and reverse selector, spindle lock, electric brake, and variable speed trigger all point to quick handling rather than brute-force drilling.

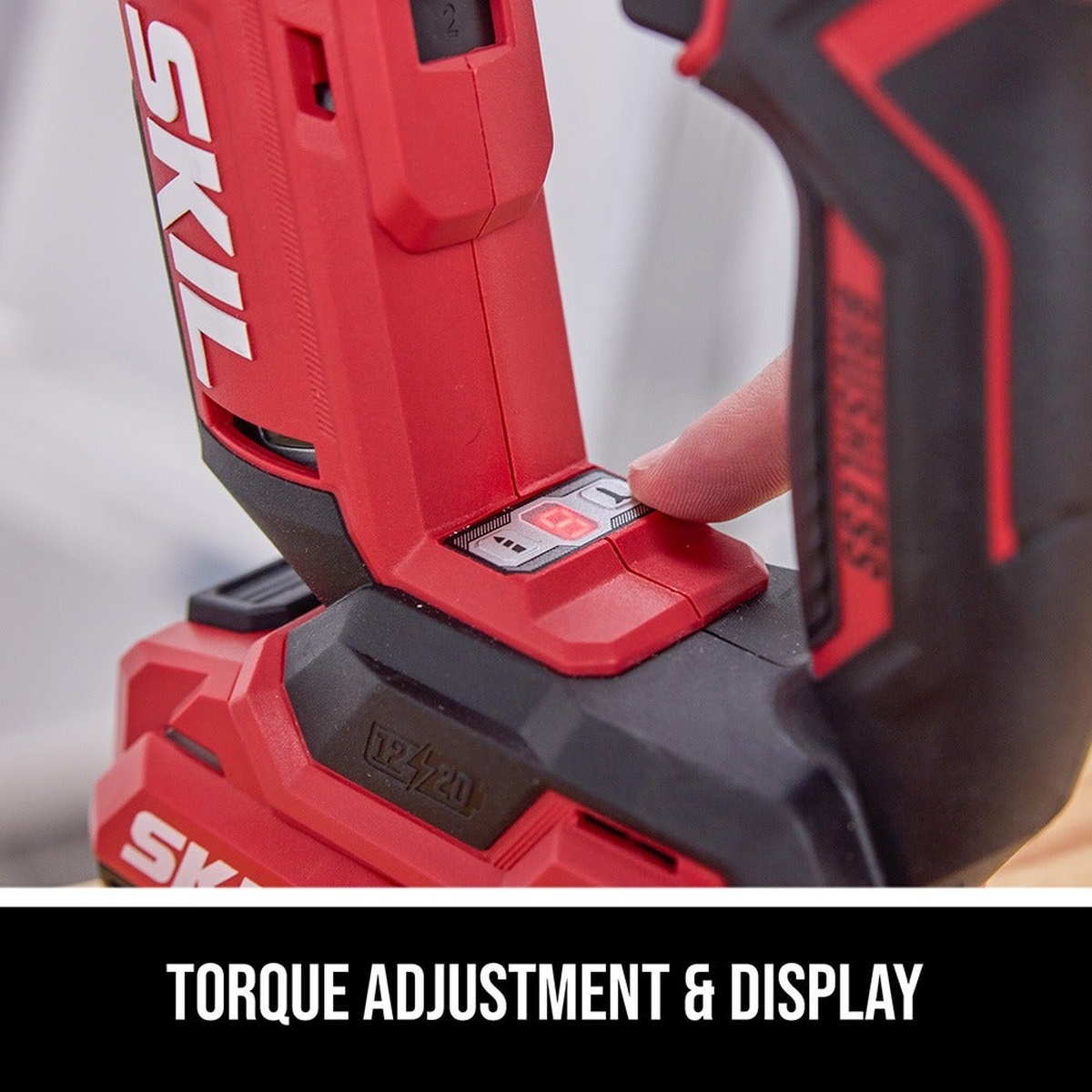

SKIL also did a few smart things for day-to-day usability. Electronic torque adjustment and display make it easier to repeat settings when you are driving similar fasteners. Magnetic onboard storage keeps screws and bits right on the tool. The LED worklight includes pre-light and afterglow, which helps when you are reaching into a dark cabinet, utility corner, or under-sink space.

Power flexibility is another reason this tool stands out. The drill is designed to run on SKIL 12V or 20V batteries, which gives users options depending on the platform they already own and the balance of runtime versus size they want. This kit includes a SKIL 20V 2.0Ah USB-C battery and a 20W USB-C charger, plus the battery supports two-way rapid charging for powering the battery itself or personal devices through USB-C.

This is not pretending to replace a heavy-duty framing drill or an impact driver for large structural fasteners. What it does well is faster workflow on repeated drill-and-drive jobs, especially when space is tight and you want one compact cordless tool instead of two. For DIY users, woodworkers, maintenance crews, punch-list work, and anyone installing hardware, hinges, brackets, blinds, or light fixtures, it makes a lot of sense.

If your work is mostly pilot holes, small hardware, trim, cabinets, shop fixtures, or general household fastening, the SKIL DL6300D-12 12V/20V Brushless Flip Drill, 20V Kit is a smart setup. If you regularly sink long structural screws all day, you will probably still want a more dedicated high-torque drill or impact driver next to it. Used for the work it is actually built for, this tool solves a real jobsite annoyance in a clean, compact way.

SKIL DL6300D-12 12V/20V Brushless Flip Drill That Actually Solves a Real Annoyance

This is one of those tools that makes immediate sense the second your work keeps bouncing between pilot holes and screws.

• Who it's for: DIY users, woodworkers, maintenance techs, and installers who want one compact cordless drill for light-duty drilling and fastening in tight spaces.
• Why it stands out: The flip head, compact size, and electronic torque control make it faster and more convenient than a standard drill when you are constantly changing between drilling and driving.
• Worth knowing: This is a workflow tool more than a heavy-duty power tool. It is best used for hardware, cabinets, trim, and repetitive install work, not big structural fasteners all day.

• Is this a standard drill or an impact driver? It is a brushless flip drill designed for drilling and screwdriving with a double collet head that switches between two loaded bits.
• What batteries does it work with? It is designed to be powered by SKIL 12V or 20V batteries.
• What type of accessories fit the collet? The tool uses a 1/4 inch hex collet, so it is made for hex shank drill and driver accessories.
• Does it have adjustable torque? Yes. It has 9 electronic clutch settings plus drill mode.
