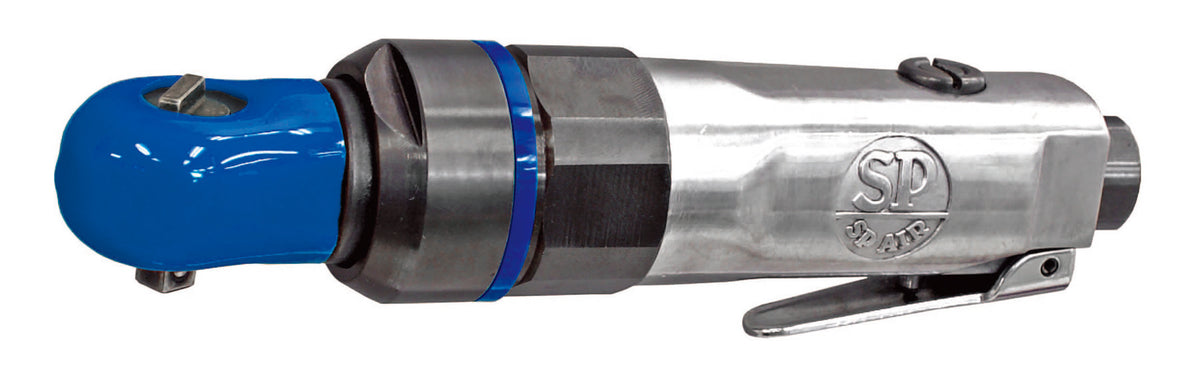

SP Air SP-1765HD 3/8-in. Super Fast Pneumatic Mini Impact Ratchet (SP-1765HD)
SP Air SP-1765HD 3/8-in. Super Fast Pneumatic Mini Impact Ratchet (SP-1765HD)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The SP Air SP-1765HD is a 3/8-in. drive pneumatic impact ratchet built by SP Air Corporation, a Vessel Co., Inc. brand, for fast bolt-up and breakaway work in tight, restricted-access spots. It's the upgraded HD version of SP Air's SP-1765, delivering 30% more speed and torque than the original: 700 RPM free speed and 55 ft-lbs of maximum torque from a 3/8-in. square drive.
The power comes from a patented single dog clutch impact mechanism. Unlike a standard ratchet head that transfers kickback into your wrist with every impact, the single dog clutch design is reaction-free — it hits full speed and torque without fighting your grip, which matters most in the cramped, awkward angles this class of tool is built for.
At 6.9 in. long and 1.4 lbs, the SP-1765HD is sized to work where a full-size impact wrench can't get positioned — SP Air specifically states it exhibits full performance even in a restricted area, not a derated version of the power once you're working blind behind a bracket or in an engine bay.
Sound output is rated at 84.4 dB, in line with other compact pneumatic ratchets, and construction is built for repeated shop use rather than occasional DIY duty.
It's a fit for automotive techs, assembly line mechanics, and fabricators who regularly run into fasteners a standard-length impact wrench can't reach square-on — anyone who needs 3/8-in. impact torque in a package short enough to work between components.
An Upgrade Built on the Same Compact Footprint
SP Air built the SP-1765HD as a direct power upgrade over the standard SP-1765, adding 30% more speed and torque in the same 3/8-in. drive, restricted-access body.
- 700 RPM free speed, 55 ft-lbs max torque
- 6.9 in. overall length, 1.4 lbs

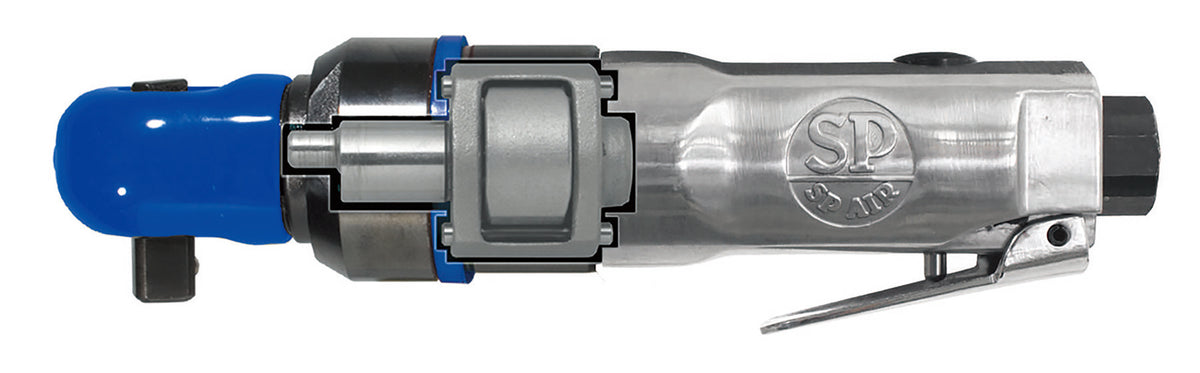

Clutch Detail
The single dog clutch housing sits in a slim profile so the tool can still get square to a fastener in spots a wider clutch head can't reach.
- Single dog clutch impact mechanism
- Reaction-free operation at full torque

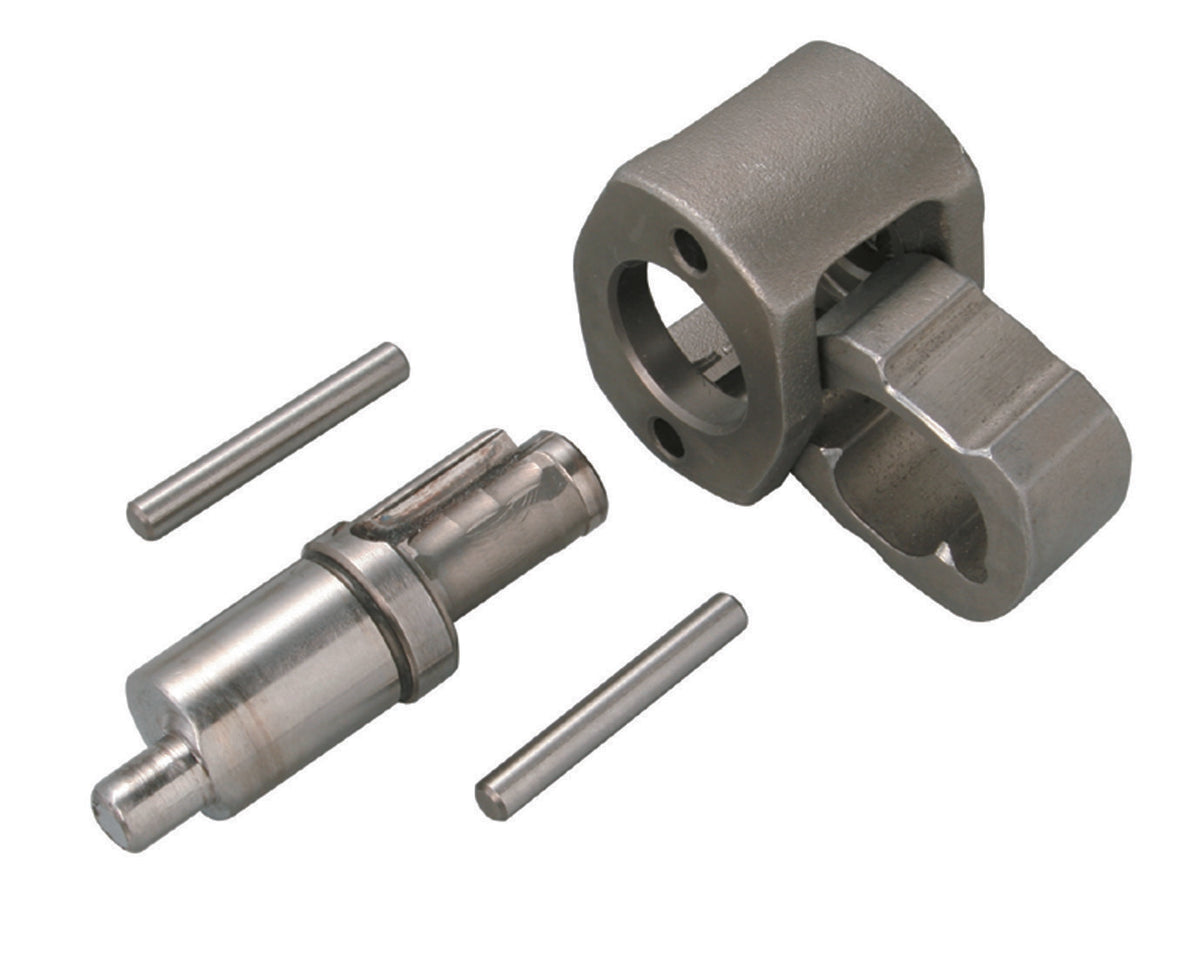

How the Reaction-Free Clutch Works
SP Air's single dog clutch mechanism is what lets the SP-1765HD hit 700 RPM and 55 ft-lbs without the kickback of a conventional impact ratchet.
- Patented impact design shared across SP Air's mini ratchet line
- Delivers high speed and high torque without reaction at the wrist
Key Specifications
| Square Drive | 3/8 in. |
|---|---|
| Bolt Capacity | 3/8 in. |
| Maximum Torque | 55 ft-lbs. |
| Free Speed | 700 RPM |
| Overall Length | 6.9 in. |
| Net Weight | 1.4 lbs. |
| Sound Level | 84.4 dB |
| Made In | Japan |
| Impact Mechanism | Single dog clutch, reaction-free |
Built For
Pro Tip
The reaction-free clutch is what lets you run this ratchet one-handed in tight spots without bracing against kickback — stick with thin-wall impact sockets sized to the 3/8-in. drive so you don't give up the clearance advantage the compact head is built for.
Tool Nut's Take
Full Impact Torque Where Full-Size Tools Don't Fit
The SP-1765HD packs 55 ft-lbs of reaction-free impact torque into a 6.9-in. body built specifically for restricted-access fastening.
- Who it's for: Automotive techs and assembly mechanics who regularly hit fasteners a full-size impact wrench can't square up to.
- Why it stands out: A patented reaction-free single dog clutch delivers full 700 RPM / 55 ft-lbs output without kicking back at the wrist.
- Worth knowing: SP Air markets this as a straight 30%-more-power upgrade over the original SP-1765 — if bolt capacity or hose fitting details from the older model matter for your setup, confirm with Tool Nut before ordering.
Common Questions
- How is the SP-1765HD different from the standard SP-1765? SP Air states it delivers 30% more speed and torque than the original SP-1765.
- What drive size does it use? 3/8-in. square drive with a 3/8-in. bolt capacity.
- What's the maximum torque and speed? 55 ft-lbs of maximum torque at a 700 RPM free speed.
- Where is the SP-1765HD made? Japan.
