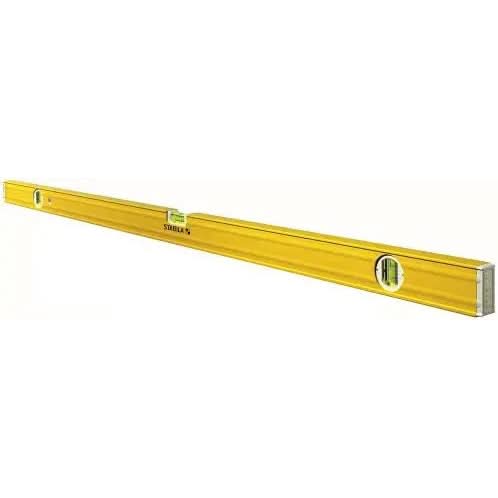

Stabila Type 80 ASM-2 3-Vial Magnetic Level, 72-in. (29272)
Stabila Type 80 ASM-2 3-Vial Magnetic Level, 72-in. (29272)
In Stock - Ready to Ship from Manufacturer
Product Details
Product Details
Key Features
Overview
Stabila 29272 Type 80 ASM-2 3-Vial Magnetic Level, 72 in. is a professional magnetic spirit level built for long-span leveling, plumbing, and alignment on steel and other jobsite surfaces. This is a magnetic level designed for layout, installation, and structural alignment work. Model Number: 29272. If you are setting columns, checking framing, lining up pipe, or working overhead where you need the tool to stay put, this one earns its keep.
The big story here is accuracy that holds up over time. STABILA rates it at ± 1/32 in @ 72 in in the normal position and ± 3/64 in @ 72 in in the reverse position. That matters on a 72 inch level because a long tool is only useful if it stays true from end to end. STABILA's vial installation process permanently aligns the vials and measuring surfaces during production, so you are not buying a long level that starts drifting after hard use.
The rare-earth magnet system is another real advantage, especially for steel framing, structural work, and mechanical installs. These magnets are rated up to five times stronger than standard ferrite magnets, which means the level stays planted on metal while you adjust anchors, supports, or strut. On a ladder, scaffold, or lift, having both hands free is not a luxury. It is the difference between moving efficiently and fighting the tool.
STABILA also gave this 72 inch level the right body for the job. The reinforced aluminum rectangular profile uses ribs for added stability and a more secure grip, so the tool feels rigid instead of flimsy across a long span. Built-in anti-slip stoppers help keep the level from sliding when you are marking. That is a small feature, but anybody who has tried to scribe a line while a long level creeps out of position knows exactly why it matters.
This version uses a 3-vial layout, giving you the standard horizontal and vertical readings plus added flexibility for fast reference work. STABILA's acrylic vials are built for clear readability with precision-ground inner contours and fluorescent vial liquid, so the bubble is easy to read in bright spaces and dim interior work alike. The level also has two measuring surfaces, which gives you more flexibility when checking different orientations and contact points.
For jobsite durability, the plastic end caps help protect the profile from impact, and the overall build is made for repeated site use rather than careful shop storage. At about 3.5 lbs, it has enough heft to feel solid without becoming a chore to carry around a commercial site. The yellow profile also stands out well in cluttered work areas, which sounds minor until you need to find your level fast on a busy deck or scaffold.
This long magnetic level makes the most sense for concrete crews, steel installers, framers, HVAC mechanics, plumbers, electricians working on strut and support systems, and general contractors who need a dependable 72 inch spirit level. Serious DIY users can absolutely use it, but this is really a pro-grade layout tool for people who rely on accurate readings every day. If your work regularly involves metal, long spans, or hands-free alignment, this is the kind of level worth buying once instead of replacing later.
Hands-Free Alignment on Steel
When you are setting forms, supports, or structural members, the magnet strength matters as much as the reading. This magnetic level stays on steel so you can make adjustments without needing a second set of hands.
- Extra-strong rare-earth magnets grip metal surfaces for hands-free work
- Ideal for aligning pillars, supports, and steel framing components
- 72 inch length helps bridge longer spans for more useful readings
Long Body, Easy Readings, Less Guesswork
A 72 inch spirit level is supposed to make long alignment work faster, not harder. The rigid reinforced profile and clear acrylic vials help you get an accurate read without fighting flex, glare, or a bubble that is hard to see.
- Accuracy is rated at ± 1/32 in @ 72 in in the normal position
- Three-vial design gives quick horizontal and vertical reference points
- Fluorescent vial liquid and precision-ground contours improve readability
Made for Daily Site Use
This is the kind of level built for crews that carry tools up ladders, across decks, and through rough commercial spaces. The body is reinforced where it counts, and the small practical details make it easier to work with all day.
- Reinforced aluminum rectangular profile with ribs adds stiffness and grip
- Built-in anti-slip stoppers help hold position while marking
- Plastic end caps protect the profile from impact on the job
At a Glance
Key Specifications
|
|
72 in |
|---|---|
|
|
Aluminum |
|
|
± 1/32 in @ 72 in |
|
|
± 3/64 in @ 72 in |
|
|
3 |
|
|
2 |
|
|
3.5 lbs |
|
|
Germany |
Built For
Pro Tip
When you are marking off a steel member or track, let the anti-slip stoppers take the load instead of pinning the level with your hand. It keeps the 72 inch body from creeping while you scribe, which helps you keep your mark true from one end to the other.
Warranty & Support
Tool Nut's Take
Stabila 29272 Type 80 ASM-2 3-Vial Magnetic Level, 72 in. is a serious site level
If you work on steel, long spans, or overhead installs, this is the kind of magnetic level that saves time because it stays put, reads clean, and keeps its accuracy.
- Who it's for: Pros doing structural layout, steel framing, mechanical installation, concrete forming, and any work where a long spirit level earns daily use.
- Why it stands out: Strong rare-earth magnets, a rigid reinforced body, and STABILA's long-term accuracy are the real reasons to buy it.
- Worth knowing: At 72 inches, this is not the grab-and-go level for punch-list work. It is the right tool when longer reference length gives you a better answer.
Common Questions
- Is this a magnetic level? Yes. It uses an extra-strong rare-earth magnet system for adhesion to metal objects.
- How accurate is it? STABILA lists accuracy at ± 1/32 in @ 72 in in the normal position and ± 3/64 in @ 72 in in the reverse position.
- How many vials does it have? This model is a 3-vial magnetic spirit level.
- Where is it made? Germany.
