Stanley Bostitch F28WW 28 Degree Industrial Framing Nailer System
Stanley Bostitch F28WW 28 Degree Industrial Framing Nailer System
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

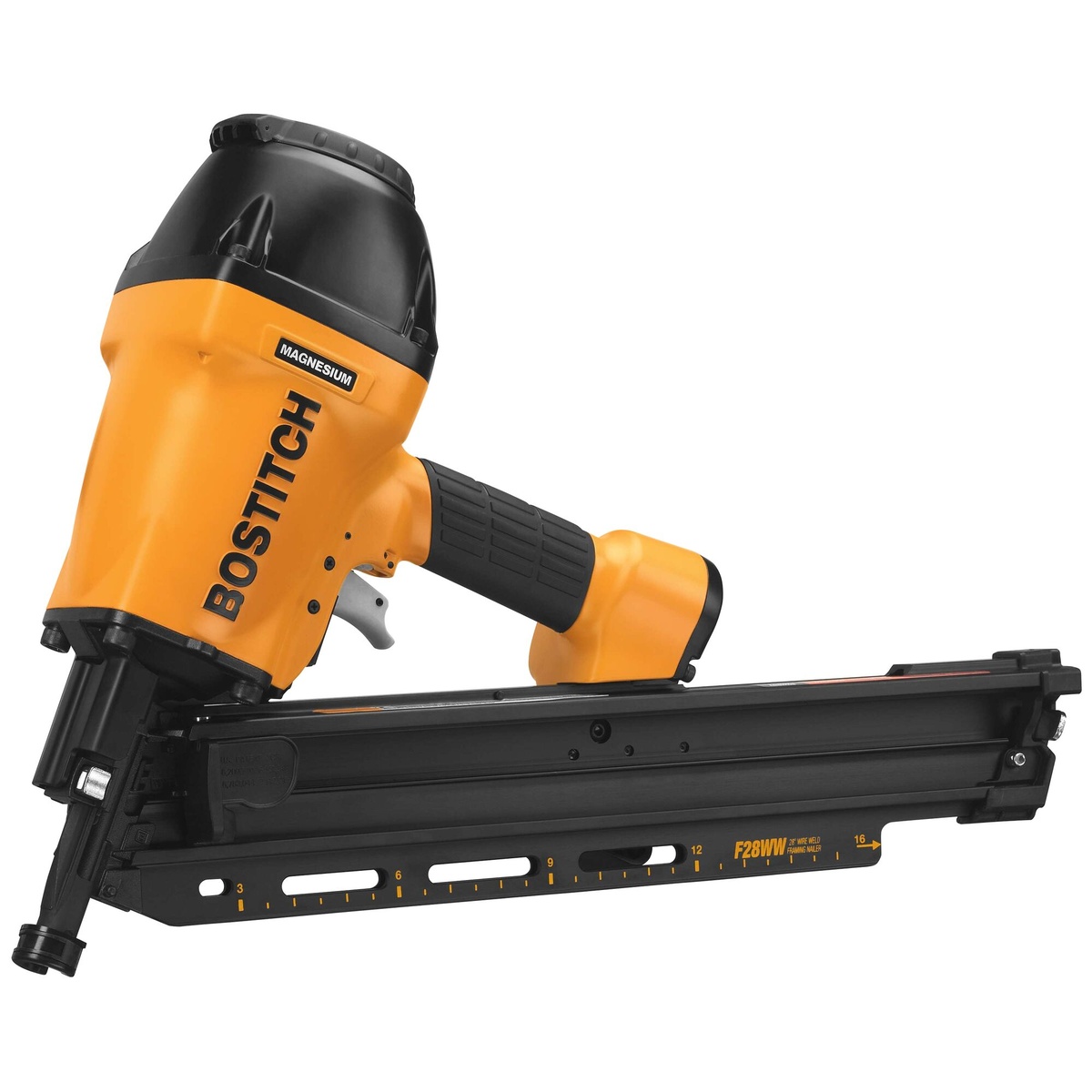

The Bostitch F28WW 28 Degree Industrial Framing Nailer is a pneumatic framing nailer built for structural wood fastening. This is a pneumatic framing nailer designed for framing, stud layout, and engineered lumber fastening. Model Number: F28WW. If you want a jobsite-proven nailer that handles common framing nail sizes, runs on shop air, and keeps up on repetitive work, this is the kind of tool that earns its spot fast.
What makes this framing nailer matter is how it handles the work that actually eats time on site. It accepts 28 degree wire weld strip nails from 2 inches to 3-1/2 inches, so it covers a broad range of framing tasks without forcing you into a narrow fastener range. The 100-nail magazine means fewer reloads during wall builds, blocking, and general structural fastening. Bostitch also adds a push-button adjustable depth guide, which gives you faster control over drive depth when material density changes from standard lumber to tougher engineered stock.
The firing setup is another real-world advantage. The tool includes a factory-installed sequential trigger and Bostitch Smart Trigger capability for sequential and contact firing. That gives you control when placement matters and speed when production matters. For a framer moving between careful placement and repeated nailing, that flexibility is a lot more useful than a one-mode tool.
On the build side, the F28WW is known for a lightweight magnesium design, which is a big deal on overhead or all-day framing work. A lighter nailer is not just easier to carry. It helps reduce fatigue when you are moving room to room, climbing ladders, or working above shoulder height. The over-rafter hook adds another practical touch by giving you a place to park the tool when you need both hands free.
The layout indicator on the magazine is one of those features that sounds small until you use it. Bostitch built in a 16-inch layout reference to help with stud spacing, which can shave off a surprising amount of time when you are moving through repetitive wall framing. It is a simple jobsite feature, but simple usually wins when it saves steps without adding complexity.
This tool runs on compressed air with a 1/4 inch air inlet and an operating pressure range of 70 to 120 PSI. In practical terms, that means you need a pneumatic setup that can support framing nailer demand, but once you have that, you get consistent driving power without worrying about battery charge cycles. For crews already set up with air, that is still one of the most dependable ways to keep production moving.
The Bostitch F28WW 28 Degree Industrial Framing Nailer is best suited for framers, remodelers, general contractors, and serious DIY users tackling structural wood projects. If your work involves walls, substructures, headers, trusses, or general framing tasks and you want a pneumatic nail gun with strong magazine capacity, adjustable depth control, and flexible firing modes, this model makes a lot of sense.
Fasten Common Framing Sizes Without Switching Tools

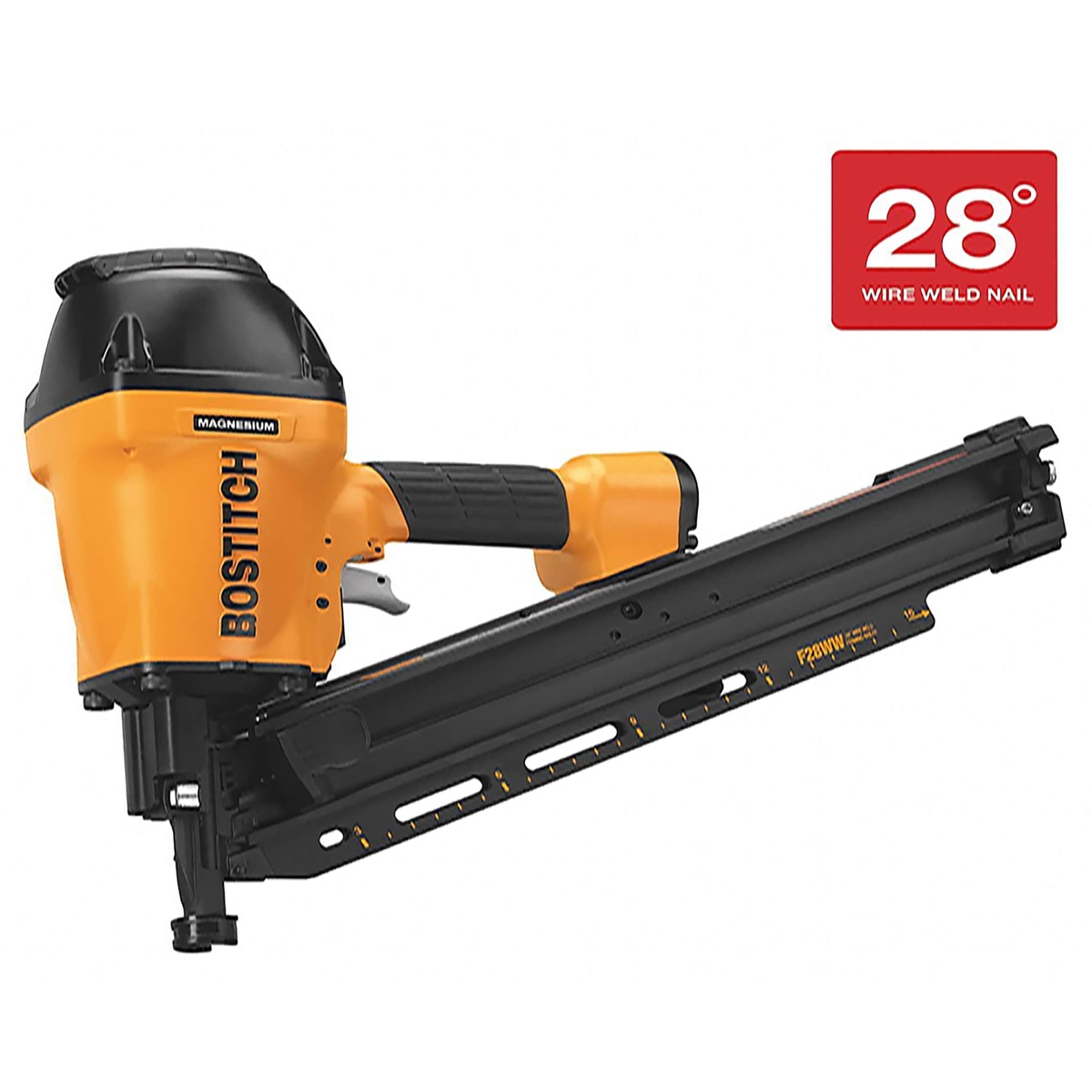

This framing nail gun is set up for the nail sizes most crews actually use in structural wood work. The 28 degree angled magazine also helps with access where a straight strip setup can feel bulkier.
- Accepts 28 degree wire weld strip nails
- Handles nail lengths from 2 inches to 3-1/2 inches
- Clip head configuration for framing applications
Keep Production Moving Through Repetitive Work

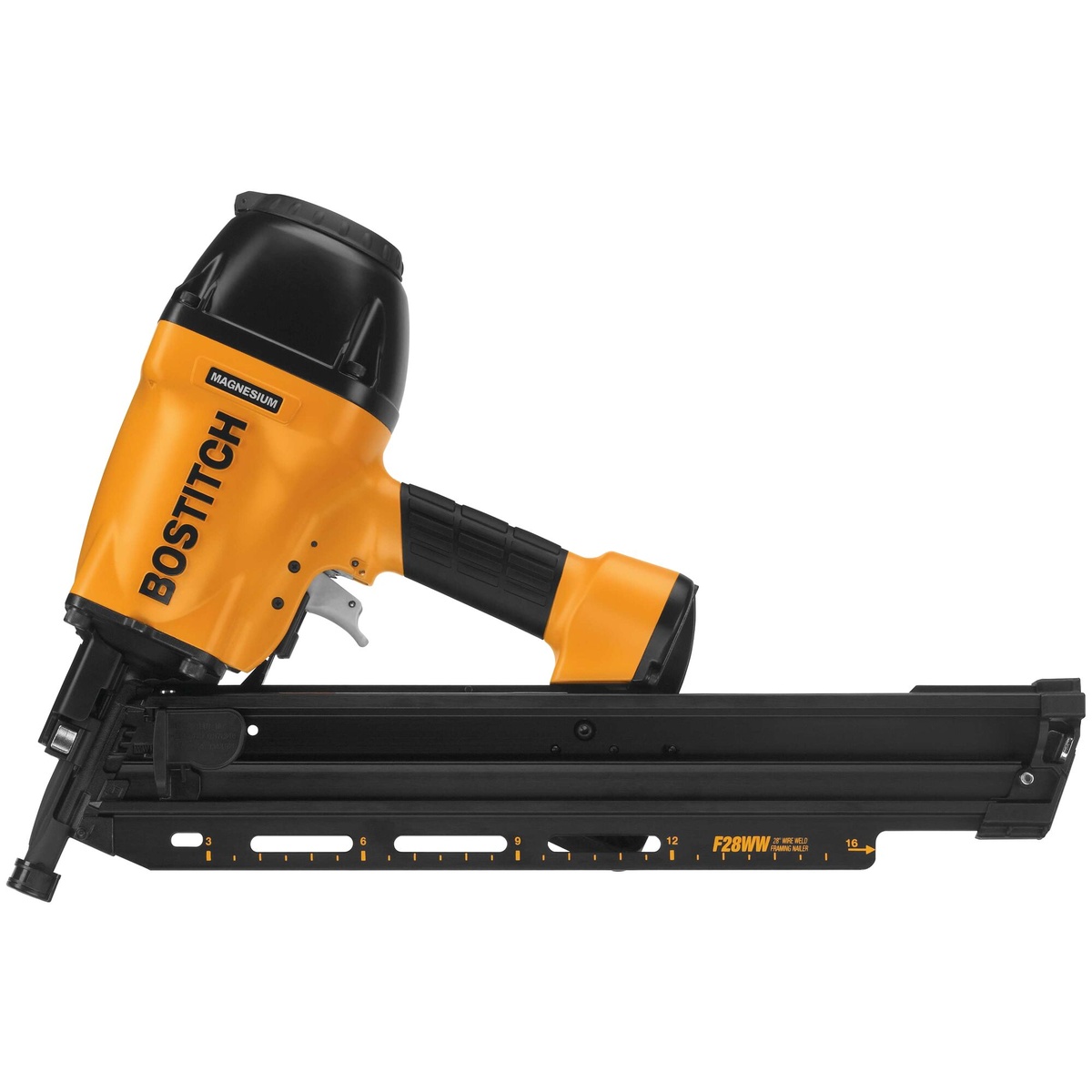

Reloading less and laying out faster makes a real difference on framing days. Bostitch gives this nailer a 100-nail magazine plus a built-in 16-inch layout indicator to help speed repetitive stud and wall work.
- Magazine capacity: 100 nails
- 16-inch layout indicator helps with stud spacing
- Over-rafter hook keeps the tool close when climbing or positioning material
Adjust for Material Changes Without Breaking Rhythm
When you move between different framing materials, quick depth control matters. The push-button depth adjustment and selectable firing behavior make this pneumatic nailer easier to tune for the task instead of fighting the tool.
- Tool-free depth control for faster adjustment
- Tool-free jam clearing helps reduce downtime
- Sequential trigger and Smart Trigger support controlled or faster firing styles
What's in the Box
- (1) Bostitch F28WW 28 Degree Industrial Framing Nailer
- (1) Contact trigger
Nails and air fitting accessories are not listed as included.
Key Specifications
| Tool Type | Pneumatic framing nailer |
|---|---|
| Fastener Angle | 28 degrees |
| Fastener Length Range | 2 in to 3-1/2 in |
| Fastener Head Style | Clip head |
| Collation Type | Wire weld, angled strip |
| Magazine Capacity | 100 nails |
| Operating Pressure | 70 to 120 PSI |
| Air Inlet Size | 1/4 in |
Compatibility
Built For
Pro Tip
Use the 16-inch layout indicator on the magazine when you are standing walls or laying out repetitive stud spacing. It is a small feature, but it cuts down on tape checks and helps keep production moving.
Tool Nut's Take
Why the Bostitch F28WW 28 Degree Industrial Framing Nailer Still Gets the Nod
This is a straightforward production framing nailer with the features that actually help on site, not fluff that gets ignored after day one.
- Who it's for: Framers, remodelers, and contractors who already run air and want a dedicated framing nail gun for strip nails up to 3-1/2 inches.
- Why it stands out: The 100-nail magazine, quick depth adjustment, dual firing flexibility, and 16-inch layout indicator all work in the direction that matters most, which is getting more fasteners placed with less interruption.
- Worth knowing: This is a pneumatic tool, so it makes the most sense for users already set up with a compressor and hose. If you are not on air, that is the first part of the buying decision.
Common Questions
- What type of nailer is this? It is a pneumatic framing nailer for structural wood fastening.
- What nails does it use? It is designed for 28 degree wire weld strip nails with lengths from 2 inches to 3-1/2 inches.
- What air pressure does it require? Source data lists an operating range of 70 to 120 PSI.
- Does it support different firing modes? Yes. Source data states it includes a factory-installed sequential trigger and Smart Trigger capability for sequential and contact firing.
