The Swan VacQport VQPT01 is a vacuum workholding port that threads through your workbench. This is a bench-mounted vacuum clamping port designed to hold boards, panels, and plastic sheet flat using vacuum instead of clamps.
Once installed, the VacQport turns any vacuum source into a solid hold. Drop a seal on the bench or set a VacQpod over the port, lay the workpiece on, and switch on. Atmospheric pressure holds the part down while every top face, side, and end stays completely open for routing, sanding, or planing.
The port installs directly through a benchtop, workbench, or fixture, so you decide where the holding points go. The head accepts a 1/8-in. NPT push-connect fitting that takes 1/4-in. airline to your vacuum source.
The low-clearance head sits flush, so it does not interfere with your tool during any operation.
The VacQport is the bench anchor of Swan's VacQ system. It works with the VacQube pump (VCQ124), VacQpods (VBP200), the Paring VacQpod (VPA120), and the VacQswitch (VTSRV2). Buy two or more if you want several holding points across a bench.
Mounts Right Through the Bench

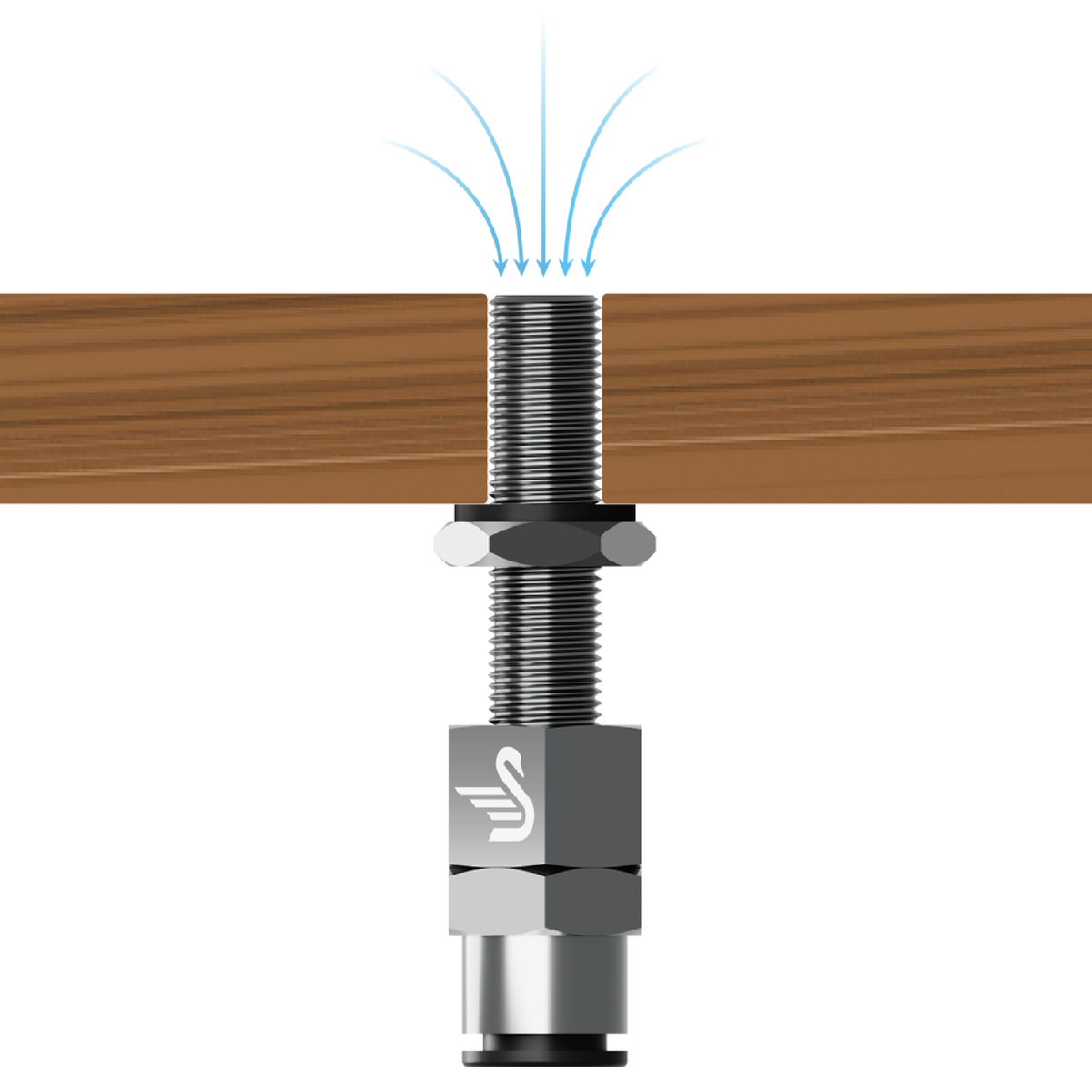

Thread it through the top and the vacuum line runs underneath, out of your way.
- Installs through a workbench, benchtop, or fixture
- Position holding points where you need them
Quick-Connect Airline

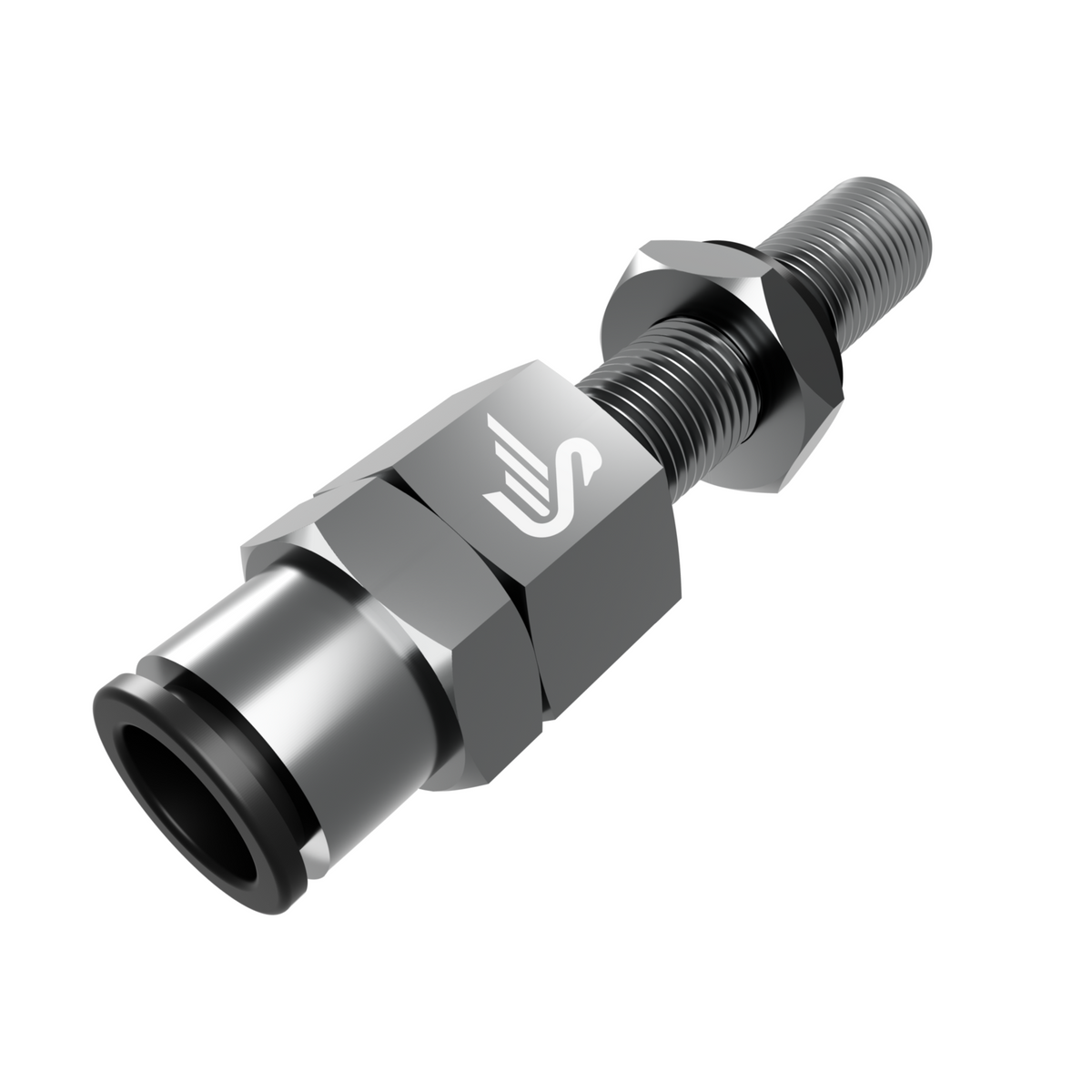

The head accepts a 1/8-in. NPT push-connect fitting for 1/4-in. airline.
- 1/8-in. NPT push-connect fitting
- Connects to 1/4-in. airline
Stays Out of the Way
The low-clearance head sits flush with the work surface.
- Flush low-profile head
- Full access to every face and edge
Key Specifications
| Mounting | Threads through workbench or work surface |
|---|---|
| Fitting | 1/8-in. NPT push-connect |
| Airline | 1/4-in. |
| Head Profile | Low-clearance, flush |
Compatibility
Built For
Tool Nut's Take
Turn Your Bench into a Vacuum Table
The Swan VacQport VQPT01 puts a clamp-free holding point anywhere you can drill.
- Who it's for: Woodworkers who want permanent vacuum holding points built into the bench.
- Why it stands out: Flush head, 1/4-in. airline, and full access to every face of the part.
- Worth knowing: It is one port. Plan on two or more for most benches, plus a vacuum source.
Common Questions
- What size airline does it use? 1/4-in. airline through a 1/8-in. NPT push-connect fitting in the head.
- Can I set a VacQpod on it? Yes. VacQpods and the Paring VacQpod set directly over the port and pull vacuum straight through.
