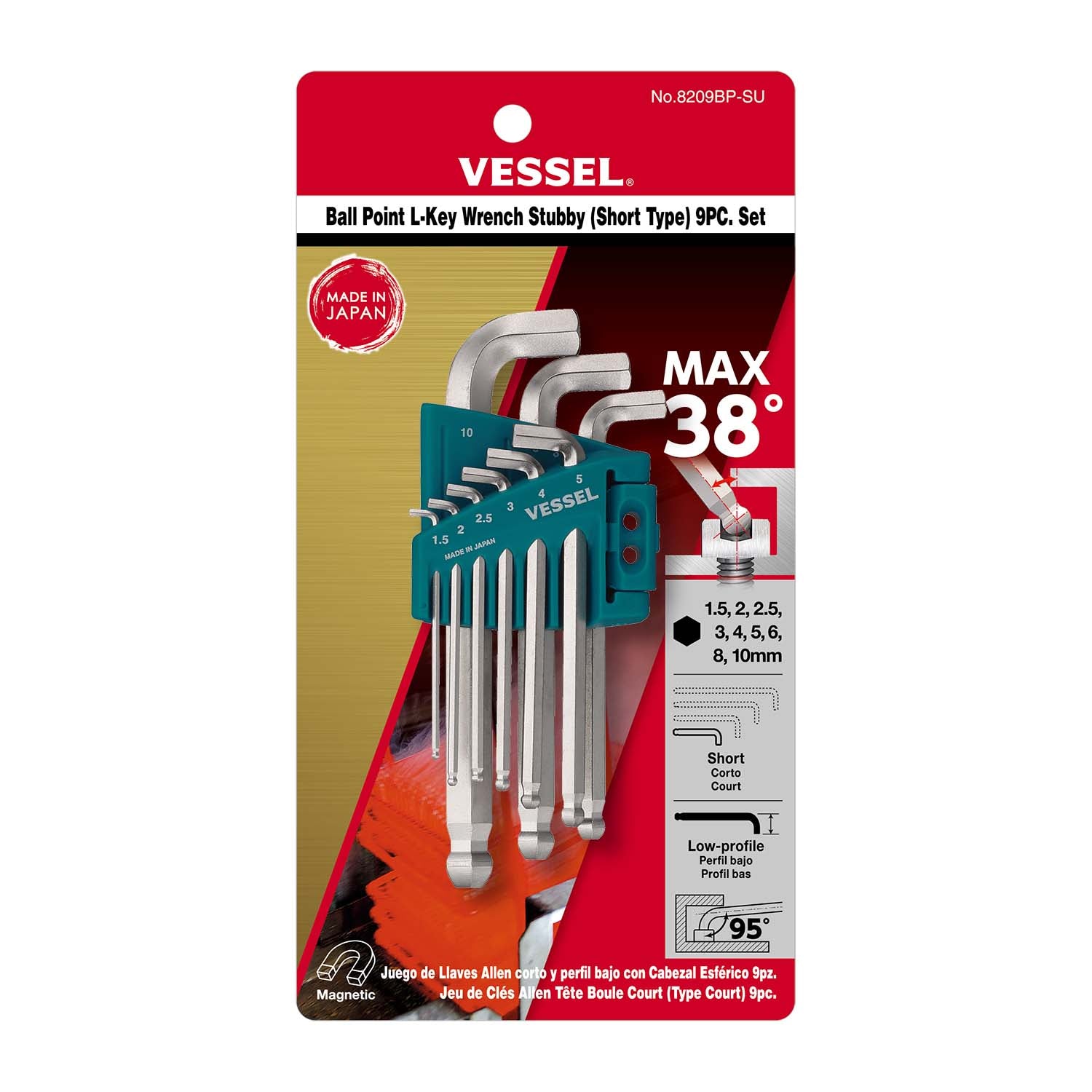

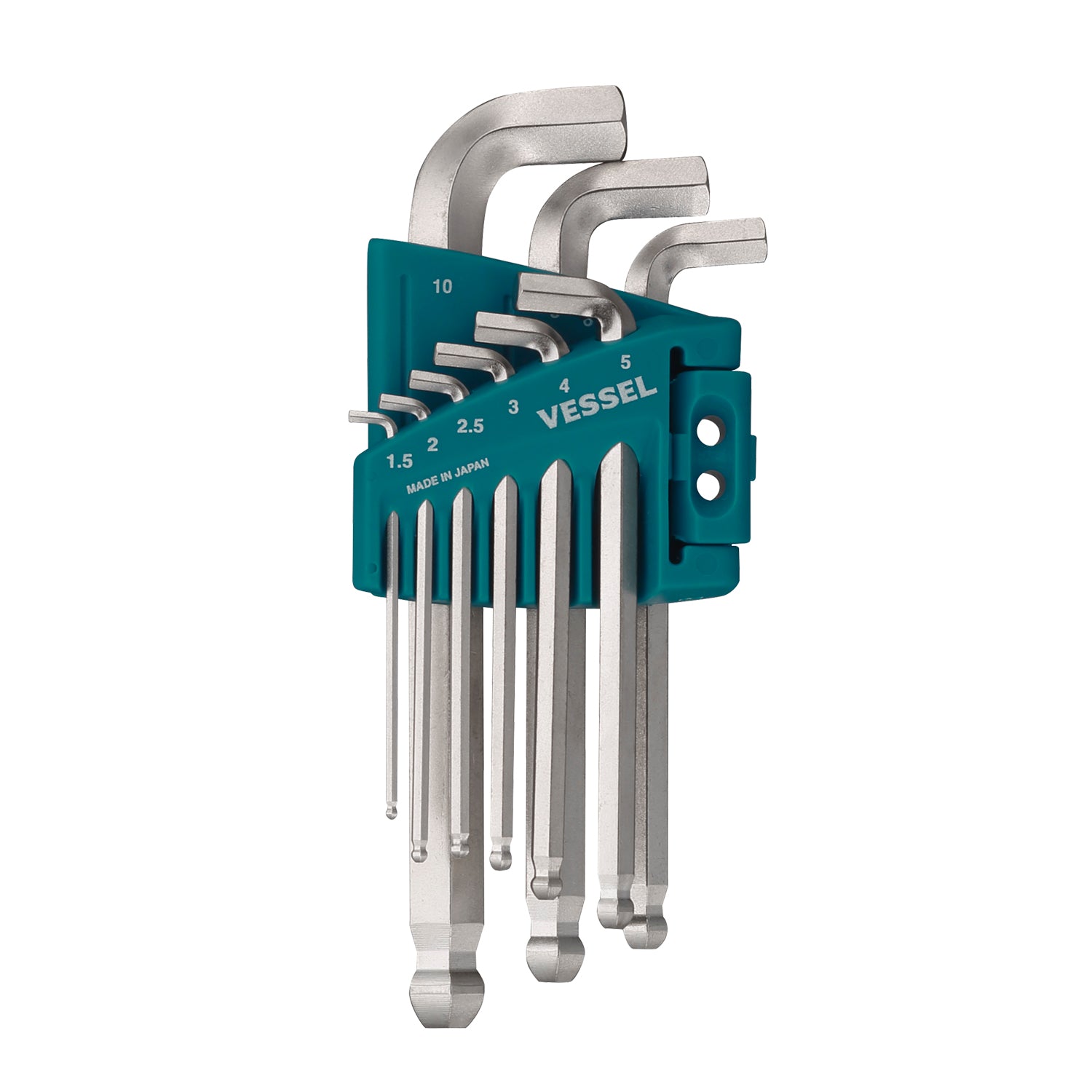

Vessel 8209BPSU Ball Point Hex L-Key Wrench, Stubby Short Type, 9-Piece Set
Vessel 8209BPSU Ball Point Hex L-Key Wrench, Stubby Short Type, 9-Piece Set
Out of Stock - Available to Order
Product Details
Product Details
Key Features
Overview
The Vessel 8209BPSU Ball Point Hex L-Key Wrench Stubby (Short Type) 9-Piece Set is a manual hex key wrench set designed for technicians working in tight, confined spaces where a full-length hex key won't fit. Model 8209BPSU covers nine metric hex sizes — H1.5, 2, 2.5, 3, 4, 5, 6, 8, and 10mm — in Vessel's shortened "stubby" body length.

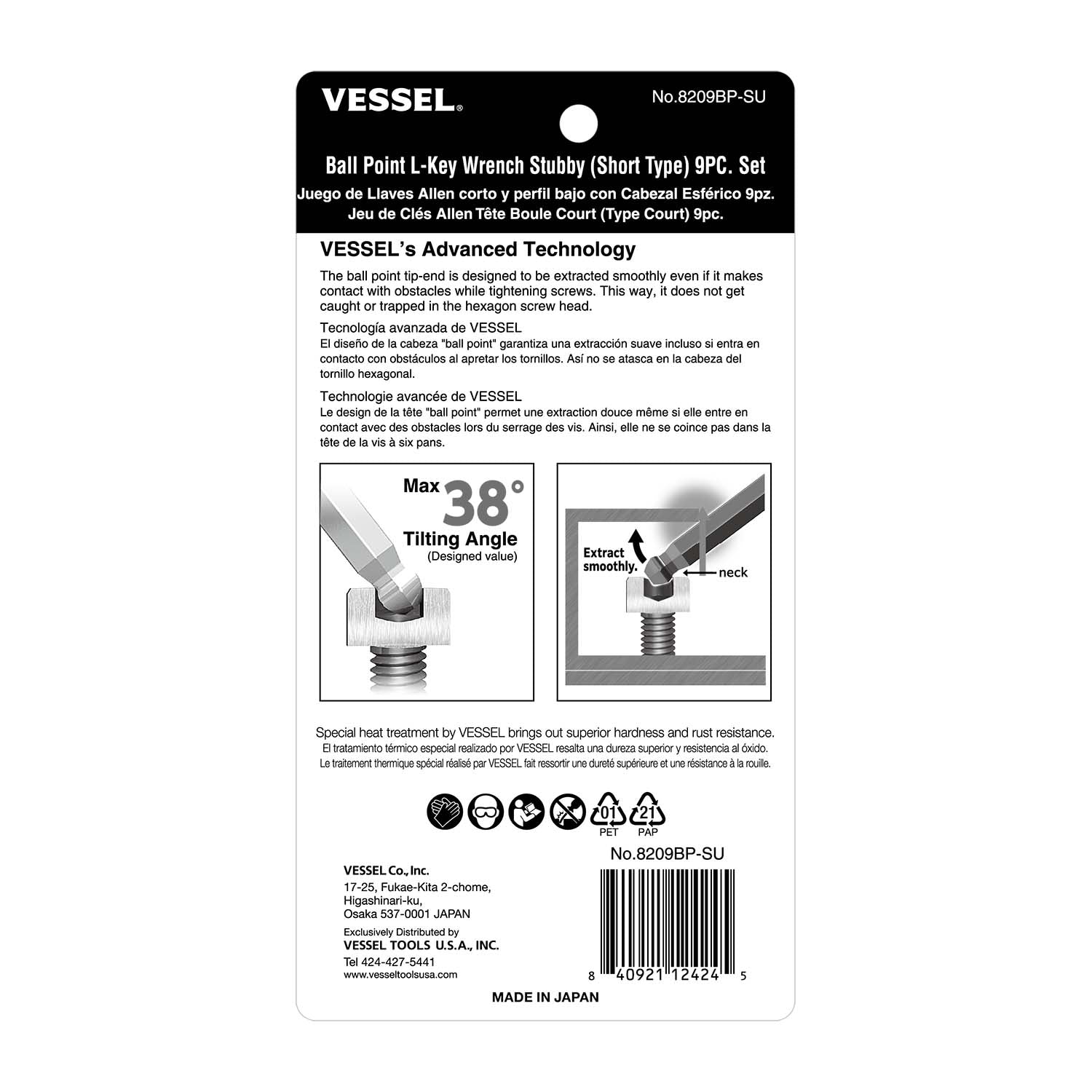

Every key in the set has a ball-point tip on the long end, which lets you drive a fastener at up to a 38-degree angle off the bolt's centerline. That matters in real-world work: recessed set screws, fasteners behind brackets, and bolt heads at odd angles are common in machinery, automotive, and equipment work, and a straight hex key often can't get a square bite on them. The stubby body length adds another layer of access — where a standard-length L-key hits a wall or housing before it can turn, the shorter 8209BPSU fits and completes the turn.
Vessel builds these keys from its own "Extra Superalloy" steel, fully hardened and magnetic, specifically to resist the twisting and snapping that cheaper hex keys are prone to under real torque. The L-shaped body holds a 95-degree bend, and the set includes a holder to keep all nine sizes organized and grabbable in order.
This is a purpose-built set for mechanics, machine technicians, and anyone doing service work in tight engine bays, cabinetry, or equipment housings where reach and clearance matter as much as torque.
Reach Fasteners a Standard Hex Key Can't
The ball-point end isn't just for show — it holds a bite on the fastener even when the key is tilted well off centerline, which is the difference between finishing a job and giving up because you can't get the key square.
- Drives fasteners at up to a 38-degree tilt angle
- 95-degree L-angle body for standard or angled approach
Short Body, Same Nine Sizes
The "stubby" short-type body is the whole reason this set exists alongside Vessel's standard-length hex keys — it's built for the exact moment a full-size L-key won't clear the housing or bracket around your fastener.
- Shortened overall length vs. Vessel's standard 8209BPU set
- Same H1.5–H10mm size range in a more compact footprint
What's in the Box
- H1.5mm ball-point hex key — 1
- H2mm ball-point hex key — 1
- H2.5mm ball-point hex key — 1
- H3mm ball-point hex key — 1
- H4mm ball-point hex key — 1
- H5mm ball-point hex key — 1
- H6mm ball-point hex key — 1
- H8mm ball-point hex key — 1
- H10mm ball-point hex key — 1
- Organizer holder — 1
Vessel markets this as a "9PC. Set," referring to the nine hex keys; the holder ships with the set as a separate organizing accessory.
Key Specifications
| Piece Count | 9 hex keys + holder |
|---|---|
| Hex Sizes | H1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm |
| Overall Length | 122mm (4.8 in.) |
| Weight | 194g (0.43 lb) |
| Material | Extra Superalloy steel, fully hardened, magnetic |
| Max Tilt Angle | 38 degrees |
| L-Angle | 95 degrees |
| Body Type | Stubby (Short Type) |
| Made In | Japan |
Built For
Pro Tip
Start every fastener with the ball-point end at an angle to get it threaded, then switch to the straight hex end for final torque — the ball point is rated for driving, not for breaking loose a stuck or over-torqued fastener, where the added leverage of a straight bite matters more.
Tool Nut's Take
The Hex Key Set for When the Standard One Doesn't Fit
The Vessel 8209BPSU earns a spot in the toolbox specifically for the jobs where a full-length hex key can't clear the housing around the fastener.
- Who it's for: Mechanics, machine technicians, and anyone routinely working fasteners tucked behind brackets, panels, or housings.
- Why it stands out: The stubby body plus a 38-degree ball-point tilt angle covers access problems a standard hex key set simply can't.
- Worth knowing: This is a metric-only set (H1.5–H10mm) — check your fastener sizes are metric before buying if you're working on SAE equipment.
Common Questions
- What's the difference between the 8209BPSU and Vessel's 8209BPU set? The 8209BPSU is the "stubby" short-type body, built shorter overall than the standard 8209BPU to fit into tighter clearances.
- Are these hex keys magnetic? Yes — Vessel's Extra Superalloy steel used in this set is fully hardened and magnetic.
- Is the Vessel 8209BPSU set made in Japan? Yes, per Vessel's product specifications.
