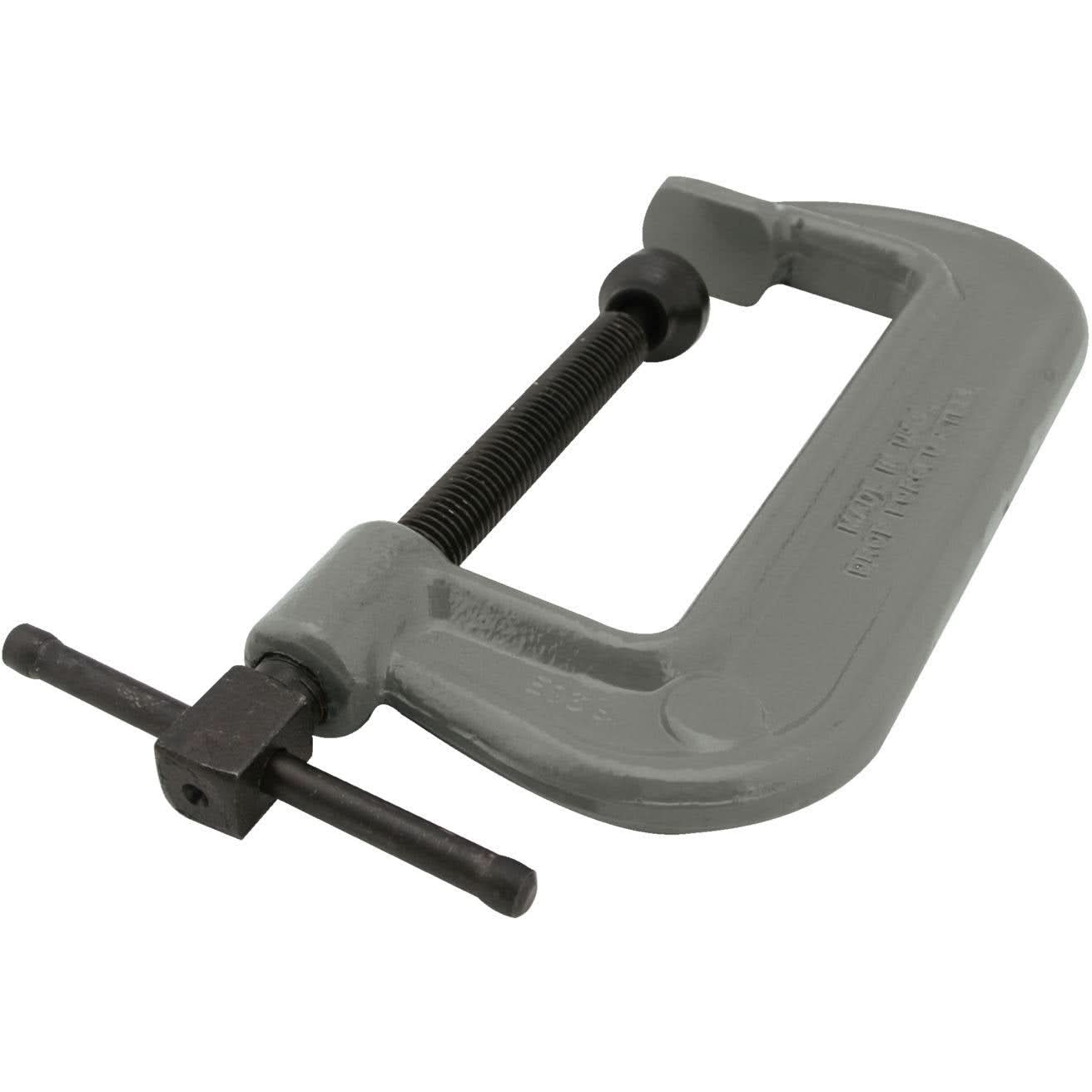

The Wilton 14156 100 Series Forged C-Clamp - Heavy-Duty 7/8 - 5-3/4 in. Open Capacity is a heavy-duty forged C-clamp built for industrial-strength holding power. This is a C-clamp designed for heavy material clamping in fabrication, structural steel work, and industrial assembly. Model Number 106. If you're working with thick stock, structural members, or jobs where clamp failure is not an option, this is the kind of clamp you reach for instead of a lighter shop clamp.

The main number that matters here is clamping force. This Wilton clamp is rated at 11,250 lbs., which puts it in a different class from general-purpose C-clamps. That kind of pressure gives you the grip needed for heavy structural plate, fabrication setups, and demanding fit-up work where movement during welding, pressing, or positioning can ruin the job.

The opening capacity runs from 7/8 in. to 5-3/4 in., giving you a broad working range for thicker assemblies and larger material stacks. Pair that with the 2-1/2 in. throat depth, and you can place force farther in from the edge when the part geometry won't let you clamp right on the outside. On real work, that means better access on flanges, channels, and deeper-set contact points.

Wilton builds this clamp with a drop forged steel frame, and that matters because frame rigidity is what lets a clamp apply pressure without wasting force in deflection. The heavier construction is meant for jobs that would bend, distort, or flat-out break standard-duty clamps. If you do structural fabrication, bridge work, shipyard work, or industrial maintenance, that extra frame strength is not a luxury. It is the whole point.

The spindle setup is also built for load. The clamp uses an Acme spindle with a 3/4 in. spindle diameter, plus a forged square head spindle design with rolled thread and black oxide coating. In practical terms, that gives you smoother adjustment under load, good durability at the threads, and the strength needed to keep applying pressure when the work gets stubborn.

At the contact point, the heavy-duty self-adjusting pad or replaceable Perma-Pad helps spread force more evenly across the workpiece. That matters on plate and structural material because it reduces concentrated point loading and helps the clamp stay planted instead of digging in awkwardly. When you're trying to hold thick material securely without creating a bad contact spot, this style of pad makes a difference.

Even though it is a heavy-duty clamp, the listed weight is 6.35 lbs., which keeps it manageable enough for repeated setup changes. That is still a substantial tool, but it is not oversized for the amount of holding force it delivers. For field fabrication or shop work where clamps move from station to station all day, that weight-to-strength balance is one of the reasons Wilton's forged clamps have a strong reputation.

This clamp makes the most sense for welders, steel fabricators, shipbuilders, bridge crews, industrial maintenance teams, and anyone clamping heavy stock where ordinary C-clamps are out of their depth. If your work regularly involves thick material, high clamp pressure, and tough service conditions, this is the right kind of clamp to spend money on. If you only need a light bench clamp for occasional wood or sheet goods, this is more clamp than you need.

Wilton 14156 100 Series Forged C-Clamp Means Business

This is a real heavy-duty forged C-clamp for metalworking and structural jobs where a standard clamp is just wasting your time.

• Who it's for: Welders, steel fabricators, industrial crews, and anyone clamping thick material or structural members on a regular basis.
• Why it stands out: The forged steel frame, 11,250 lb. force rating, and 2-1/2 in. throat depth give it the kind of strength and reach that make sense on serious work.
• Worth knowing: At 6.35 lbs., it is manageable for the strength it brings, but this is not a light-duty shop clamp. Buy it when the job actually demands brute force.

• What is the maximum opening capacity? The listed opening capacity is 7/8 in. to 5-3/4 in.
• How much clamping force does it produce? It is rated for 11,250 lbs. of clamping force.
• What is the throat depth? The throat depth is 2-1/2 in., which helps position clamping force farther in from the edge of the workpiece.
• What is the frame made from? The frame is made from drop forged steel for heavy-duty strength and rigidity.
