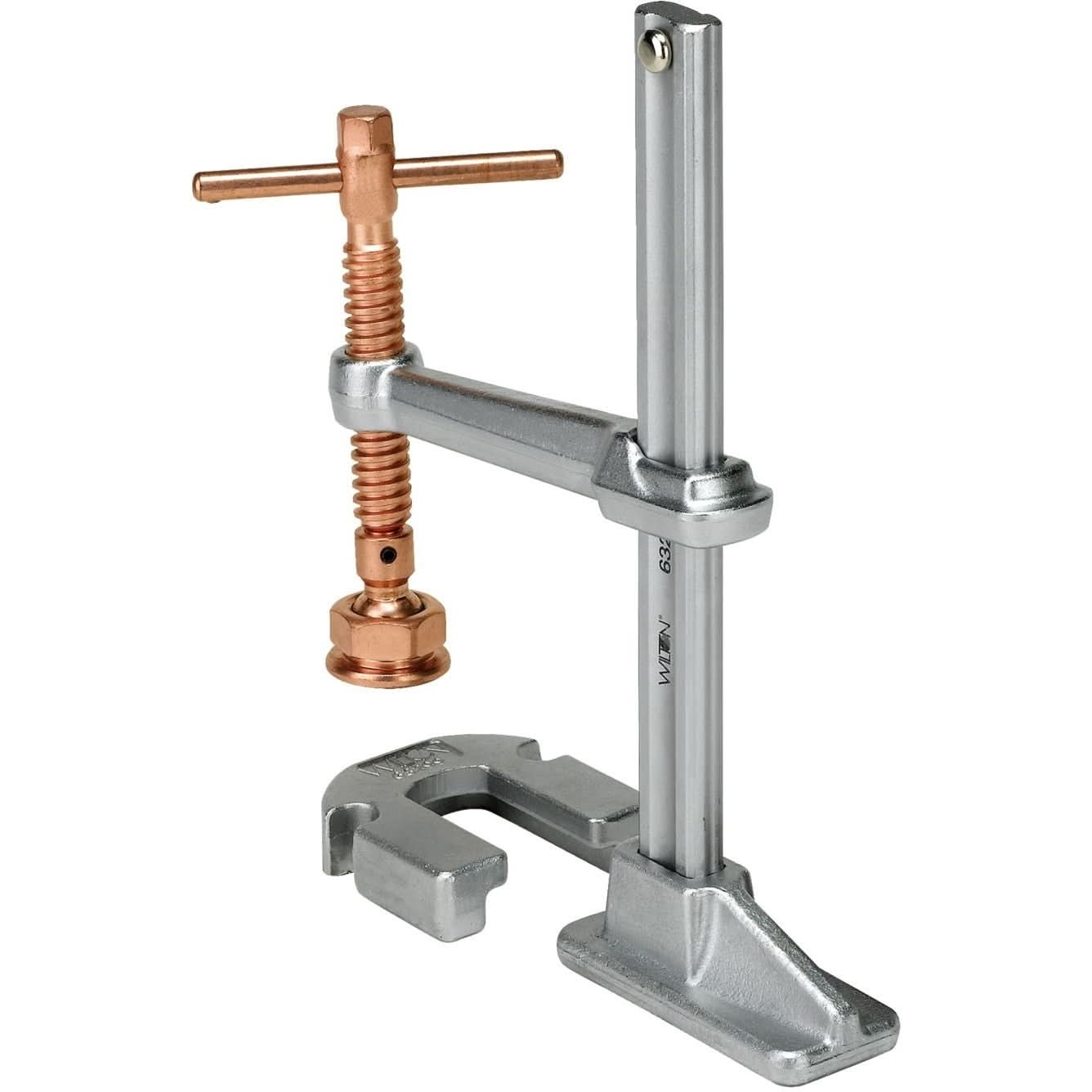

The Wilton 63295 Welding Shoe Clamp is a specialty welding clamp built for fixture work, plate alignment, and holding steel stock during welding. This is a welding shoe clamp designed for welding fixture work and deep-reach clamping on plate, angle, and channel. Model number 63295 gives you up to 8-1/2 inches of jaw opening, 5-1/2 inches of throat depth, and 2,600 pounds of clamping force in a setup made specifically for fabrication shops and repeat fixture stations.

What makes this clamp different from a standard C-clamp is where and how it applies force. The deep throat lets you position pressure farther in from the edge of the workpiece, which is a big deal when a weld joint wants to lift, spread, or walk as heat comes up. The 8-1/2 inch opening gives you room for larger assemblies, and the shoe-style jaw face spreads the load across a wider contact area for a more stable hold on plate, angle, and channel stock.

The steel construction is built for welding environments where heat, spatter, and constant repositioning wear out lighter-duty clamps fast. Wilton also uses a copper-plated spindle to help protect the screw and pad from welding spatter, which is one of those details that matters more after the tool has been on the table for a while. The screw spindle gives you controlled tightening instead of the all-or-nothing feel you get from quick clamps, so it is easier to dial in alignment before committing to a weld.

On the job, the real advantage is the mounting shoe system. The shoe can be welded or bolted to a fixture, table, or fabricated piece, then the clamp slides into place as needed. That means you can leave the shoe where the work happens and move the clamp between stations, which helps cut setup time and keeps bulky clamp assemblies from cluttering the table when the fixture is stored. For fabrication work, that flexibility is often worth more than raw clamping force alone.

Wilton rates this clamp at 2,600 pounds of holding force, and that is enough to keep stock secure through tack welds and full passes when parts want to move from thermal expansion and contraction. The replaceable shoe face is another practical detail, especially in shops where one tool sees repeated use on the same stations. Instead of replacing the whole clamp when the contact area wears down, you can maintain the working surface that affects hold quality.

At 8.25 pounds, this is not a light hobby clamp, but it is still manageable enough for frequent repositioning around a fixture table. It is best suited for welders, metal fabricators, pipeline training programs, and production shops that need dependable holding power in spots conventional clamps cannot reach. If your work involves repeated setups, awkward access, or parts that need to stay put while heat is changing everything around them, this clamp solves a real problem.

Wilton 63295 Welding Shoe Clamp is the kind of specialty clamp that earns its keep fast

If you do welding fixture work regularly, this is a smarter setup than forcing a standard clamp to do a job it was never built for.

• Who it's for: Welders, metal fabricators, and shops that need stable clamping on plate, angle, and channel during fixture setup and weld passes.
• Why it stands out: The mounted shoe system, deep reach, and 2,600 lbs. of force make it far more useful in awkward welding positions than a basic C-clamp.
• Worth knowing: This is a specialty workholding tool, not a general-purpose clamp. If you never build fixtures or work around weld tables, you may not need it. If you do, you will.

• What is the maximum opening capacity? The clamp opens from 0 to 8-1/2 inches.
• How deep can it reach into the workpiece? It has a 5-1/2 inch throat depth for deeper clamping on welding setups.
• How much holding force does it provide? Wilton rates the 63295 at 2,600 pounds of clamping force.
• What is it made from? The clamp is made from steel and uses a copper-plated spindle for better resistance to welding spatter.
