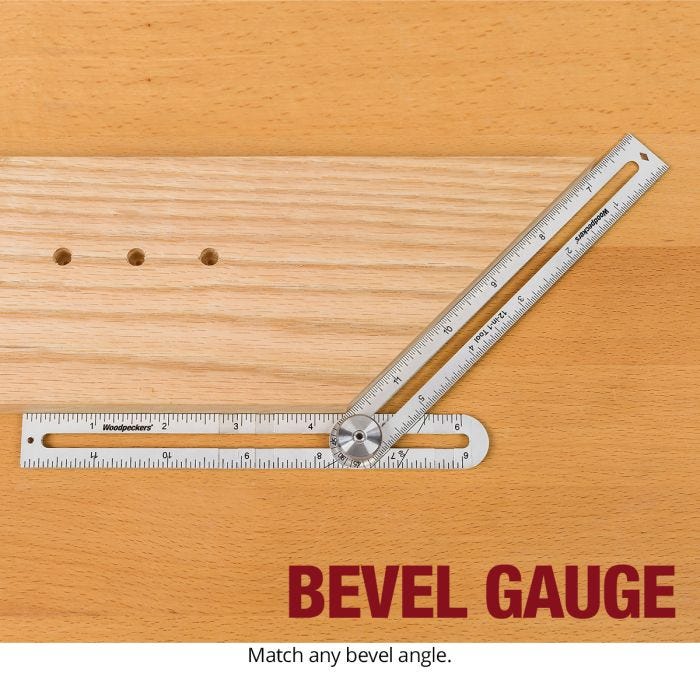

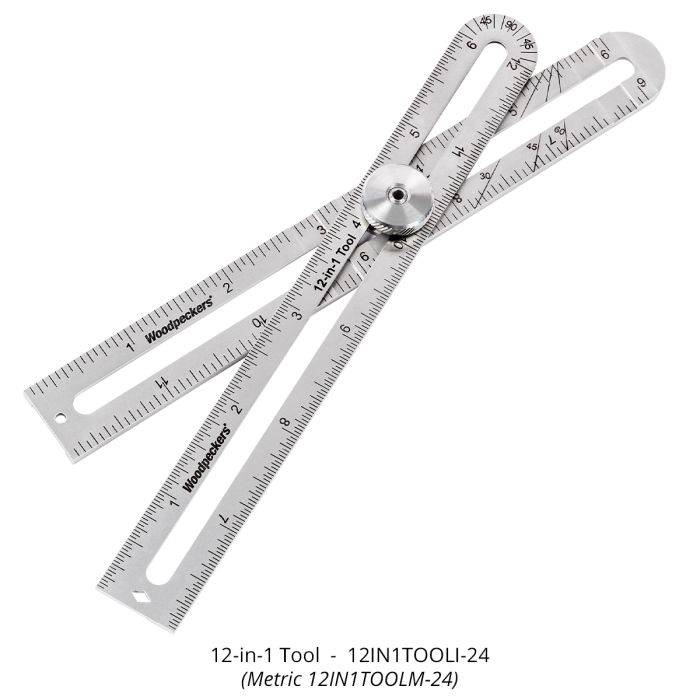

Woodpeckers 12IN1TOOLI-24 12-In-1 Layout Tool and Adjustable Square is a compact stainless steel measuring and layout tool built for woodworkers who need accurate marking, angle setup, and measurement transfer without carrying a pile of separate tools. This is a measuring and layout tool designed for woodworking layout, marking, squaring, and angle transfer. Model Number: 12IN1TOOLI-24. This inch-version tool is made to fit in an apron pocket while covering the work of a 12 inch rule, adjustable T-square, try square, bevel gauge, compass, marking gauge, divider, depth gauge, diameter gauge, protractor, miter square, and inside measurement scale.
What makes this tool matter is not just the number of functions, but how quickly you can switch between them. The two scales slide and pivot together through carefully machined grooves, then lock into position with a thumbwheel. In practical use, that means you can go from checking square, to transferring a bevel, to setting a repeat offset line, to measuring between fixed points without reaching for another tool. For cabinet work, furniture layout, trim fitting, and general bench work, that kind of flexibility saves real time.
Woodpeckers built this version as a modern take on a classic early 20th century design, but with tighter machining and more dependable readability. The stainless steel scales are CNC machined, laser engraved, and finished in a non-glare satin style for clear viewing under normal shop lighting. That matters because layout tools live or die by legibility. If the marks are hard to read or wear off, the tool stops being useful. Here, the engraved scales and stable stainless construction are the whole point.

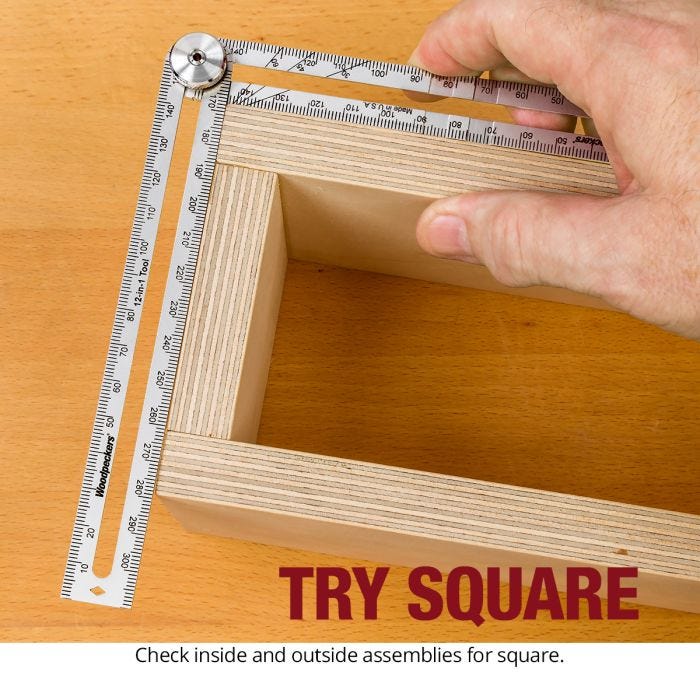

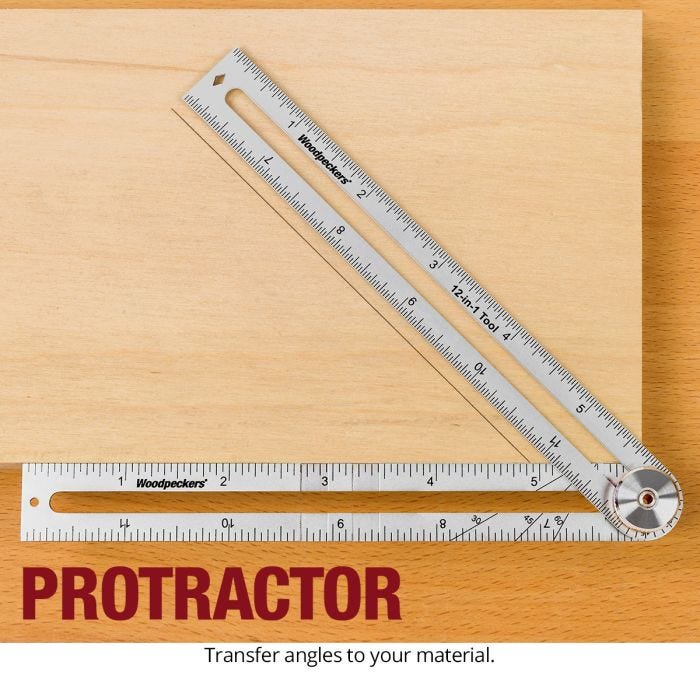

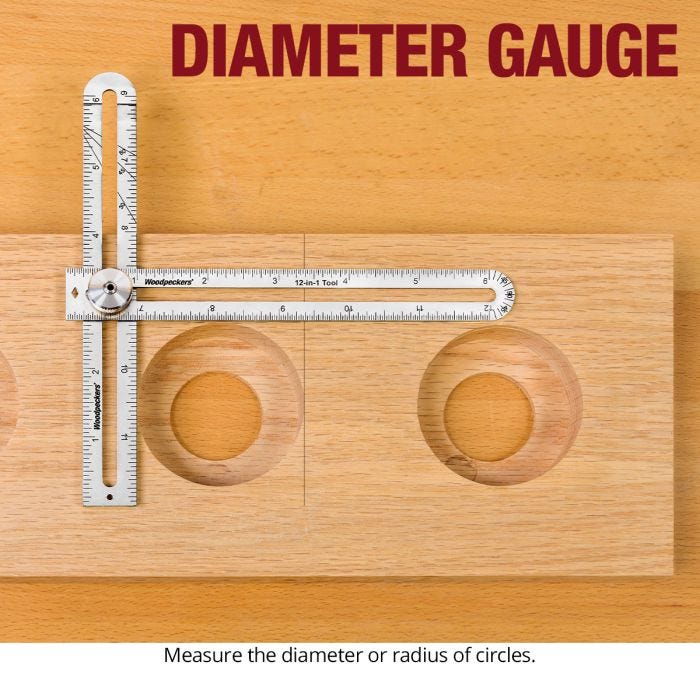

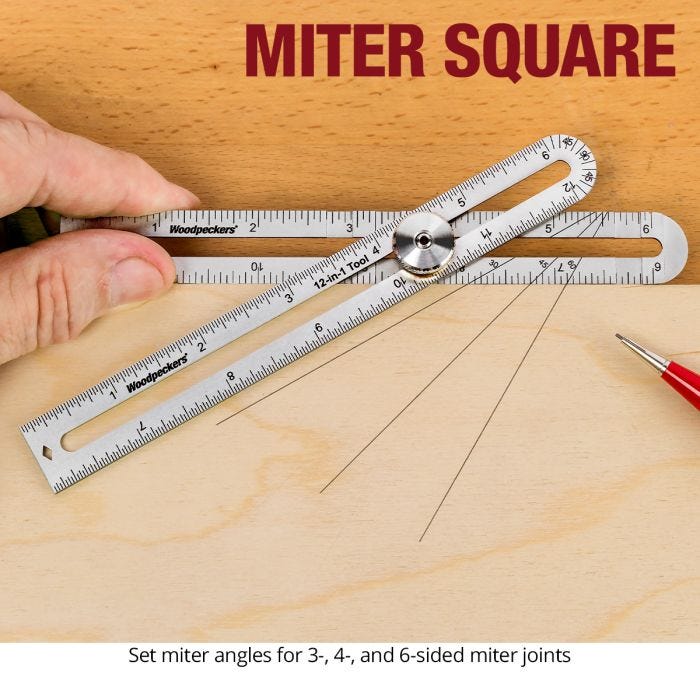

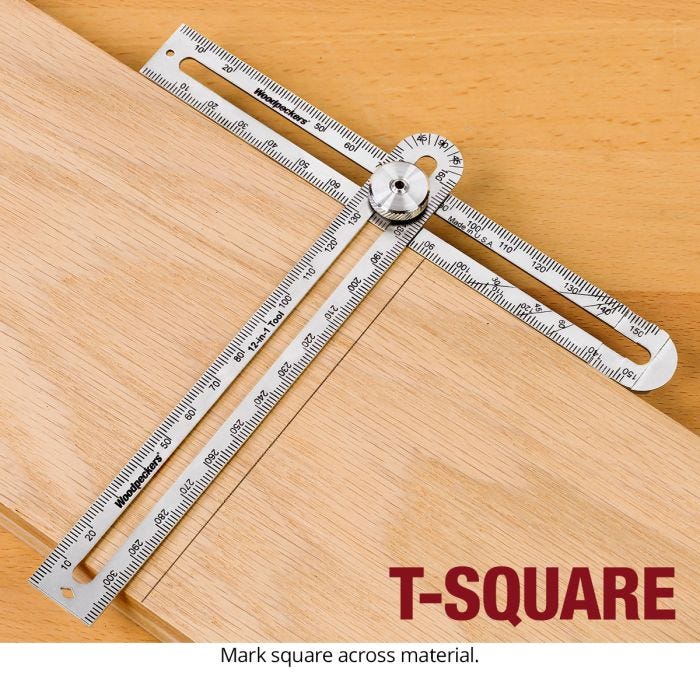

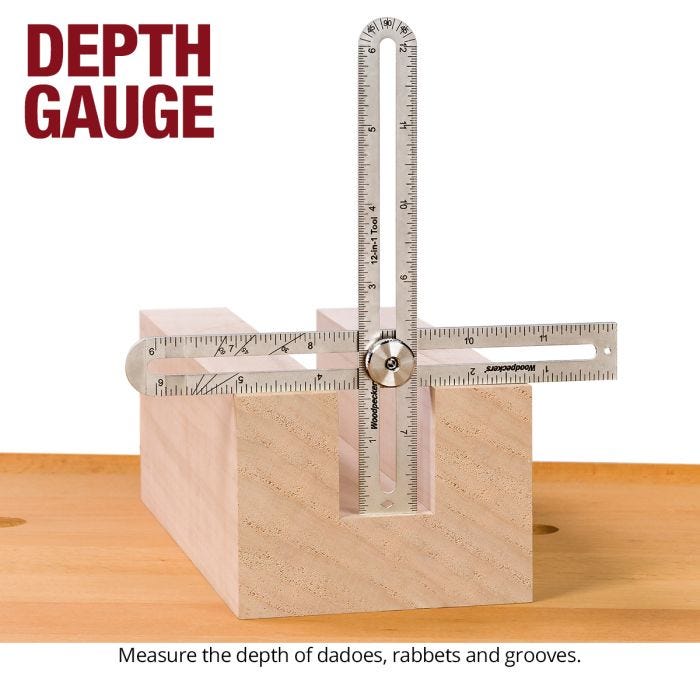

Accuracy is another big reason someone buys a tool like this instead of a novelty gadget. Woodpeckers lists the scales at a 0.004 inch total accumulated error tolerance, which is the kind of spec that tells you this tool is meant for actual shop work, not just occasional measuring. The base scale includes grooves for T-square, marking gauge, and depth gauge work, while the opposite end supports try square and diameter gauge functions. There are also alignment guides for common angles including 30, 45, and 60 degrees, which makes angle layout faster when you are building boxes, frames, segmented work, or mitered assemblies.

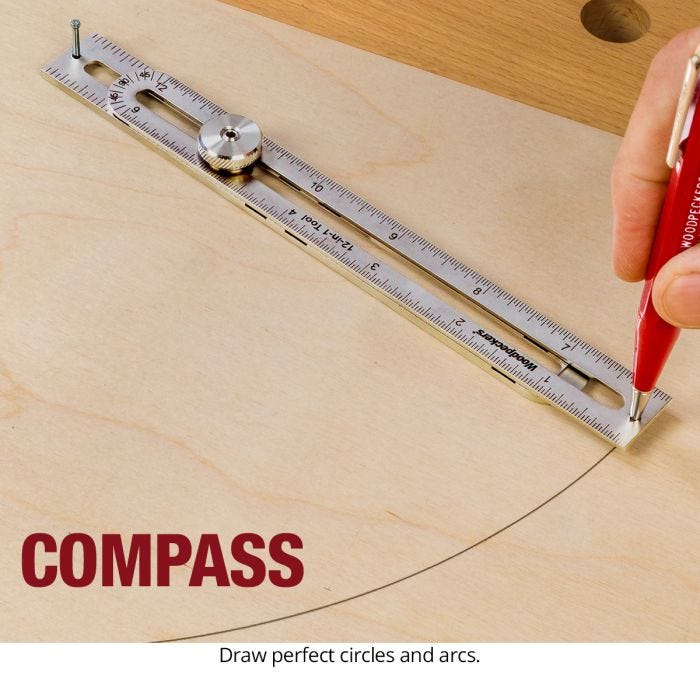

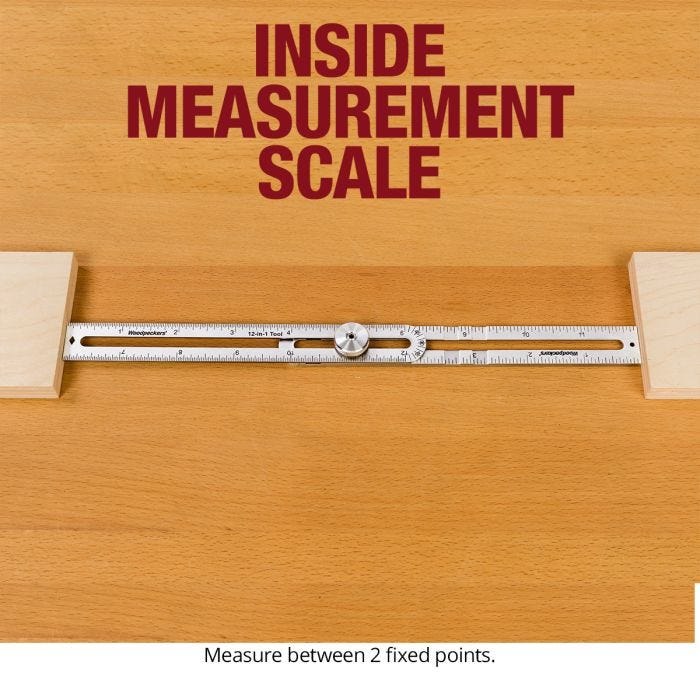

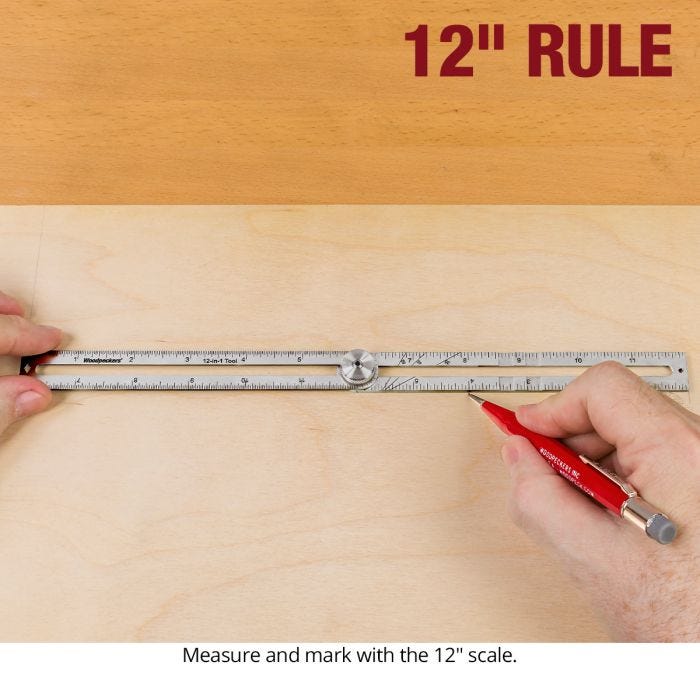

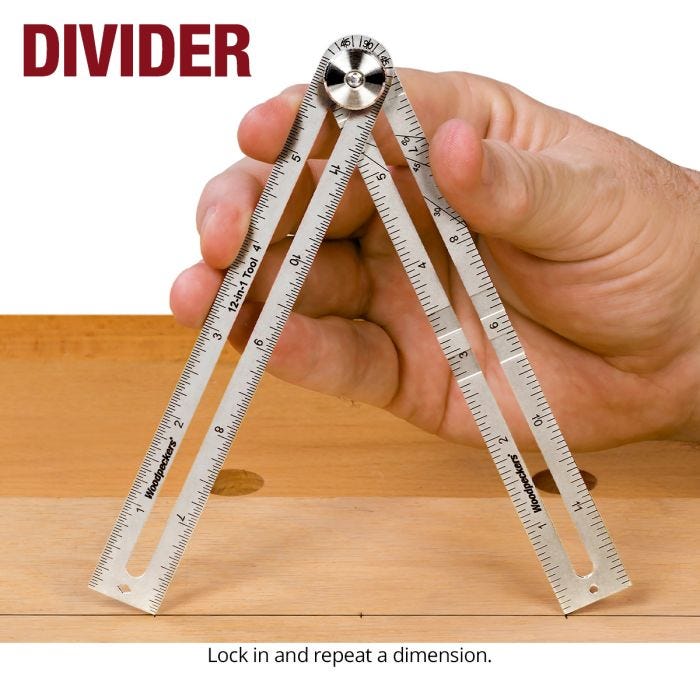

The inch version is especially straightforward for users who work from imperial plans, tape measures, and common U.S. shop dimensions. The 12 inch graduation range gives you enough length for most bench-top layout tasks while keeping the overall tool easy to carry. Because it can also work as a compass and divider, it handles arcs, circles, spacing, and transferred measurements that usually require another dedicated tool. The inside measurement function is also useful when you need to check fixed openings or fit parts inside a case or frame.
This Woodpeckers adjustable square is best suited for woodworking, cabinetry, furniture building, trim work, and serious hobby shop use where accurate layout makes the cut or fit easier later. It is also a smart pickup for anyone who appreciates well-made hand tools and wants one layout tool that earns pocket space every day. If you do rough framing only, this may be more precision than you need. If you care about clean joinery, repeatable layout, and compact shop efficiency, it makes a lot more sense.

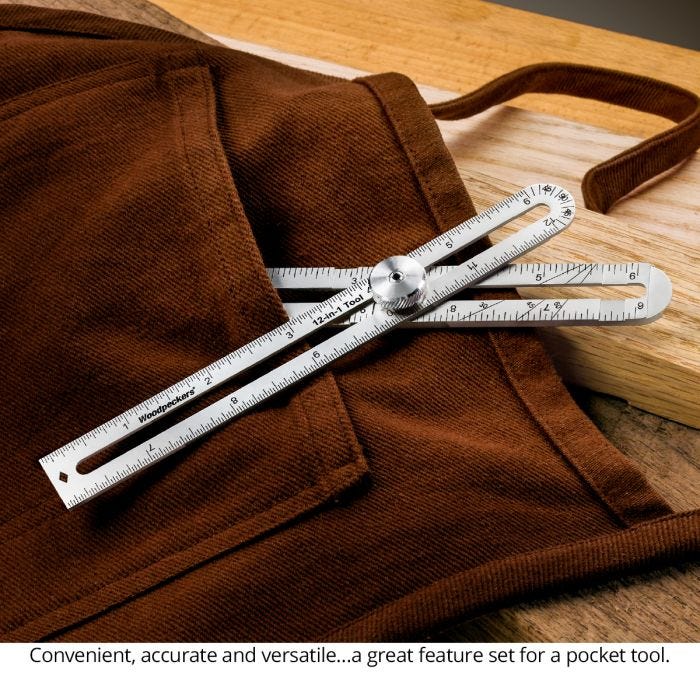

Precision Layout in Your Apron Pocket
This tool is built for the kind of work where layout accuracy decides how well the next step goes. Instead of juggling separate rules, gauges, and angle tools, you can set one tool for the job and keep moving.
- Works as 12 layout and measuring tools in one compact stainless steel body
- Thumbwheel adjustment helps hold settings for repeat marks and angle transfer
- Laser-engraved inch scales are made for long-term readability
What's in the Box
- (1) Woodpeckers 12-In-1 Adjustable Square Pocket Layout Tool
Key Specifications
|
|
Inch |
|---|---|
|
|
Stainless Steel |
|
|
12 in |
|
|
0.004 in total accumulated error |
|
|
12 tools in 1 |
|
|
USA |
Built For
Pro Tip

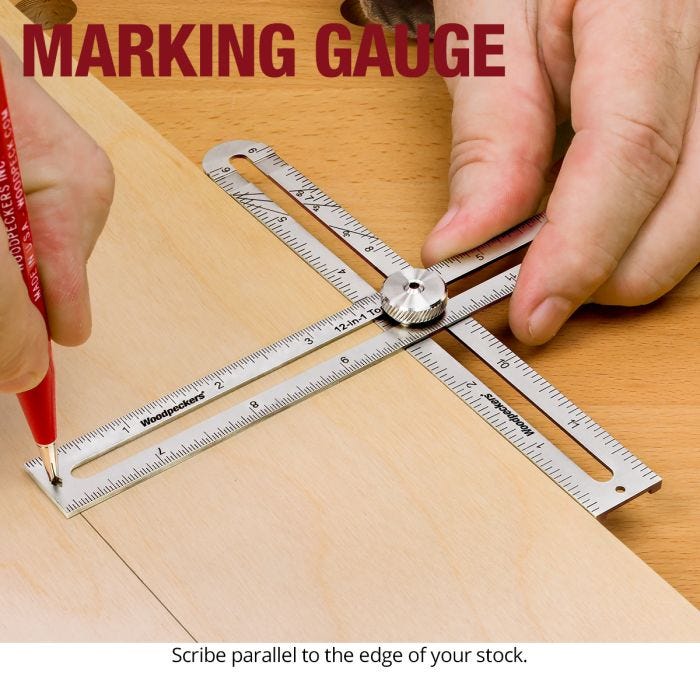

If you are using the 12IN1TOOLI-24 as a marking gauge, snug the thumbwheel after your first test line on scrap and keep that setting for the whole run. That turns this pocket tool into a fast repeat-layout tool for shelves, reveals, and small parts.
Tool Nut's Take
Woodpeckers 12IN1TOOLI-24 12-In-1 Layout Tool and Adjustable Square earns pocket space
This is the kind of layout tool that makes sense the second you start using it because it cuts down clutter without giving up precision.
- Who it's for: Woodworkers, cabinet installers, furniture builders, and detail-focused DIYers who do accurate layout more often than rough measuring.
- Why it stands out: It packs 12 real functions into one CNC-machined stainless steel tool, and the 0.004 inch tolerance means it is not just clever, it is legitimately useful.
- Worth knowing: This is an inch-model precision layout tool, not a jobsite beater for rough construction. If your work lives at the bench, that is exactly why you will appreciate it.
Common Questions
- What kind of tool is this? It is a measuring and layout tool for woodworking that combines rule, square, angle, gauge, divider, and compass functions in one adjustable tool.
- Is this the inch or metric version? This SKU, 12IN1TOOLI-24, is the inch version.
- What is it made from? The tool uses stainless steel scales with laser-engraved markings.
- How accurate is it? Woodpeckers lists the scales at 0.004 inch total accumulated error tolerance.
