The Woodpeckers BC-12300 BigCal 12 in. (300mm) Woodworking Caliper is a precision measuring and layout tool built for woodworkers who need to capture and transfer dimensions accurately on parts that are too large for ordinary calipers. This is a woodworking caliper designed for inside measurement, outside measurement, depth gauging, and layout transfer. Model Number: BC-12300. If you build cabinets, drawers, boxes, jigs, furniture, or fitted parts, this tool gives you a physical reference you can trust instead of trying to hold a tape measure in place and hope the number stays put.

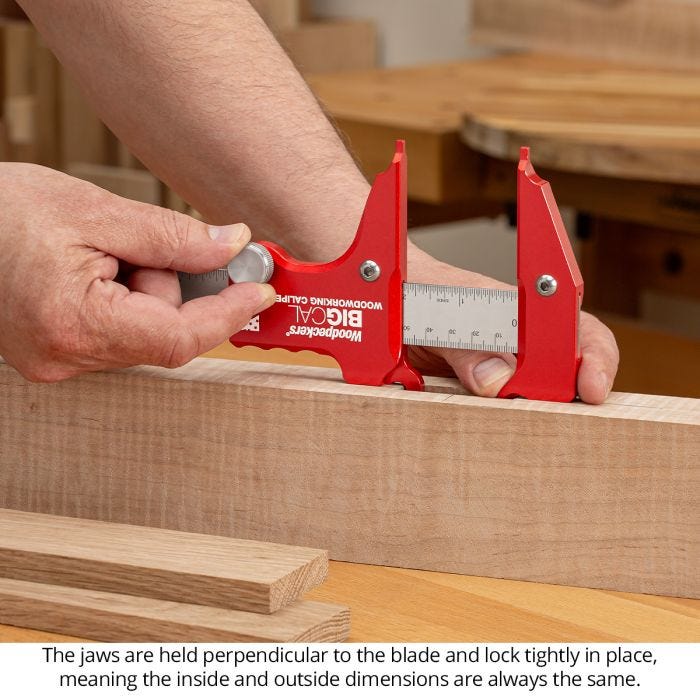

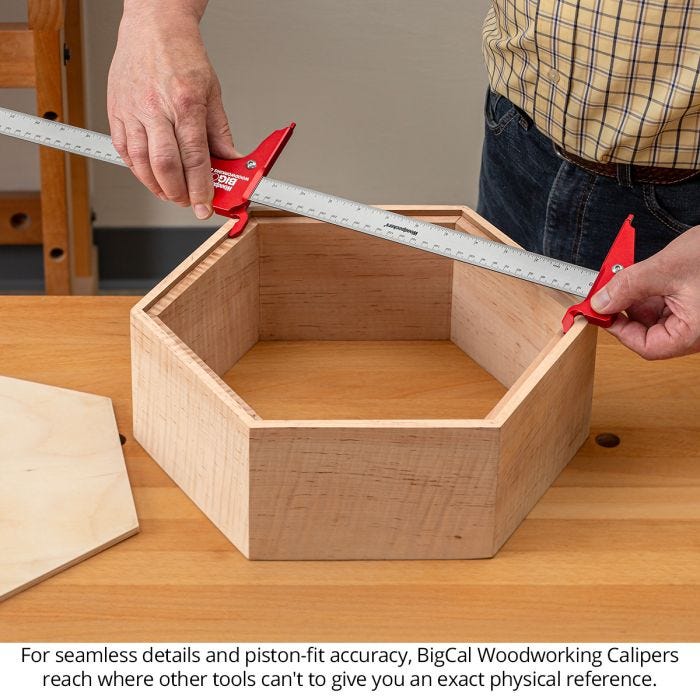

What makes BigCal useful on the bench is that it is not just for reading a dimension. The inside and outside jaws are aligned so you can pick up a measurement from one part and carry that exact setting to another part. That saves time when you are fitting joinery, matching openings, or checking a finished assembly. Woodpeckers also uses a dual-function nut that locks the jaws firmly and squares the jaw to the blade, so once you set it, it stays put without slip or wiggle.

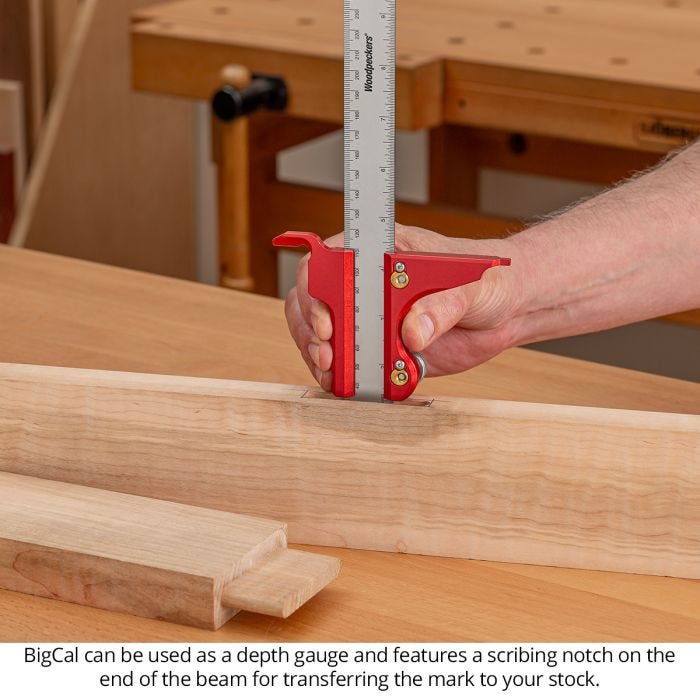

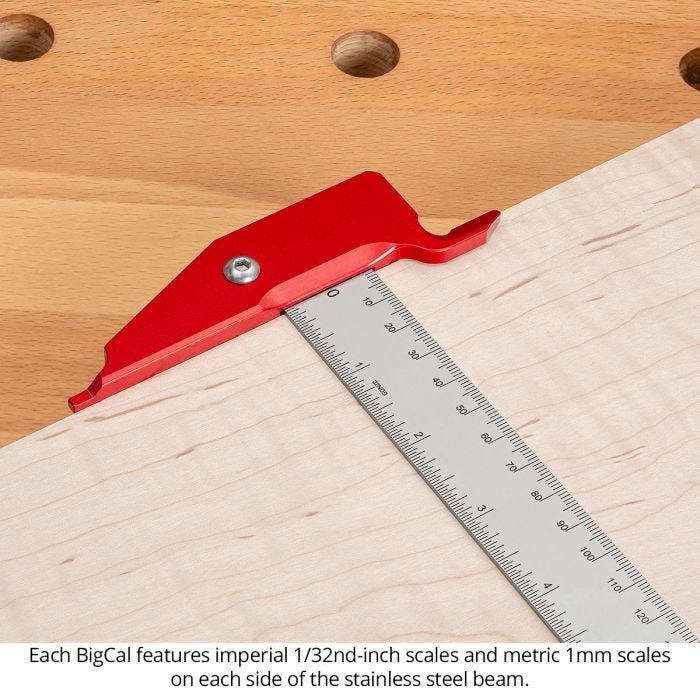

The scale layout is practical instead of fussy. BigCal is engraved in both 1/32 inch and 1 millimeter graduations, so you can work in imperial or metric without doing conversion math in your head. Turn the rule over and the scales read from the opposite end, which lets you gauge the depth of a groove or mortise more naturally. There is also a scribing notch at the end of the blade, making it easier to transfer a depth setting directly to a workpiece for layout.

Build quality is a big part of the story here. The blade is precision-milled from stainless steel for rigidity, and the jaws are milled from solid aircraft-grade aluminum. That combination gives you a tool that stays straight, resists flex better than lighter stamped alternatives, and still feels manageable in hand. The fixed jaw is locked precisely at zero, and the adjustable jaw can be moved out of the way so you can use the tool as a T-square when the job calls for it. That kind of dual use is exactly why this tool makes sense in a woodworking shop.

Woodpeckers also pays attention to small details that matter in actual use. The tips of the outside jaws are milled exactly 1/8 inch square, which helps when you need to register in narrow slots or grooves where bulkier jaws would be clumsy. On this 12 inch version, you get over 12 inches between the jaws, plus jaw depths of 2-1/4 inches for outside measurements and 3/4 inch for inside measurements. That gives the tool enough reach for drawer boxes, case sides, face-frame openings, and other common shop tasks where standard calipers come up short.

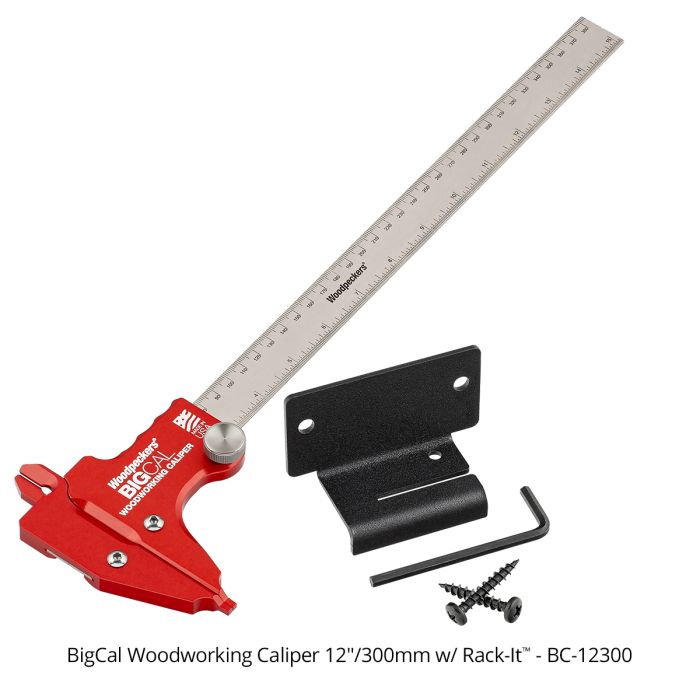

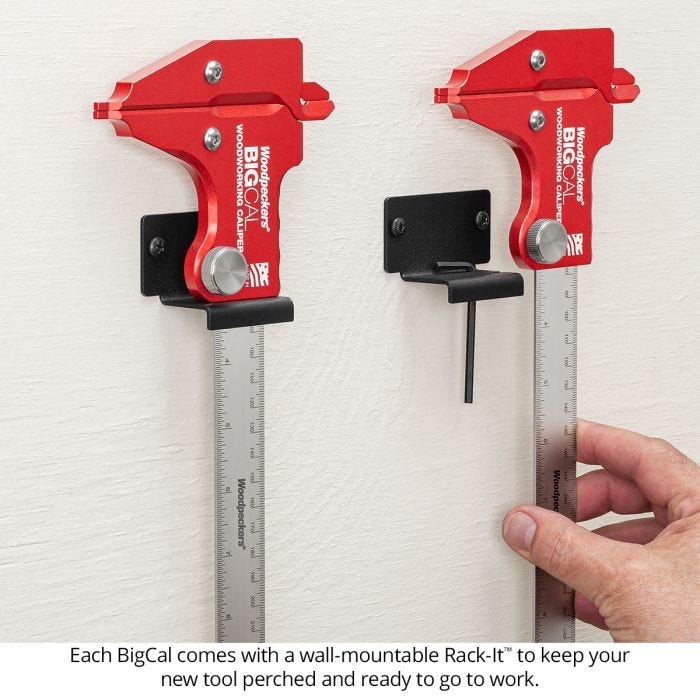

For storage and quick access, each BigCal includes a wall-mountable Rack-It. That sounds minor until you have used one for a while. A layout tool you can hang within arm's reach is a layout tool that actually gets used. Woodpeckers also offers add-on accessories for the BigCal platform, including a T-Head attachment and center attachments for measuring hole centers, which expands what the tool can do if your workflow needs more than standard inside and outside measuring.

This measuring and layout tool is best suited for serious DIY woodworkers, cabinetmakers, furniture builders, trim carpenters, and shop owners who care about repeatable fit. If you mostly measure small fasteners or machine parts, a standard metalworking caliper still makes more sense. But if your work lives in the world of wider panels, joinery, openings, grooves, and fitted assemblies, the BC-12300 solves a real problem that smaller calipers do not.

Woodpeckers BC-12300 BigCal 12 in. (300mm) Woodworking Caliper is the answer to a real shop problem

If you are tired of making a tape measure do precision work, this is the upgrade that makes sense.

• Who it's for: Woodworkers, cabinetmakers, and serious DIY users who regularly fit boxes, openings, grooves, and joinery where exact transfer matters.
• Why it stands out: It gives you true woodworking capacity, rigid construction, and a solid lock so the setting you take at the bench is the setting you bring back to the work.
• Worth knowing: This is the standard BC-12300, not the deluxe set, so the Rack-It is included but the T-Head and center attachments are separate add-ons.

• What does the BC-12300 measure? It measures inside dimensions, outside dimensions, and depth, and it can also be used to transfer those dimensions directly to another workpiece.
• Does it read in both inch and metric? Yes. The scales are engraved in 1/32 inch and 1 millimeter graduations.
• Can it be used as a square? Yes. The fixed jaw is locked at zero, and the adjustable jaw can slide out of the way so BigCal can be used as a T-square.
• Where is it made? Woodpeckers states that each BigCal is machined and inspected in Strongsville, Ohio, USA.
