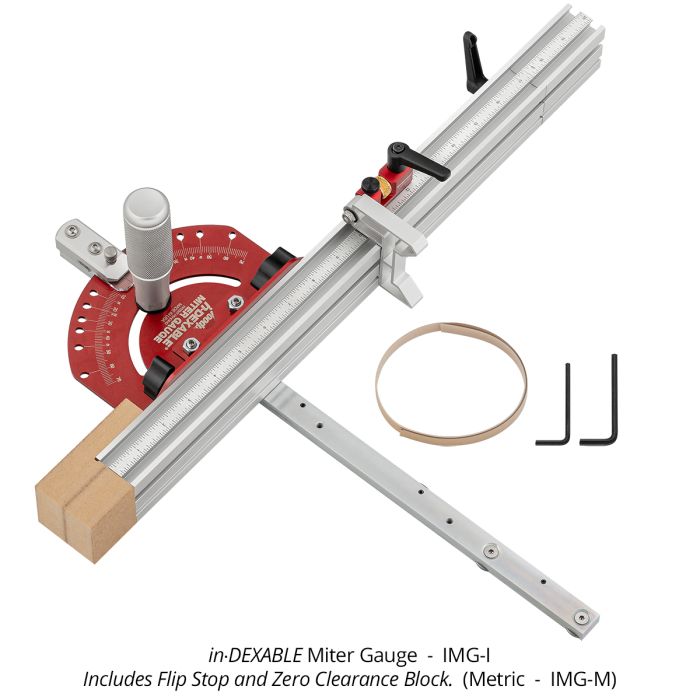

Woodpeckers IMG-M in-DEXABLE Miter Gauge, Metric with Flip Stop and Zero Clearance Block
Woodpeckers IMG-M in-DEXABLE Miter Gauge, Metric with Flip Stop and Zero Clearance Block
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Woodpeckers IMG-M in-DEXABLE Miter Gauge is a metric table saw miter gauge built for accurate crosscuts and repeatable angle work. This is a miter gauge designed for table saw crosscutting, miter cuts, and repeat-length work in woodworking. Model Number IMG-M. If you are tired of factory gauges that feel loose in the slot or make angle setup harder than it needs to be, this one is aimed squarely at that problem.
The big draw here is the indexed protractor system. One button sets common polygon miter angles and square quickly, so you are not guessing, nudging, and rechecking every time you change setups. For angles that are not on an indexed stop, Woodpeckers adds a laser-engraved hairline reticle in a clear acrylic window, giving you a clean reference for dialing in custom settings with more confidence.
On repeat cuts, the graduated fence and redesigned micro-adjustable flip stop do a lot of the heavy lifting. The fence reaches 18 inches closed and up to 31 inches when fully extended, so you can handle short trim parts or longer workpieces without dragging out a tape for every cut. The stop is designed to lock down solid, adjust smoothly with minimal backlash, and keep mitered ends from lifting the stop thanks to the spur that fits back into the fence.
The bar matters just as much as the head on a table saw miter gauge, and Woodpeckers clearly knows that. The patented leaf spring miter bar is made to adapt to nominal 3/8 inch x 3/4 inch miter slots, even when those slots are slightly narrow, wide, or inconsistent from one end to the other. The spring pressure keeps the bar aligned against the slot wall, which is exactly what you want when accuracy depends on stable travel. If your saw has a T-slot, the included-style retainers described by Woodpeckers help keep the gauge from dropping out when it is extended off the table, and they can be removed quickly if your saw uses a standard slot.
From a build standpoint, this is not a light-duty accessory dressed up with fancy machining. The heavily ribbed extruded fence, machined components, and laser-engraved scales are there for a reason: they hold settings, stay readable, and stand up to repeated shop use. The metric version is the right call for woodworkers who prefer direct metric layout and do not want to bounce back and forth between systems while setting stop lengths.
There is also some practical flexibility built into the platform. The in-DEXABLE Miter Gauge is compatible with the Woodpeckers Flop Stop, which helps control fence twist when a long fence is pulled back off the table. It can also be converted with the optional Miter Sled Upgrade Kit if you prefer the support of a sled-style setup for certain cuts. That makes this more than a one-trick accessory. It can stay useful as your workflow changes.
This miter gauge makes the most sense for cabinet shops, furniture builders, trim carpenters, and serious DIY woodworkers who care about angle accuracy and repeatability. If you mainly break down rough framing lumber and do not need precision setup, it is probably more gauge than you need. But if your work depends on clean miters, consistent part lengths, and a table saw accessory that feels like a real upgrade over stock hardware, this is where the Woodpeckers IMG-M in-DEXABLE Miter Gauge earns its keep.
Set Common Miters Without the Guesswork
Quick angle changes are only useful if they land exactly where you need them. The indexed stop system is built for common polygon and square settings, then backed up by a clear reticle for everything else.
- Push-button indexing speeds up repeated angle changes
- Laser-engraved hairline reticle helps with non-indexed angle setup
Dial In Repeat Lengths on the Fence
The redesigned flip stop is there to make repeat parts faster and more dependable. Once it is locked, it stays put, and the direct-reading scale keeps setup simple when you are batching parts.
- Micro-adjustable flip stop with smooth movement and minimal backlash
- Metric fence scale lets you set dimensions directly without switching to a separate rule
Cleaner Cuts and Better Workpiece Control
Good crosscut accessories are not just about angles. They also help support the work, reduce blowout, and keep the cut more controlled as the blade exits the material.
- Sacrificial end block helps reduce back-side tear-out
- Support at the fence helps manage offcuts more safely and cleanly
Key Specifications
| Tool Type | Miter Gauge |
|---|---|
| Measurement System | Metric |
| Fence Capacity Closed | 18 in |
| Fence Capacity Extended | 31 in |
| Miter Slot Compatibility | Nominal 3/8 in x 3/4 in |
| Miter Bar Type | Patented leaf spring bar |
| Angle Reference | Indexed stops plus laser-engraved reticle |
| Made In | USA |
Compatibility
Built For
Pro Tip
If you are switching between short parts and long repeat cuts, park the stop on the EXT mark before extending the fence, then set your final dimension on the extension bar. It is faster and keeps your measurement reference where the gauge is meant to read.
Tool Nut's Take
Woodpeckers IMG-M in-DEXABLE Miter Gauge Is for Woodworkers Who Actually Care About Setup Accuracy
This is the kind of miter gauge that makes sense when a sloppy stock gauge is costing you time, test cuts, and clean results.
- Who it's for: Woodworkers, cabinet builders, and trim guys who need repeatable lengths and dependable miter angles on a table saw.
- Why it stands out: The indexed angle system, adaptable leaf spring bar, and direct-reading fence with micro-adjustable flip stop solve the stuff that usually makes miter gauges annoying to use.
- Worth knowing: This is the metric version, so it is best for users already working in metric layout. It is a premium accessory, but it is doing premium-accessory work.
Common Questions
- What kind of saw does this fit? It is designed for table saws with a nominal 3/8 inch x 3/4 inch miter slot.
- Does it support quick angle changes? Yes. It uses indexed stops for common polygon miter angles and square, plus a laser-engraved reticle for other angles.
- How long of a repeat cut can the fence handle? The fence reaches 18 inches closed and up to 31 inches when fully extended.
- Can it be expanded later? Yes. Woodpeckers states it is compatible with the Flop Stop and can be converted with the optional Miter Sled Upgrade Kit.
