Woodpeckers Xpander Clamp System, Compatible with Parallel Jaw Clamps 24-in. to 40-in. (XPANDER-2430)
Woodpeckers Xpander Clamp System, Compatible with Parallel Jaw Clamps 24-in. to 40-in. (XPANDER-2430)
Out of Stock - Available to Order - Usually ships in 20-30 days
Product Details
Product Details
Key Features
Overview

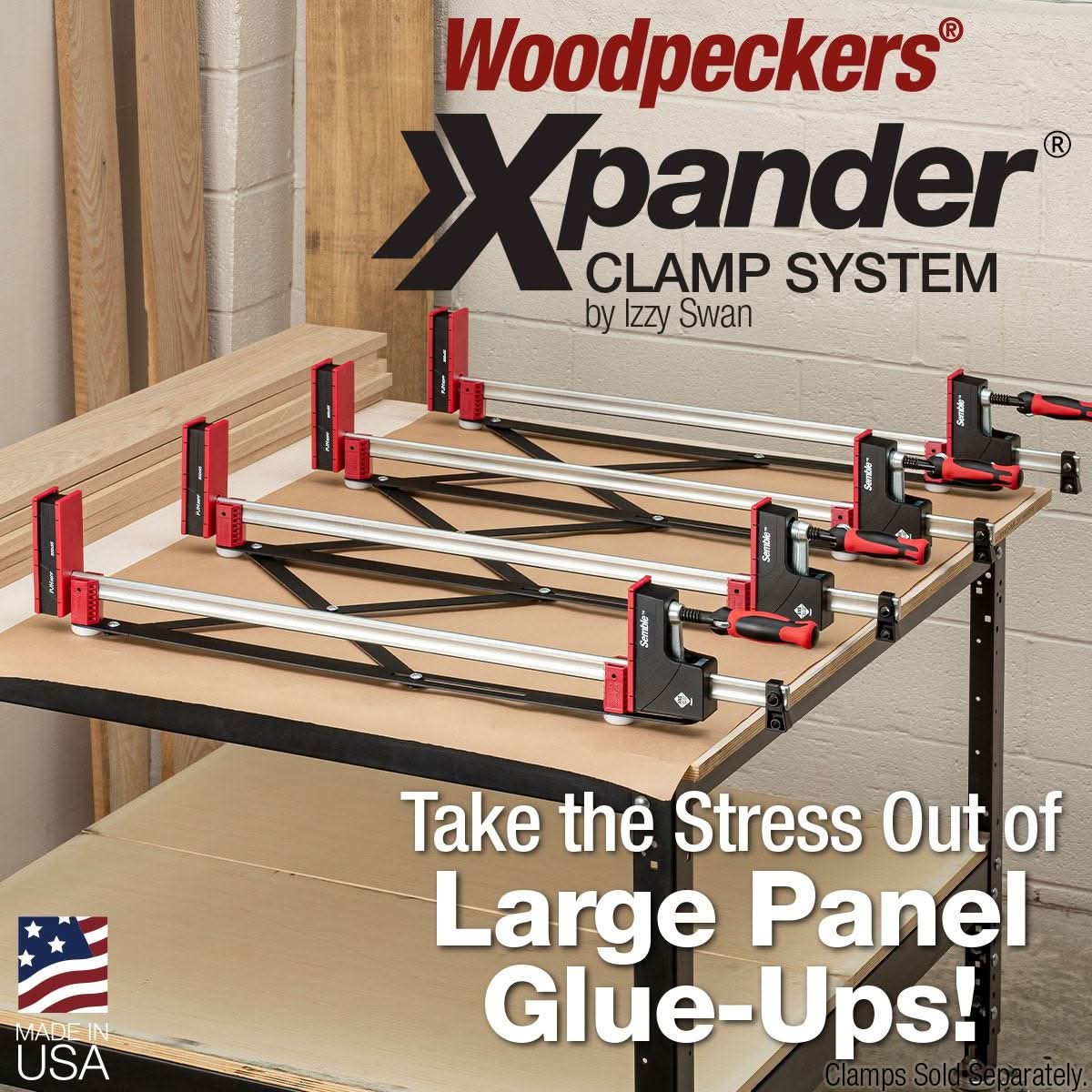

The Woodpeckers XPANDER-2430 Xpander Clamp System is a panel glue-up clamp system built to organize and space parallel-jaw clamps for smoother, more controlled assemblies. This is a clamp system designed for panel glue-ups and large woodworking assemblies. Model Number: XPANDER-2430. If you build table tops, cabinet parts, doors, or wide panels, this system solves a real shop problem: keeping multiple clamps upright, evenly spaced, and easy to adjust while the glue clock is running.

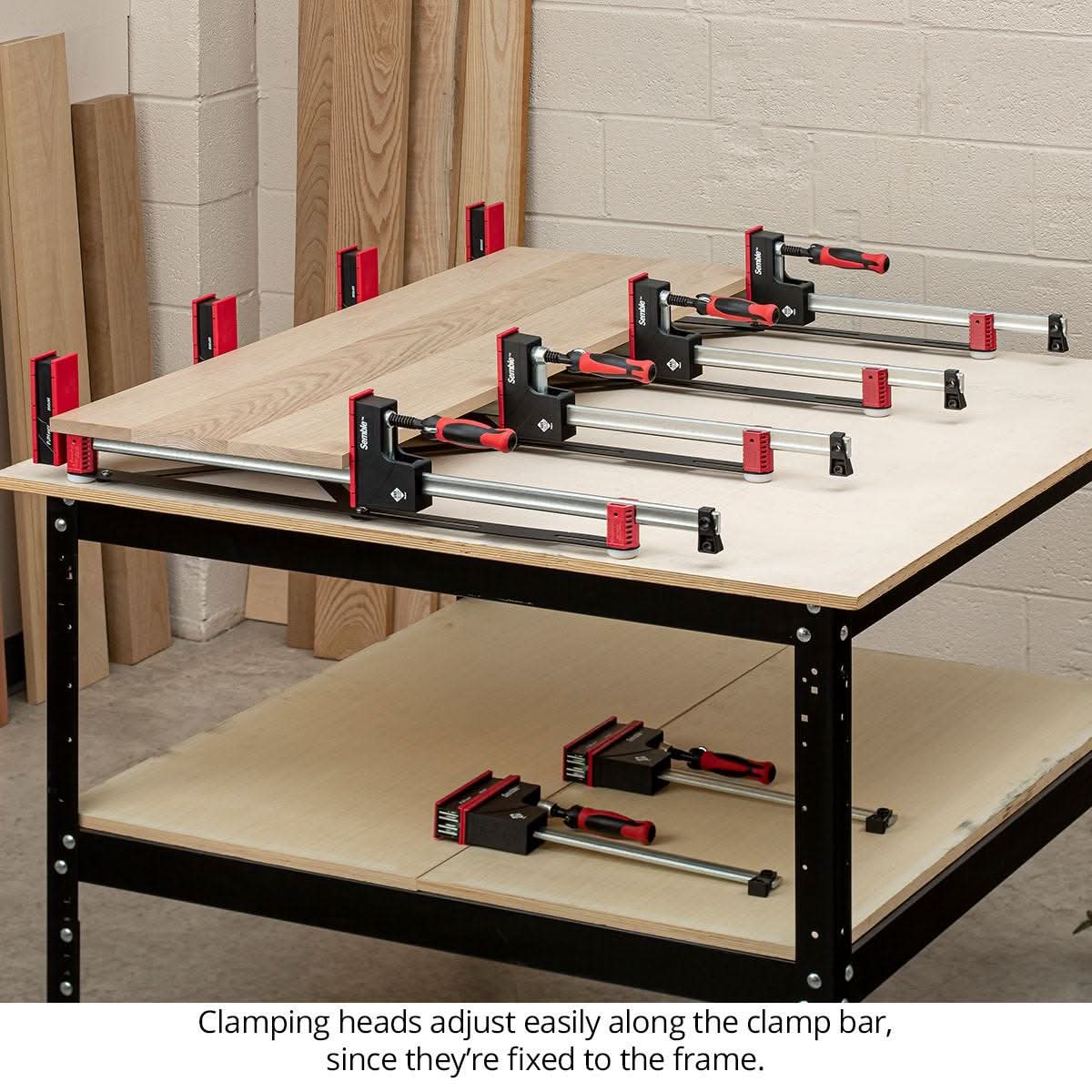

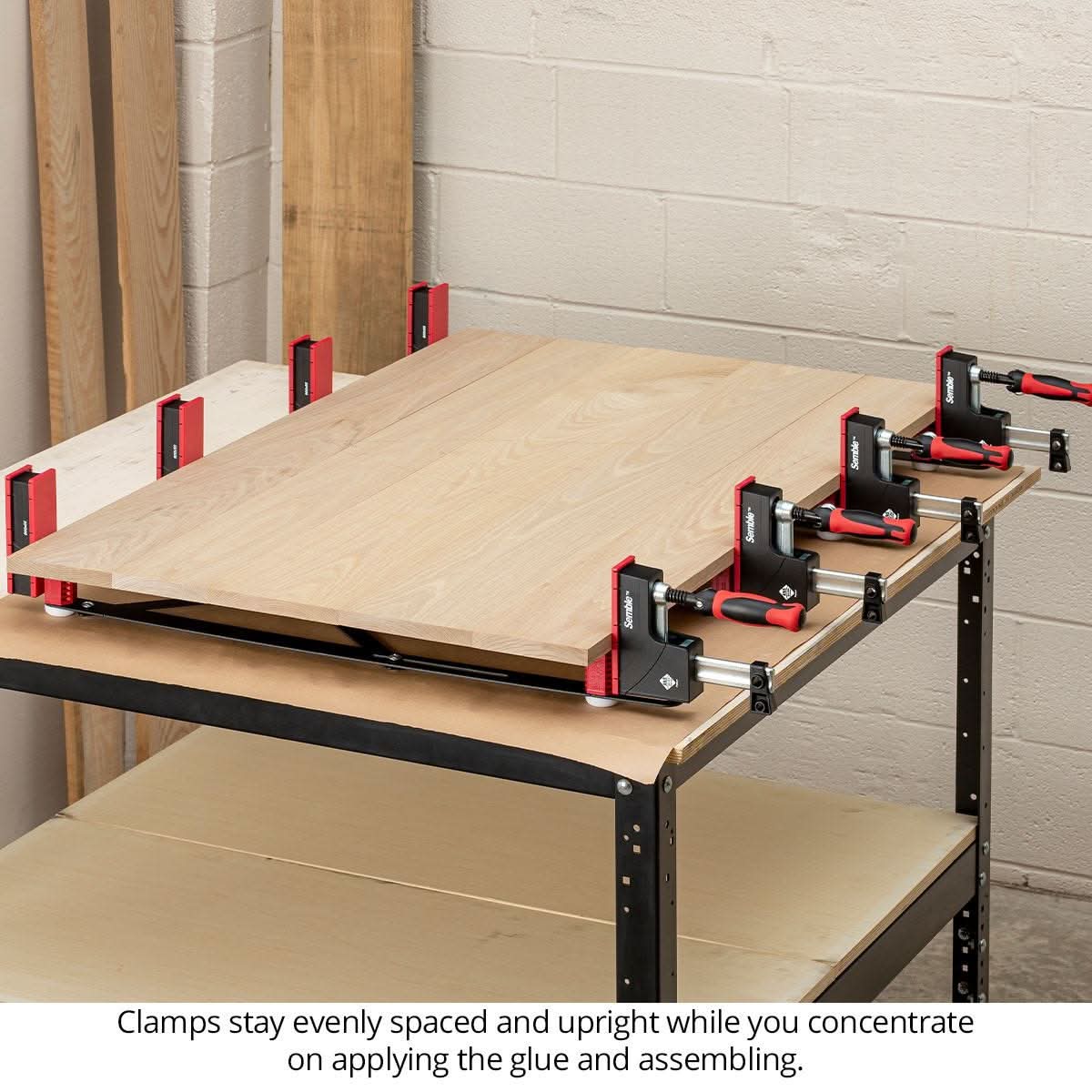

Instead of laying loose bar clamps across the bench and wrestling them one by one, the Xpander keeps four clamps locked in a vertical working position. The linkage system automatically maintains spacing as you slide the outer clamps in or out, so the inner clamps stay aligned without extra measuring or repositioning. That matters when you're trying to get even pressure across a glue-up before adhesive starts to tack.

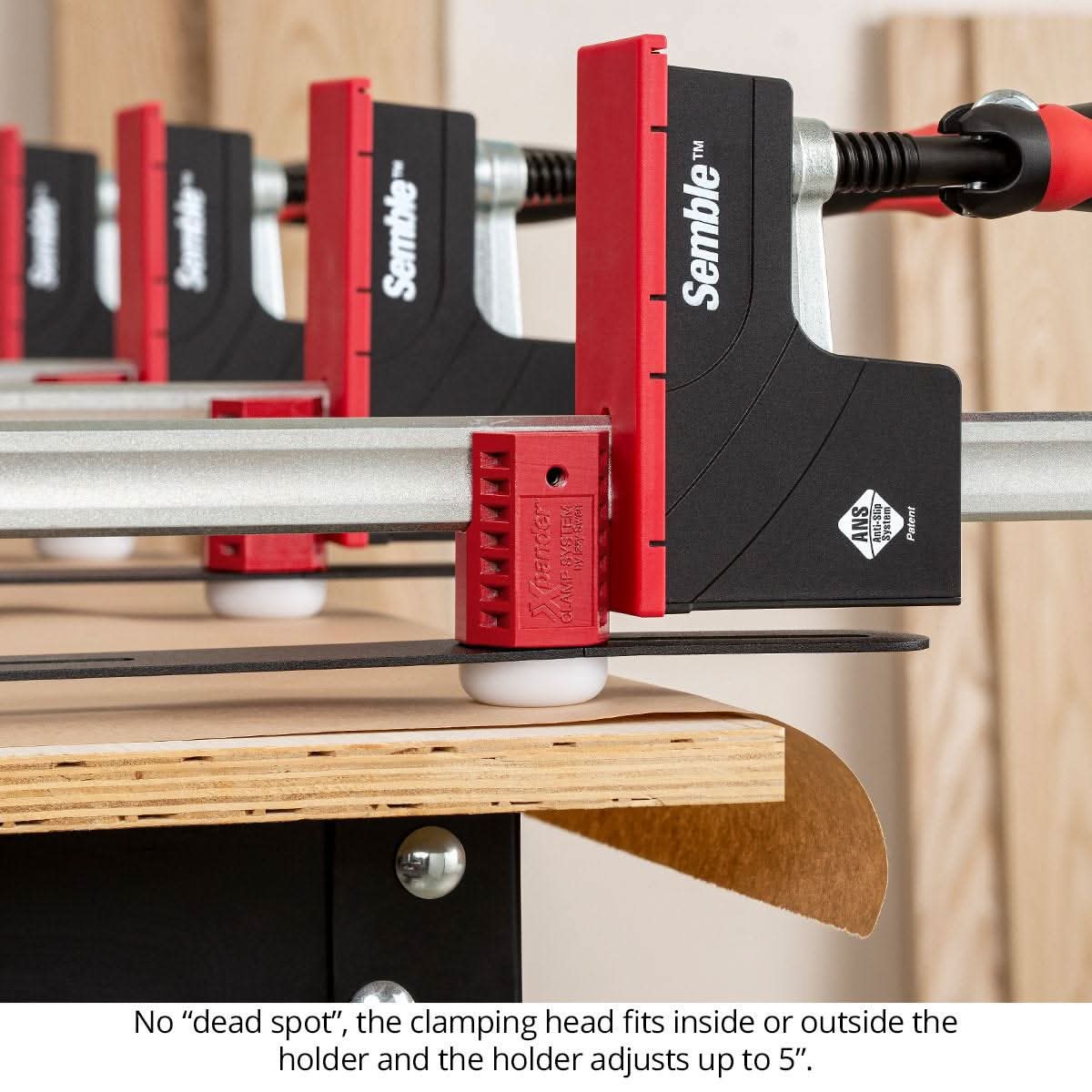

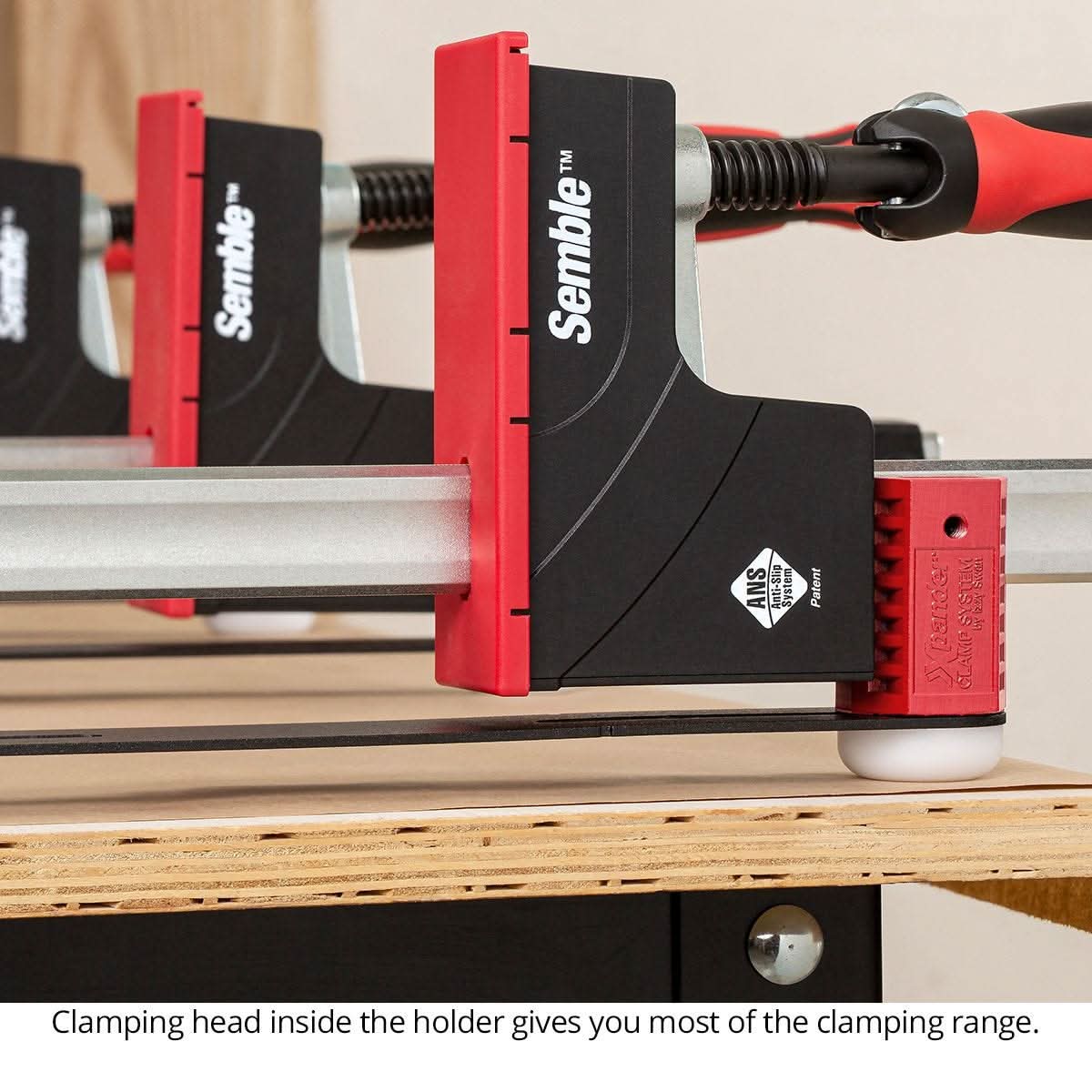

One of the smartest parts of this setup is how it preserves clamp capacity. The clamping head can move from the inside of the bar holder to the outside, and the holder itself adjusts 5 inches. In plain terms, that means you are not giving away useful travel just because the clamps are mounted in a system. Woodpeckers calls that eliminating dead spots, and for anyone who has come up short on clamp reach during a panel glue-up, that is a feature that actually earns its keep.

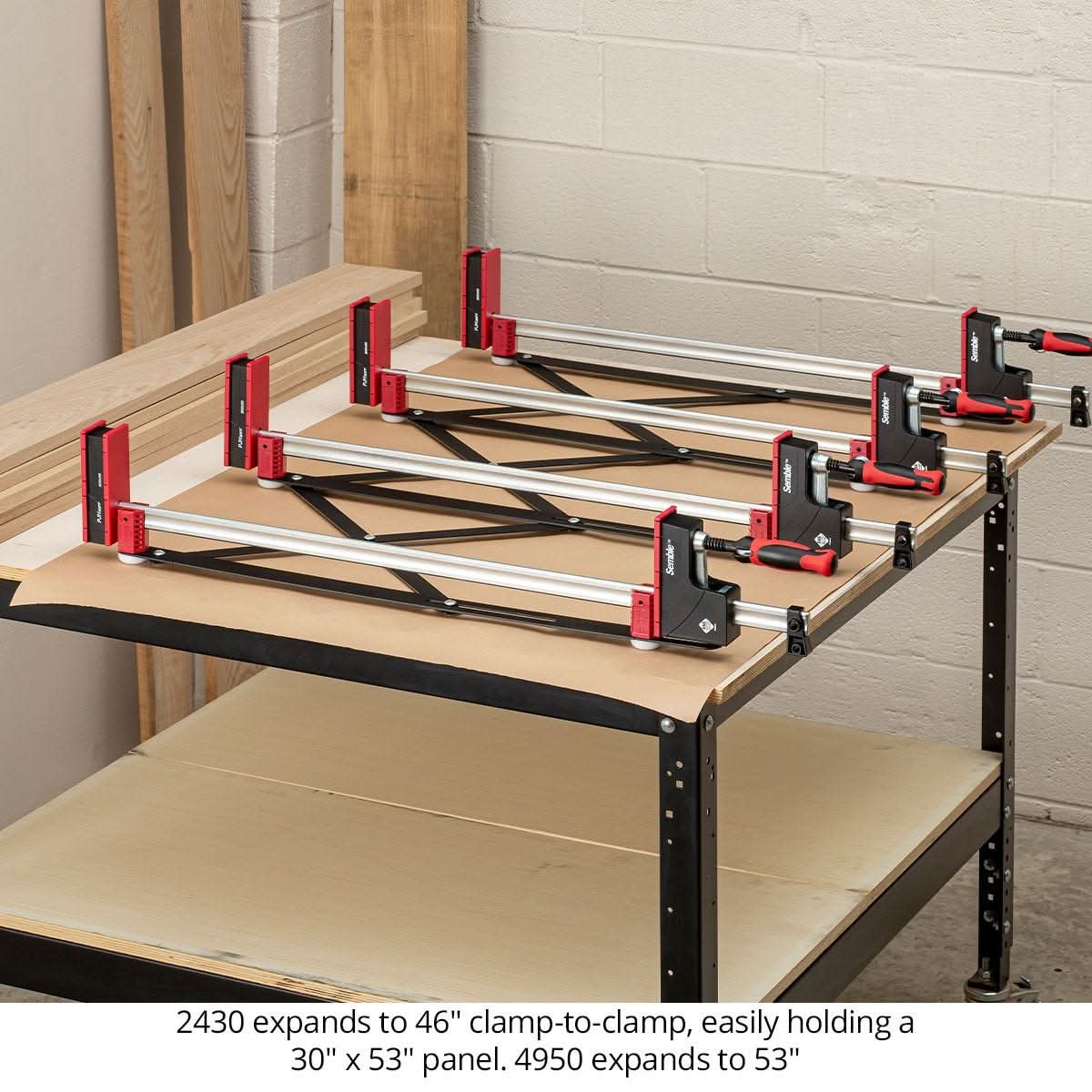

The XPANDER-2430 version is made for 24 inch to 40 inch parallel-jaw clamps. It expands to 46 inches edge to edge, which lets you handle panels up to 53 inches long. That puts it in a sweet spot for furniture parts, medium-size table tops, casework panels, and door assemblies where consistent spacing and bench control matter more than brute force alone.

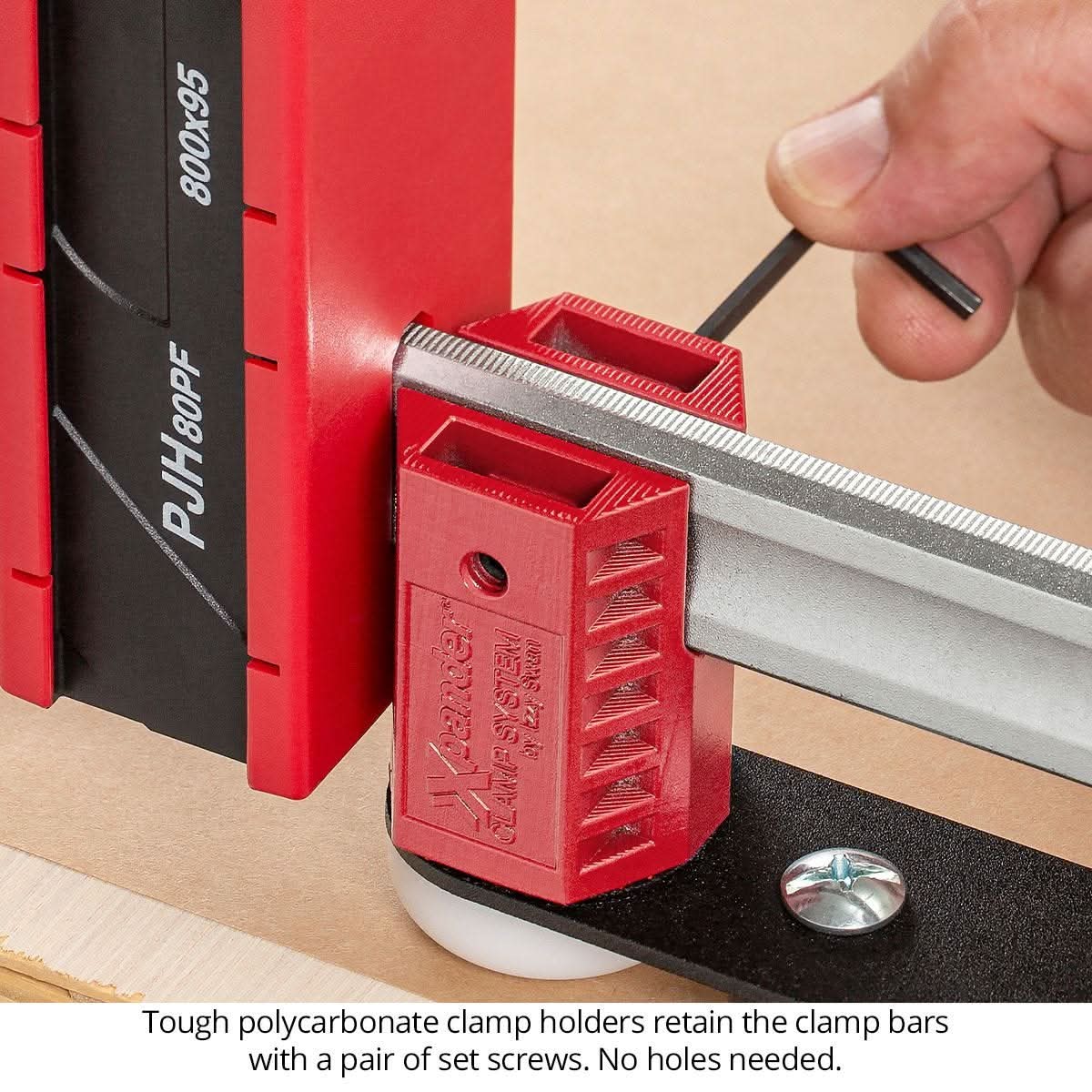

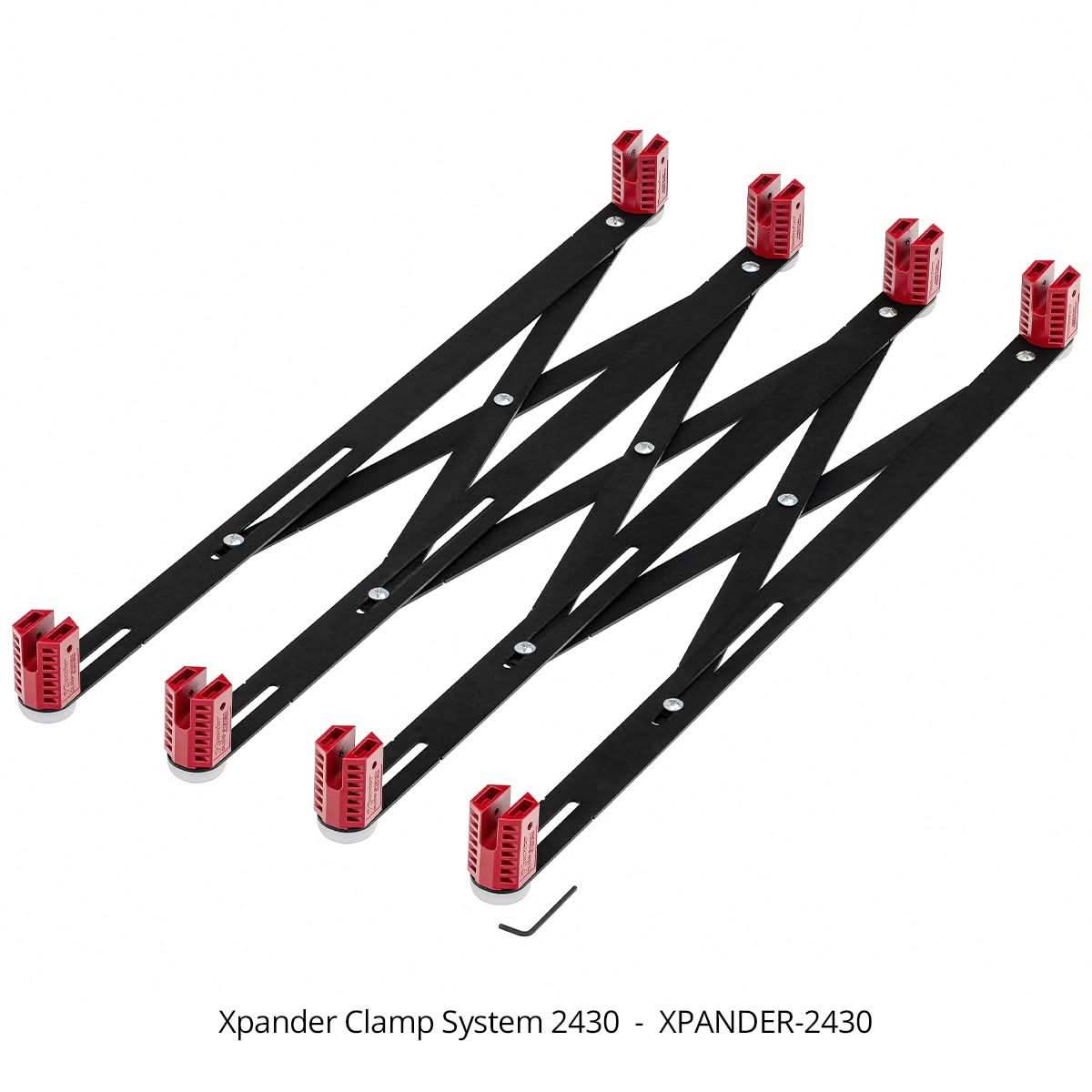

Woodpeckers built the linkage bars from powder-coated steel, which is a practical choice in a glue-up environment because dried glue releases more easily than it does from rougher unfinished metal surfaces. The clamp holders are injection-molded polycarbonate for toughness, and each holder ends in a nylon foot that slides smoothly and helps prevent bench marring. Set screws secure the clamps in place, and once installed you can leave the clamps in the system or remove them individually as needed.

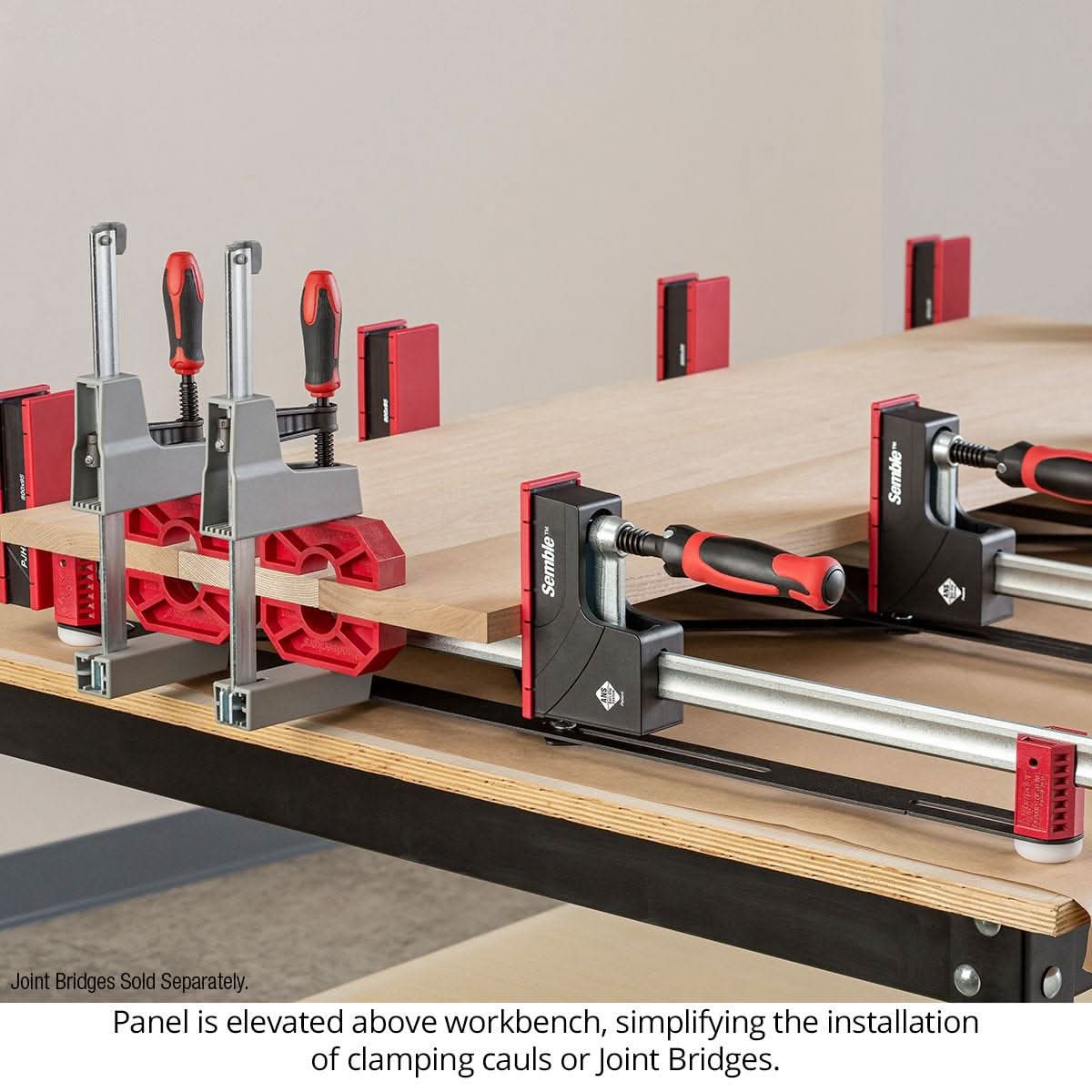

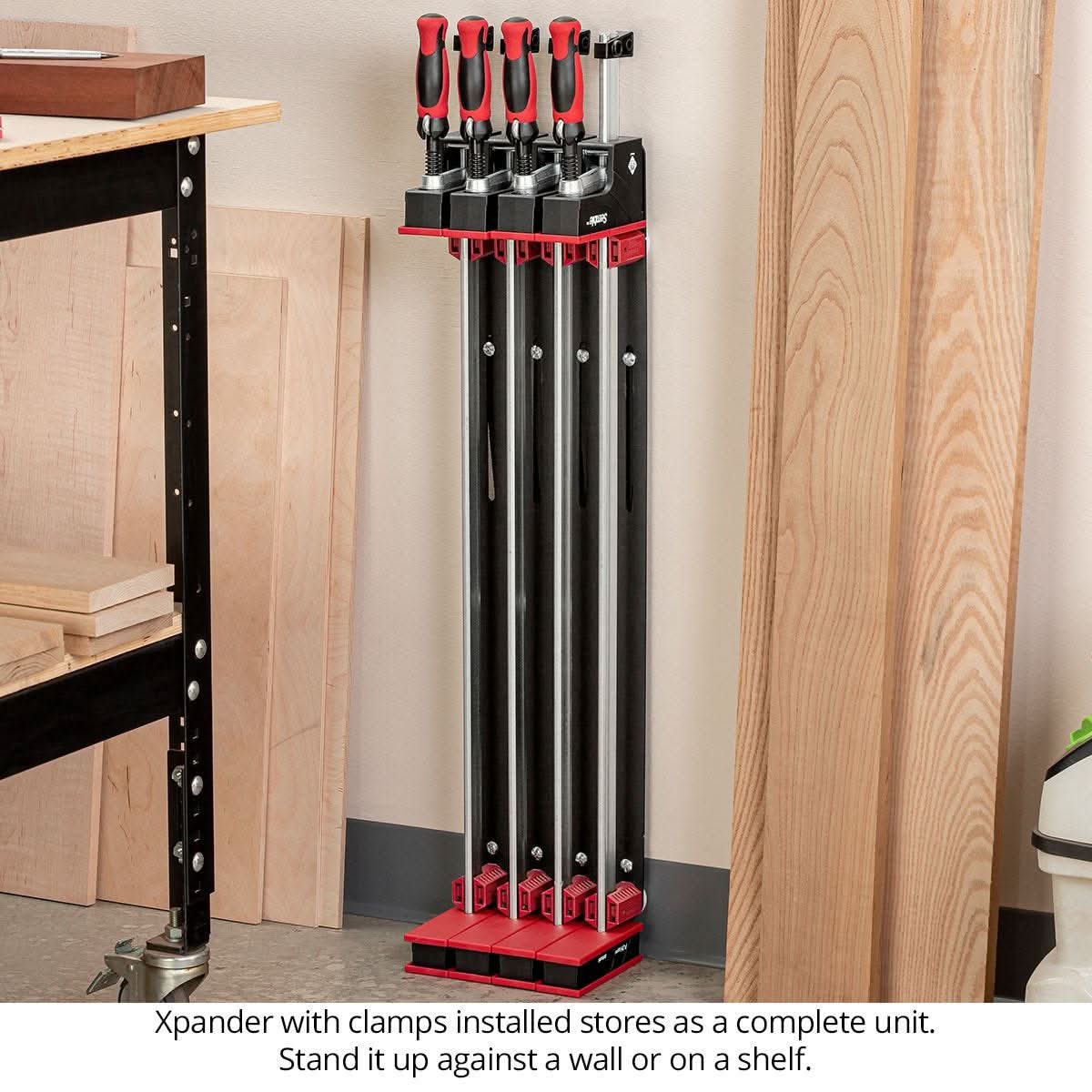

There is also a real jobsite and shop-floor convenience factor here. Because the clamps are elevated off the work surface, it is easier to work cauls into the setup or use Woodpeckers Joint Bridges during a panel glue-up. The bars are already supported, so adjusting clamp heads is less awkward than when the full weight of each clamp is shifting around on the bench. When the glue-up is done, the system collapses for storage so it takes up far less room than four loose clamps spread all over the shop.
This system is especially well suited to woodworkers who already own quality parallel-jaw clamps and want to get more out of them. It is not replacing the clamps. It is turning them into a more organized glue-up station. If you do occasional small edge gluing, it may be more system than you need. If you regularly build panels and you are tired of the usual clamp scramble, the Xpander is the kind of shop aid that saves time every single time you use it.
Keep Panel Glue-Ups Under Control
The whole point of this system is control. When four clamps stay upright, aligned, and ready to move together, glue-ups get less chaotic and pressure placement gets easier to manage.
- Designed to work with 24 inch to 40 inch parallel-jaw clamps
- Holds four clamps with automatic spacing through the linkage system
- Collapses for compact storage when the assembly is finished
Key Specifications
| Clamp Compatibility | Parallel-jaw clamps, 24 in to 40 in |
|---|---|
| Clamp Count | Holds 4 clamps |
| Expanded Width | 46 in edge to edge |
| Max Panel Length | Up to 53 in |
| Adjustment Range | Bar holder adjusts 5 in |
| Material | Powder-coated steel, polycarbonate, nylon |
| Color | Black |
| Made In | USA, Strongsville, Ohio |
Compatibility
Built For
Pro Tip
If you use the same parallel-jaw clamps for panel work all the time, leave them mounted in the Xpander between glue-ups. You save setup time on the next job, and your clamp spacing starts from a controlled baseline instead of a pile of loose clamps on the bench.
Tool Nut's Take
Woodpeckers XPANDER-2430 Xpander Clamp System makes glue-ups a lot less annoying
This is the kind of shop accessory that sounds simple until you use it, then you wonder why you spent so long balancing loose clamps by hand.
- Who it's for: Woodworkers building panels, tops, doors, and case parts with parallel-jaw clamps on a regular basis.
- Why it stands out: Automatic spacing, upright clamp support, and full use of clamp travel make it more than just a storage rack.
- Worth knowing: It is a clamp system, not a clamp kit. You need compatible 24 inch to 40 inch parallel-jaw clamps to put it to work.
Common Questions
- What type of clamps does this system use? It is designed for most brands of parallel-jaw clamps.
- What clamp sizes fit the XPANDER-2430? This model is made for clamps from 24 inches to 40 inches long.
- How large of a panel can it handle? The XPANDER-2430 expands to 46 inches edge to edge and is intended for panels up to 53 inches long.
- Can it help with glue-up accessories like cauls? Yes. The elevated clamp layout makes it easier to apply cauls, and Woodpeckers also notes compatibility with Joint Bridges during glue-ups.
