DeWALT Plunge Base for DW616/618 Routers (DW6182)
DeWALT Plunge Base for DW616/618 Routers (DW6182)
Out of Stock - Available to Order - Usually ships in 14-30 days
Product Details
Product Details
Key Features
Overview

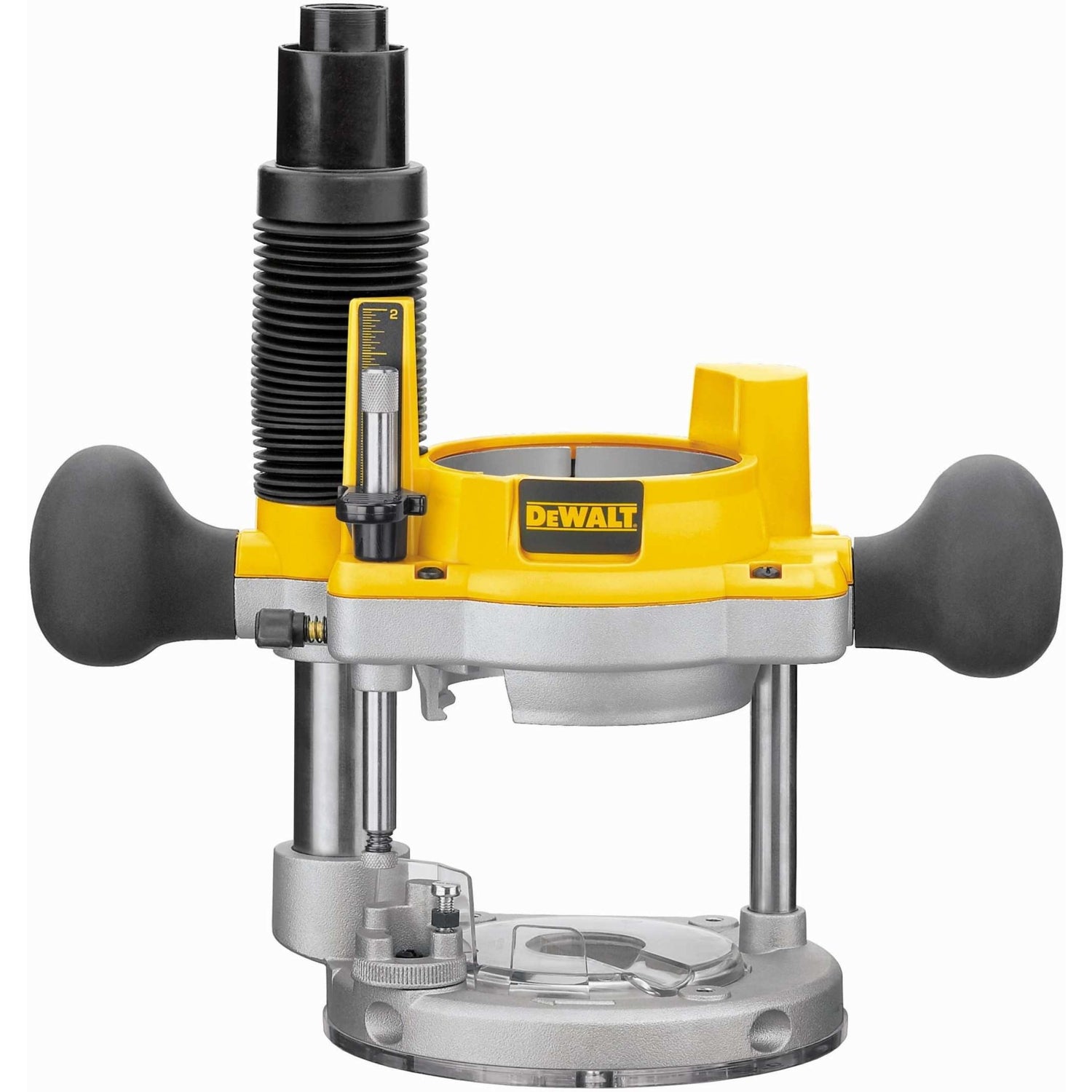

The DeWALT DW6182 Plunge Base for DW616/618 Routers is a plunge router base built to fit compatible DeWALT router motors. This is a router plunge base designed for controlled plunge routing, template-guided cuts, and precise depth work in woodworking. Model Number: DW6182. If you already run a DW616M or DW618M motor and want more control for grooves, mortises, inlays, and repeat plunge cuts, this is the base that gives that motor the right setup.
What matters here is how the plunge action works in real use. DeWALT built the DW6182 with precision-machined brass bushings and case-hardened steel guide rods so the stroke stays smooth and accurate instead of feeling sloppy or sticky. That matters when you are dropping the bit into a layout line and need the base to move straight without chatter. The micro-fine depth adjustment gives you 5/128 inch per turn, which is especially useful when sneaking up on final depth for veneer work and inlays.
The DeWALT DW6182 Plunge Base for DW616/618 Routers is also designed to save time during setup. The adjustable, tool-free steel motor cam lock makes motor changes and depth adjustments quick without feeling loose once locked down. A five-position adjustable turret stop helps with stepped cuts and repeated plunges, so if you are making multiple passes to final depth, you can do it in a controlled way instead of resetting from scratch every time.
Dust control is a real strength on this base. DeWALT states the through-the-column dust collection collects up to 95% of dust, which helps keep the cut area clearer and improves bit visibility while routing. The clear Lexan sub-base adds to that by letting you keep a better view of the work. On a router, seeing the bit and keeping chips out of the way is not just about neatness. It directly helps accuracy, especially on curved routing and template work.
From a build standpoint, this base is made for shop and jobsite use. The heavy-duty die-cast aluminum base and motor housing help it stay durable without making it excessively heavy, and the low center of gravity works with the rubber overmolded handles to keep it balanced in both hands. The assembled size is 11.38 inches long, 11.0 inches wide, and 6.56 inches high, with a listed weight of about 5.3 pounds. That keeps it substantial enough to feel planted while still manageable for detailed router work.
Compatibility is straightforward and important. This plunge base is made for DeWALT DW616M and DW618M router motors, and the clear sub-base accepts standard template guide bushings. That makes it a good fit for users who already own one of those motors and want to expand what the router can do without buying a complete second tool. For woodworkers, cabinet installers, trim carpenters, and serious DIY users doing precise routing work, this is the setup that adds plunge capability, dust collection, and better control where a fixed base is not enough.

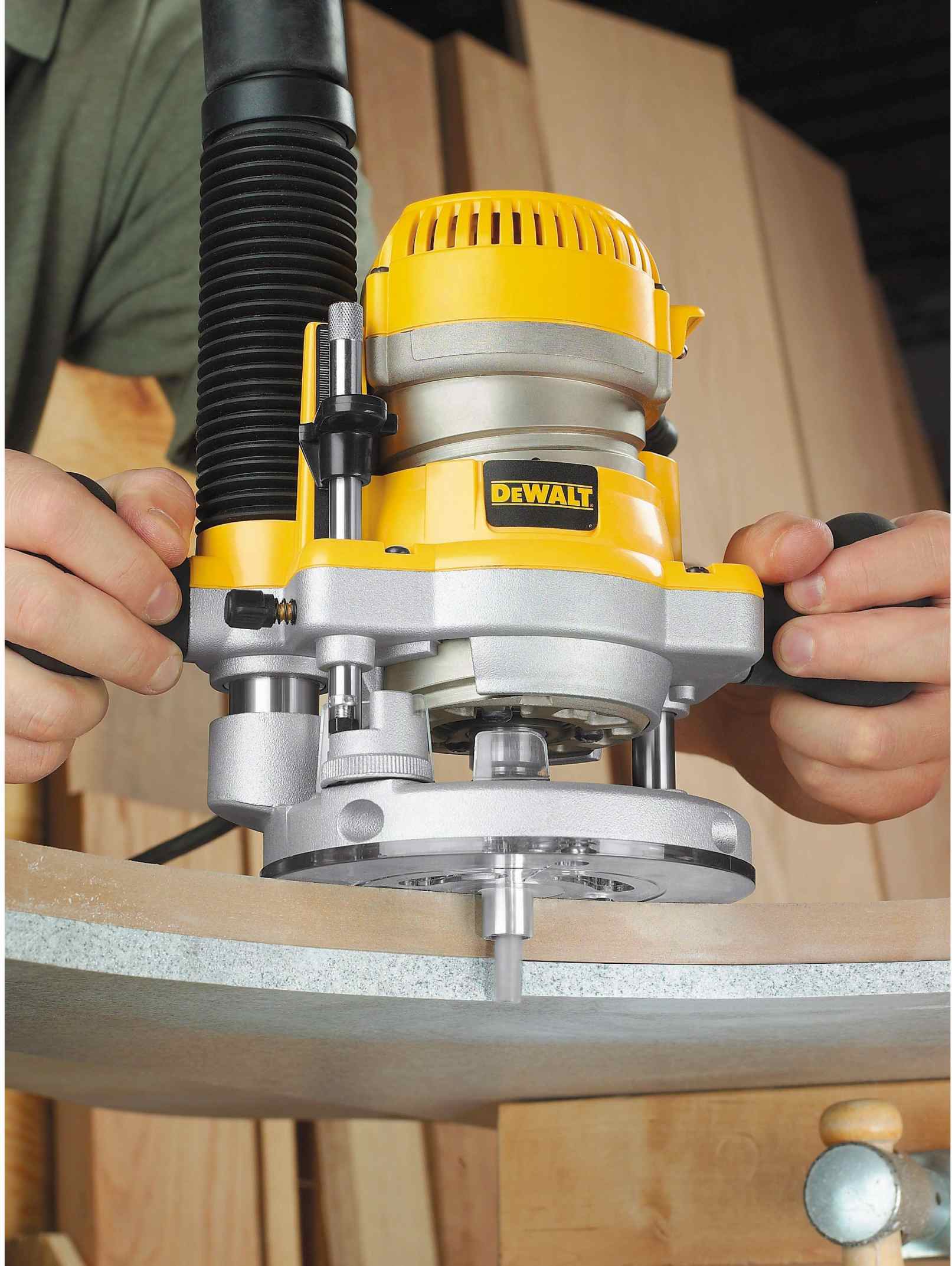

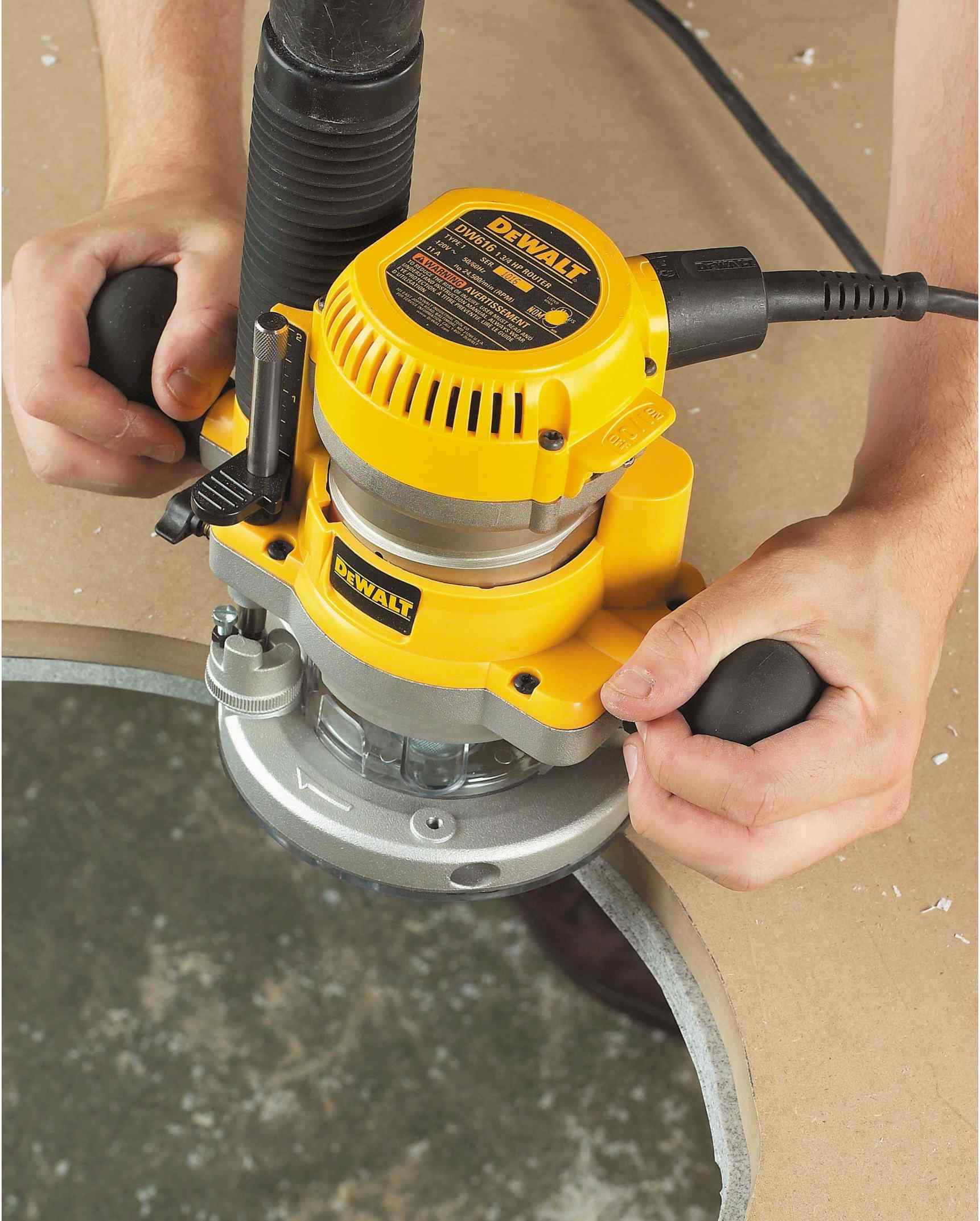

Make Controlled Plunge Cuts
Plunge routing is all about starting the cut exactly where you want it and keeping the tool steady while you move. This base is set up to do that with smooth plunge travel, solid hand position, and quick depth changes.
- Precision-machined brass bushings and case-hardened steel guide rods support a smooth, accurate plunge stroke
- Rubber overmolded handles and a low center of gravity improve balance and control during routing

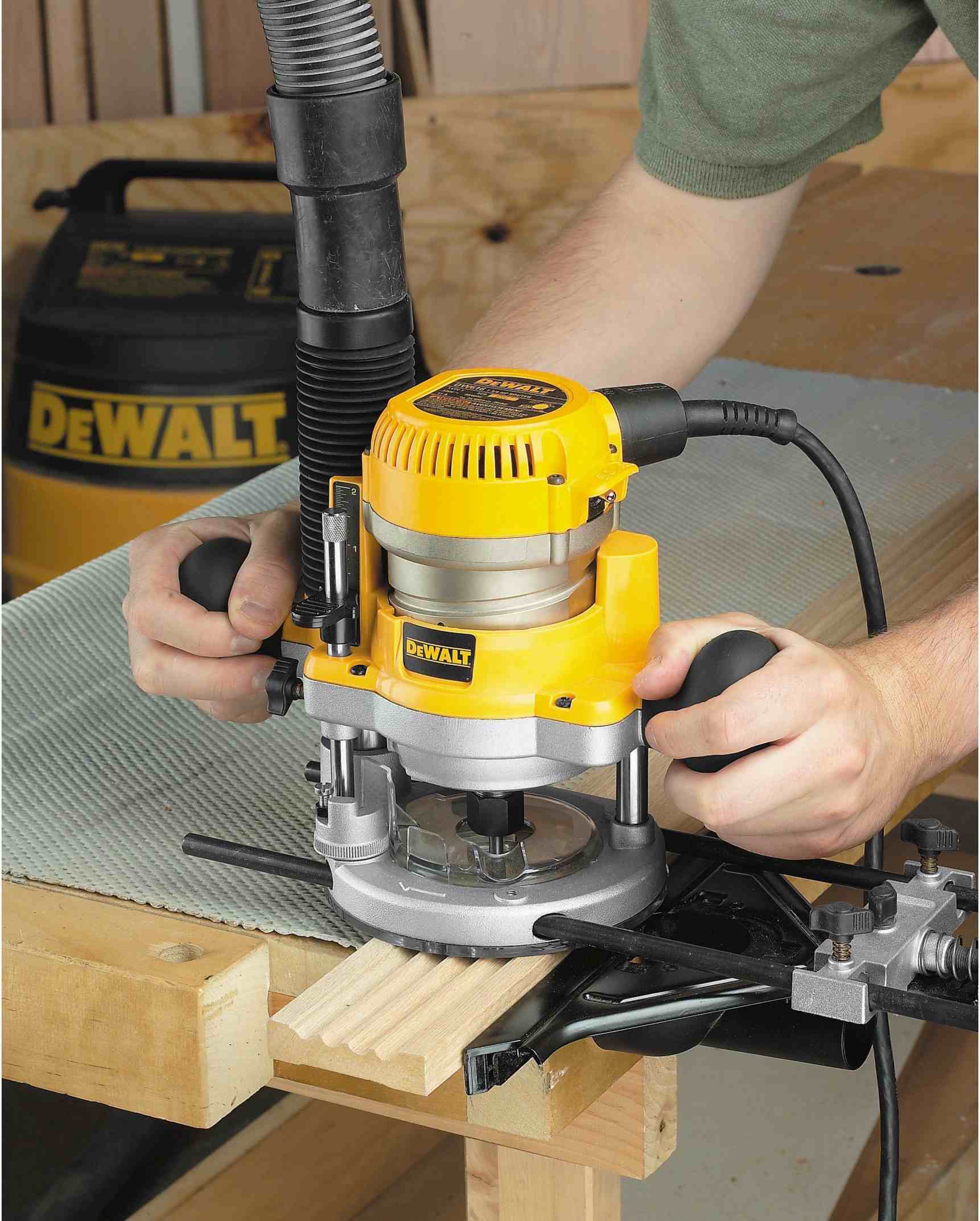

See the Bit, Not the Dust
When chips pile up around the bit, accuracy goes with them. The dust collection and clear sub-base work together so you can follow the cut more confidently, especially on curves and detailed work.
- Integral through-the-column dust collection captures up to 95% of dust
- Clear Lexan sub-base improves visibility and accepts standard template guide bushings

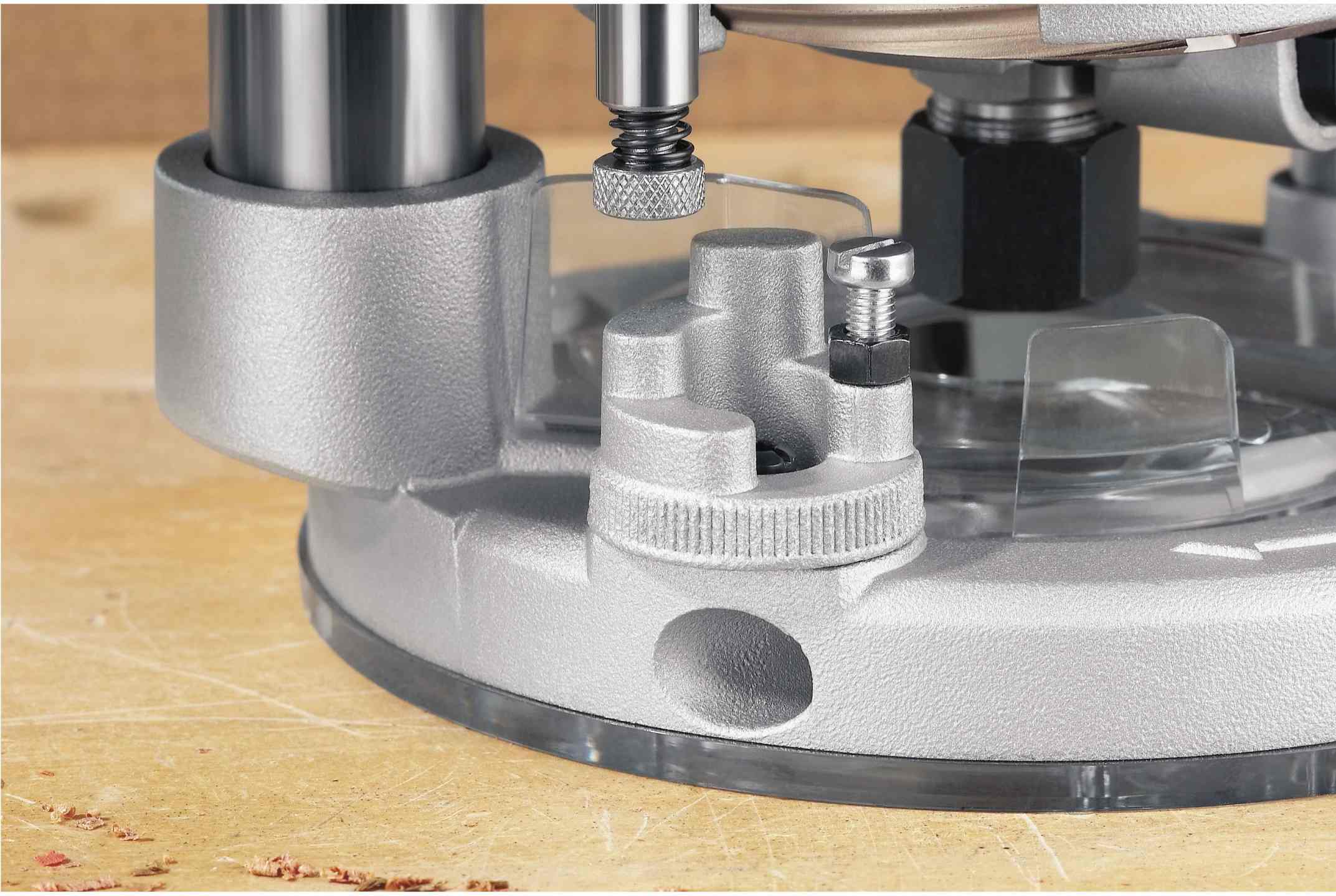

Dial In Depth for Fine Work
Small depth mistakes show up fast in veneer, inlay, and template work. This base gives you the fine adjustment and repeat-stop control needed to creep up on final depth instead of overshooting it.
- Micro-fine depth adjustment changes depth by 5/128 inch per turn
- Five-position adjustable turret stop helps with stepped or repeated plunge cuts
What's in the Box
- (1) DeWALT DW6182 Plunge Base for DW616/618 Routers
Router motor sold separately.
Key Specifications
|
|
Router Plunge Base |
|---|---|
|
|
Unpowered |
|
|
Die-cast Aluminum Base and Motor Housing |
|
|
5.3 lbs |
|
|
11.38 in |
|
|
11.0 in |
|
|
6.56 in |
|
|
5/128 in per turn |
Compatibility
Built For
Pro Tip
Use the turret stop to rough in your depth with repeatable passes, then finish with the micro-fine adjustment to sneak up on the final cut. That is the easier way to keep veneer and inlay work clean without going too deep on the first drop.
Warranty & Support
Tool Nut's Take
Why the DeWALT DW6182 Plunge Base for DW616/618 Routers Still Makes Sense
If you already own the right DeWALT router motor, this base is the upgrade that turns it into a much more capable plunge routing setup without overcomplicating the job.
- Who it's for: Woodworkers, trim carpenters, and cabinet guys running DW616M or DW618M motors who need accurate plunge cuts, template work, and better dust control.
- Why it stands out: The smooth plunge action, fine depth adjustment, and strong dust collection make this a practical working base, not just a parts accessory.
- Worth knowing: This is an unpowered base, not a complete router, so make sure you are buying it to pair with a compatible DeWALT motor.
Common Questions
- What router motors does this base fit? It is listed as compatible with DeWALT DW616M and DW618M router motors.
- Does the base support template guide bushings? Yes. The clear Lexan sub-base accepts standard template guide bushings.
- Is this a powered router? No. The listed power source is unpowered, so this is a plunge base accessory rather than a complete router.
- How much dust does the collection system capture? DeWALT states the integral through-the-column dust collection captures up to 95% of dust.
