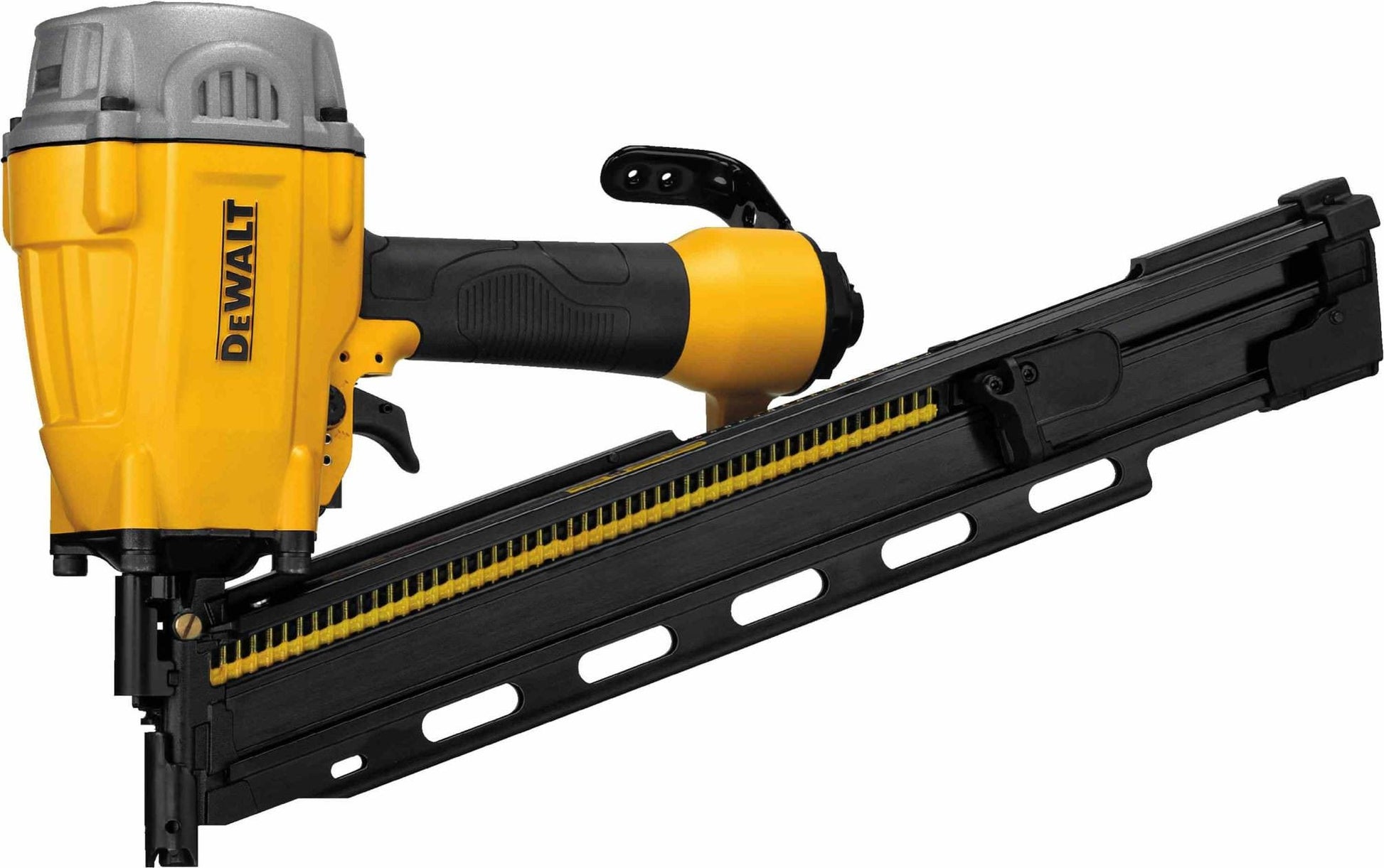

DeWALT 21-Degree Plastic Round Head Framing Nailer (DWF83PL)
DeWALT 21-Degree Plastic Round Head Framing Nailer (DWF83PL)
SOLD OUT
Product Details
Product Details
Key Features
Overview
The DEWALT DWF83PL 21 Degree Plastic Round Head Framing Nailer is a pneumatic framing nailer built for high-speed structural fastening. This is a framing nailer designed for wood framing, sheathing, decking, and general construction fastening. Model Number: DWF83PL. If you want an air nailer that keeps up on repetitive framing work without feeling overly bulky, this is the kind of tool that makes sense.
What matters most here is that DEWALT built this model around production work. It drives 21 degree plastic collated framing nails from 2 in. to 3-1/4 in., with supported nail diameters from 0.113 in. to 0.148 in.. That gives it the range needed for common framing tasks, from lighter fastening up to full-size framing nails. For crews moving between plates, studs, blocking, and general structural assembly, that range keeps one tool useful across a lot of daily work.
The recoil dampening engine system and moving cylinder design are not throwaway features. On a framing nailer, recoil control affects speed, accuracy, and how beat up your arm feels by the end of the day. Less jump means better control when you are toe-nailing, working at awkward angles, or trying to stay on layout while moving fast. It also helps newer users keep the nose planted more consistently.
DEWALT also got the day-to-day usability right. The tool-free depth-of-drive adjustment lets you fine-tune fastener setting as material density changes, which matters when you move from softer framing lumber to denser stock. The selectable trigger gives you the choice between bump actuation for production speed and sequential firing for more deliberate placement. That is the kind of flexibility that actually saves time because you can match the tool to the task instead of fighting it.
At 8 lb, this nailer stays light enough to carry and position without feeling stripped down. The compact 12.5 in. height helps when working between studs, joists, and other tighter framing spaces. DEWALT also uses an extruded aluminum magazine for durability, so you are not giving up toughness just to keep weight down. The balance point is called out as a selling feature for good reason: a framing nailer that hangs right in the hand is easier to run accurately for longer stretches.
Because this is a pneumatic nail gun, real jobsite performance depends on proper air supply. It uses a 1/4 in. air inlet, with a minimum recommended operating pressure of 70 PSI and minimum recommended air delivery of 8.7 SCFM at 90 PSI. In practical terms, pair it with a compressor and hose setup that can keep up with framing demand, especially if more than one air tool is on the line. If the compressor is undersized, the tool will not feel as consistent as it should.
This is a good fit for framers, remodelers, deck builders, general contractors, and serious DIY users taking on structural wood projects. If your work centers around interior trim or lighter finish fastening, this is more nailer than you need. But if you are building walls, fastening subfloors, laying out decks, or handling everyday framing tasks, the DEWALT DWF83PL 21 Degree Plastic Round Head Framing Nailer is aimed right at that work and has the feature set to justify its place on the truck.
Built for Repetitive Framing Work
This framing nailer is set up for fast production pace, not occasional punch-list use. It is meant for crews and builders who need consistent nail driving across common structural wood applications.
- Industrial-grade design for high-speed and high-volume framing applications
- Accepts 21 degree plastic collated framing nails from 2 in. to 3-1/4 in.
- Supports nail diameters from 0.113 in. to 0.148 in.
Control the Fastener, Not Just the Tool
When lumber changes, nail setting changes. The tool-free controls help you keep heads where you want them without slowing down every time conditions shift.
- Tool-free depth-of-drive adjustment for more precise fastener setting
- Selectable trigger for bump or sequential actuation mode
- Useful when moving between production speed and more exact placement
Lighter Handling on the Jobsite
Framing nailers earn their keep when they are easy to carry, easy to place, and not constantly fighting your wrist. This one keeps weight reasonable while adding features that matter when you are moving around a site.
- Lightweight design at only 8 lb
- Compact 12.5 in. height helps in tighter framing spaces
- Adjustable rafter hook adds convenience when climbing or staging
What's in the Box
- (1) DEWALT DWF83PL Framing Nailer
No additional components or accessories are included.
Key Specifications
| Nail Angle | 21 degree |
|---|---|
| Nail Length Range | 2 in. to 3-1/4 in. |
| Nail Diameter Range | 0.113 in. to 0.148 in. |
| Power Source | Pneumatic |
| Minimum Operating Pressure | 70 PSI |
| Minimum Air Delivery | 8.7 SCFM @ 90 PSI |
| Air Inlet Size | 1/4 in. |
| Weight | 8 lb |
| Height | 12.5 in. |
| Depth | 23.345 in. |
| Width | 13.465 in. |
| Loading Type | Strip |
Compatibility
Built For
Pro Tip
When you switch from dry framing lumber to denser stock, take a second to recheck depth-of-drive before you keep running. On a framing nailer like this, a quick adjustment saves you from spending the rest of the day chasing proud heads or overdriven nails.
Warranty & Support
Tool Nut's Take
DEWALT DWF83PL 21 Degree Plastic Round Head Framing Nailer Gets the Important Stuff Right
This is a production-minded framing nailer that keeps weight, recoil, and setup hassle under control without giving up the durability you want in a daily-use air tool.
- Who it's for: Framers, remodelers, deck builders, and contractors who want a pneumatic framing nailer for regular structural wood fastening.
- Why it stands out: The recoil dampening design, tool-free adjustments, broad nail size range, and balanced 8 lb build make it easier to run hard through a full workday.
- Worth knowing: This is tool only, so make sure your compressor can actually feed it. A framing nailer is only as good as the air supply behind it.
Common Questions
- Is this a cordless framing nailer? No. The DEWALT DWF83PL is a pneumatic framing nailer and requires an air compressor.
- What nails does it use? It uses 21 degree plastic collated framing nails from 2 in. to 3-1/4 in. long, with diameters from 0.113 in. to 0.148 in.
- Can you switch between bump fire and sequential fire? Yes. It has a selectable trigger for bump or sequential actuation mode.
- How much does the tool weigh? The tool weight is 8 lb.
- What air setup does it need? It uses a 1/4 in. air inlet, with a minimum recommended operating pressure of 70 PSI and minimum recommended air delivery of 8.7 SCFM at 90 PSI.
