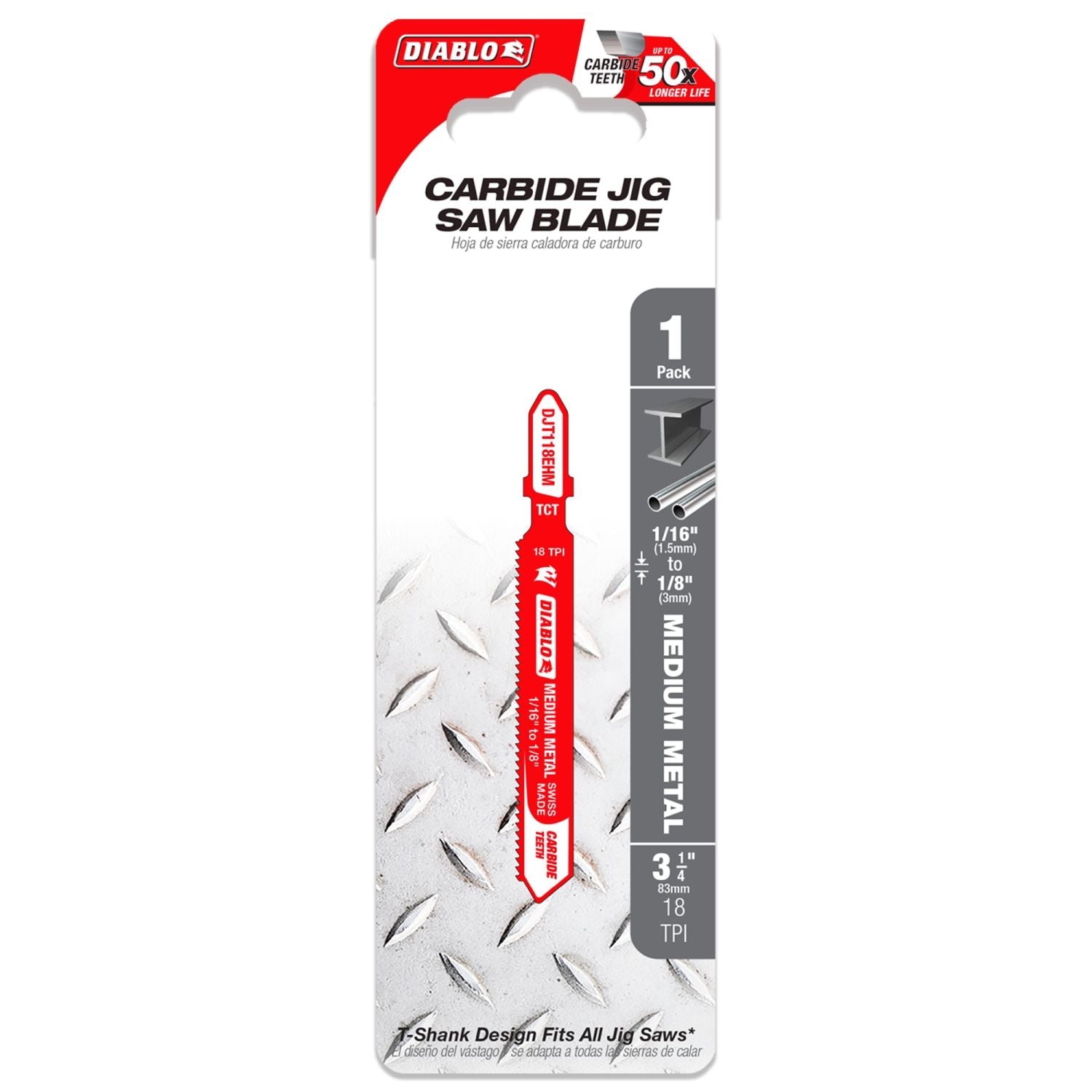

Diablo 3-1/4-in. 18 TPI Carbide T-Shank Jig Saw Blade for Medium Metal (DJT118EHM)
Diablo 3-1/4-in. 18 TPI Carbide T-Shank Jig Saw Blade for Medium Metal (DJT118EHM)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Diablo DJT118EHM 3-1/4 in. 18 TPI Carbide T-Shank Jig Saw Blade for Medium Metal is a metal-cutting jig saw blade for users who need better life and cleaner performance than a basic steel blade can deliver. This is a jig saw blade designed for cutting medium metal and stainless steel. Model Number: DJT118EHM. If you are cutting stock in the 1/16 in. to 1/8 in. thickness range, this blade is built for that job instead of asking a wood blade or general-purpose blade to do work it was never meant to handle.
What matters here is the carbide construction. Diablo calls out a high-performance carbide edge that delivers up to 50 times longer life versus standard jig saw blades. On the job, that means less downtime, fewer blade swaps, and more predictable cutting when you are working through metal trim, light structural material, or stainless pieces that usually chew through ordinary blades fast.
The 3-1/4 in. blade length and 18 teeth per inch setup are aimed at controlled cuts in metal rather than rough, fast tear-through work. A finer tooth count is what you want when the goal is smoother tracking and better control in sheet metal, stainless, and similar material thicknesses. Diablo also uses an aggressive carbide tooth geometry to keep the cut moving without making the blade feel lazy in the material.
Diablo also built this blade to manage heat better, which is a big deal in metal cutting. The optimized blade design is intended to reduce heat and pitch buildup, and the Perma-SHIELD non-stick coating helps reduce friction. In plain terms, that helps the blade stay usable longer and keeps performance from falling off as quickly during repeated cuts.
Fitment is straightforward. The T-shank interface fits all combo and most U-shank jig saws, and Diablo states it is optimized for both cordless and corded jig saws. That matters if you rotate between shop tools and jobsite tools or if you are running a cordless jigsaw where blade efficiency helps preserve runtime.
This blade makes the most sense for metalworking, mechanical work, fabrication, HVAC, remodeling, and general contractors who occasionally need a jigsaw for curved or tight metal cuts. It is also a smart pickup for serious DIY users who work with stainless or thin metal stock and are tired of burning through standard blades. If your work is mostly wood, this is the wrong blade. If your work includes medium metal and stainless in the stated thickness range, this is the right kind of blade to keep on hand.
Longer Blade Life in Metal Cutting
Metal-cutting jigsaw blades usually fail from heat and wear. Diablo built this one around carbide so it lasts substantially longer than a standard blade when you are cutting the kind of metal that quickly dulls basic teeth.
- High-performance carbide edge for greater durability
- Rated for up to 50X longer life versus standard jig saw blades
- Perma-SHIELD coating helps reduce heat and friction
Key Specifications
| Tool Type | Jig Saw Blade |
|---|---|
| Blade Interface | T-Shank |
| Blade Length | 3-1/4 in. |
| Blade Width | 1/4 in. |
| Teeth Per Inch | 18 TPI |
| Blade Material | Carbide |
| Material Cut | Medium Metal |
| Cutting Capacity | Metal and stainless steel from 1/16 in. to 1/8 in. thick |
| Quantity | 1 blade |
| Made In | Switzerland |
Compatibility
Built For
Pro Tip
When you are cutting metal in the 1/16 in. to 1/8 in. range, let the carbide teeth do the work and keep the saw moving steadily instead of forcing it. Pushing too hard builds heat fast, and heat is what shortens blade life.
Warranty & Support
Tool Nut's Take
Skip the throwaway metal blades
The Diablo DJT118EHM 3-1/4 in. 18 TPI Carbide T-Shank Jig Saw Blade for Medium Metal is the kind of blade you buy when standard metal-cutting blades keep tapping out too early.
- Who it's for: Contractors, fabricators, HVAC techs, and serious DIY users cutting medium metal or stainless with a jig saw.
- Why it stands out: Carbide construction, heat-reducing design, and broad jig saw compatibility make it a much better choice for repeat metal work than a basic blade.
- Worth knowing: This is a single blade, not a multi-pack, and it is purpose-built for metal. If your work is mostly wood, buy the right blade for that job instead.
Common Questions
- What does this blade cut? It is designed for medium metal and stainless steel in the 1/16 in. to 1/8 in. thickness range.
- Will it fit my jig saw? The T-shank design fits all combo and most U-shank jig saws.
- Is this blade for cordless jig saws only? No. Diablo states it is optimized for both cordless and corded jig saws.
- How many blades come in the package? The package quantity is 1 blade.
