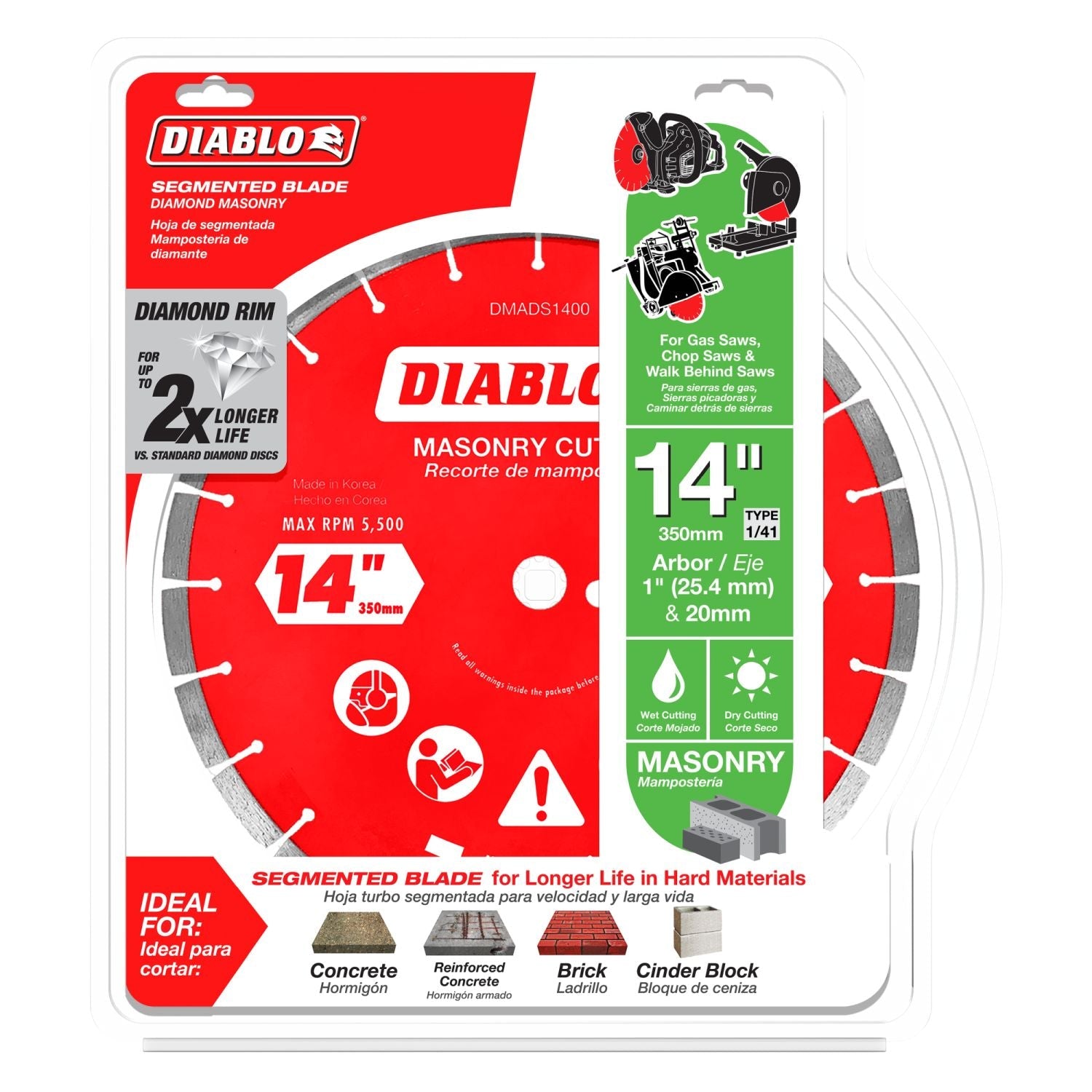

Diablo 14-in. Diamond Segmented Masonry Cut-Off Blade (DMADS1400)
Diablo 14-in. Diamond Segmented Masonry Cut-Off Blade (DMADS1400)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Diablo DMADS1400 14-in. Diamond Segmented Masonry Cut-Off Blade is a 14 inch diamond segmented cut-off blade made for masonry work. This is a diamond cut-off blade designed for cutting concrete, concrete with rebar, brick, and block. Model Number: DMADS1400. If you run a gas saw, masonry chop saw, or walk-behind saw and need a blade that holds up in hard material, this is the kind of accessory that matters because blade life and cut consistency directly affect how fast the job moves.
The main story here is durability under real cutting loads. Diablo calls out taller segments with premium diamonds and an ultra-durable bond to the disc body, which is how this blade is built to reach up to 2X longer cutting life versus standard diamond cut-off discs. On the job, that means more usable blade before performance drops off, especially when you are moving through abrasive masonry and reinforced concrete that tends to eat cheaper blades.
The segmented rim design is the right choice when speed and debris clearance matter more than a finish-grade edge. For contractors cutting block, curb, slab, pavers, or reinforced sections, segmented rims help the blade stay aggressive in tough material. Diablo also notes optimized diamond segment distribution for constant diamond exposure, which is a practical way of saying the blade is designed to keep cutting instead of glazing over too quickly in high-speed applications.
The hardened disc body is another part worth paying attention to. It is built to absorb vibration and improve impact resistance, which matters when the saw is seeing rougher conditions, inconsistent aggregate, or occasional contact with rebar. A stiffer, tougher blade body helps the cut track better and reduces some of the chatter that can make long cuts in concrete feel sloppy.
Fitment is straightforward. This blade has a 14 inch diameter, a 1 inch arbor, and compatibility with 20 mm through the included bushing. That gives it useful flexibility across common cut-off saw and masonry saw setups. It is also rated for wet or dry cutting, so you can run it in the setup your job calls for, whether you are working dry for convenience or wet to help control heat and dust.
Maximum speed is rated at 5,500 RPM, so this is clearly aimed at larger dedicated cutting equipment rather than small handheld grinders. While one source lists angle grinders under ideal use, the stronger and more consistent fit data points to gas saws, masonry chop saws, and walk-behind saws as the intended platforms for this 14 inch blade. That lines up with the size, arbor details, and masonry-focused application.
This Diablo masonry cut-off blade is a smart pick for masons, concrete crews, general contractors, hardscape installers, and serious remodelers who need one blade for mixed masonry material. If you mostly cut brick and block occasionally, you can get by with less. If you regularly cut concrete, reinforced concrete, and block on the same week, spending more on a blade like this usually pays back in usable life and steadier performance.
Built to Stay Aggressive in Hard Material
When you are cutting abrasive masonry, the blade has to keep exposing fresh diamond instead of fading halfway through the job. Diablo designed this one for that kind of work.
- Segmented diamond rim for concrete, brick, block, and reinforced concrete
- Up to 2X longer cutting life versus standard diamond cut-off discs
- Maximum speed rating of 5,500 RPM for high-speed cutting applications
Fits Common Masonry Cutting Setups
A blade is only useful if it drops into the saws you already run. The 1 inch arbor and included 20 mm bushing give this disc practical compatibility across larger masonry cutting equipment.
- 14 inch blade diameter for larger cut-off and masonry saw platforms
- 1 inch arbor with included 20 mm bushing
- Suitable for gas saws, masonry chop saws, and walk-behind saws
What's in the Box
- (1) Diablo DMADS1400 14 in. segmented rim diamond cut-off blade
- (1) 20 mm bushing
Key Specifications
|
|
14 in. |
|---|---|
|
|
1 in. / 20 mm |
|
|
Diamond |
|
|
Segmented |
|
|
5,500 RPM |
|
|
4.37 lbs |
|
|
0.125 in. |
|
|
Switzerland |
Compatibility
Built For
Pro Tip
If your saw uses a 20 mm arbor, install the included bushing before the first cut and verify the blade stays fully seated on the flange. It is a small setup step, but it helps the blade track true and keeps vibration from getting worse as the cut gets deeper.
Warranty & Support
Tool Nut's Take
Diablo DMADS1400 14-in. Diamond Segmented Masonry Cut-Off Blade for Crews Who Cut Real Concrete
This is the kind of masonry blade you buy when cheap discs keep burning time and money on hard material.
- Who it's for: Concrete crews, masons, hardscape installers, and contractors running gas saws or walk-behind saws on brick, block, slab, and reinforced concrete.
- Why it stands out: The taller segmented diamond rim, hardened disc body, wet or dry capability, and 1 inch / 20 mm arbor flexibility make it a practical pro-grade choice.
- Worth knowing: This is a 14 inch blade meant for larger cutting equipment, not a casual grab for small grinder work. Match it to the right saw and stay under the 5,500 RPM limit.
Common Questions
- What materials can this blade cut? It is built for concrete, concrete with rebar, brick, and block.
- Can this blade be used wet or dry? Yes. It is suitable for both wet and dry cutting.
- What saws is it designed for? It is intended for gas saws, masonry chop saws, and walk-behind saws.
- What arbor size does it use? The blade uses a 1 inch arbor and includes a 20 mm bushing for compatible saws.
- What is the maximum RPM rating? The maximum rated speed is 5,500 RPM.
