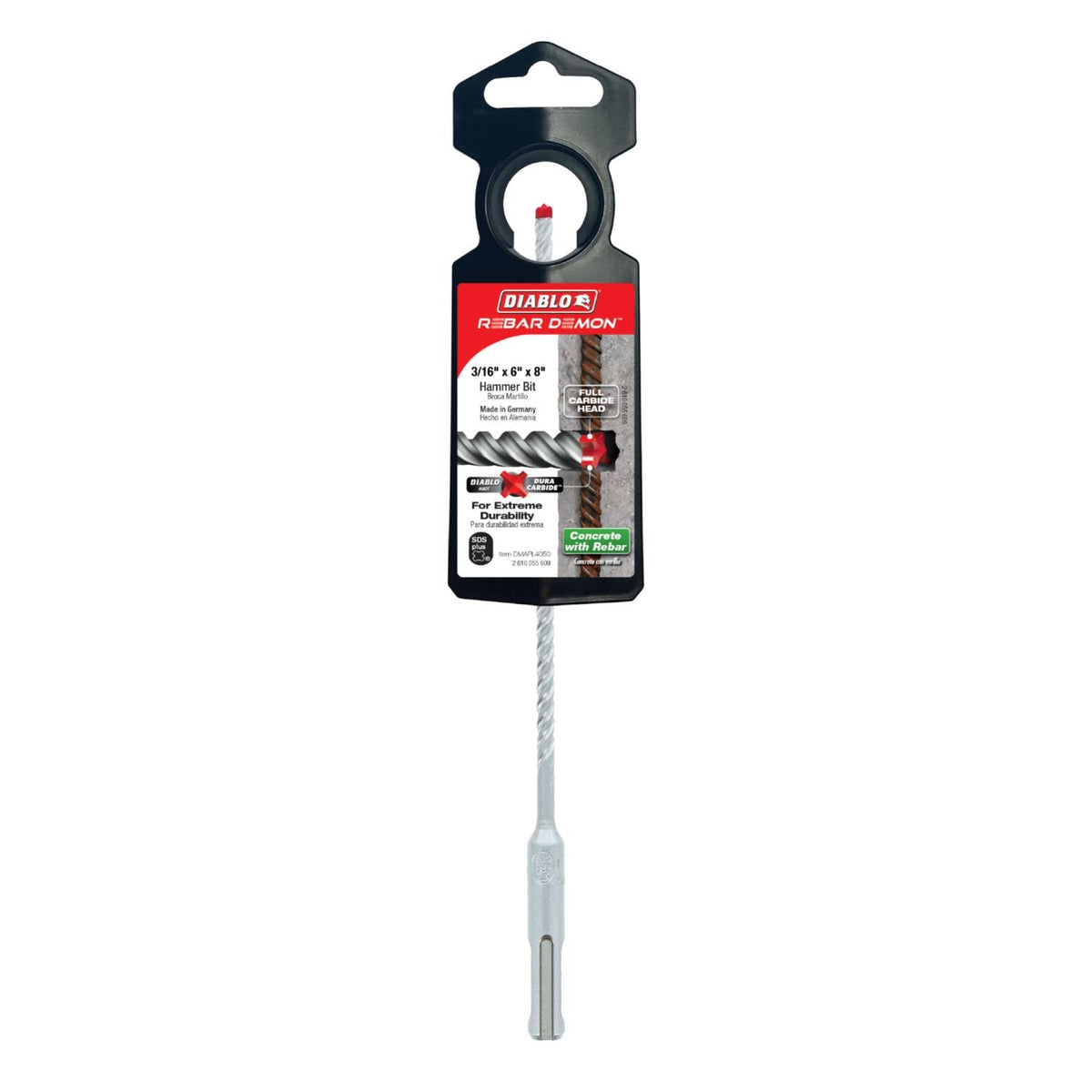

The Diablo DMAPL4050 3/16 in. x 6 in. x 8 in. Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit is a carbide-tipped hammer drill bit built for drilling anchor and fastener holes in concrete, reinforced concrete, brick, block, and stone. This is a hammer drill bit designed for masonry drilling with SDS-Plus rotary hammers. Model Number: DMAPL4050. If you regularly drill small-diameter holes for wedge anchors, Tapcon-style fasteners, or general concrete fastening, this bit is made for the kind of work where hitting rebar can ruin an ordinary bit fast.

The big selling point here is the full carbide 4-cutter head. Instead of acting like a basic 2-cutter masonry bit that can hang up or break down when it meets embedded steel, this design takes smaller bites through rebar for more controlled wear, less vibration, and more consistent progress. Diablo backs that up with a claim of up to 7X longer life versus standard 2-cutter hammer drill bits, which is the kind of difference that matters when you are drilling a lot of holes in reinforced concrete and do not want to swap bits halfway through the layout.

Diablo also calls out its Dura-Carbide build, with up to 2X more carbide and heat resistance up to 1800 degrees Fahrenheit, compared to standard bits that fail at around 800 degrees Fahrenheit. In plain terms, that means the cutting head is better equipped to deal with the heat and abuse that come from repeated hammer drilling and accidental rebar contact. The Tri-Metal Fusion Welding is there for the same reason. Diablo rates that weld up to 3X stronger to help keep the carbide head together during extreme impact.

For actual drilling performance, the precision tip helps the bit start where you place it and stay stable as it cuts. That is especially useful on smaller diameters like 3/16 in., where wandering at the start can throw off anchor placement or leave you fighting for a clean entry point. The optimized flute design is another practical feature. By clearing dust faster, it helps keep the head cooler and the hole cleaner, which supports better drilling speed and better durability over repeated use.

This bit measures 8 in. overall with a 6 in. working length, giving you enough reach for common fastening and anchor-setting work without going to a longer bit than you need. The 3/16 in. diameter is a common size for smaller masonry fastening jobs, and the SDS-Plus shank is made for corded and cordless SDS-Plus rotary hammers. That makes it a straightforward fit for contractors and serious DIY users already working on an SDS-Plus platform.

Where this bit makes the most sense is commercial maintenance, electrical work, mechanical installs, railing and bracket fastening, concrete anchoring, and general remodeling where you are drilling into cured concrete or block and cannot afford to stop every time you find reinforcement. It is sold as an individual bit, so it is easy to replace worn sizes one at a time instead of buying a full set. Bottom line: if your work involves concrete drilling and rebar hits are part of the day, this is the smarter choice over a bargain masonry bit that is only good until the first hard surprise in the slab.

A Small Bit That Solves a Big Concrete Problem

The Diablo DMAPL4050 is the kind of hammer drill bit you buy after getting tired of cheaper bits folding up the second they touch rebar.

• Who it's for: Pros and serious DIY users drilling anchor holes in concrete, block, brick, and reinforced concrete with an SDS-Plus rotary hammer.
• Why it stands out: The full carbide 4-cutter head, stronger welded construction, and dust-clearing flute design all point to one thing: better survival and steadier drilling when the material gets ugly.
• Worth knowing: This is an individual 3/16 in. bit, so it is a great replacement or task-specific size, not a multi-size kit.

• What type of tool does this bit fit? It is made for SDS-Plus rotary hammers, including corded and cordless models.
• Can this bit drill through rebar? Yes. The full carbide 4-cutter head is specifically designed for drilling concrete with rebar and for controlled wear when rebar is encountered.
• What materials is it intended for? This masonry drill bit is intended for concrete, reinforced concrete, brick, block, stone, and concrete with rebar.
• What are the key size dimensions? The bit diameter is 3/16 in., the working length is 6 in., and the overall length is 8 in.
