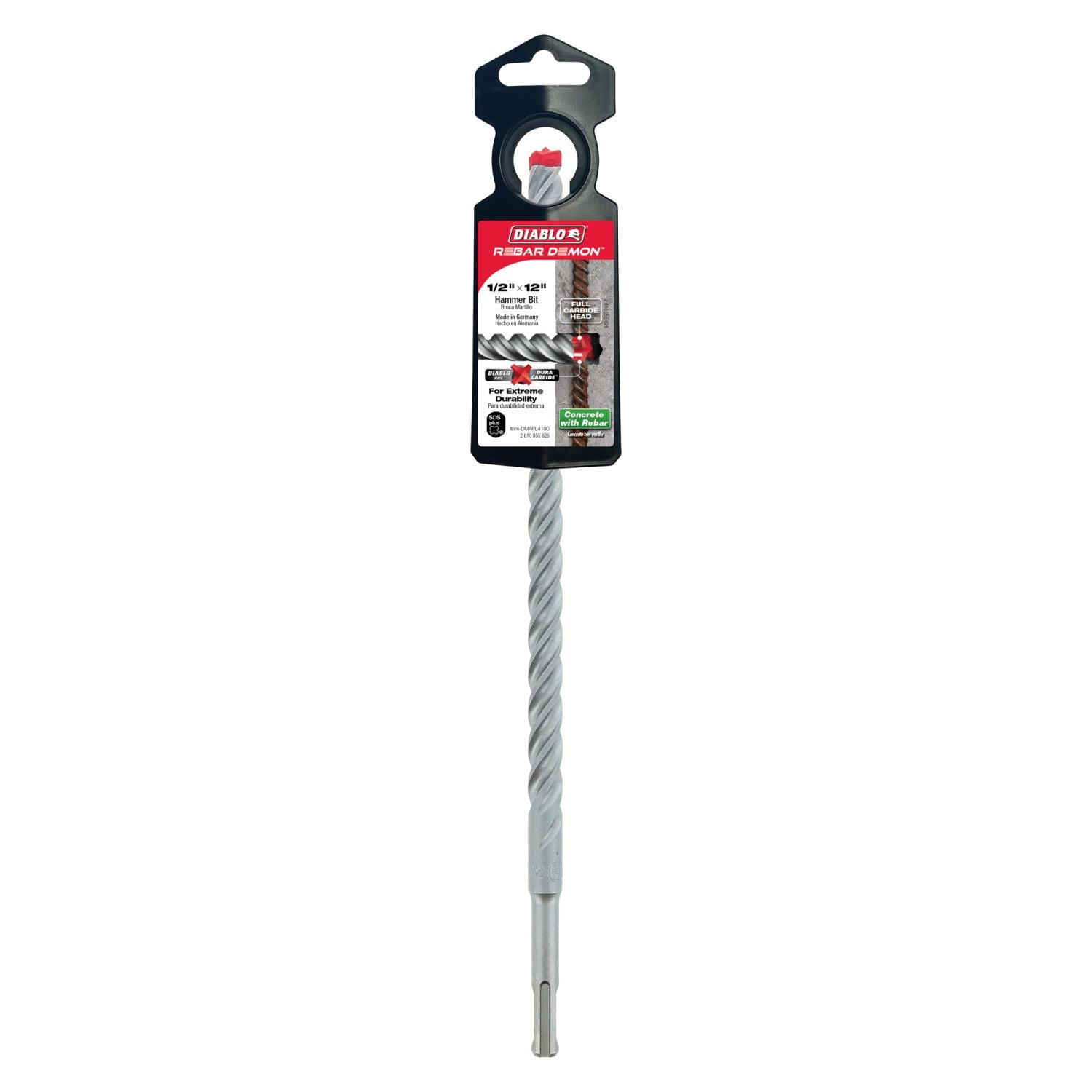

Diablo 1/2-in. x 10-in. x 12-in. Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit (DMAPL4190)
Diablo 1/2-in. x 10-in. x 12-in. Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit (DMAPL4190)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Diablo DMAPL4190 1/2 in. x 10 in. x 12 in. Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit is built for drilling anchor and clearance holes in concrete, reinforced concrete, block, brick, stone, and natural stone. This is a hammer drill bit designed for drilling fast, accurate holes in masonry and concrete, including concrete with rebar. Model Number: DMAPL4190.
This bit is sized for jobs that need reach without stepping up to an oversized specialty bit. You get a 1/2 inch diameter, 12 inch overall length, and 10 inch working length, which makes it a practical choice for deeper anchor installations and through-hole work where standard short bits come up short. The SDS-Plus shank is optimized for corded and cordless SDS-Plus rotary hammers, so it is aimed at the tools most contractors already carry.
What separates this bit from a basic masonry bit is the cutting head. Diablo uses a full carbide 4-cutter head that is designed to take smaller bites when it meets rebar. In plain terms, that means the bit stays more controlled instead of getting knocked around when the steel shows up inside the concrete. The result is reduced vibration, more consistent wear, and a better chance of finishing the hole cleanly instead of burning up the tip or chipping the cutting edges.
Heat is a big deal with hammer drill bits, especially when you are drilling repeated holes or working reinforced concrete. Diablo states its Dura-Carbide construction uses up to 2X more carbide and withstands up to 1800 degrees Fahrenheit, compared to standard bits that fail around 800 degrees Fahrenheit. That matters because excess heat is what shortens bit life, slows drilling, and leads to broken heads when the bit catches steel or hard aggregate.
The Tri-Metal Fusion Welding is there for the same reason: survival under impact. Diablo says it creates up to a 3X stronger weld to keep the full carbide head intact during extreme impact such as rebar strikes. If you have ever had a masonry bit lose its tip or stop cutting halfway through an anchor layout, you already know why that matters. This design is aimed at keeping the bit working when the hole conditions are not ideal.
Accuracy is another strong point here. The precision tip is meant to keep the bit stable as it starts, which helps when you need clean placement for wedge anchors, sleeve anchors, handrail fasteners, conduit supports, or mechanical attachments in cured concrete. Diablo also includes a wear mark indicator to help maintain precise hole making over the life of the bit. That is useful on jobs where anchor fit matters and a worn bit can turn a simple install into a callback.
Dust removal is handled by an optimized flute design that clears debris faster and helps keep the carbide head cooler. On the job, that means less packing in the hole and better cutting efficiency, especially during repetitive drilling. Faster dust ejection also helps the bit stay productive in deeper holes where chips and dust can otherwise slow progress and build heat.
This Diablo hammer drill bit makes the most sense for concrete contractors, electricians, mechanical trades, general contractors, and serious DIY users who regularly drill into masonry or reinforced concrete with an SDS-Plus rotary hammer. If your work includes anchor setting, handrail installs, electrical supports, Tapcon-style fastening, or drilling where hitting rebar is a real possibility, this is the kind of bit worth buying once instead of replacing cheap ones all week.
Made for Reinforced Concrete Work
When you are drilling concrete for anchors, the problem is not usually the first inch. It is what happens when the bit hits dense aggregate or rebar. This bit is built to keep cutting with less drama, which is exactly what you want on layout-critical work.
- Full carbide 4-cutter head is designed for concrete and concrete with rebar
- 10 inch working length gives useful reach for deeper anchor and fastening holes
- Optimized flute design clears dust faster to help the bit stay cooler and cut consistently
Key Specifications
| Bit Diameter | 1/2 in. |
|---|---|
| Overall Length | 12 in. |
| Working Length | 10 in. |
| Shank Type | SDS Plus |
| Shank Diameter | 10 mm |
| Head Type | Full Carbide Head |
| Number of Cutters | 4 |
| Pack Size | 1 |
Compatibility
Built For
Pro Tip
If you are drilling repeated anchor holes, check the wear mark indicator as the bit ages. It is a simple way to catch a worn bit before hole size starts getting sloppy and anchor fit becomes the problem instead of the concrete.
Tool Nut's Take
Why the Diablo DMAPL4190 Hammer Drill Bit Earns Its Spot
The Diablo DMAPL4190 is the kind of SDS-Plus concrete bit you buy when cheap masonry bits have already wasted enough of your time.
- Who it's for: Pros and serious DIY users drilling anchors and fastening holes in concrete, block, brick, and especially reinforced concrete where rebar hits are a real possibility.
- Why it stands out: The full carbide 4-cutter head, stronger welded construction, and dust-clearing flute design all work toward the same goal: keep the bit cutting straighter, cooler, and longer.
- Worth knowing: This is an SDS Plus bit, so make sure your rotary hammer matches. If you mostly drill occasional shallow holes in plain block, it may be more bit than you need, but for concrete with steel in it, this is the smarter buy.
Common Questions
- What tools is this bit designed to fit? It uses an SDS Plus shank and is optimized for corded and cordless SDS Plus rotary hammers.
- What materials can it drill? It is designed for concrete, concrete with rebar, block, brick, stone, natural stone, and reinforced concrete applications.
- What is the usable drilling length? The working length is 10 inches, with a 12 inch overall bit length.
- What makes this different from a standard 2-cutter hammer drill bit? Diablo states the 4-cutter full carbide head delivers better durability, more controlled wear, reduced vibration, and up to 7X longer life versus standard 2-cutter hammer drill bits.
