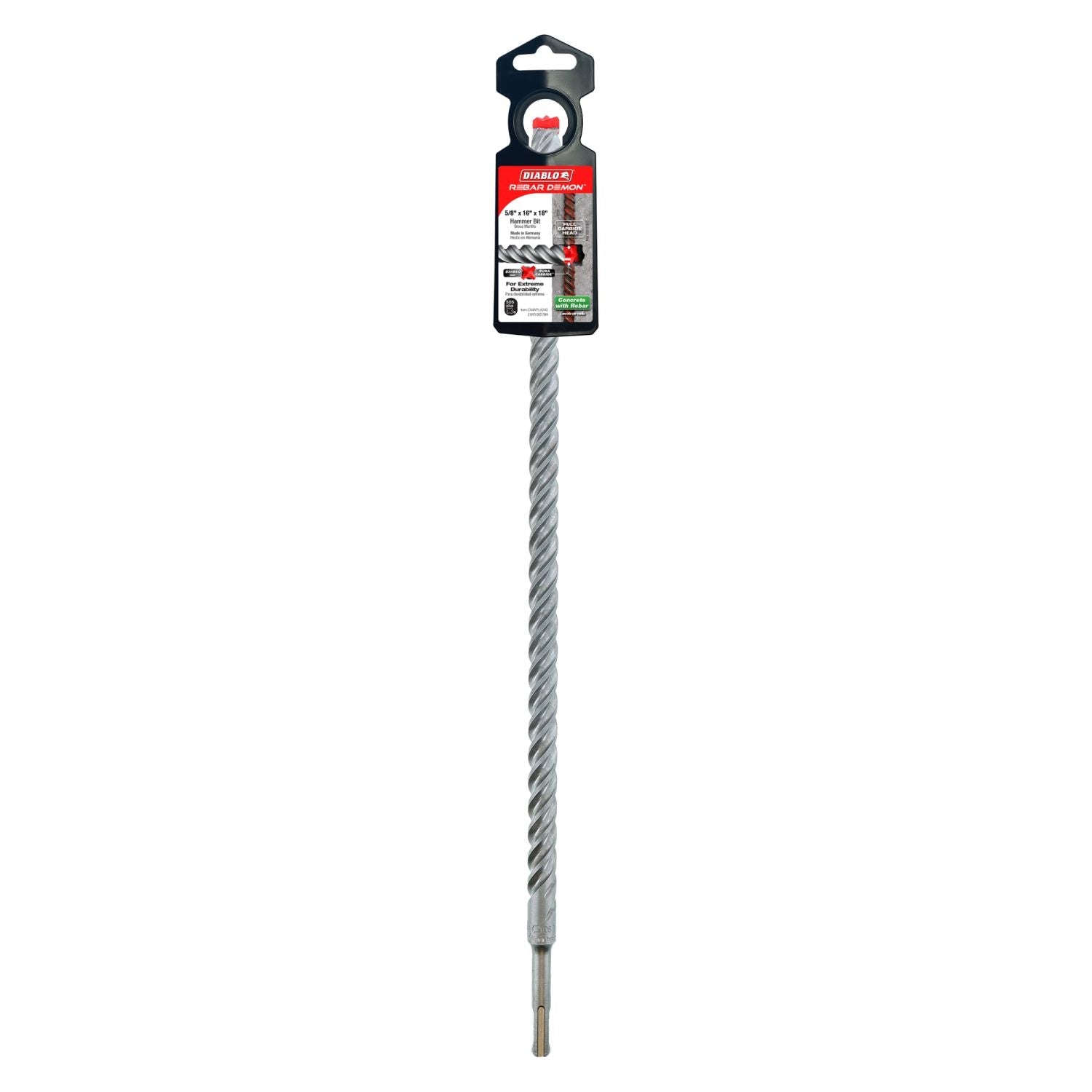

Diablo 5/8-in. x 16-in. x 18-in. Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit (DMAPL4240)
Diablo 5/8-in. x 16-in. x 18-in. Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit (DMAPL4240)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Diablo DMAPL4240 5/8 in. x 16 in. x 18 in. Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit is a rotary hammer drill bit built for drilling anchor and pass-through holes in concrete and concrete with rebar. This is a hammer drill bit designed for reinforced concrete drilling with SDS-Plus rotary hammers. Model Number: DMAPL4240. If you regularly hit rebar and don't want to burn through standard 2-cutter bits, this is the kind of bit you buy once and keep in the truck for the hard holes.
The big selling point here is the full carbide 4-cutter head. Diablo claims up to 7X longer life than standard 2-cutter hammer drill bits, and the reason matters more than the number. When the bit meets rebar, the head is built to keep cutting instead of chipping apart or deflecting off course. The 4-cutter layout also extracts smaller bites from rebar, which helps control wear, reduces vibration, and keeps the hole tracking where you started it.
Diablo also puts a lot into the carbide itself. The Dura-Carbide formula is built to handle up to 1800 degrees Fahrenheit of heat, which matters because rebar contact creates heat fast. Compared to ordinary bits that fail much earlier, this gives the Diablo bit a real advantage in reinforced concrete where heat and shock are what usually kill a bit first. The Tri-Metal Fusion Welding is there for the same reason. It is designed to keep the full carbide head attached under repeated impact, especially when the bit catches steel.
On the concrete side of the job, the precision tip helps with startup accuracy so the bit does not skate as much when you first set the hole. That is useful when you are drilling overhead, working off a ladder, or trying to keep anchor locations tight on layout. The optimized flute design clears dust faster, which helps the bit run cooler and keeps the cutting head from packing up in deep holes. On a 16-inch drilling depth bit, dust removal is not a small detail. It directly affects drilling speed and how hard you have to lean on the tool.
Fitment is straightforward. This bit uses an SDS-Plus shank and is optimized for both corded and cordless SDS-Plus rotary hammers. That makes it a practical choice for electricians, mechanical contractors, general contractors, concrete crews, and remodelers who are already running an SDS-Plus platform and need a long bit that can deal with reinforced material. It is not a general-purpose twist bit and it is not for a standard drill chuck. It is purpose-built for rotary hammer work in masonry and concrete applications.
Size-wise, this bit gives you a 5/8-inch diameter, 18-inch overall length, and 16-inch usable drilling depth. That combination makes sense for deeper anchor holes, through-holes, and runs where you need extra reach without stepping up to a larger rotary hammer system. The wear mark indicator is another practical touch. It helps you keep an eye on bit wear so hole size stays consistent when anchor performance depends on drilling to the right diameter.
If you mostly drill plain block a few times a month, this bit is probably more than you need. But if you drill concrete often, especially reinforced concrete, the Diablo DMAPL4240 earns its keep. It is for the user who wants fewer ruined bits, straighter holes, and less wasted time when the job turns from concrete into concrete with steel hiding inside it.
Holds Up When You Hit Steel
Rebar is what separates a decent masonry bit from one worth paying for. The full carbide head on this bit is designed to survive that contact and keep boring instead of breaking down the first time it meets steel.
- 4-cutter full carbide head for concrete and concrete with rebar
- Dura-Carbide is built to withstand high heat from repeated rebar strikes
- Tri-Metal Fusion Welding helps keep the head intact under heavy impact
Deep Drilling Without Fighting Dust
Long bits can slow down fast if they stop clearing dust. Diablo's flute design is meant to move debris out of the hole quickly, which helps the carbide head stay cooler and keeps drilling speed more consistent at depth.
- 18 in. overall length with 16 in. drilling depth
- Optimized flute design for faster dust removal
- Precision tip helps start cleaner, more accurate holes
What's in the Box
- (1) Diablo DMAPL4240 Rebar Demon SDS-Plus 4-Cutter Full Carbide Head Hammer Drill Bit
Key Specifications
| Bit Diameter | 5/8 in. |
|---|---|
| Overall Length | 18 in. |
| Drilling Depth | 16 in. |
| Shank Type | SDS-Plus |
| Head Type | 4-Cutter Full Carbide Head |
| Bit Material | Carbide |
| Material Application | Concrete, Concrete with Rebar |
| Piece Count | 1 |
Compatibility
Built For
Pro Tip
On deep holes, back the bit out periodically to help the flute clear dust instead of forcing it at full depth the whole time. You will keep the carbide head cooler and the hole will stay more consistent, especially when you hit rebar partway through.
Tool Nut's Take
Diablo DMAPL4240 hammer drill bit for the holes that usually kill cheap bits
The Diablo DMAPL4240 is the kind of SDS-Plus bit you buy when plain concrete is not the problem and hidden rebar is.
- Who it's for: Pros and serious DIY users drilling repeated anchor or pass-through holes in concrete, especially reinforced concrete.
- Why it stands out: The full carbide 4-cutter head, stronger weld design, and dust-clearing flute give it a real advantage over basic 2-cutter bits when the hole gets ugly.
- Worth knowing: This is a single SDS-Plus rotary hammer bit, not a general drill bit and not a set. If you are only drilling a couple of shallow holes in plain block, it is probably more bit than you need.
Common Questions
- What tool does this bit fit? It uses an SDS-Plus shank and is designed for SDS-Plus rotary hammers.
- Can it drill through concrete with rebar? Yes. This bit is specifically designed for concrete and concrete with rebar.
- What size hole does it drill? The bit diameter is 5/8 in.
- How deep can it drill? It has a 16 in. drilling depth and an 18 in. overall length.
