Jet J-4200A-2, 6 x 48 Industrial Combination Belt and Disc Finishing Machine 230V 1-Phase (414552)
Jet J-4200A-2, 6 x 48 Industrial Combination Belt and Disc Finishing Machine 230V 1-Phase (414552)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview

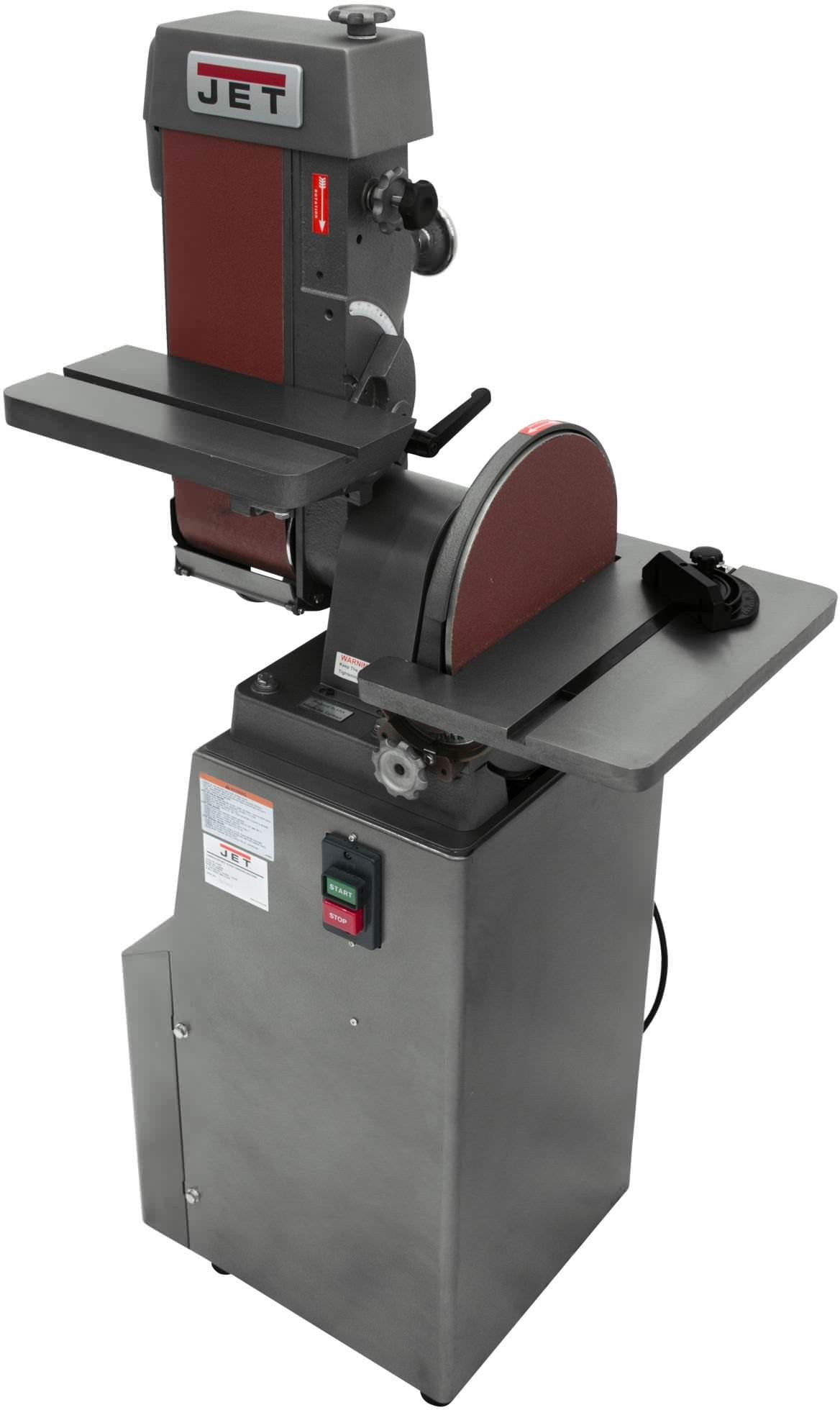

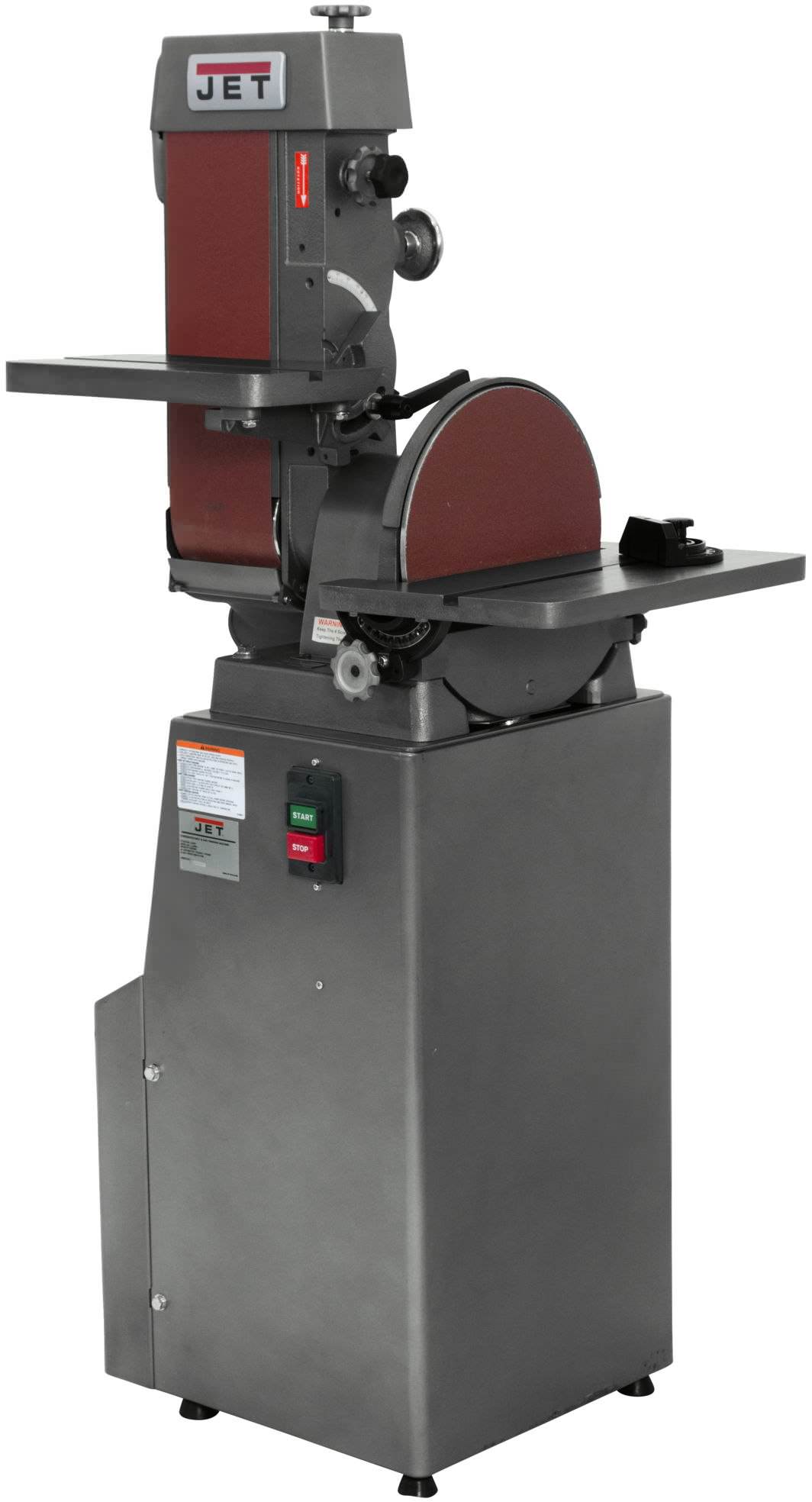

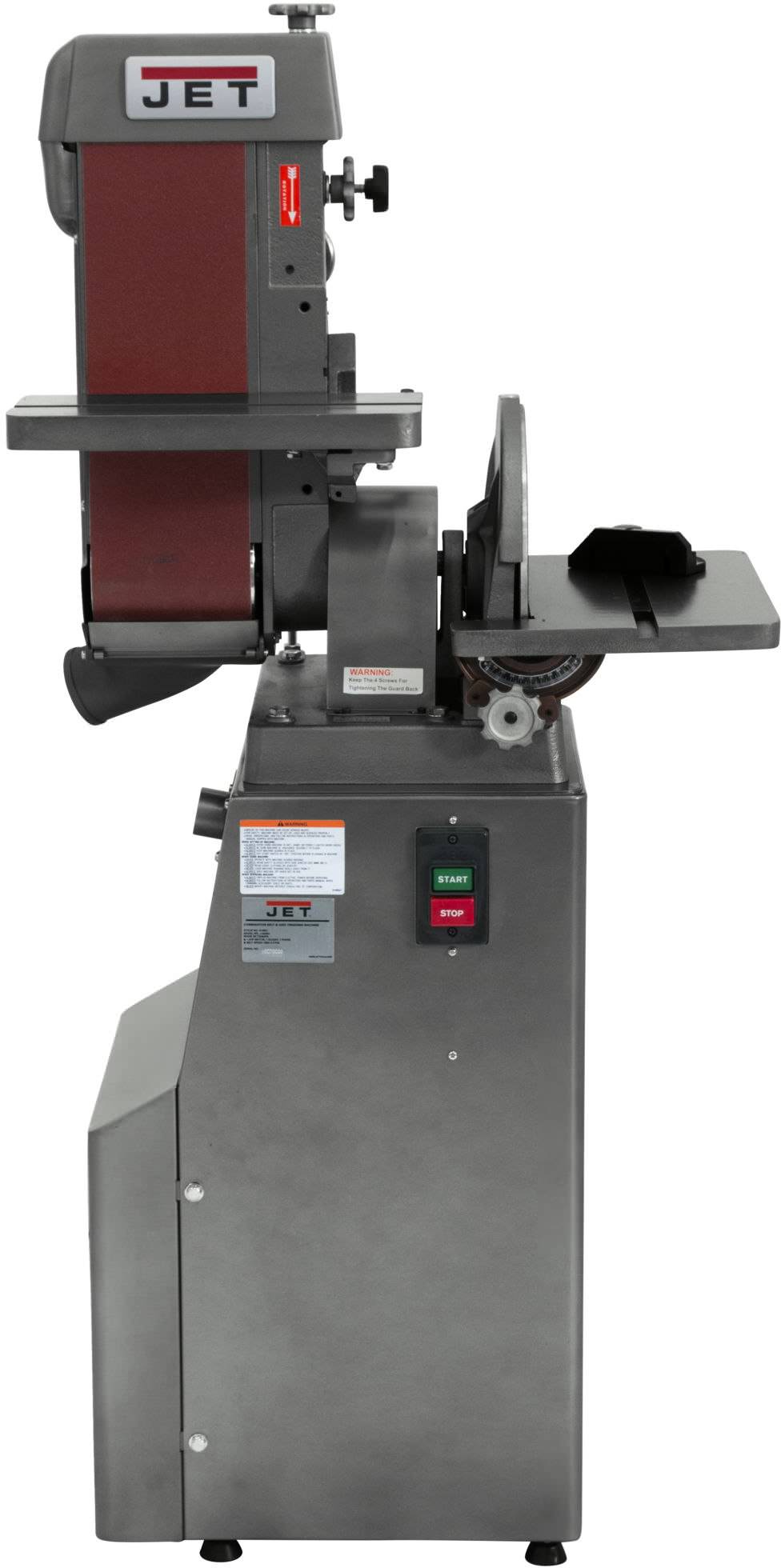

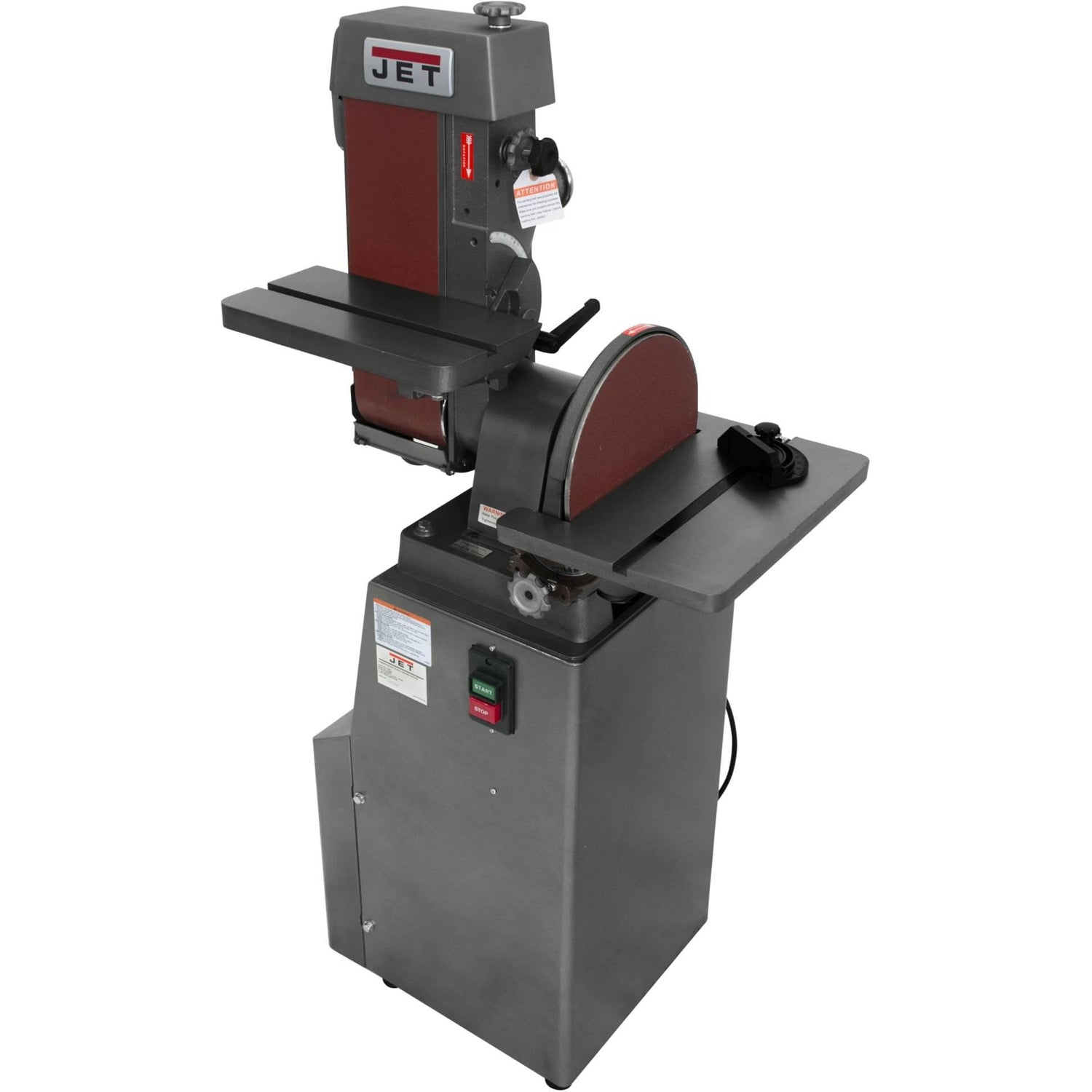

The Jet 414552 J-4200A-2 6 x 48 Industrial Combination Belt and Disc Finishing Machine is a stationary belt and disc sander built for shop-based finishing, shaping, and edge work. This is a combination belt and disc finishing machine designed for material removal, surface cleanup, contour sanding, and angle sanding on bench and pedestal-mounted shop work. Model Number J-4200A-2 gives you a 6 x 48 in. belt setup paired with a disc sanding station, making it a practical fit for fabricators, maintenance departments, school shops, and serious woodworking or metalworking users who need one machine to handle multiple finishing tasks.
What makes this machine useful on the job is its flexibility. The belt head adjusts vertically and horizontally, and the belt operates at any angle. That means you are not locked into one sanding position. You can set it up for flat edge sanding, inside curve cleanup, contour work, or bevel work without fighting the machine. Jet also includes a standard die cast aluminum miter gauge, so plain and compound miters are easier to repeat when you need controlled, accurate finishing at the table.
The build is aimed at industrial use, not light hobby duty. A fully machined, balanced disc helps the disc side run more smoothly, while the large cast iron slotted table gives the workpiece a solid, stable support surface. On the belt side, the adjustable heavy-duty cast iron removable platen backs up the abrasive where you need a flatter sanding surface. Those details matter because finishing machines work best when the table stays true and the support behind the abrasive does not flex under pressure.
Jet also put some thought into access and safety. The upper belt guard is removable for contour finishing, which is useful when the shape of the part demands more belt access. At the same time, the drums are completely enclosed and the sanding belt is guarded, so the machine stays better protected during normal operation. The J-4200A-2 also follows CSA Group electrical and safety requirements, which is worth noting for buyers outfitting a professional or institutional shop.
Dust handling is another practical point here. The adjustable dust collector and dust chute are there to help pull sanding debris away from the work area. On a machine that is meant to spend its life removing stock and refining edges, keeping dust moving in the right direction helps visibility at the work surface and makes the cleanup side of ownership easier.
Power-wise, this is a corded 230V, single-phase machine with a listed 15-amp draw. That puts it squarely in the category of shop equipment that belongs in a dedicated workspace, not a grab-and-go sanding tool. If you already have the electrical service for stationary equipment, the Jet 414552 J-4200A-2 6 x 48 Industrial Combination Belt and Disc Finishing Machine is the kind of machine that earns its floor space by covering a lot of finishing jobs with one setup.
This machine makes the most sense for buyers who want durability, table support, and sanding flexibility more than portability. It is a strong fit for metalworking shops cleaning up edges and fitting parts, woodworking shops refining profiles and miters, maintenance crews handling one-off parts, and vocational training environments where a stable, versatile finishing machine is more important than compact size.
Set the Belt to Match the Work
The biggest advantage here is adjustability. Instead of working around a fixed sanding position, you can move the belt head and run the belt at the angle that makes sense for the part in front of you.
- 6 x 48 in. belt paired with a disc sanding station for two finishing options in one machine
- Belt head adjusts vertically and horizontally, and the belt operates at any angle
Key Specifications
| Belt Size | 6 x 48 in. |
|---|---|
| Voltage (V) | 230V |
| Phase | 1 Phase |
| Amperage | 15 A |
| Power Source | Corded Electric |
| Table Material | Cast Iron |
| Platen | Adjustable heavy-duty cast iron removable platen |
| Safety Certification | CSA Group certified |
Built For
Pro Tip
If you are switching between straight edge cleanup and contour work, keep the platen installed for flat support, then remove the upper belt guard only when you actually need that extra belt access. It is the fastest way to get more versatility from the J-4200A-2 without giving up control on flat sanding jobs.
Warranty & Support
Tool Nut's Take
Jet 414552 J-4200A-2 combination belt and disc finishing machine is built for real shop work
If you need one stationary sanding machine that can handle flat work, miters, edge cleanup, and contour shaping without feeling light-duty, this Jet is a smart buy.
- Who it's for: Shop owners, fabricators, maintenance departments, and serious wood or metal users who want a stationary finishing machine with flexible belt positioning.
- Why it stands out: The adjustable belt head, any-angle belt operation, cast iron work surfaces, and machined disc give it the kind of versatility and stability that actually matter when precision counts.
- Worth knowing: This is a 230V single-phase shop machine, not a portable sander. Make sure your space and power setup match what an industrial finishing machine needs.
Common Questions
- What kind of machine is this? It is a combination belt and disc finishing machine with a 6 x 48 in. sanding belt and a disc sanding station.
- Can the belt be used in different positions? Yes. The belt head adjusts vertically and horizontally, and the belt operates at any angle.
- Does it support angle and miter work? Yes. It includes a standard die cast aluminum miter gauge for plain and compound miters.
- Is dust collection addressed on this machine? Yes. It has an adjustable dust collector and dust chute.
- What power does it require? It is a 230V, single-phase machine rated at 15 amps.
