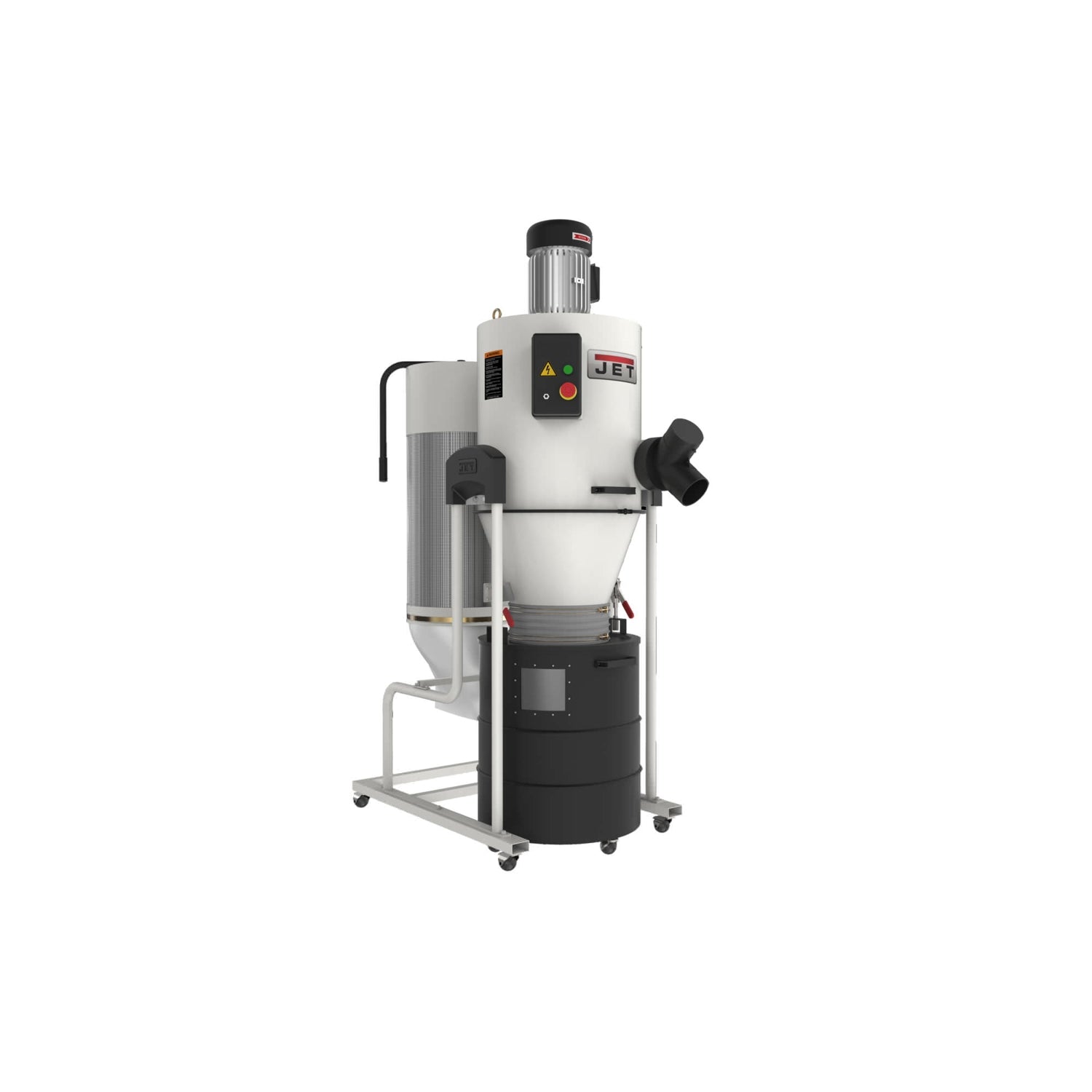

Jet 717520 JCDC-2 Cyclone Dust Collector, 2HP, 230V

Product Details

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

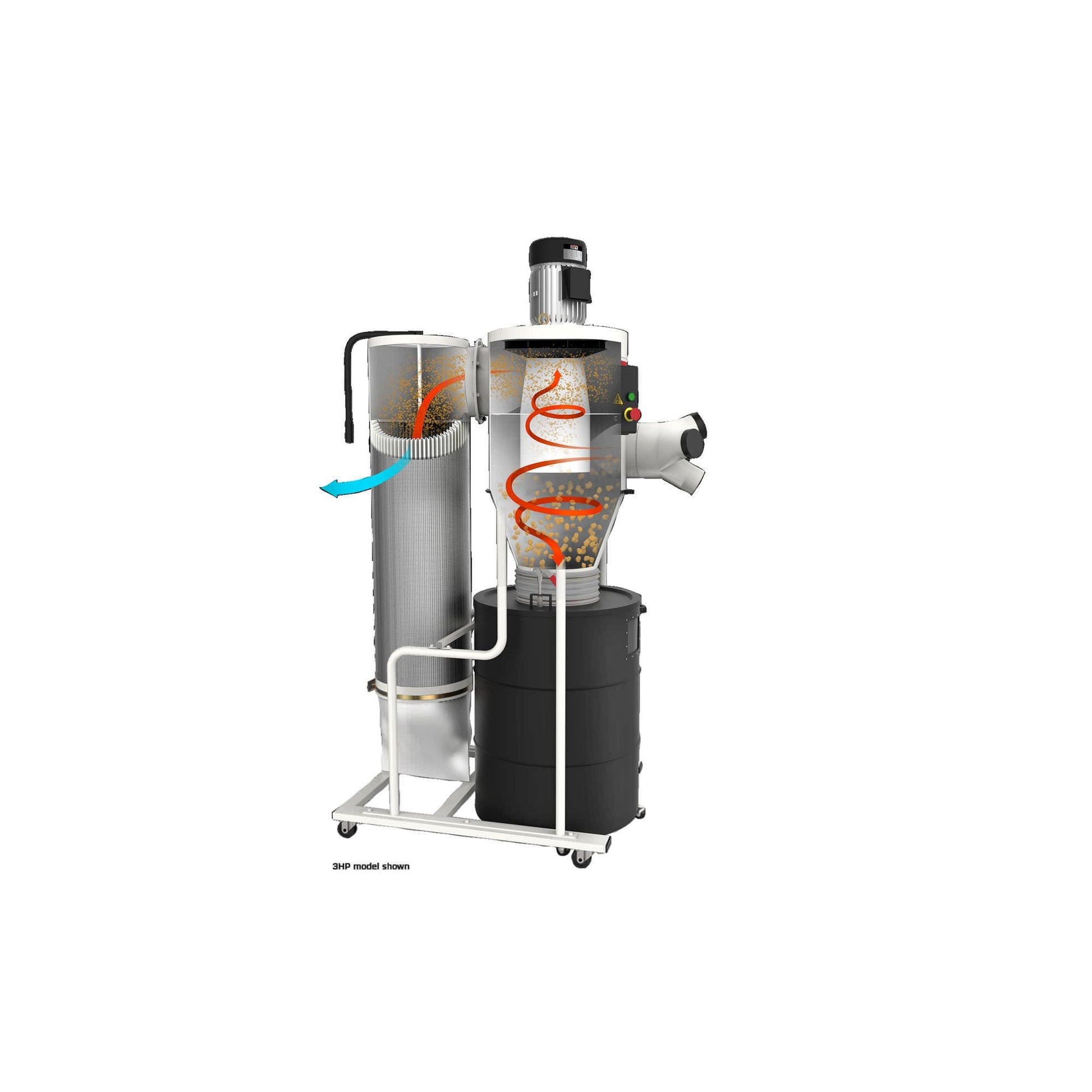

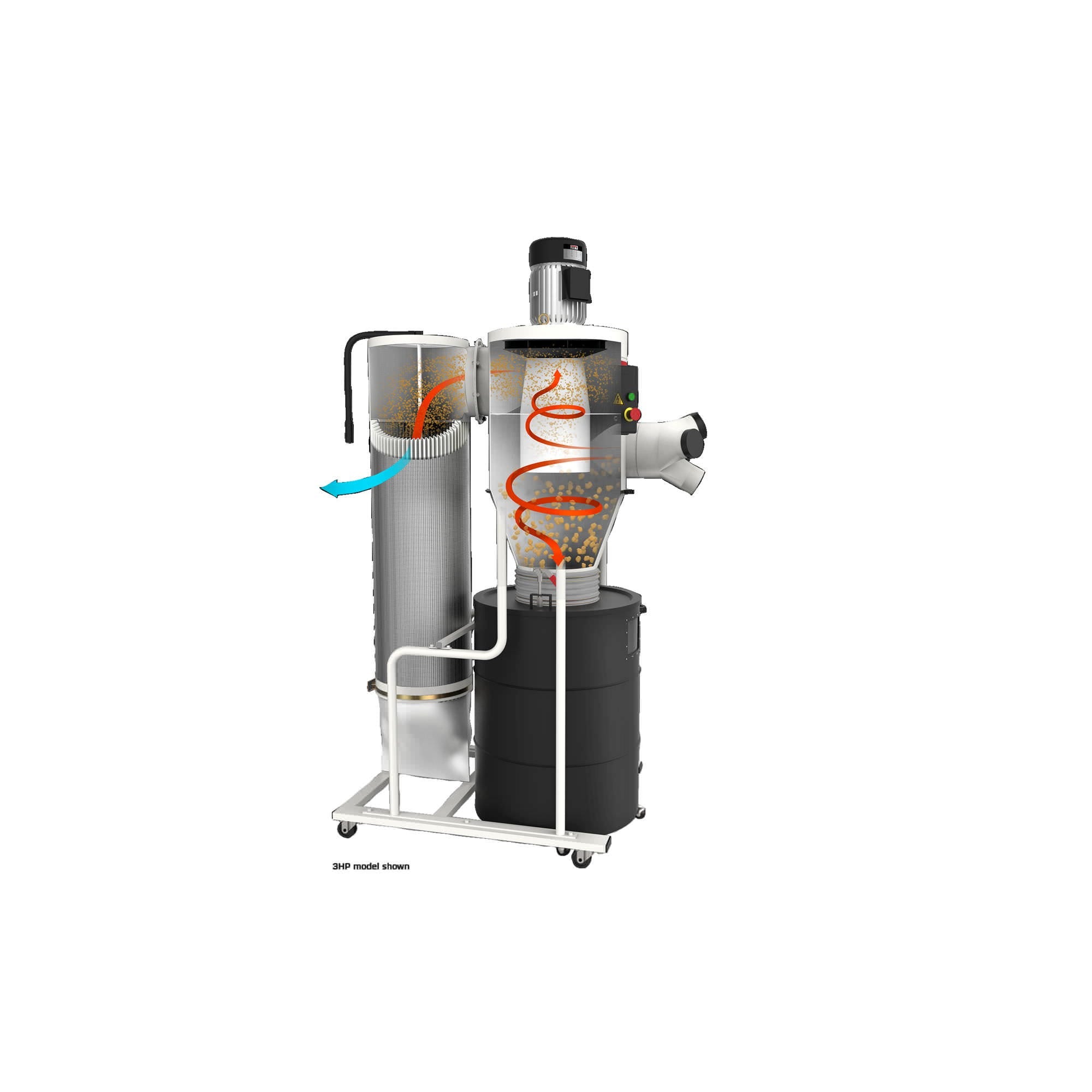

The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

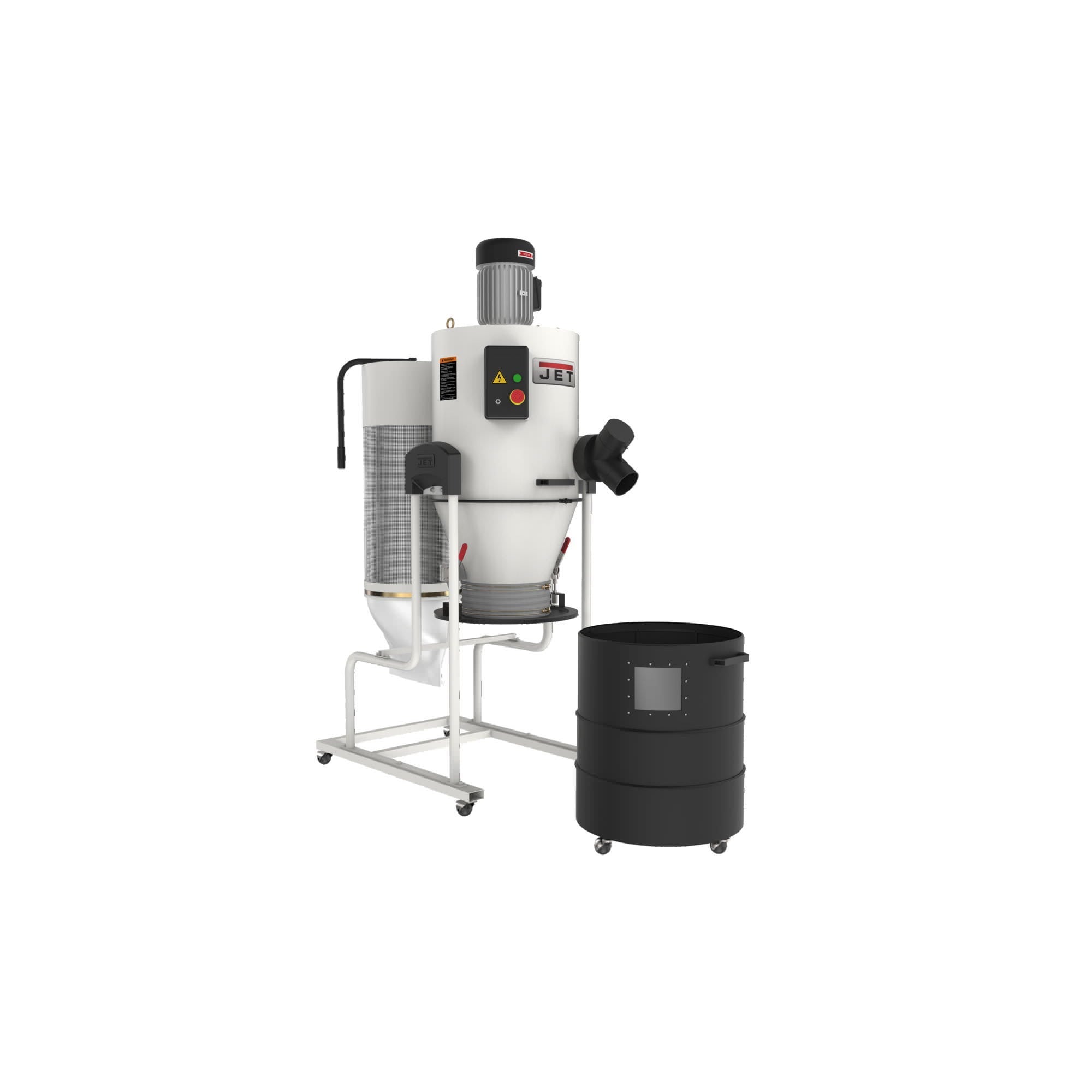

Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
Included radio frequency remote control works from up to 50 feet away
Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
Double paddle manual cleaning system quickly cleans the pleated filter
Swivel casters make it easy to move the unit around the shop

Specifications

Style (Type)
Number of Air Inlets
1 at 6", 2 at 4"
1-Hose Connection Diameter (In.)
6
2-Hoses Connection Diameter (In.)
4
3-Hoses Connection Diameter (In.)
Air Flow (US Method) @ 4" (CFM)
Air Flow (US Method) @ 6" (CFM)
938 (1,590 m³/hr)
Air Flow (US Method) @ 8" (CFM)
Air Flow (EU Method) @ 4" (CFM)
Air Flow (EU Method) @ 6" (CFM)
1,538 (3,617 m³/hr)
Air Flow (EU Method) @ 8" (CFM)
Air Velocity (US Method) @ 4" (FPM)
Air Velocity (US Method) @ 6" (FPM)
4,763 (24.2 m/s)
Air Velocity (US Method) @ 8" (FPM)
Air Velocity (EU Method) @ 4" (FPM)
Air Velocity (EU Method) @ 6" (FPM)
7,813 (39.7 m/s)
Air Velocity (EU Method) @ 8" (FPM)
Static Pressure Loss (US Method) (Wc.)
2.520
Static Pressure Loss (EU Method) (Wc.)
3.780
Max. Static Pressure (Wc.)
10.079
MERV Value
13
Filter Efficiency (Micron)
1
Efficiency (Micron)
99% of 2 micron particles
Canister Filter Length (In.)
22-5/8
Canister Filter Diameter (In.)
14-9/16
Canister Collection Bag (Dia. x L/In.)
23-5/8 x 19-11/16
Filter Bag/Canister Length (In.)
Collection Bag Capacity (Cu. Ft.)
Collection Bag Length (In.)
Bag Diameter (In.)
Collection Drum Capacity (gal.)
30
Drum Collection Bag (Dia. x L/In.)
30-11/16 x 32-11/16
Impeller Material
Steel
Impeller Diameter (In.)
14-1/2
Impeller Fins
Radial
Sound Rating (Db.)
76
Motor Speed (RPM)
3,450
Motor Power (HP)
2
Motor Phase (PH)
1
Motor Voltage (V.)
230
Prewired Voltage (V.)
230
Motor Amps
9
Recommended Circuit Size (Amps.)
15 A
Wiring Remarks
Footprint (L x W/In.)
50-5/8 x 25-7/8
Assembled Dimensions (L x W x H/In.)
25-7/8 x 50-5/8 x 72-1/4
