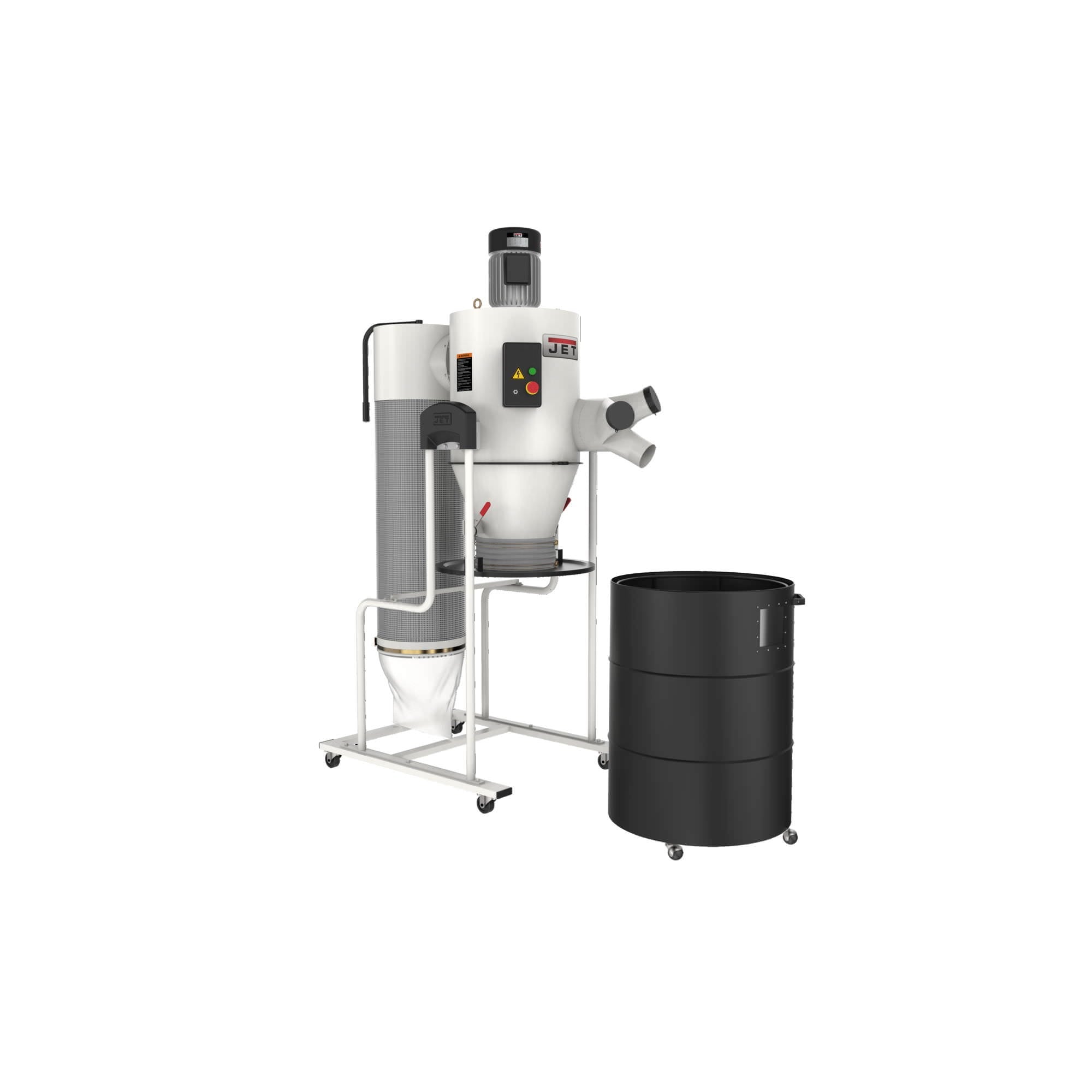

Jet JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V (717530K)
Jet JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V (717530K)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview
The Jet 717530K JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V is a stationary cyclone dust collector for serious woodworking shops that need stronger chip separation and better fine-dust control than a basic single-stage unit. This is a cyclone dust collector designed for collecting wood chips and fine airborne dust in a shop dust collection system. Model Number: 717530K. If you are running planers, jointers, table saws, drum sanders, or a mix of machines in a dedicated shop, this is the kind of system that makes the workspace cleaner and the machines easier to live with day to day.
The core of this unit is the two-stage cyclone design paired with a 3 horsepower motor. In practical terms, that means heavy debris gets pulled down into the 66-gallon drum before the airstream reaches the pleated canister filter. The benefit is simple: better sustained airflow, less filter loading from chips, and more consistent dust collection performance over longer runs. Maximum airflow capacity is 1,240 CFM, which puts this JET dust collector squarely in the range for users who need real shop coverage instead of a light-duty corner collector.
Filtration is a big part of why someone steps up to a machine like this. The advanced filtration system captures particles smaller than 1 micron, with pleated filter performance down to 1 micron and below. That matters most when you are cutting sheet goods, sanding hardwood, or machining material that creates the fine dust you do not always see right away. Bigger chips are the easy part. The fine dust is what hangs in the air and gets everywhere. This collector is built to deal with both.
JET also addressed maintenance in a practical way. The double paddle manual cleaning system lets you clean the pleated filter without tearing the unit apart, which helps keep airflow up and cleanup downtime down. For the drum, quick-release levers make it easier to remove and empty collected debris. That sounds like a small detail until the drum is full of planer shavings and you need to get back to work instead of fighting with clamps and awkward access.
From a shop-use standpoint, mobility and control are both well thought out. Swivel casters on the base make it easier to position the machine where it works best in the layout, and the included radio frequency remote means you do not need a direct line of sight to start or stop the collector. The remote also includes timer settings for 2, 4, 6, or 8 hours before automatic shutoff. That is useful if you want the system to keep pulling lingering dust after you finish a run, without having to circle back and shut it off manually.
Connection flexibility is another strength. Product image text indicates the machine supports one 8 inch connection port or three 4 inch connection ports, and the specifications list a 4 inch interior hose diameter. That gives you options depending on whether you are setting up a main trunk line or branching to individual machines. The included hose support in the kit also helps if you need extra reach in the shop.
The Jet 717530K JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V makes the most sense for cabinet shops, furniture builders, school shops, and committed home woodworkers with a permanent space and 230V power available. It is not the right pick for someone looking for a grab-and-go portable collector. It is for the user who is tired of weak suction, constant bag changes, and fine dust settling on every surface after a long day of cutting and sanding.
Built to Hold Suction Longer
This cyclone dust collector is set up for real shop use, not occasional cleanup. By separating heavy debris before it hits the filter, it helps maintain airflow more consistently through demanding woodworking tasks like planing, sawing, and sanding.
- Two-stage cyclone design keeps heavy debris out of the primary filter path
- 66-gallon drum holds large chip volume before you need to empty it
- Pleated canister filter is paired with a manual paddle cleaning system for faster upkeep
What's in the Box
- JCDC-3 cyclone dust collector housing components
- Stand
- Filter
- Drum components
- Hose
- Casters
- Cap
- Handles
- Tape
- Gasket
- Radio frequency remote
- Remote batteries
Key Specifications
| Tool Type | Cyclone Dust Collector |
|---|---|
| Horsepower | 3 HP |
| Voltage | 230 V |
| Maximum Air Flow Capacity | 1,240 CFM |
| Dust Collector Type | Two Stage |
| Filter Type | Canister |
| Drum Capacity | 66 gal |
| Noise Level | 76 dB |
Compatibility
Built For
Pro Tip
Use the remote timer after sanding or running a planer. Letting the JCDC-3 run for a little while after the cut helps pull lingering fine dust out of the air instead of letting it settle back on benches and finished work.
Tool Nut's Take
Jet 717530K JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V for Shops Ready to Step Up
This is the kind of dust collector you buy when a basic single-stage unit is no longer cutting it and you want cleaner air, steadier suction, and less messing around with filter clogging.
- Who it's for: Woodworkers, cabinetmakers, school shops, and serious home shops with multiple machines and a dedicated 230V setup.
- Why it stands out: The cyclone separation, 3 HP motor, 1,240 CFM airflow rating, remote control, and large 66-gallon drum make it more than just a chip bin with a motor attached.
- Worth knowing: This is a full-size shop machine, not a portable collector. You need the space and the right power, but if you have both, it solves a lot of daily dust headaches in one shot.
Common Questions
- What type of dust collector is this? It is a two-stage cyclone dust collector with a canister filter.
- How much airflow does it produce? Maximum airflow capacity is 1,240 CFM.
- How fine is the filtration? The filtration system captures particles smaller than 1 micron in size.
- Does the remote need line of sight to work? No. The included remote uses radio frequency control, so it does not require line of sight.
- Can the collector shut itself off automatically? Yes. The remote includes timer settings for 2, 4, 6, or 8 hours before automatic shutoff.
