Jet JWDS-1020 Benchtop Drum Sander (723510)
Jet JWDS-1020 Benchtop Drum Sander (723510)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview

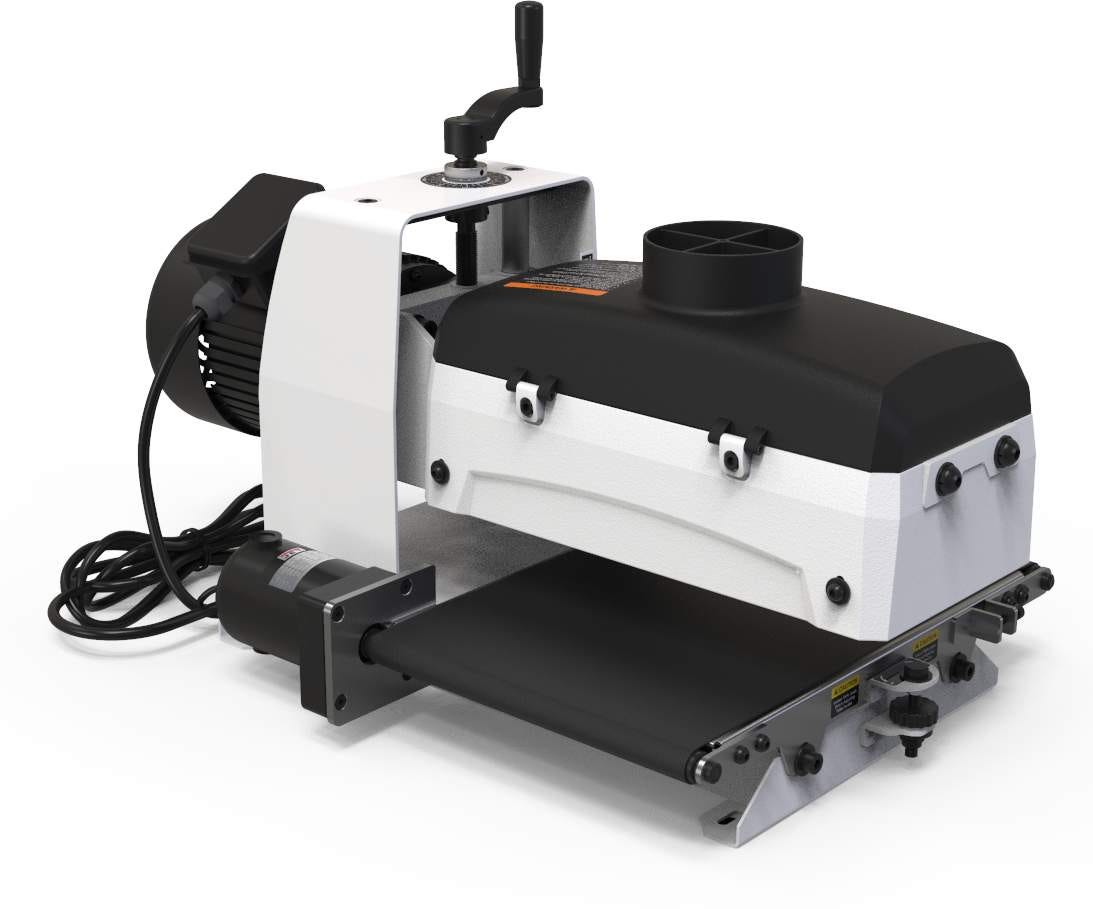

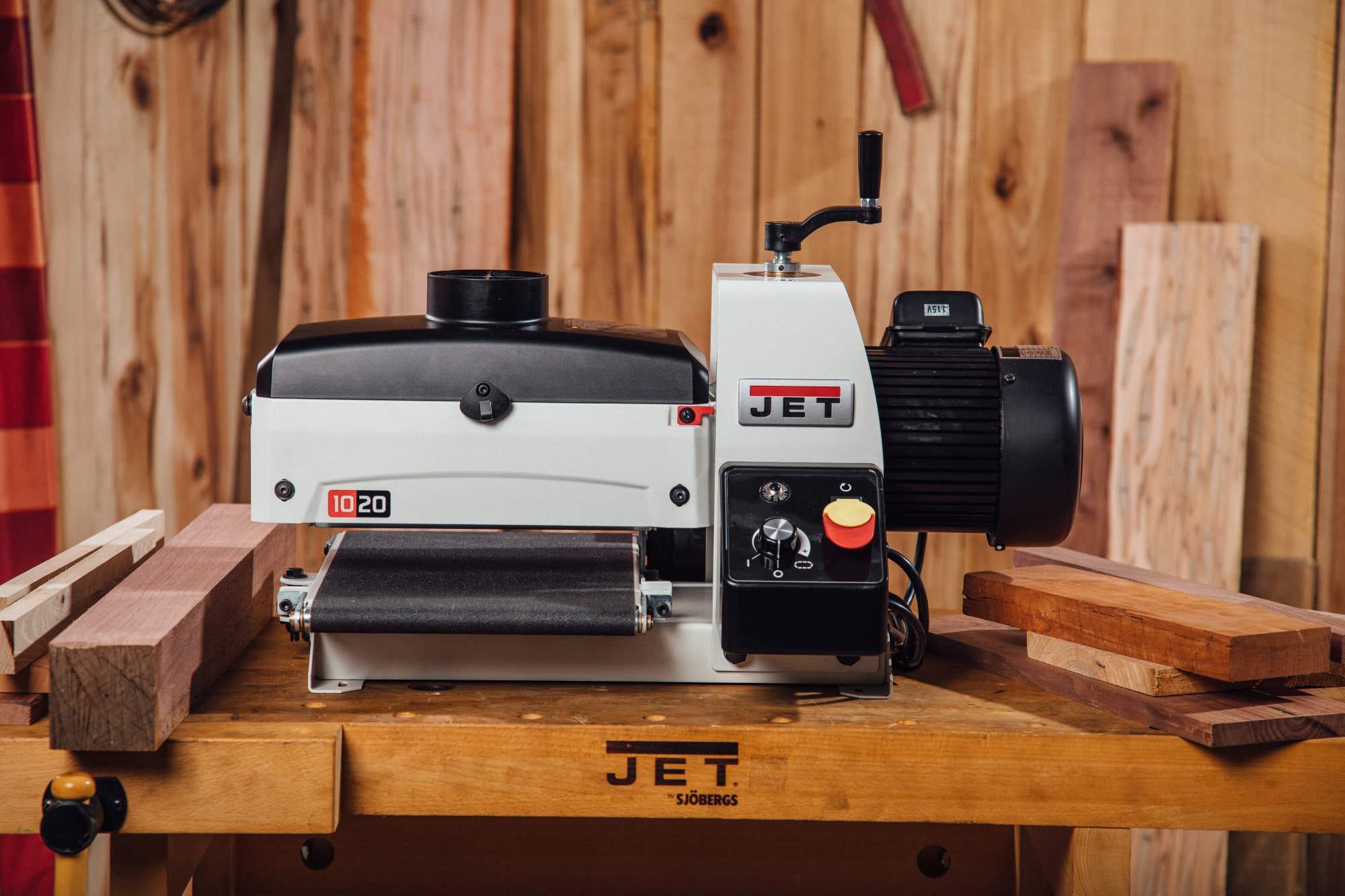

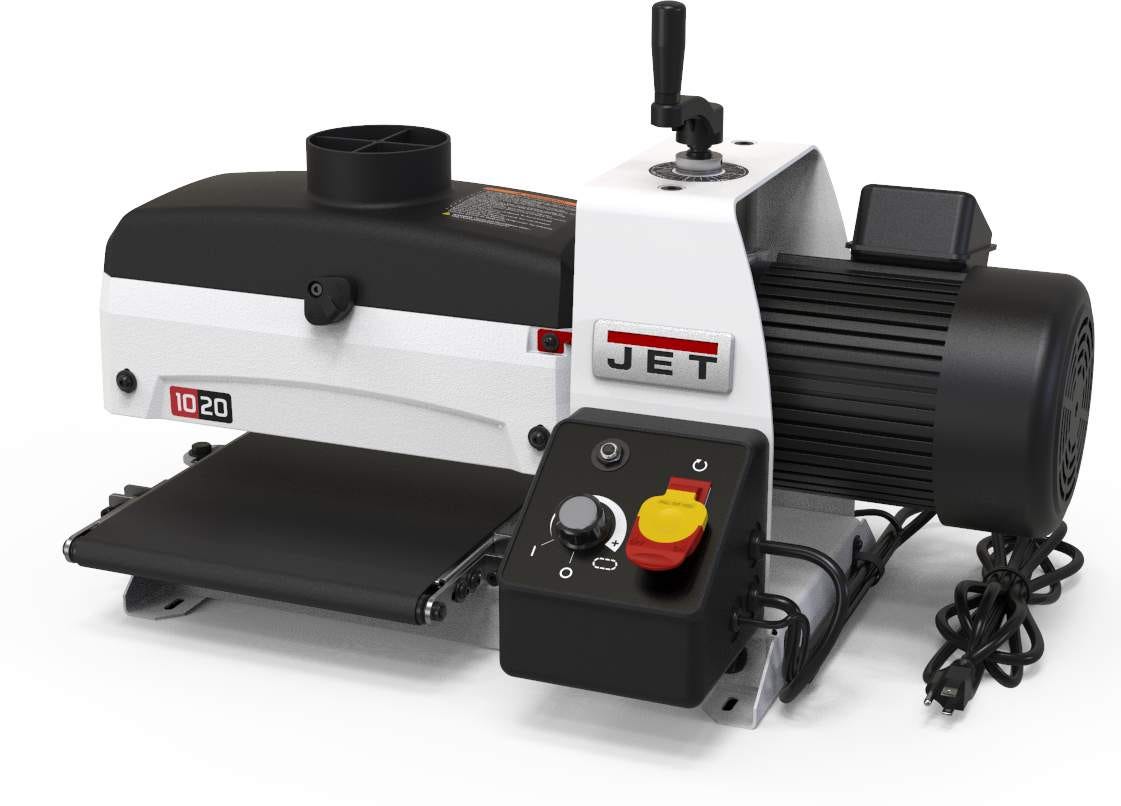

The JET JWDS-1020 10 in./20 in. 115-Volt Benchtop Drum Sander, Model Number 723510, is a compact benchtop drum sander built for woodworkers who need wider sanding capacity than a typical small shop machine usually offers. This is a drum sander designed for flattening, thickness sanding, and finish sanding wood panels, boards, and glue-ups. If you build cabinets, mill your own stock, or clean up glued panels, this machine gives you controlled material removal without taking up the footprint of a full-size floor model.

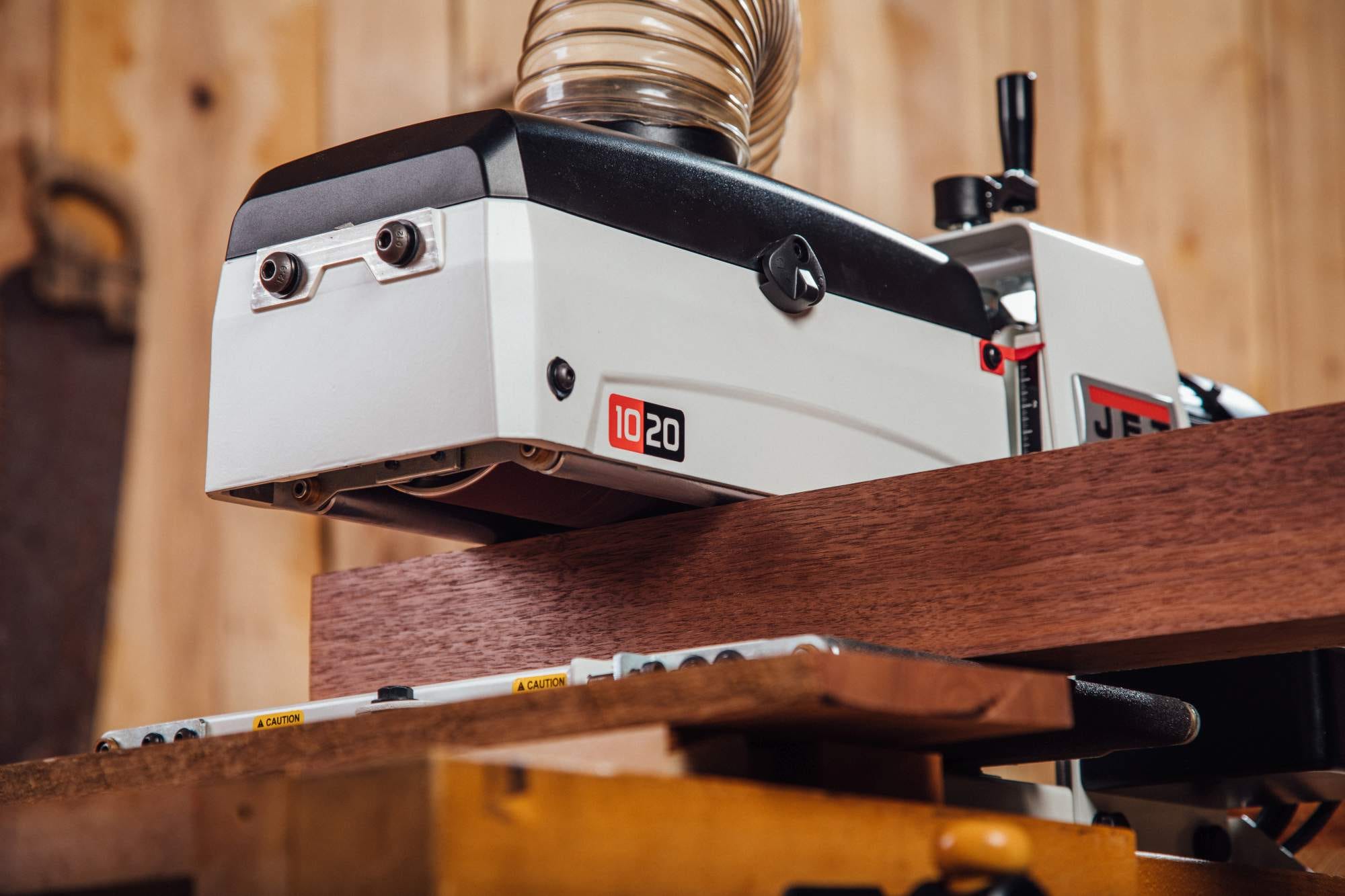

The big story here is capacity and control. The open-ended design allows up to 20 inches of sanding width with two passes, while maximum feed height reaches 3 inches. On the job or in the shop, that means you can work on cutting boards, face frames, drawer parts, doors, and wider glued panels that would otherwise be awkward on a smaller closed-end machine. The infinitely variable feed rate, rated up to 10 feet per minute, lets you slow things down for denser hardwoods or finer finish work and speed up when you're just cleaning up stock.
JET built the JWDS-1020 with a heavy-duty die-cast aluminum and steel body, and that matters because rigidity is what keeps sanding results predictable. A drum sander that flexes will telegraph that inconsistency right into your workpiece. The reinforced steel conveyor bed is precision flattened to support stock as it passes under the drum, and the redesigned conveyor system pulls the board through instead of pushing it. In real use, that translates to steadier feeding and fewer headaches when you're trying to maintain even thickness from one end of the board to the other.

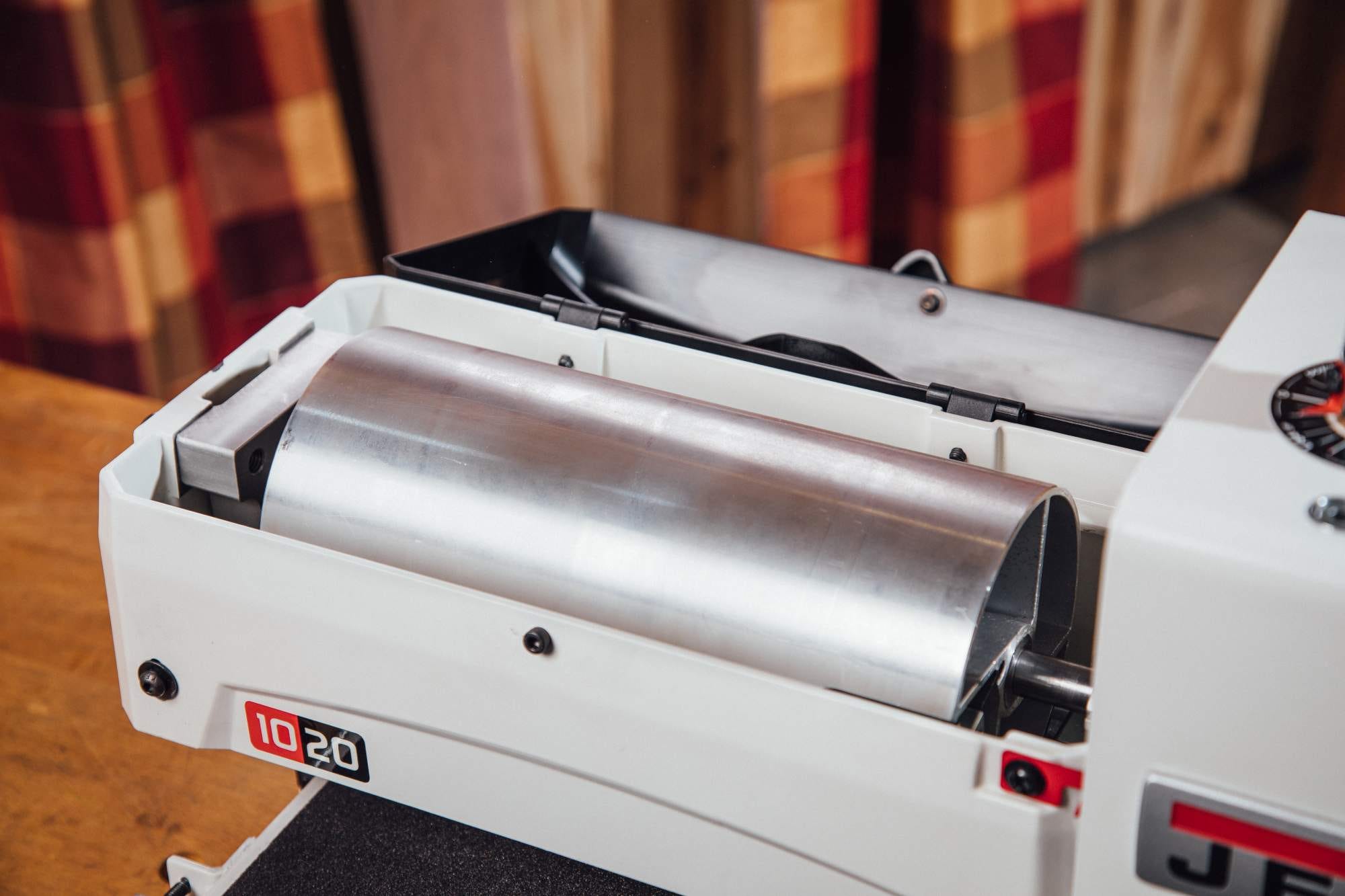

The extruded aluminum drum is another feature worth paying attention to. JET designed it to dissipate heat and help protect wood from heat damage, which is a real issue with drum sanders if the machine runs too hot or the feed rate is too slow for the cut. That self-cooling design helps reduce burning and keeps the abrasive working more effectively across longer sanding sessions. When you're working figured hardwoods or expensive glued panels, that extra control is not just nice to have. It can save a piece that would otherwise need to be reworked.

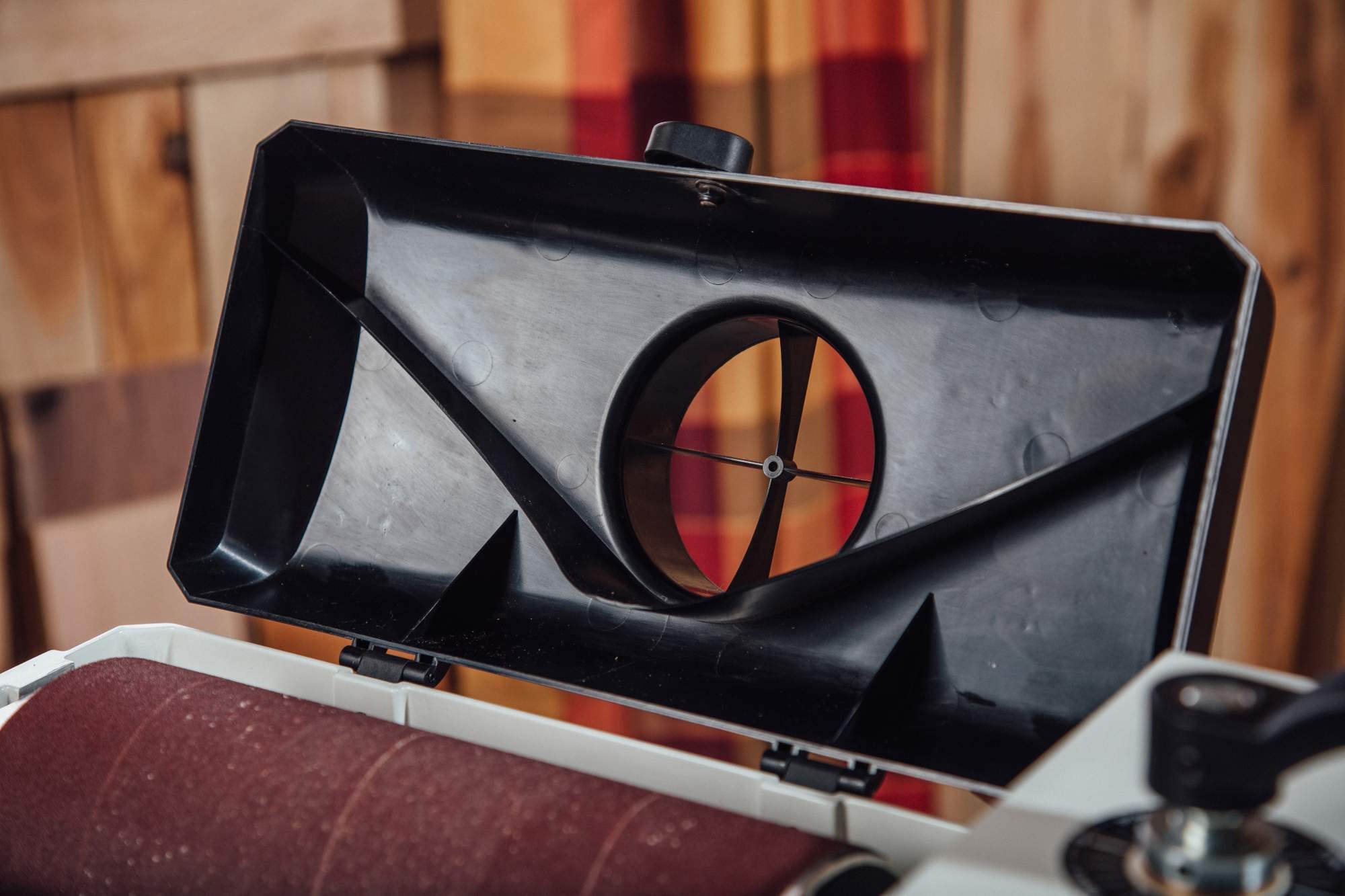

Dust collection and day-to-day operation are handled in a practical way. The patented dust hood channels debris to a 4 inch dust port, which is the right setup for pairing with a shop dust collection system. Drum sanders make a lot of fine dust fast, so proper extraction is not optional if you want the abrasive to keep cutting and the surface to stay clean. JET also includes a lockout power switch and an integrated circuit breaker in the control system to help protect the motor from overheating, which adds a layer of real-world jobsite and shop protection.

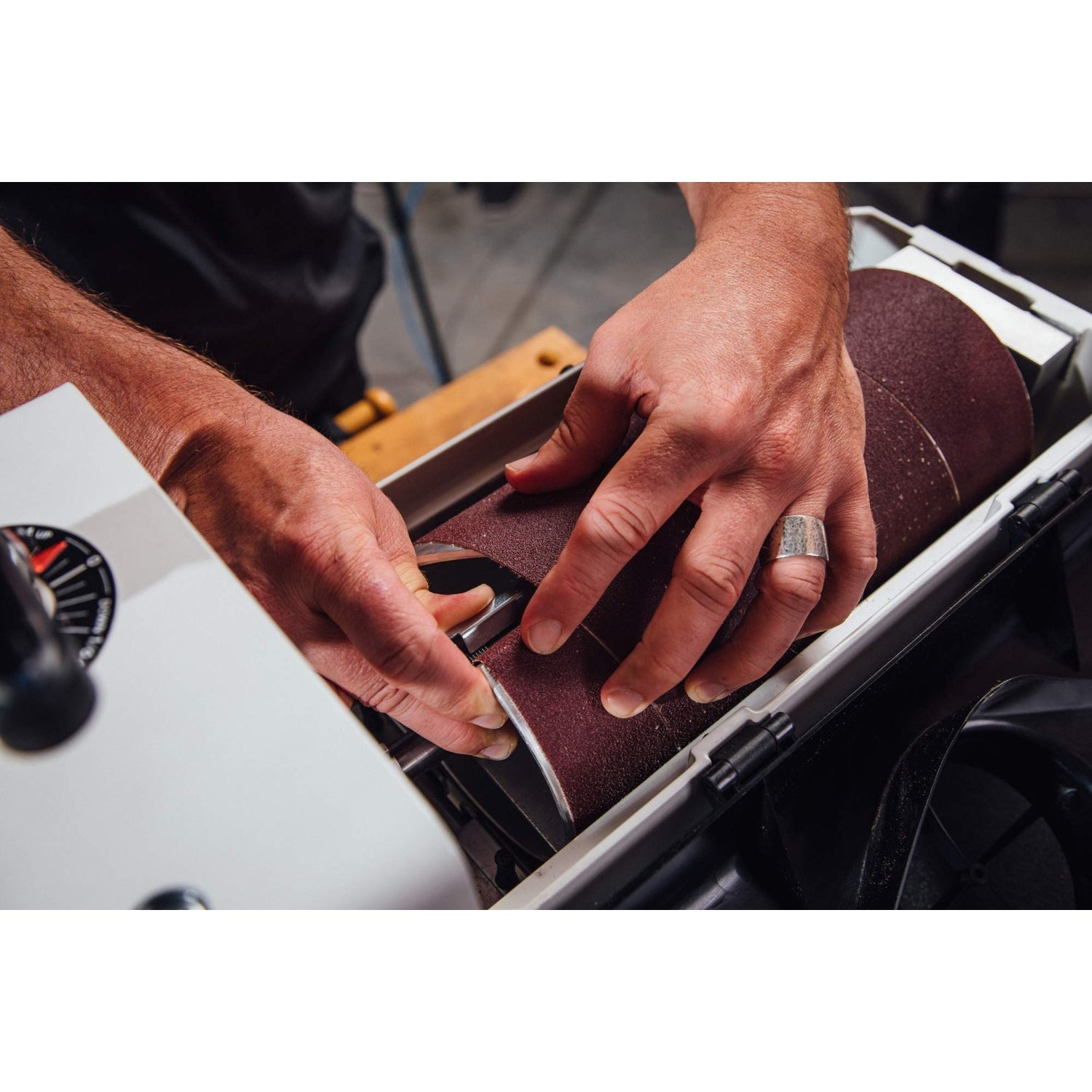

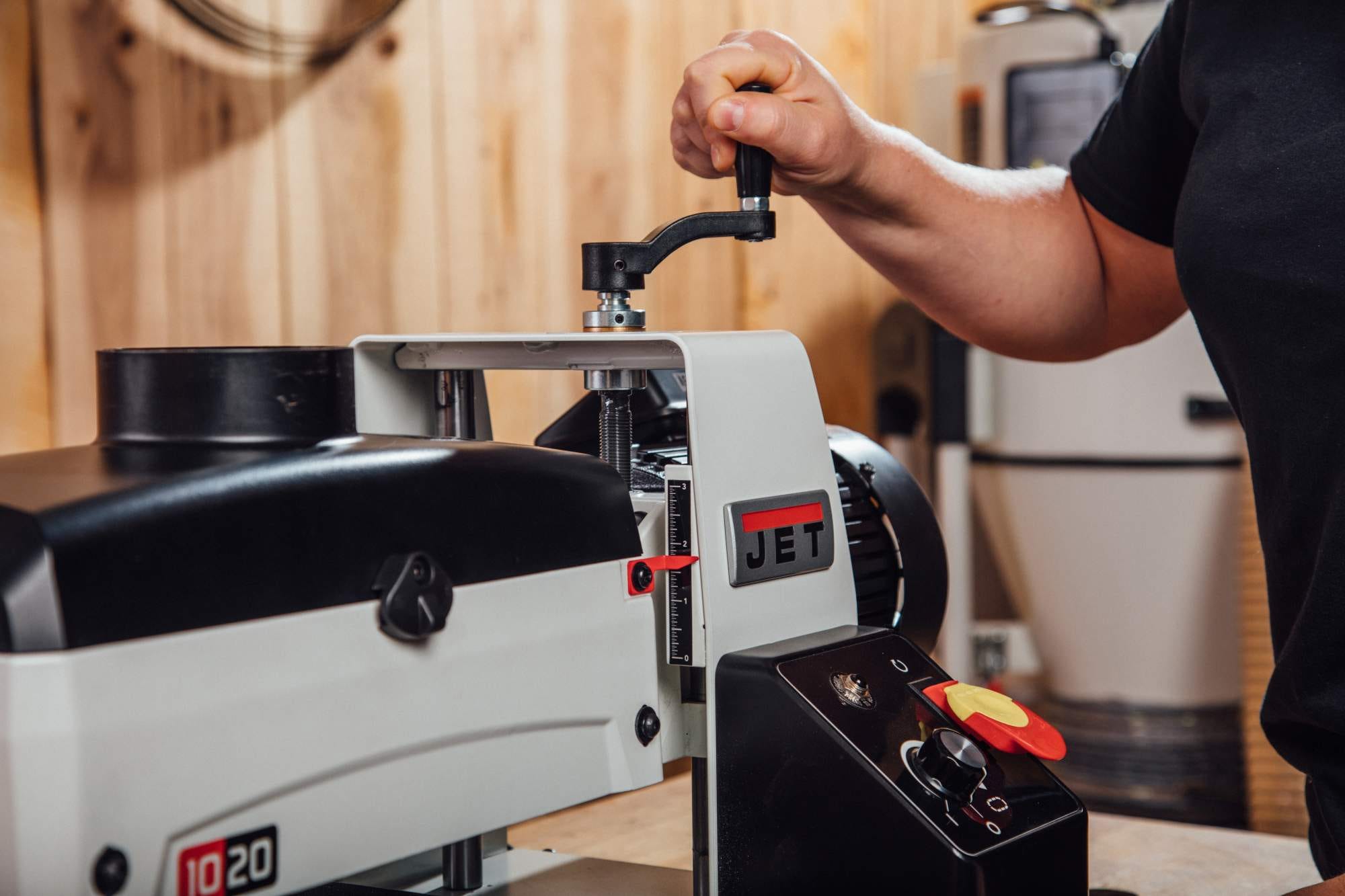

Setup and adjustment are also geared toward saving time. The parallelism adjust dial includes a stop that lets you return the conveyor bed to a flat position quickly. That's a useful feature when you are dialing the machine in after setup, changing sanding loads, or making small corrections between passes. Toolless abrasive take-up fasteners are another smart touch because abrasive changes are part of owning a drum sander, and anything that makes that process faster means less downtime.
This is a corded 115V benchtop machine with an 8 amp, 1 horsepower motor and a maximum drum speed of 1,725 RPM. That makes it a strong fit for dedicated home shops, serious DIY users, furniture makers, cabinet installers, and trim carpenters who want better finish control than a planer alone can provide. If you regularly work with glued panels, want to sneak up on final thickness, or need a more consistent finish before final sanding, this drum sander earns its bench space.
Handle Wider Panels Without a Bigger Machine

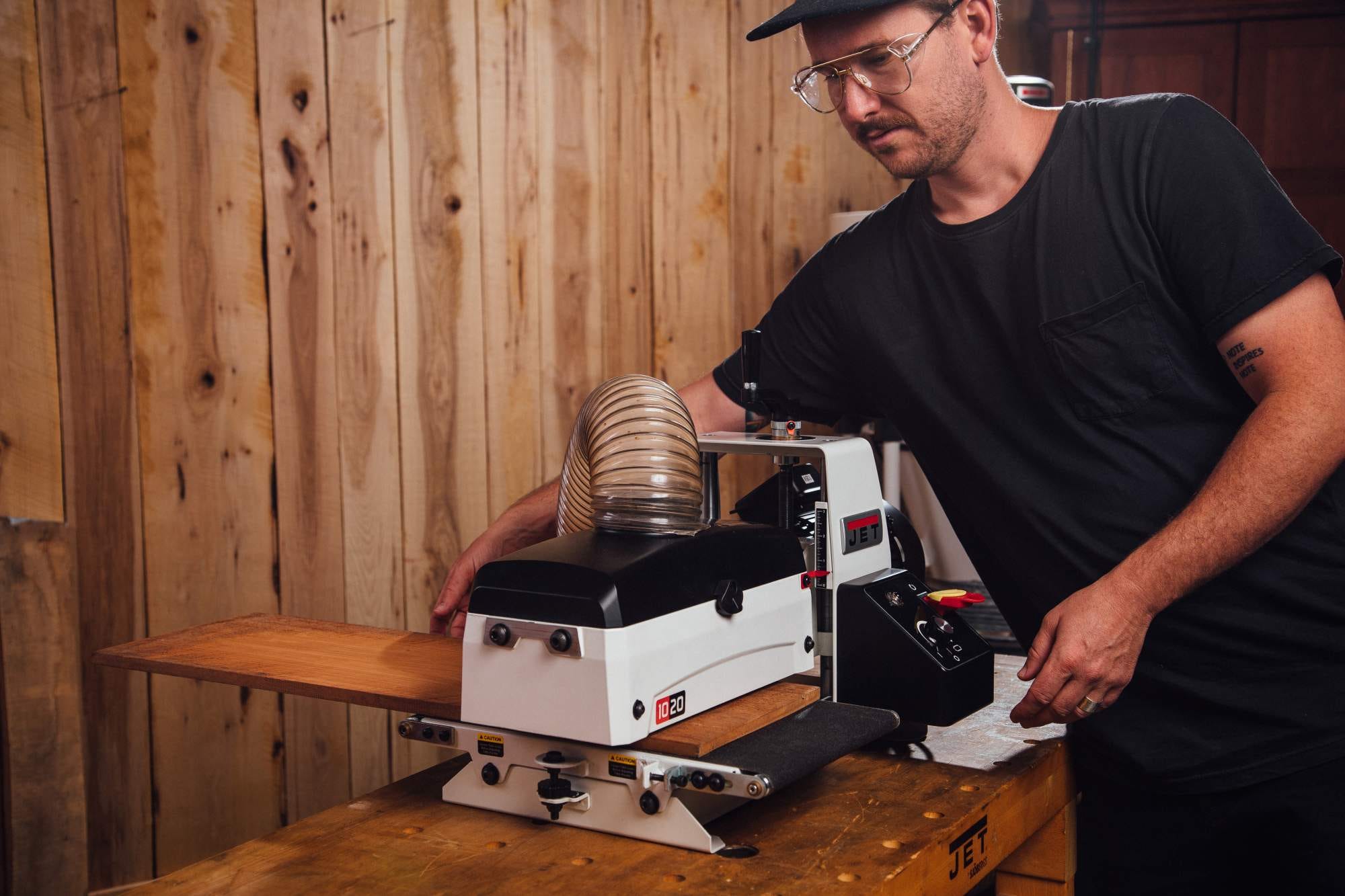

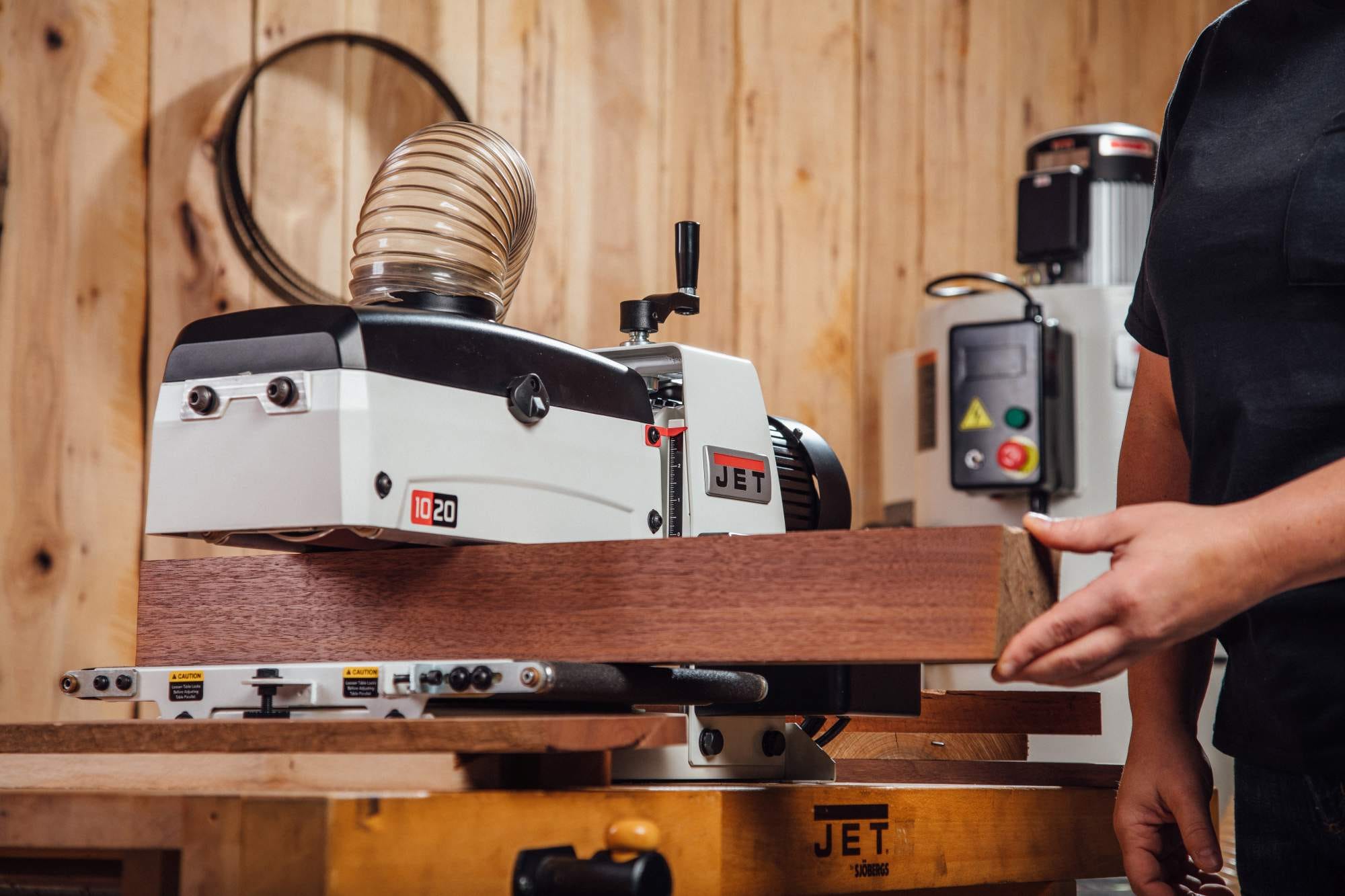

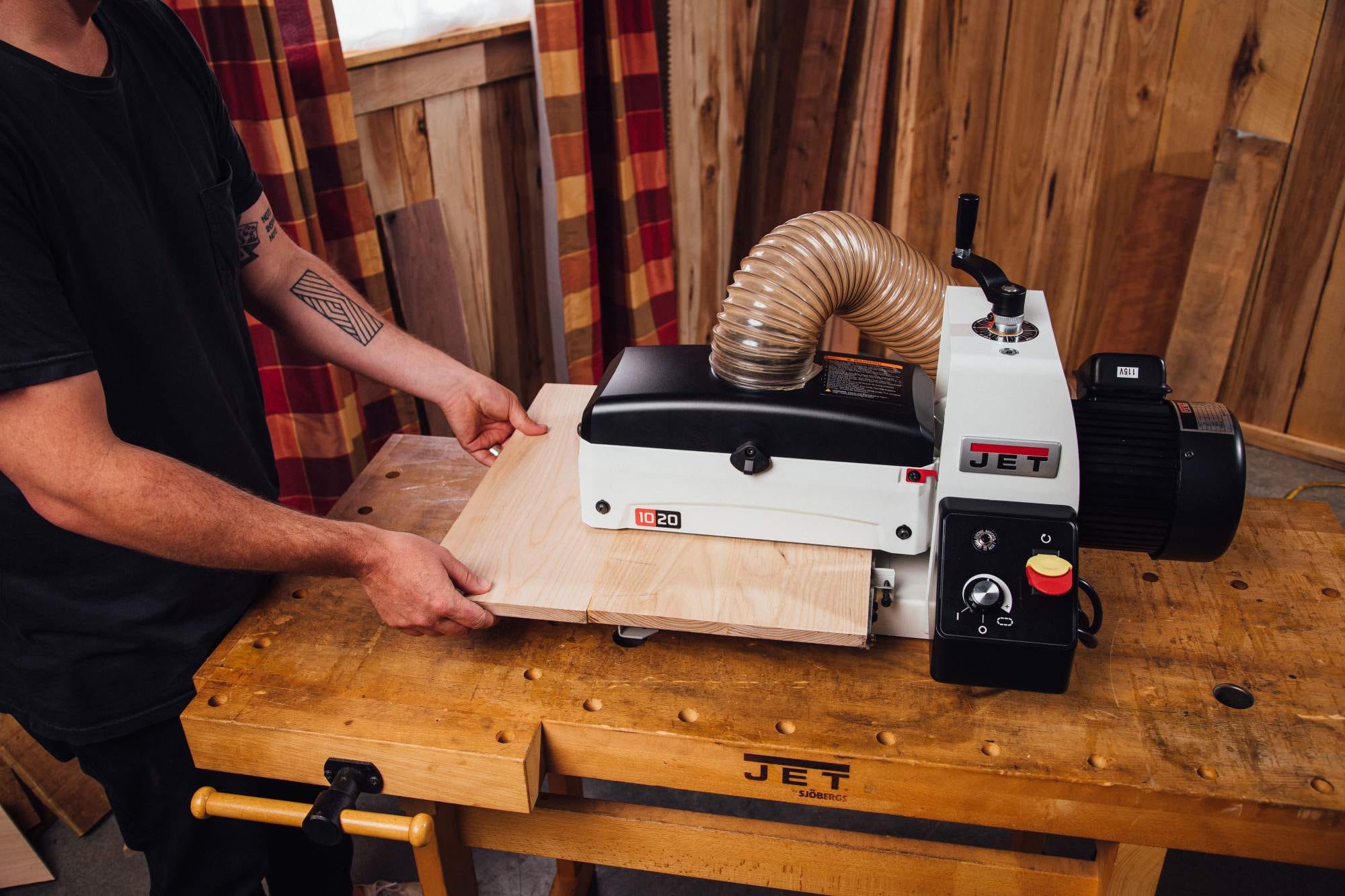

The open-end layout is what makes this machine such a smart buy for smaller shops. You get benchtop size with the ability to process workpieces up to 20 inches wide in two passes, which is a real advantage when you're working on tabletops, panels, and larger glue-ups.
- Maximum stock thickness: 3 inches
- Open-ended design supports up to 20 inch sanding capacity with two passes
- Bench-style footprint is easier to fit into compact woodworking shops
Fine-Tune the Cut for Better Surface Quality

A drum sander is only as useful as its ability to stay consistent from pass to pass. Between the variable feed control, flattened conveyor bed, and parallelism adjust dial, this machine is built to help you make small corrections and keep finish quality where it should be.

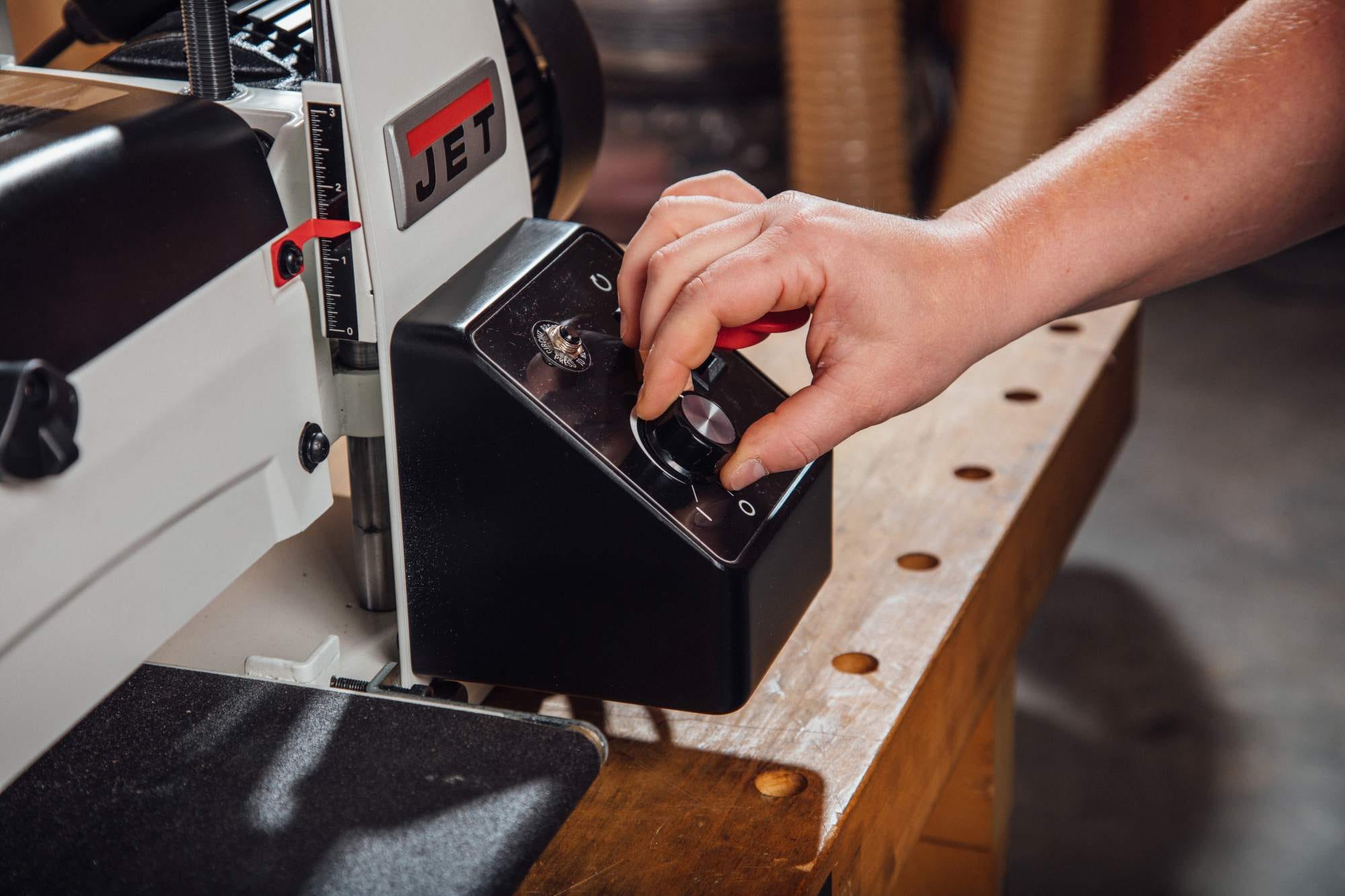

- Infinitely variable feed speed up to 10 feet per minute

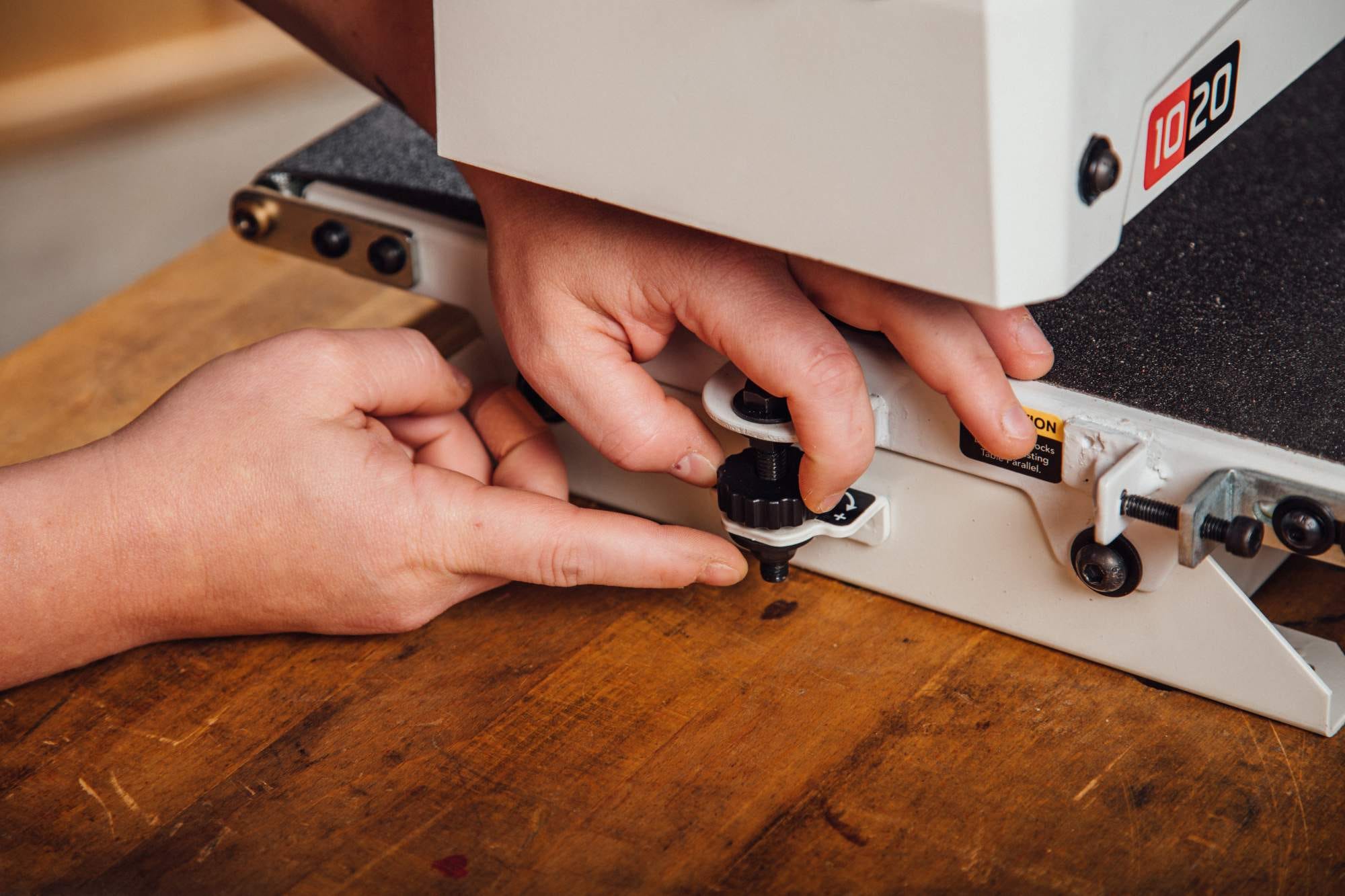

- Parallelism dial quickly returns the conveyor bed to a flat position
- Extruded aluminum drum helps dissipate heat and reduce heat-related surface damage
What's in the Box
- (1) Drum sander with conveyor table
- (1) Handle
- (4) Foam pads
- (1) Operation and parts manual
- (1) Product registration card
Stand is not included.
Key Specifications
| Tool Type | Benchtop Drum Sander |
|---|---|
| Voltage (V) | 115 V |
| Amperage (A) | 8 A |
| Horsepower (HP) | 1 HP |
| No-Load Speed (RPM) | 1,725 RPM |
| Maximum Feed Rate | 10 ft/min |
| Maximum Material Width | 20 in. with two passes |
| Maximum Material Thickness | 3 in. |
| Minimum Material Thickness | 0.0312 in. |
| Abrasive Size | 3 in. wide, 80-grit strip |
| Work Table Size | 15 in. x 10 in. |
| Dust Port Size | 4 in. |
| Cord Length | 6 ft. |
| Weight (lbs) | 73 lb. |
| Product Dimensions | 26.8437 in. D x 17.9062 in. W x 17.875 in. H |
| Made In | Taiwan |
Built For
Pro Tip
When you use the open-end design to sand a wider panel in two passes, make your first pass light and use the parallelism dial to verify the bed is back where you want it before flipping the workpiece. That is the easiest way to avoid a visible step line down the middle.
Warranty & Support
Tool Nut's Take
JET JWDS-1020 10 in./20 in. 115-Volt Benchtop Drum Sander for Small Shops That Need Real Capacity
The JET JWDS-1020 10 in./20 in. 115-Volt Benchtop Drum Sander hits a sweet spot for woodworkers who want better panel control and cleaner finish prep without giving up half the shop to a bigger machine.
- Who it's for: Woodworkers, cabinet guys, furniture builders, and serious home shop users working with panels, glue-ups, and finish-sensitive hardwood parts.
- Why it stands out: The open-end design, variable feed control, 4 inch dust port, and heat-managing aluminum drum make it more than just a small sander with a JET badge on it. It is built to do accurate, repeatable work.
- Worth knowing: This is a benchtop unit, not a production shop monster. Take lighter passes, hook it to dust collection, and it will reward you with better surfaces and less cleanup sanding.
Common Questions
- What is the maximum sanding width? The machine sands up to 20 inches wide with two passes thanks to its open-ended design.
- What is the maximum stock thickness? It handles material up to 3 inches thick.
- Does it have variable feed speed? Yes. It uses infinitely variable speed control with a maximum feed rate of 10 feet per minute.
- What power does it require? This is a corded 115 volt drum sander rated at 8 amps.
