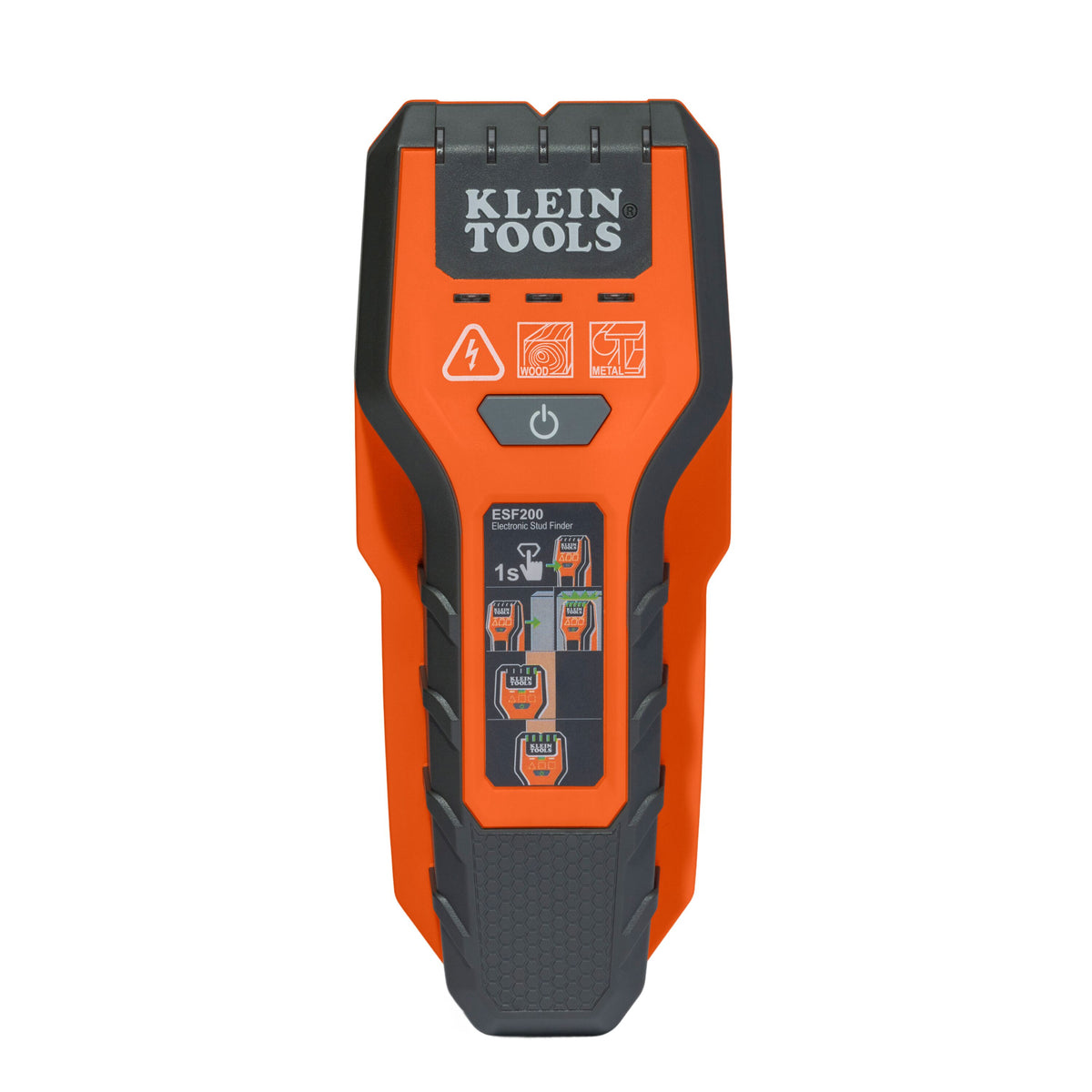

The Klein Tools Multi-Scan Center and Edge Stud Finder (ESF200) is an electronic stud finder that shows the center and both edges of a stud in one scan. This is a stud finder designed for anyone hanging, mounting or cutting into walls: electricians cutting in boxes, installers mounting TVs and shelving, and homeowners hanging anything heavy. It detects wood studs, metal and live AC wiring behind the wall.
The LED indicator array is what sets it apart. Instead of a single beep at one edge, the LEDs illuminate the full width of the stud and its edges, so you can mark center confidently. An audible alert backs up the visual indication.
Detection is automatic. The ESF200 scans for wood, metal and live AC voltage at the same time, so there is no mode to switch and nothing to forget. Klein rates scan depth at 3/4" (1.9 cm) for wood, 1-1/2" (3.8 cm) for ferrous metal and 2" (5.1 cm) for live AC voltage. Auto-calibration handles setup.
A single-touch power button lights green when the tool is on, and it stays on until you turn it off or it shuts down automatically. Protective guards keep your fingers from rubbing the wall, and felt pads on the back protect painted surfaces from marks during scanning. It is designed for one-handed use.
The PC/ABS housing measures about 6-3/4" x 2-3/4" x 1-3/16" (17.1 x 6.9 x 3 cm), weighs 4.9 oz (139 g) and is drop-rated to 6.6 ft (2 m). It runs on 2 AAA alkaline batteries, included.
Who should buy it: electricians and low-voltage installers checking for studs and live wiring before cutting, remodelers and handymen, and DIYers who want an accurate center reading without a learning curve.

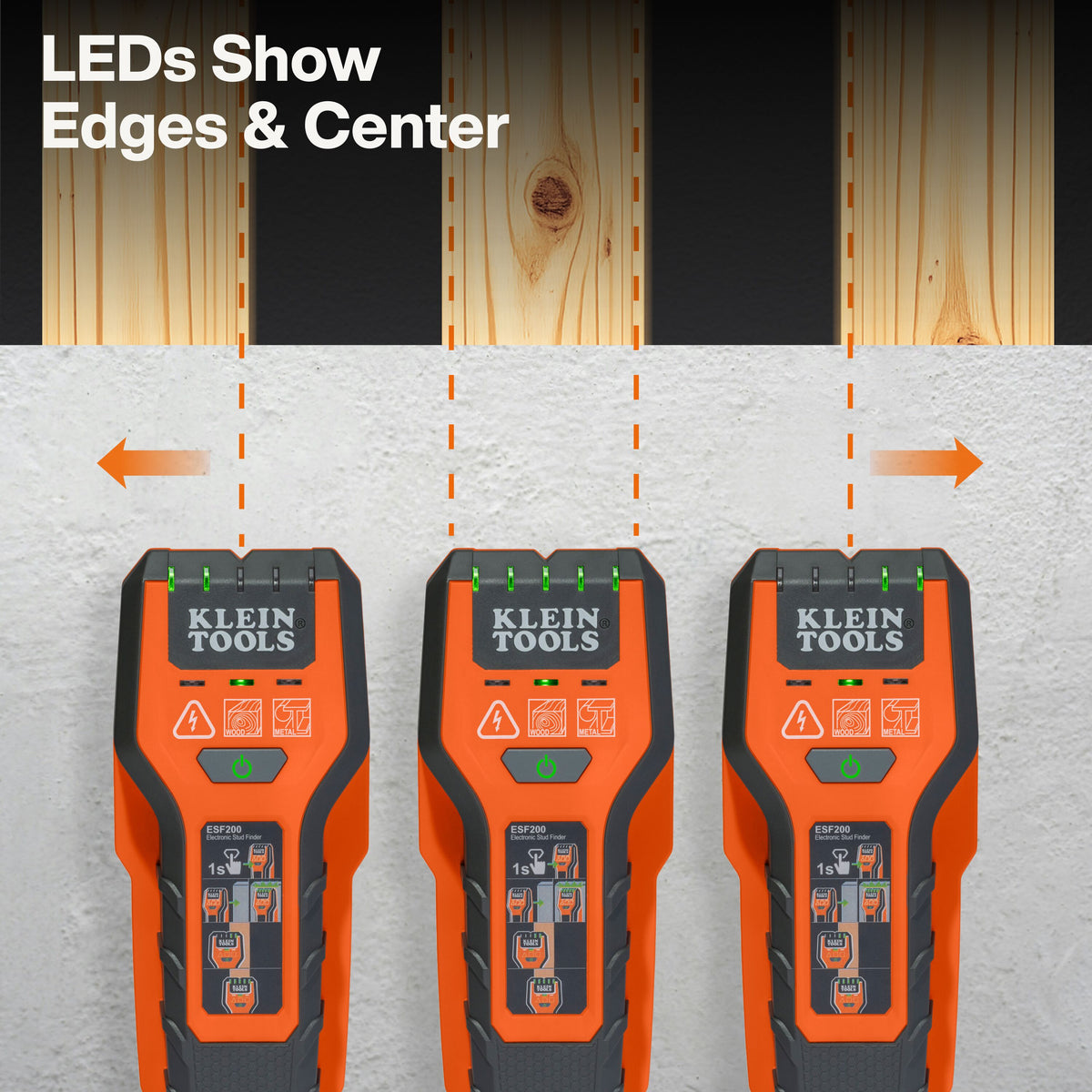

Center and Edges in One Pass
LEDs light the full width of the stud, so finding center does not take three passes and a pencil.
- LED center and edge indication
- Audible alert

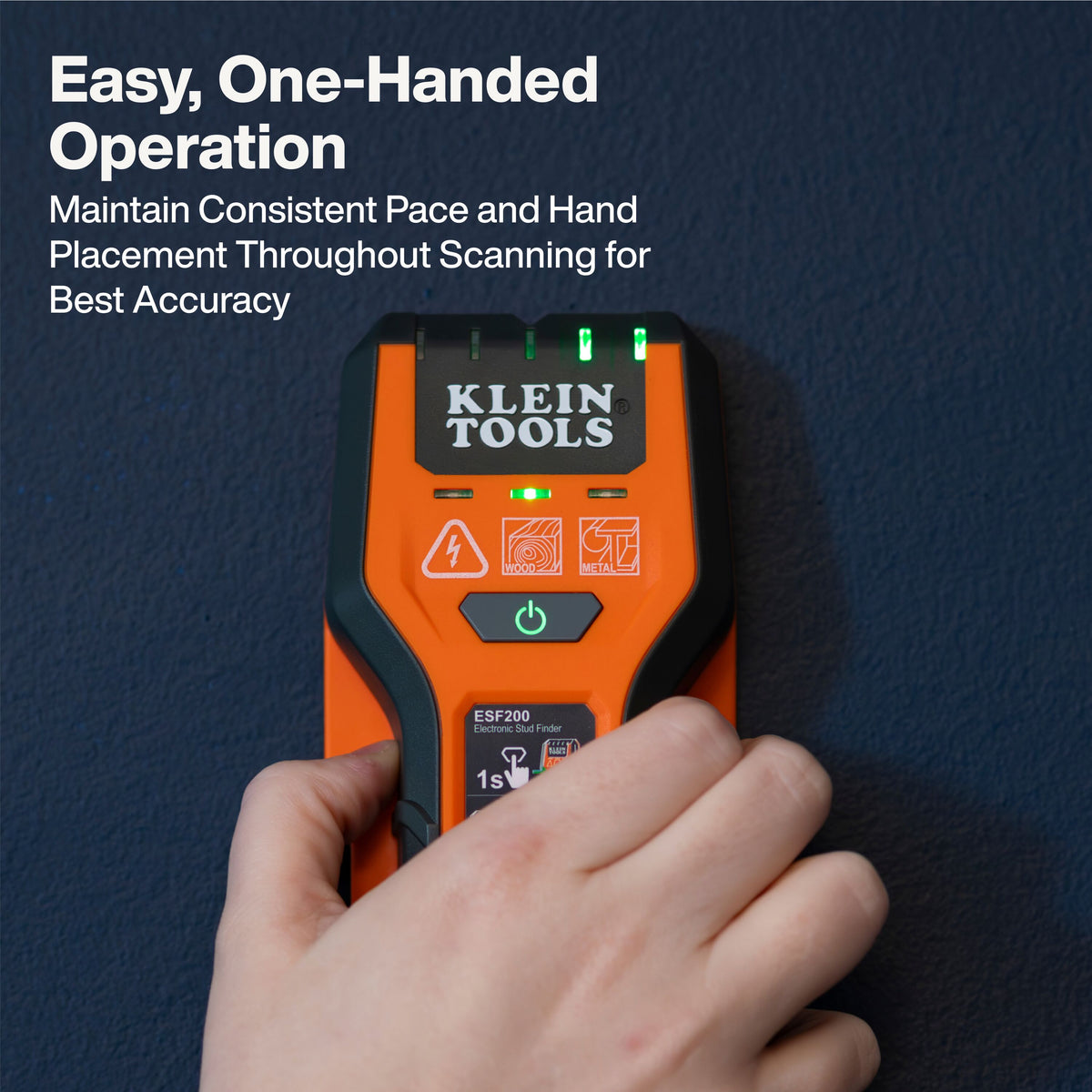

- One-handed operation

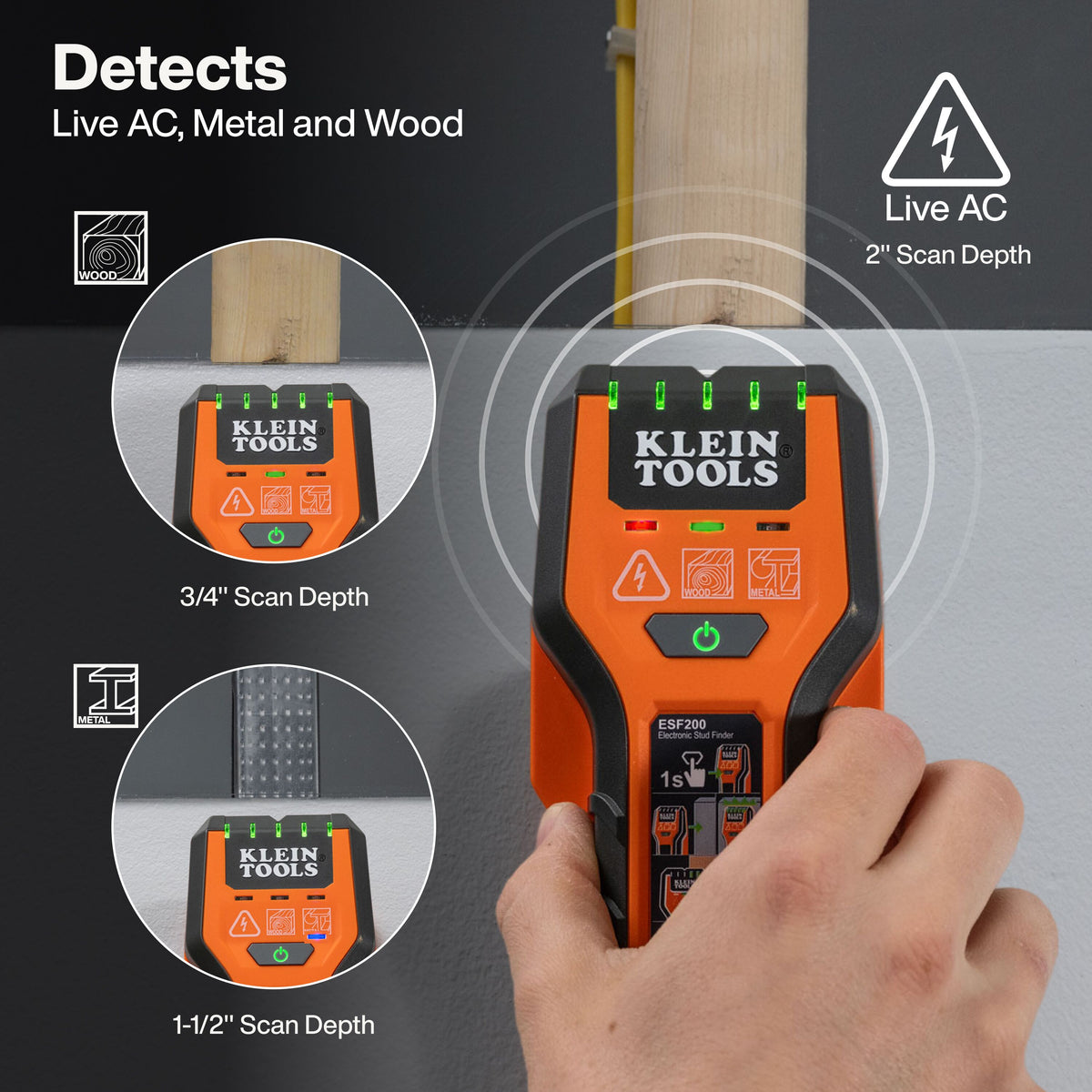

Knows What Is Behind the Wall
Wood, metal and live AC wires are detected automatically, without switching modes.
- Wood up to 3/4" (1.9 cm)
- Ferrous metal up to 1-1/2" (3.8 cm)
- Live AC up to 2" (5.1 cm)

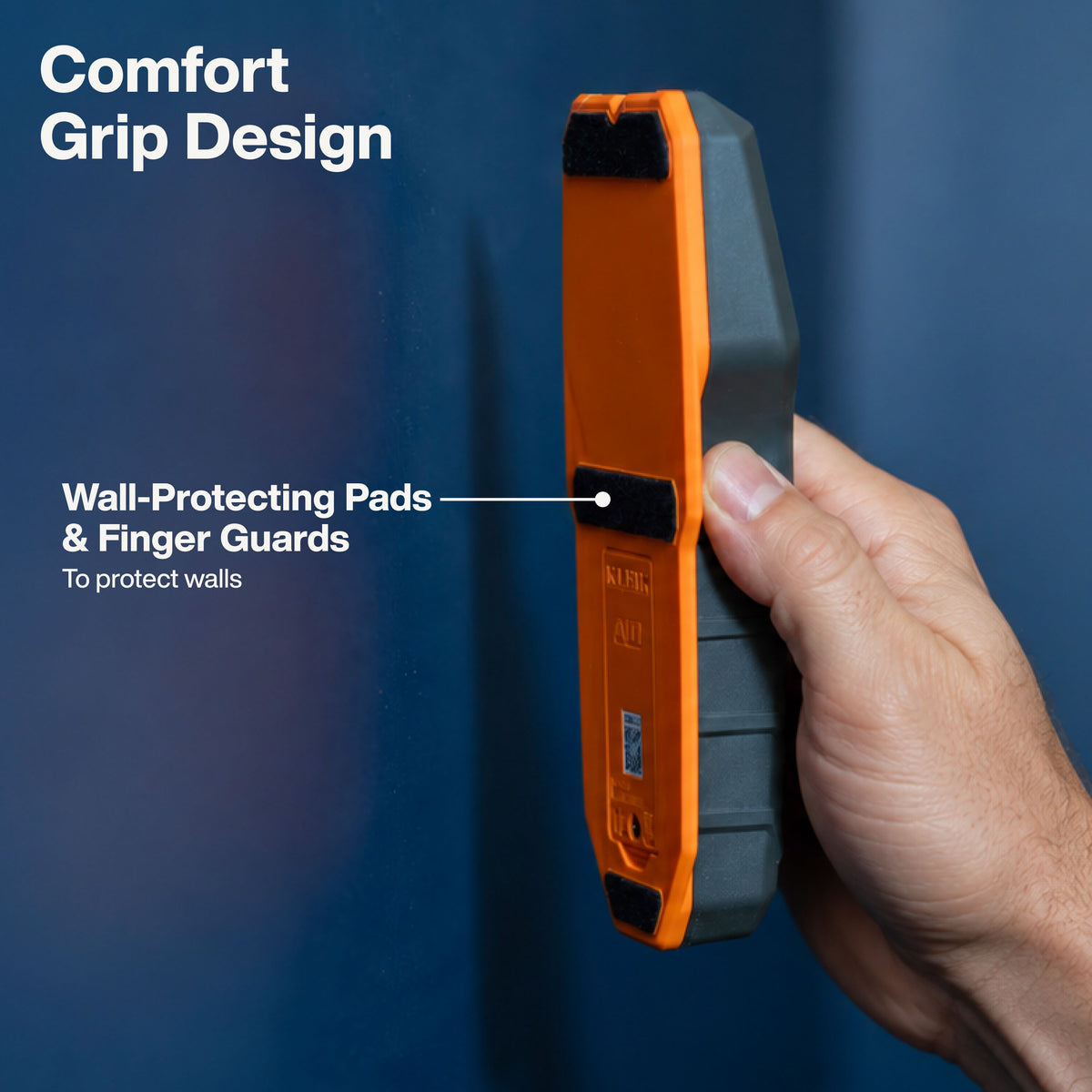

No Scuffs on Finished Walls
Felt pads and finger guards protect the wall and your knuckles while you scan.
- Felt pads on the back
- Protective finger guards
- Drop protection 6.6 ft (2 m)

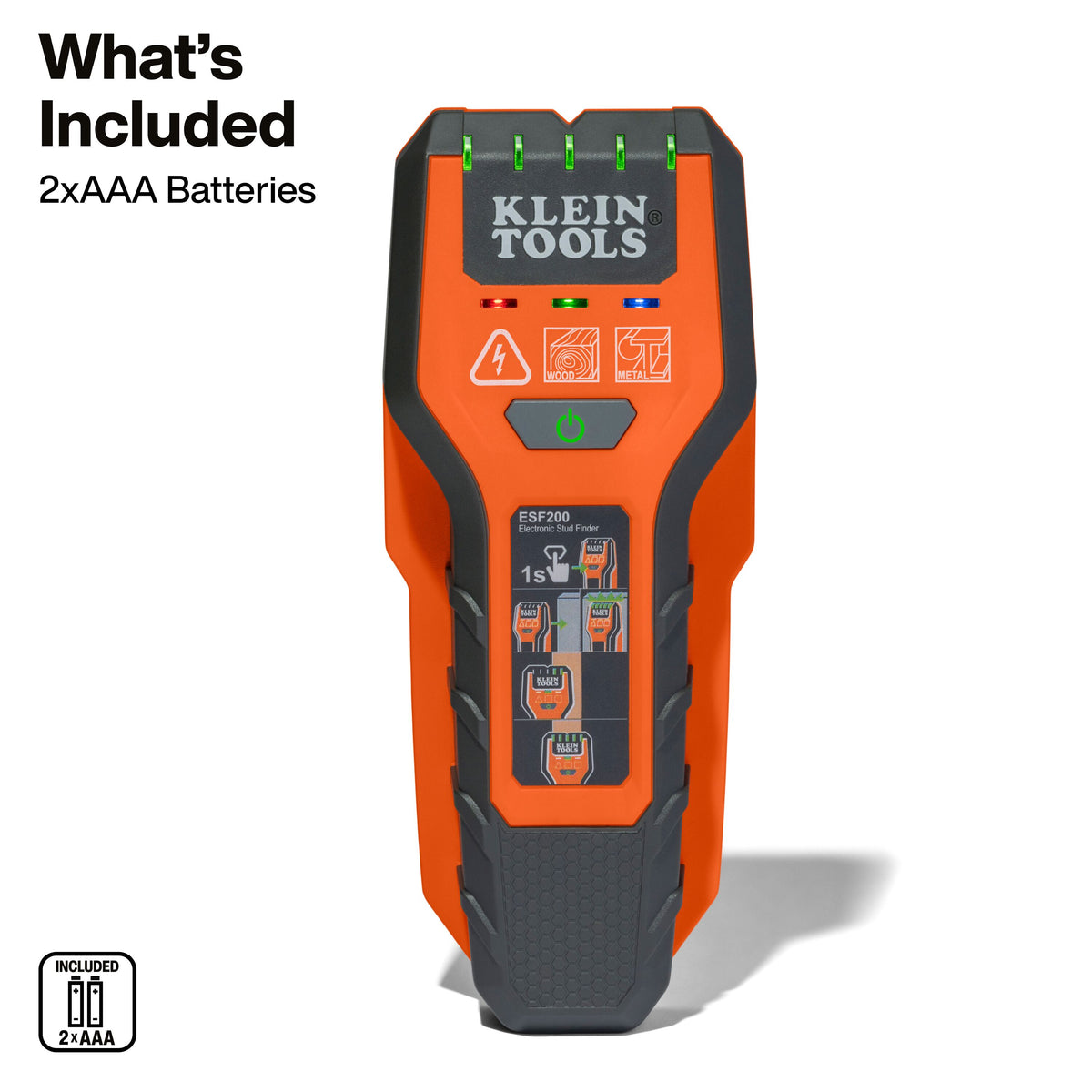

What's in the Box
- (1) ESF200 stud finder
- (2) AAA alkaline batteries
Key Specifications
| Detects | Wood, metal, live AC wiring |
|---|---|
| Wood Scan Depth | 3/4" (1.9 cm) |
| Ferrous Metal Scan Depth | 1-1/2" (3.8 cm) |
| Live AC Scan Depth | 2" (5.1 cm) |
| Indication | LED center and edge display, audible alert |
| Calibration | Automatic |
| Batteries | 2 x AAA alkaline (included) |
| Drop Protection | 6.6 ft (2 m) |
| Dimensions (L x W x H) | 6-3/4" x 2-3/4" x 1-3/16" (17.1 x 6.9 x 3 cm) |
| Weight | 4.9 oz (139 g) |
Built For
Pro Tip
Scan across the stud from both directions and watch where the edge LEDs agree. Mark both edges and drive your fastener between the marks for a dead-center hit.
Tool Nut's Take
Center-Finding Without the Guesswork
The Klein Tools Multi-Scan Center and Edge Stud Finder (ESF200) shows the full stud width and flags live AC before you cut or drill.
- Who it's for: Electricians, installers and homeowners who want accurate center readings and a live-wire warning in one tool.
- Why it stands out: Full-width LED display, automatic multi-material detection and wall-friendly felt pads.
- Worth knowing: Wood scan depth is 3/4" (1.9 cm), so thick or layered wall coverings may need a deeper-scanning tool.
Common Questions
- Does the Klein ESF200 detect live wires? Yes. It detects live AC voltage up to 2" (5.1 cm) deep.
- Do I need to switch modes for metal? No. It detects wood, metal and live AC automatically.
- What batteries does it use? 2 AAA alkaline batteries, included.
- Will it mark my walls? Felt pads on the back are designed to protect walls from marks during scanning.
