Klein Scout Pro Max Network Cable Tester with Remote Set (VDV501-770)
Klein Scout Pro Max Network Cable Tester with Remote Set (VDV501-770)
Out of Stock - Available to Order - Usually ships in 15-20 days
Product Details
Product Details
Key Features
Overview

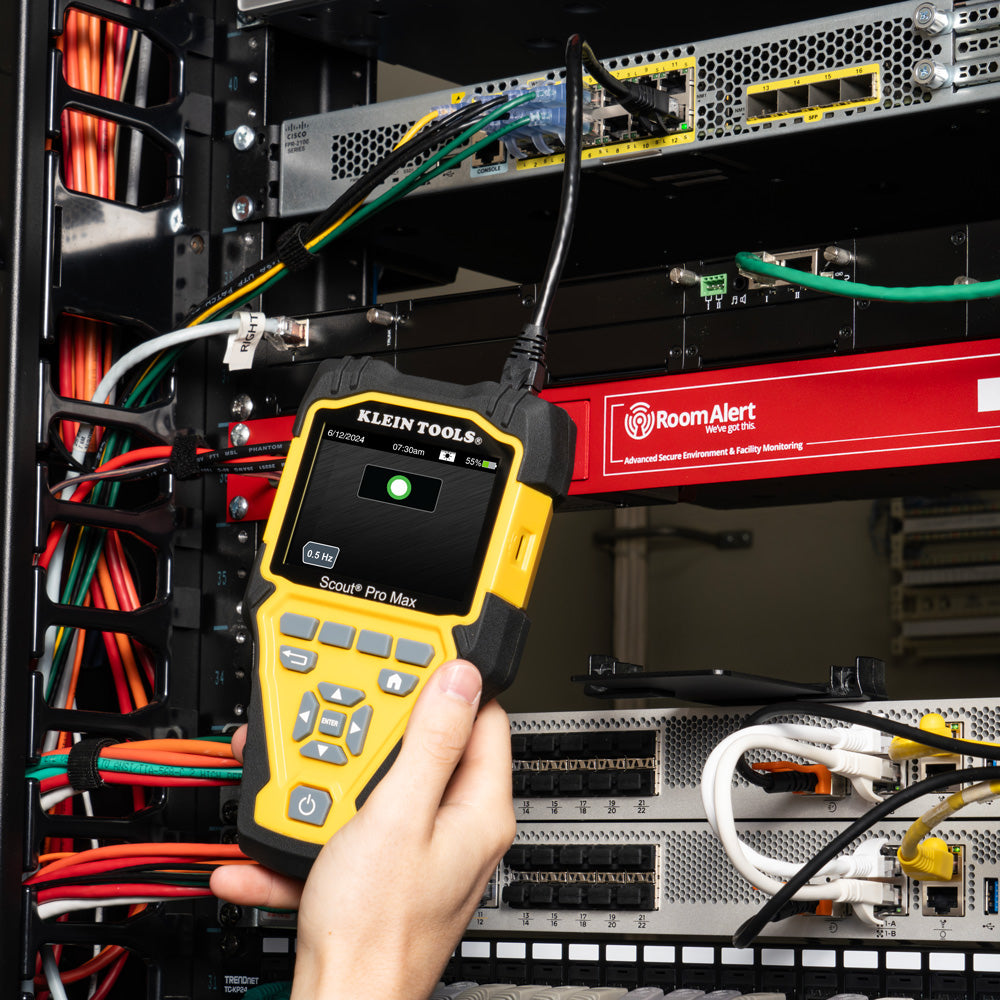

The Klein Tools VDV501-770 Scout Pro Max Network Cable Tester With Remote Set is a cable tester designed for installers who test and troubleshoot RJ11, RJ12, RJ45 and F-connector cabling.

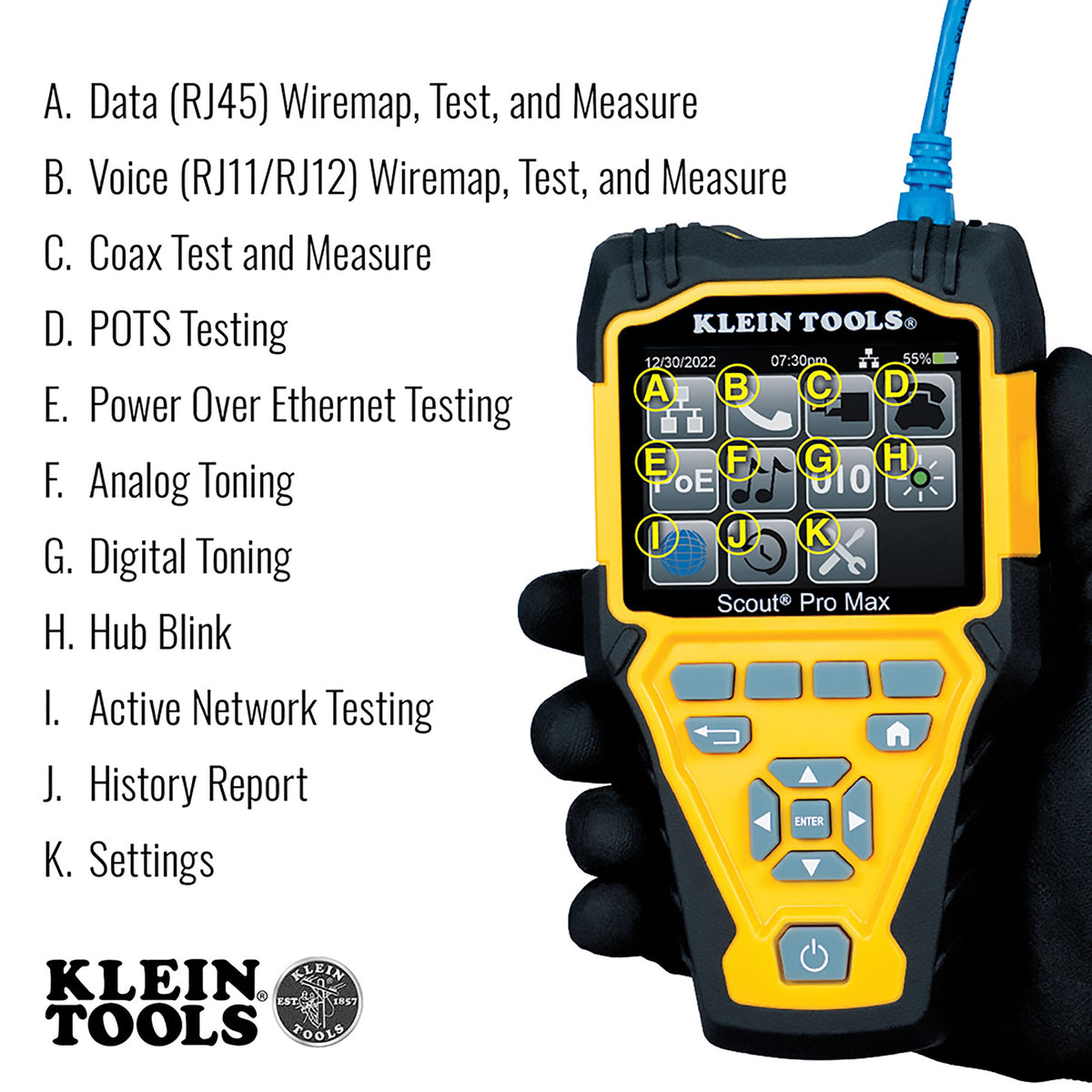

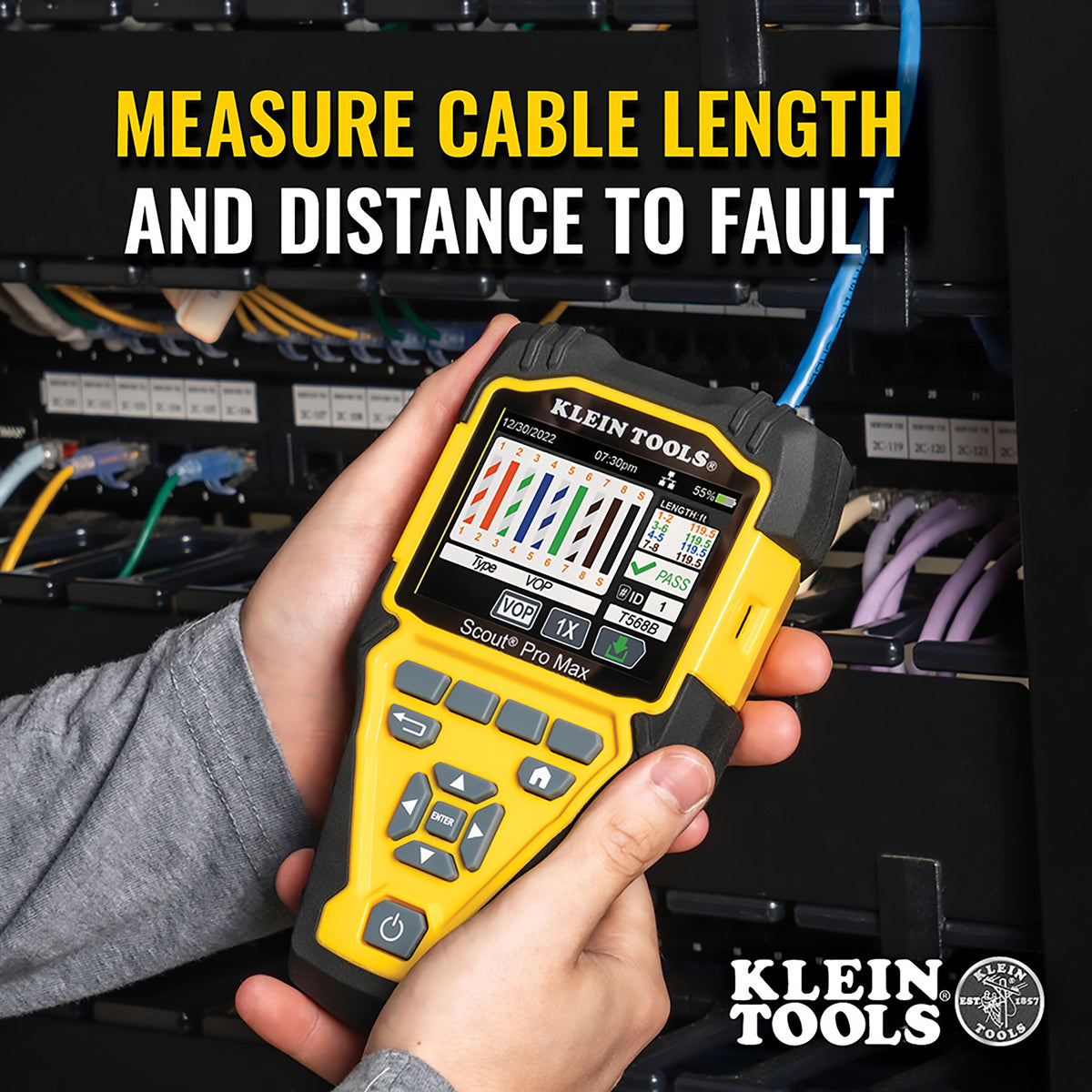

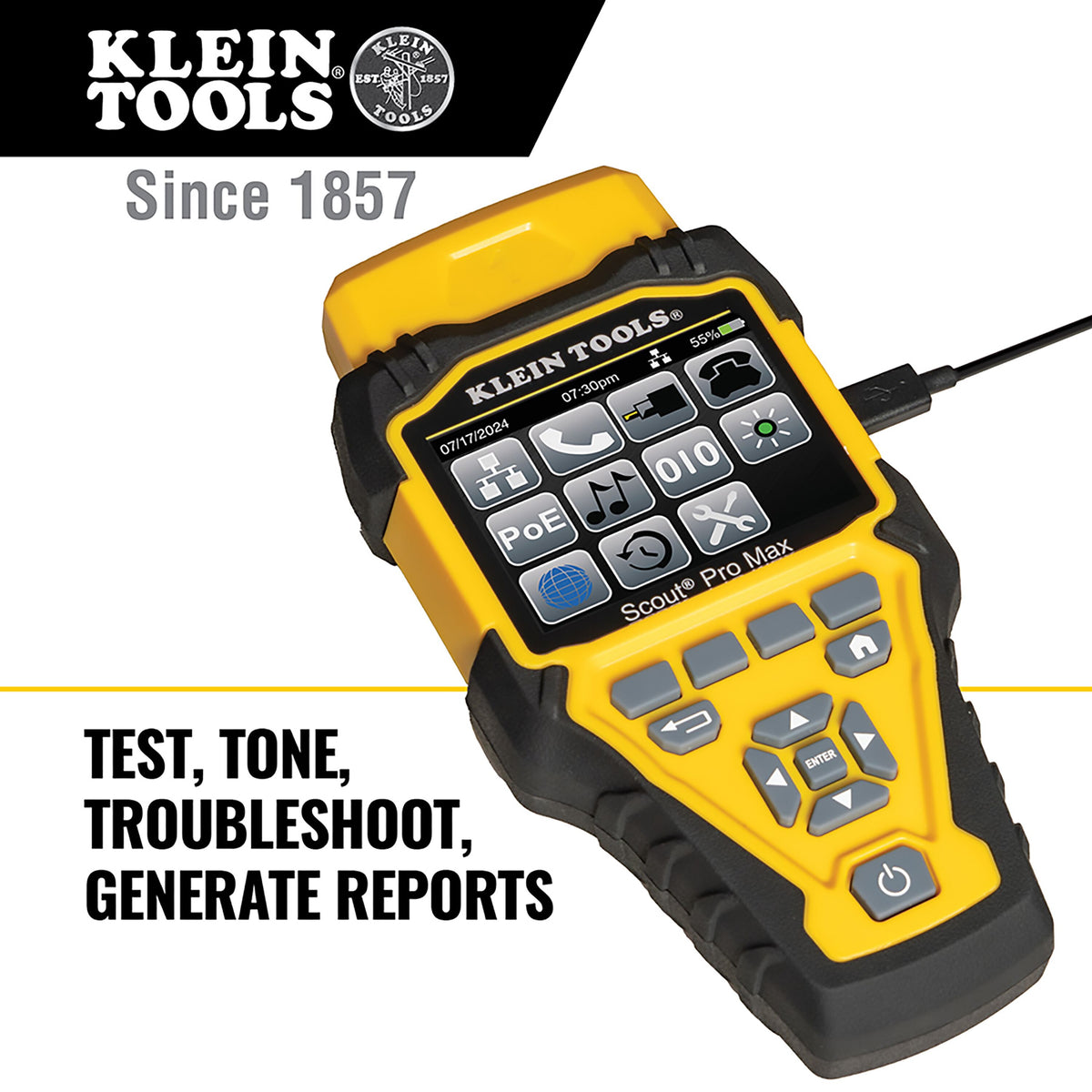

It adds tone tracing, TDR length and fault-distance measurement, custom test-history reports, shielded and unshielded testing, hub blink and active network detection. A backlit color screen shows results, and internal memory stores up to 200 results that can be downloaded.
The tester runs on 3 AA alkaline batteries, with about 15 hours of active life and a one-year standby life. It survives drops of 6.6 ft (2 m), measures 8 in (203 mm) by 4 in (102 mm) by 1.5 in (38 mm) and weighs 0.99 lb (0.4 kg). Length accuracy is plus or minus 2% plus 3 ft (1 m) with a known velocity of propagation and consistent cable parameters.
It suits low-voltage installers, network techs and security integrators who certify and map large cable runs. The tone probe (VDV500-223) is sold separately.

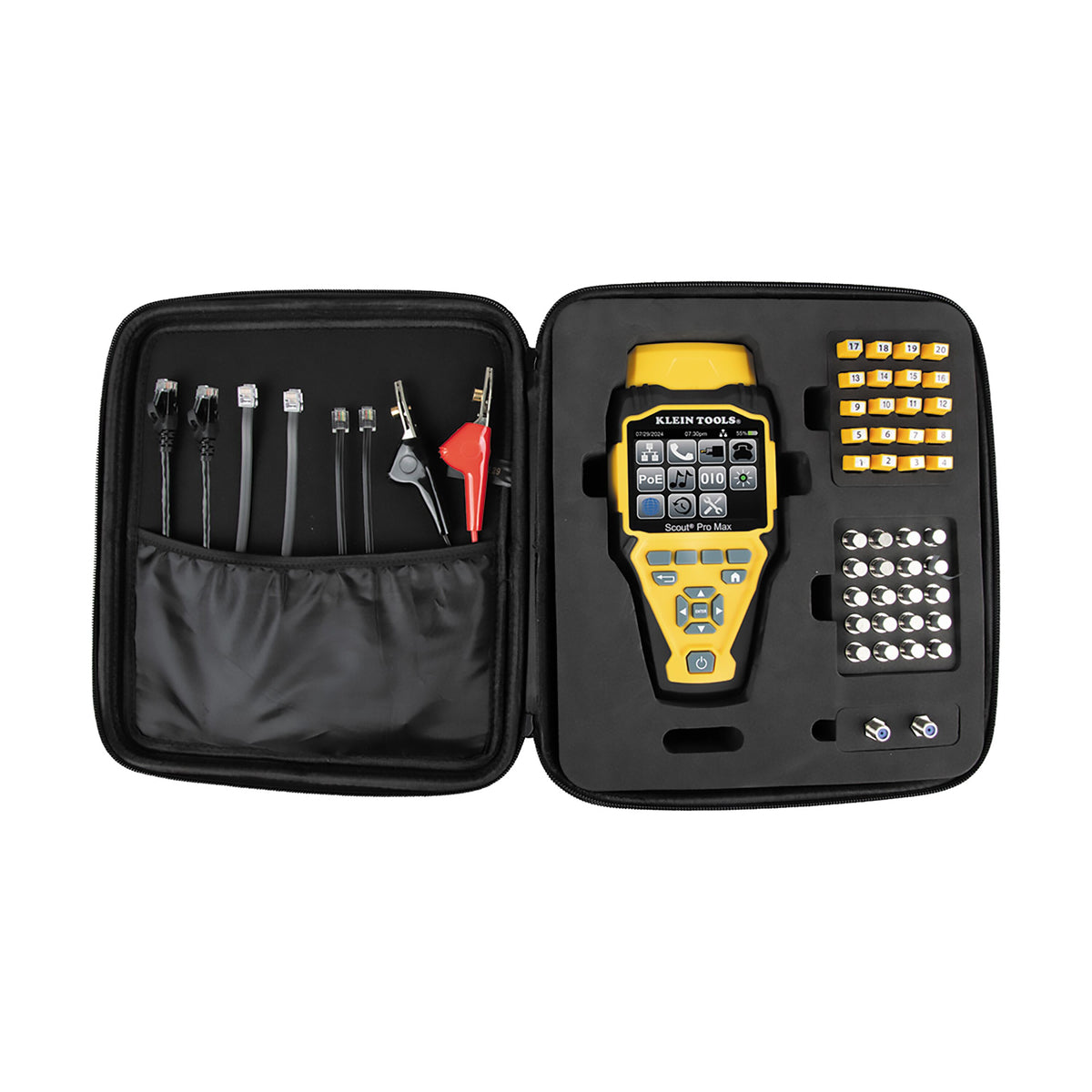

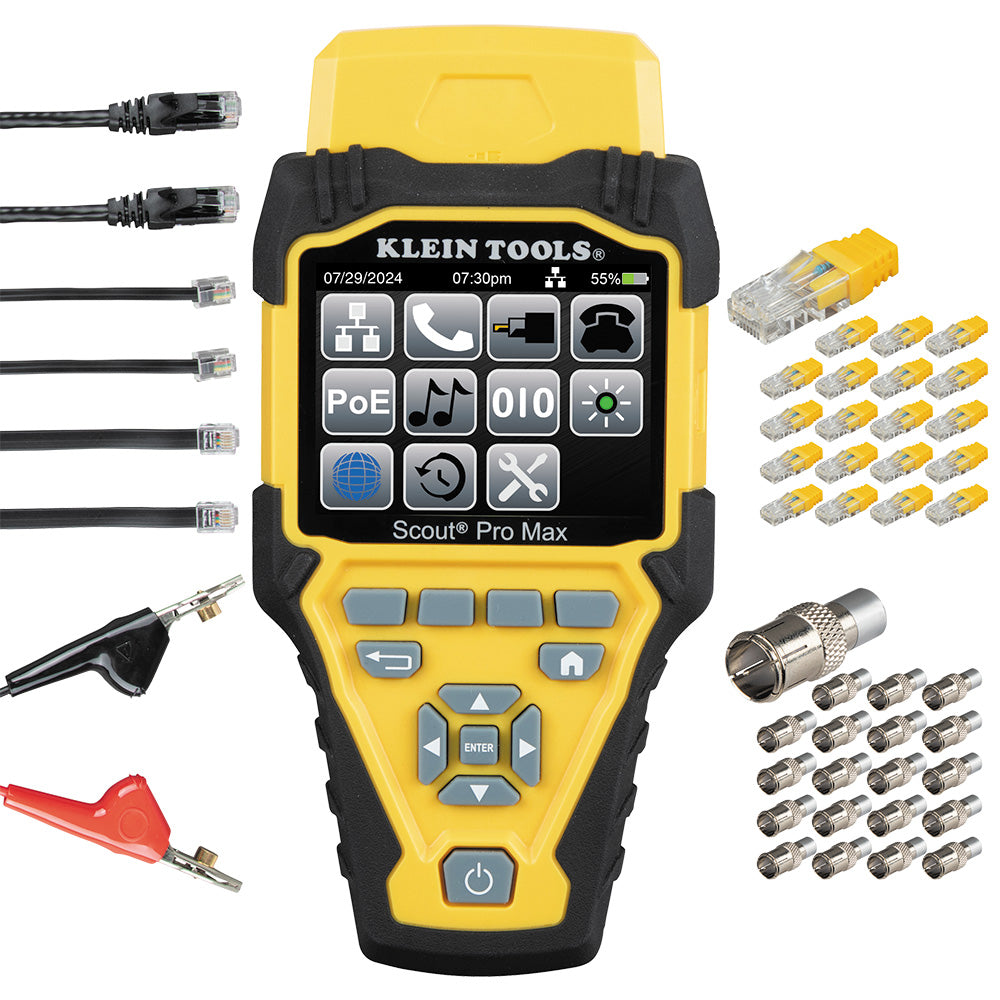

What's in the Box
- (1) Scout Pro Max tester
- (1) USB-C to USB-A cable

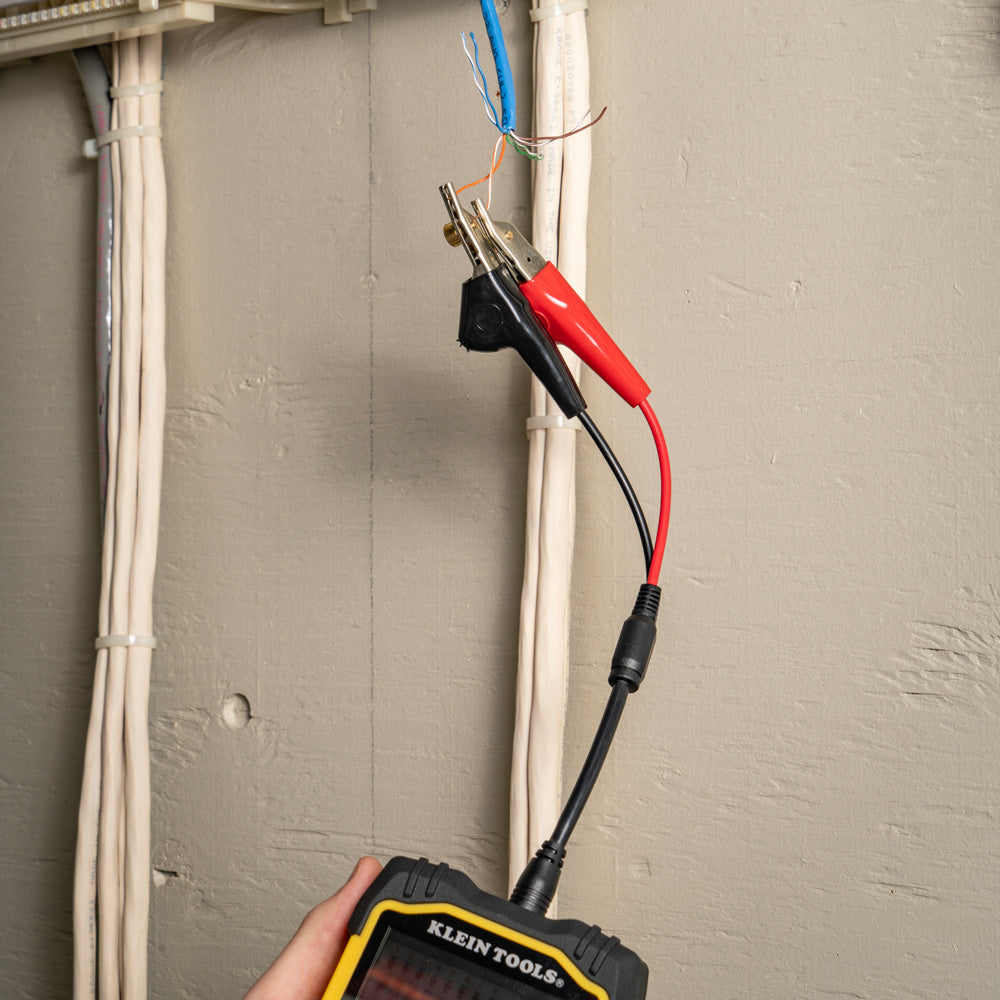

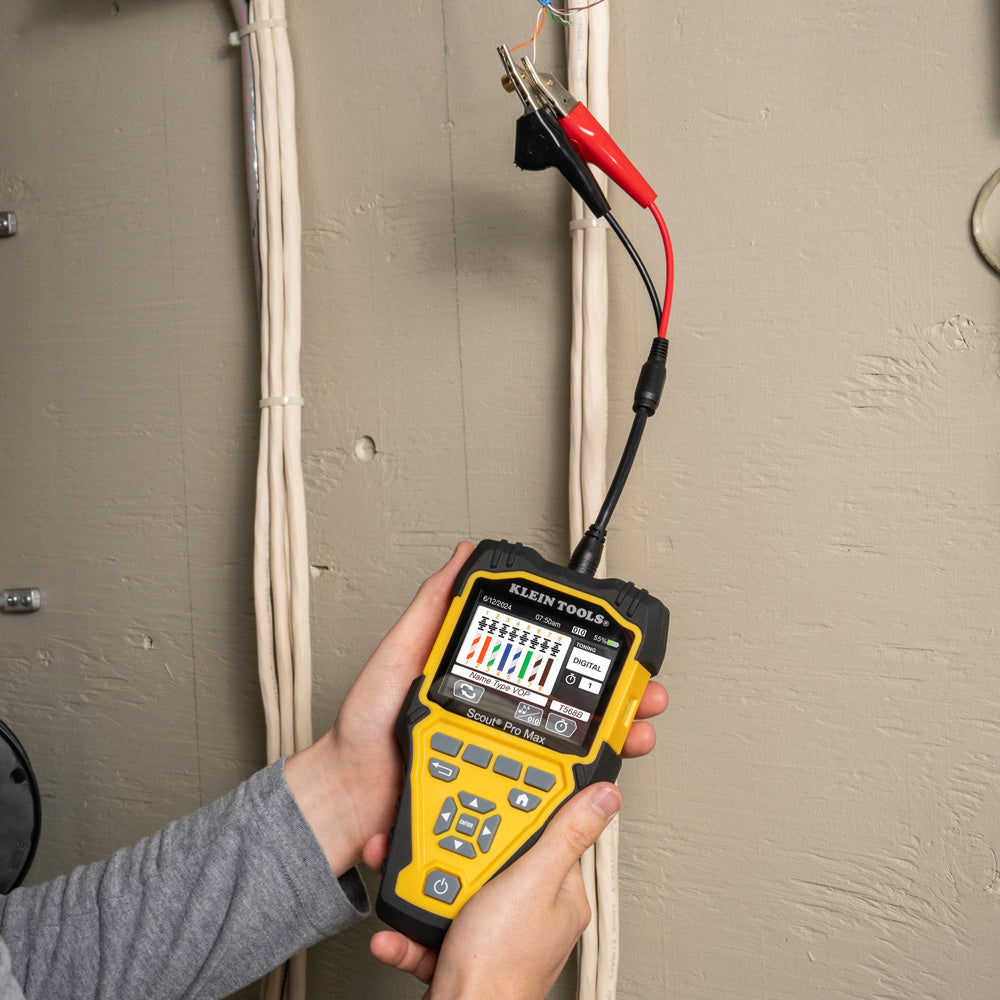

- (1) Female coax-F to angled bed-of-nails cable
- (2) RJ12 to RJ12 cables
- (2) RJ11 to RJ11 cables
- (2) RJ45 CAT6 to RJ45 CAT6 cables

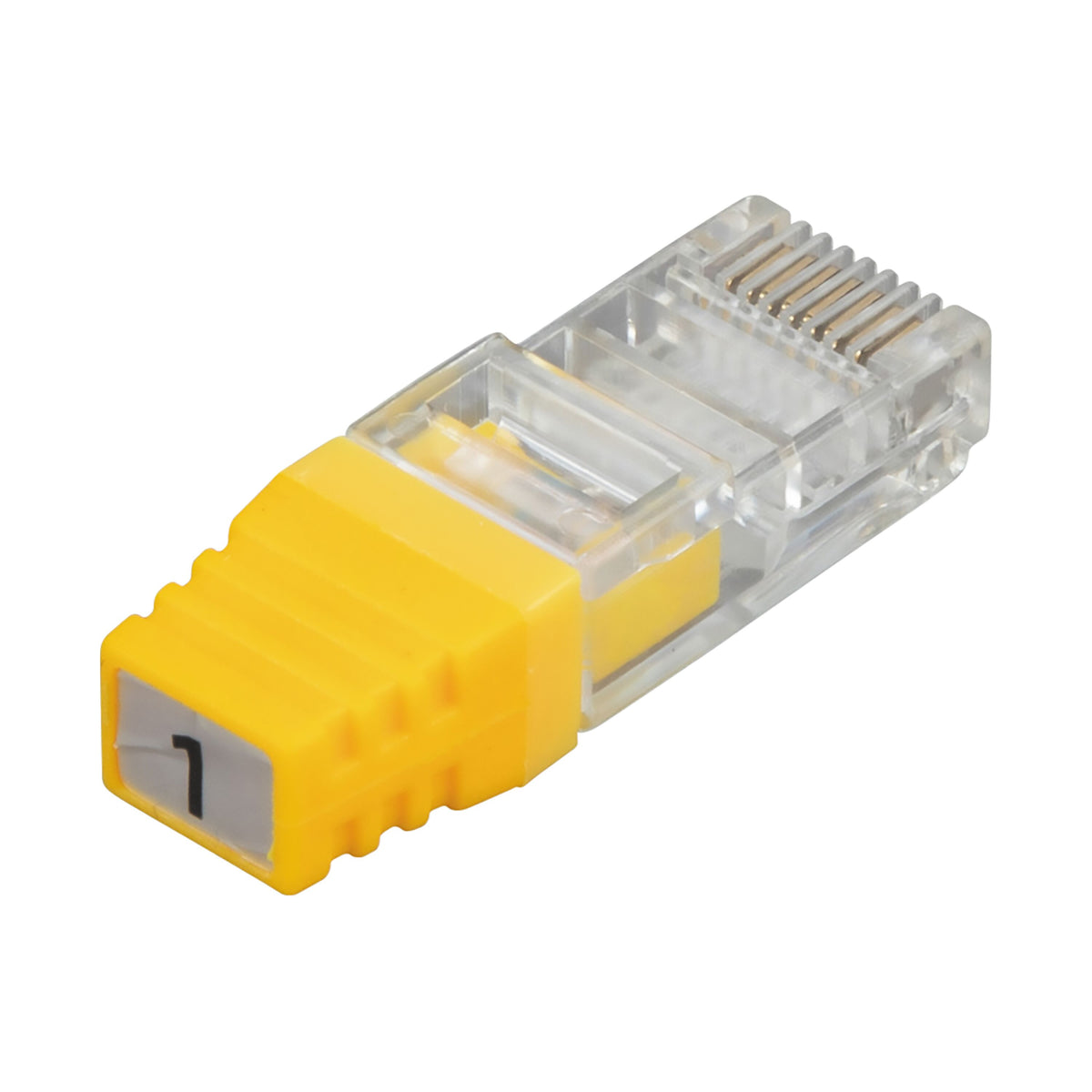

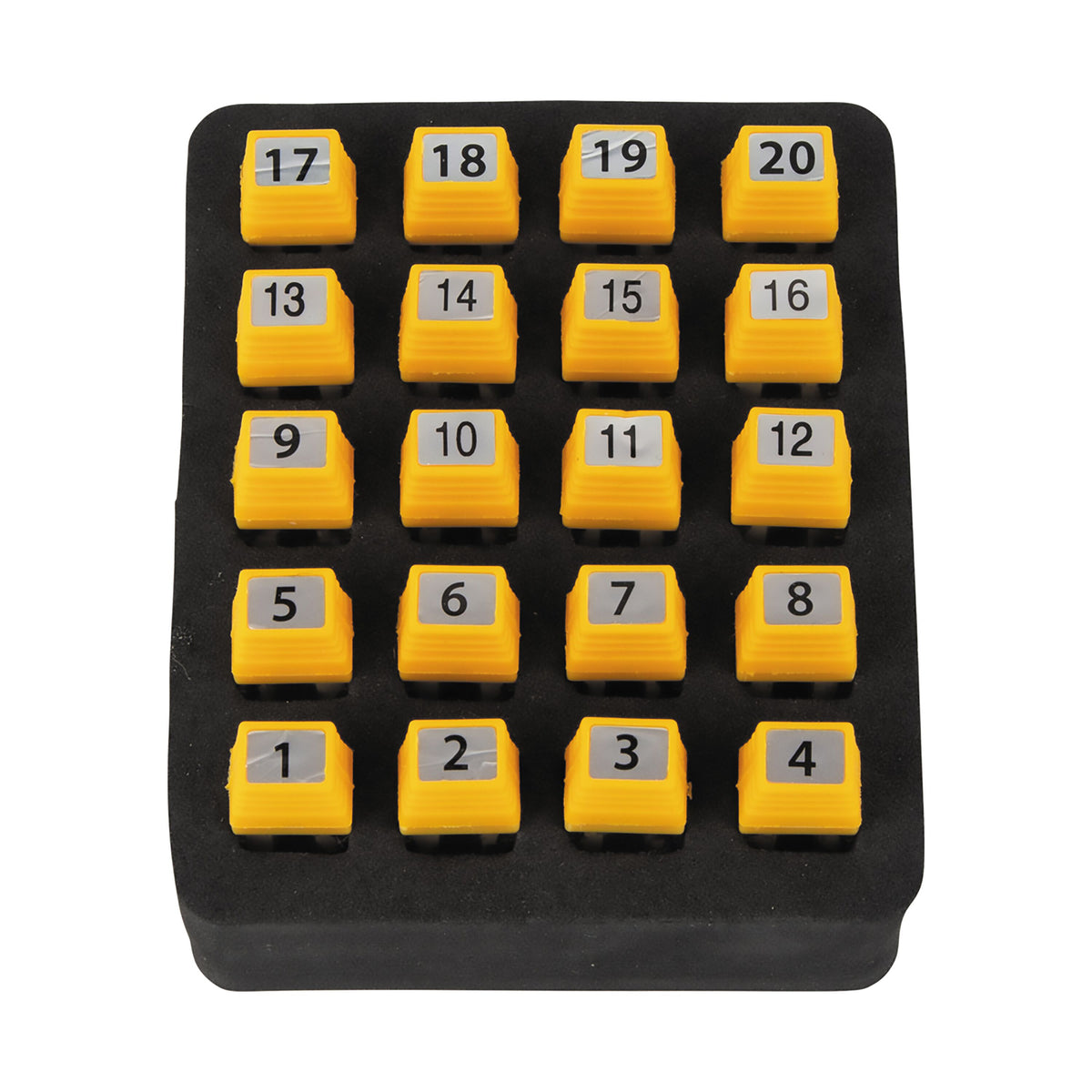

- (20) RJ45 LanMap location ID remotes

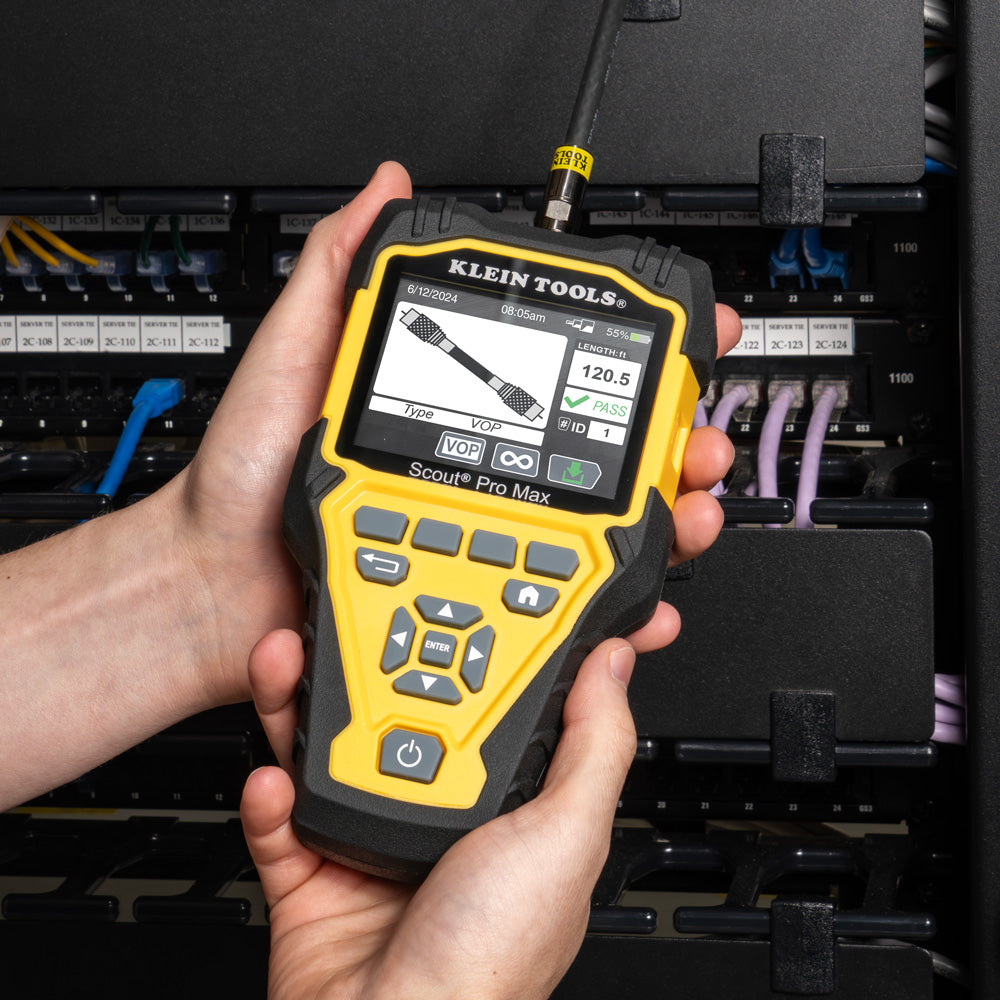

- (20) F-connector CoaxMap location ID remotes
- (1) Female F-barrel connector
- (3) AA batteries
- (1) CR2032 battery
Tone probe (VDV500-223) sold separately.
Key Specifications
| Connector Types | RJ11, RJ12, RJ45, Coax F |
|---|---|
| Maximum Cable Length | 2,000 ft (610 m) |
| Result Memory | 200 Results |
| Supported Remotes | 41 |
| Network Speed Detection | Up to 10 Gbps |
| Batteries | 3 AA Alkaline |
| Battery Life | 15 Hours Active, 1 Year Standby |
| Drop Protection | 6.6 ft (2 m) |
| Weight | 0.99 lb (0.4 kg) |
Built For
Tool Nut's Take
A Full Cable Tester Kit
The Klein VDV501-770 ships with 40 remotes and the cables to use them.
- Who it's for: Installers certifying and labeling big cable runs.

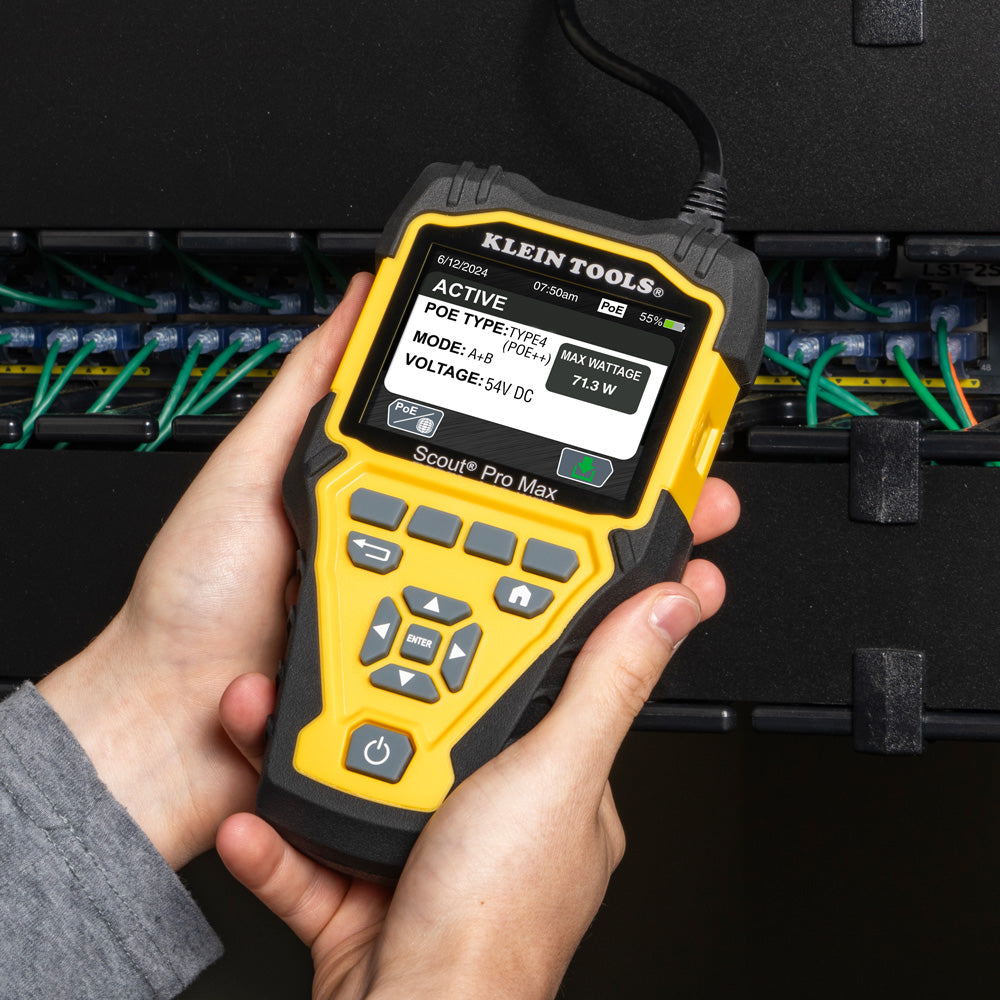

- Why it stands out: TDR length, 20-location mapping and PoE testing in one handheld.
- Worth knowing: Tone generation needs the separate VDV500-223 probe.
