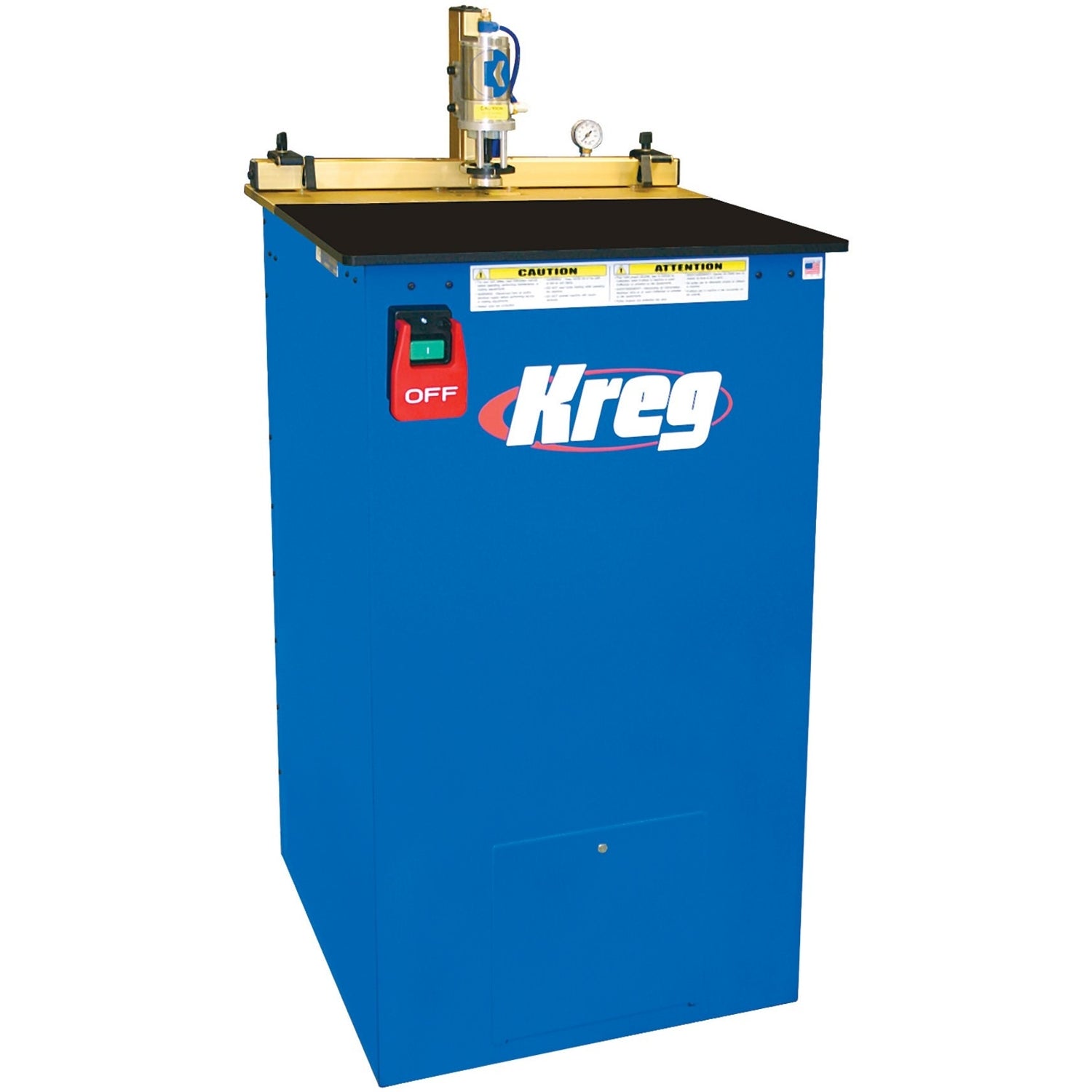

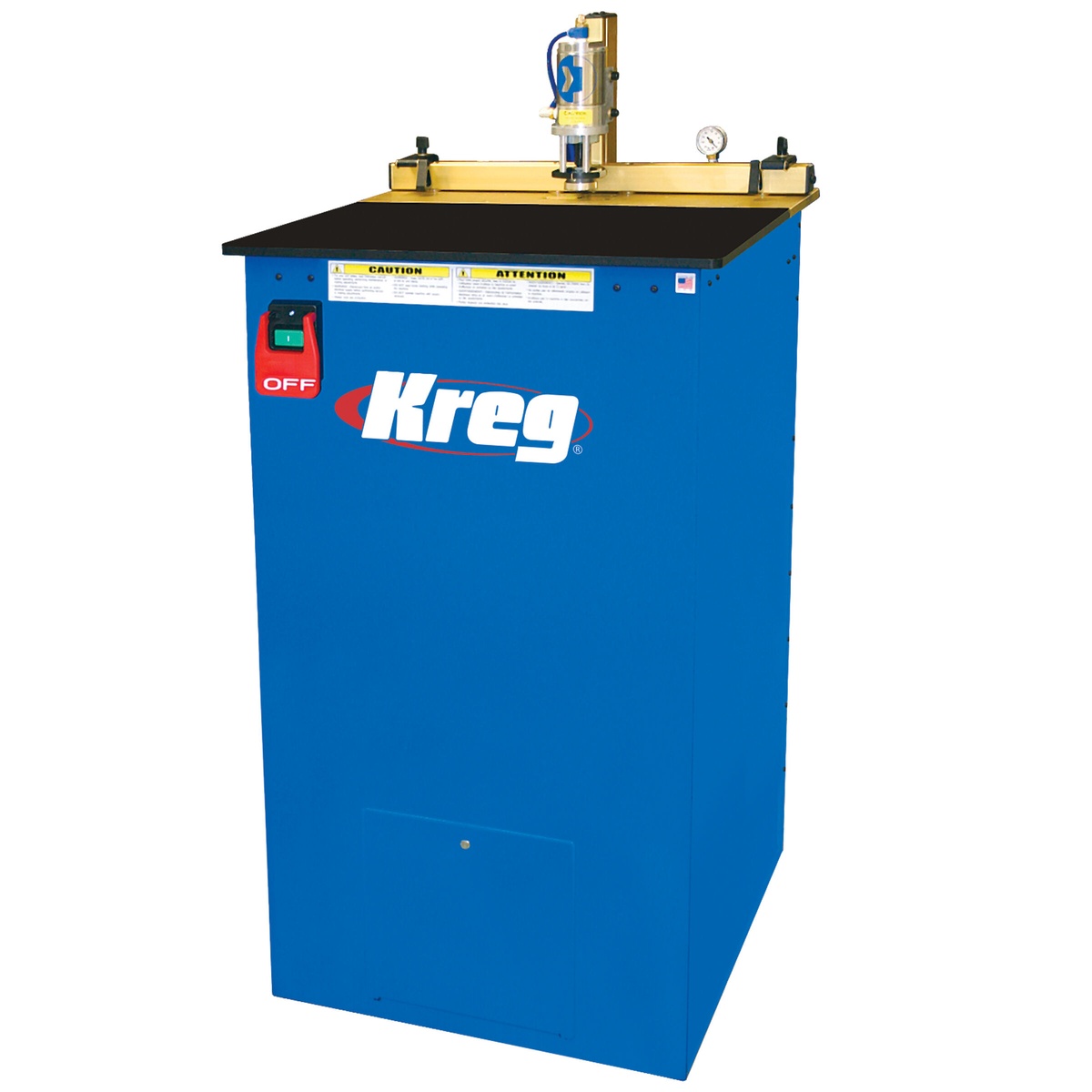

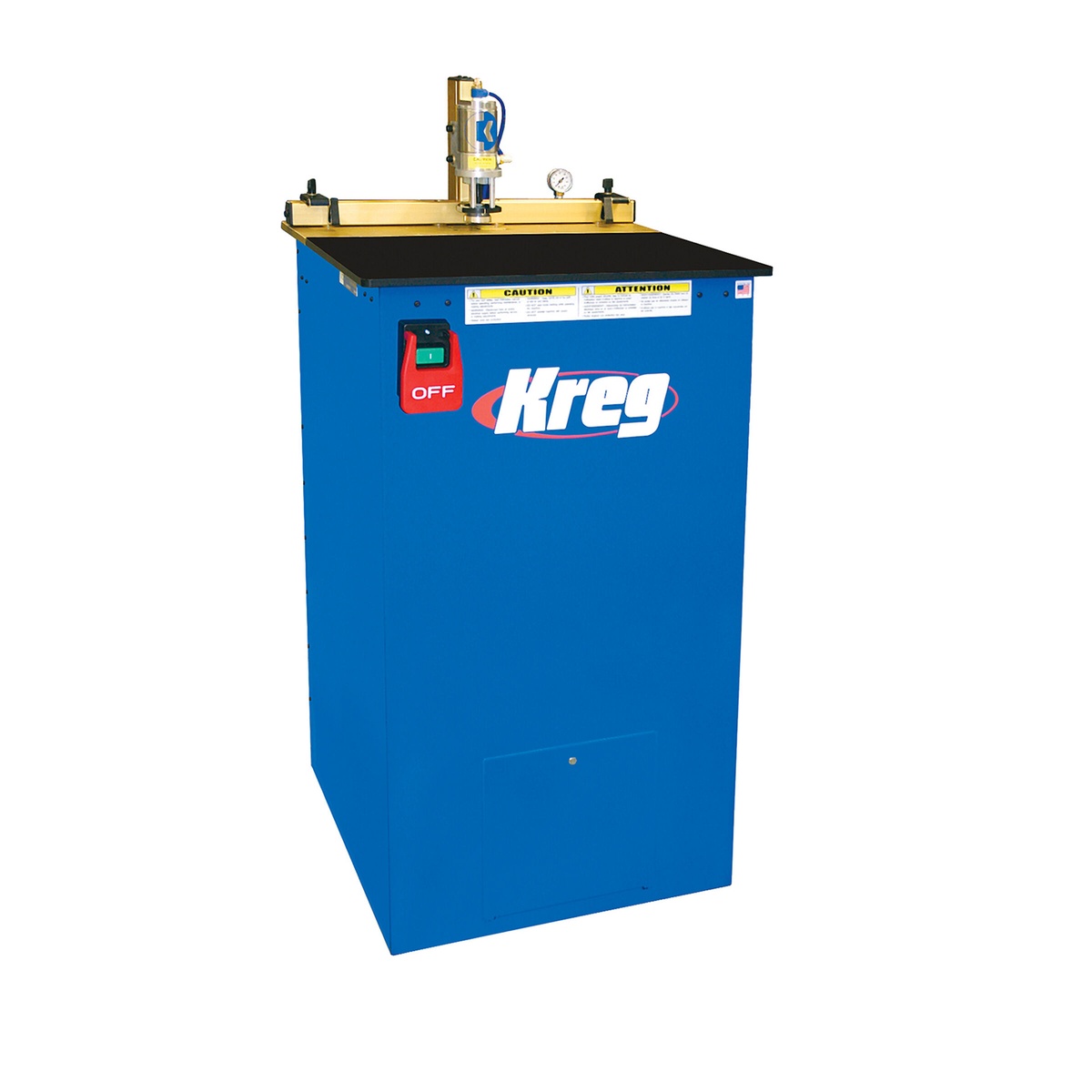

Kreg DK1100 FE Single-Spindle Electric Pocket-Hole Machine
Kreg DK1100 FE Single-Spindle Electric Pocket-Hole Machine
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview
The Kreg DK1100 FE Single-Spindle Electric Pocket-Hole Machine (Model DK1100FE) is a commercial pocket-hole machine for shops that need fast, repeatable pocket-hole drilling without slowing the line. This is a pocket-hole drilling machine designed for high-production pocket-hole joinery.
The big win is speed. With cycle times of less than 1 second, you can move from part to part quickly, which matters when you are drilling hundreds of rails, stiles, and frames in a day. Because it is a single-spindle machine, it stays simple to run: load the part, drill the hole, move on.
Power is handled by a 1 1/2-horsepower electric motor, and it plugs into a standard 20-amp 110-volt outlet. That means you get industrial productivity without having to rework your shop power or add special electrical service just to get drilling.
For positioning, the machine includes convenient swing stops so you can quickly place two pocket holes across rails of different widths by indexing off one stop, drilling, then indexing off the other. When you are drilling pocket holes in panels, the stops swing out of the way so you are not fighting the setup.
Material setup is built around an adjustable fence that centers the screw in 1/2 inch to 1 1/2 inch thick stock. The clamp hold-down also adjusts to allow materials up to 4 inches thick to be drilled, which is handy when you are building thicker assemblies or working with stacked parts.
Maintenance and changeovers are shop-realistic. Drill bit changes are handled by loosening the collet with the provided Allen wrench, swapping the bit, and getting back to work in less than 60 seconds, which is the difference between staying productive and losing time on every change.
If you are a cabinet shop, furniture builder, or production woodworking operation that relies on pocket-hole joinery, this machine is aimed squarely at you. It is not about portability; it is about doing the same operation reliably, fast, and all day.
Fast, Repeatable Pocket Holes
When pocket holes are part of your daily workflow, speed and consistency matter more than anything. The DK1100 FE is built to drill clean pocket holes quickly, with a cycle time that keeps your assembly moving.
- Cycle times of less than 1 second for production pacing
- Single-spindle operation for straightforward, repeatable results
Quick Setup for Real Parts
The fence and stops are designed around common shop parts, so you are not wasting time chasing alignment. Dial it in, run your batch, and keep going.
- Adjustable fence centers the screw in 1/2 inch to 1 1/2 inch thick material
- Clamp hold-down adjustment supports drilling up to 4 inches thick
Key Specifications
 Motor Power |
1 1/2 HP |
|---|---|
 Power Requirement |
110 V, 20 A outlet |
|
Cycle Time |
Less than 1 second |
 Material Thickness (Fence Range) |
1/2 in to 1 1/2 in |
 Max Drilling Thickness (Clamp Hold-Down) |
Up to 4 in |
 Overall Size |
50 in H x 24 in W x 24 in D (40 in table height) |
 Weight |
176 lbs |
Compatibility
Built For
Pro Tip
If you are drilling two holes across a rail, use the swing stops as your index points: drill against one stop, then flip to the other stop. For panels, swing the stops out of the way so you can keep the sheet tight to the fence.
Tool Nut's Take
Kreg DK1100 FE Single-Spindle Electric Pocket-Hole Machine: built for throughput
If pocket holes are a daily production operation, this machine is about speed, repeatability, and not messing around with complicated setups.
- Who it's for: Cabinet and furniture shops that drill a lot of pocket holes and want a dedicated, repeatable station.
- Why it stands out: Less than 1-second cycle time, 1 1/2-horsepower motor, and simple single-spindle operation that keeps operators moving.
- Worth knowing: It is a heavy, shop-floor machine at 176 lbs, so plan on a dedicated spot and workflow around it.
Common Questions
- What power does it need? It works with any standard 20-amp 110-volt outlet.
- How thick of material can it handle? The fence adjusts for 1/2 inch to 1 1/2 inch thick material, and the clamp hold-down adjusts for materials up to 4 inches thick.
- How fast is the drilling cycle? The cycle time is less than 1 second.
