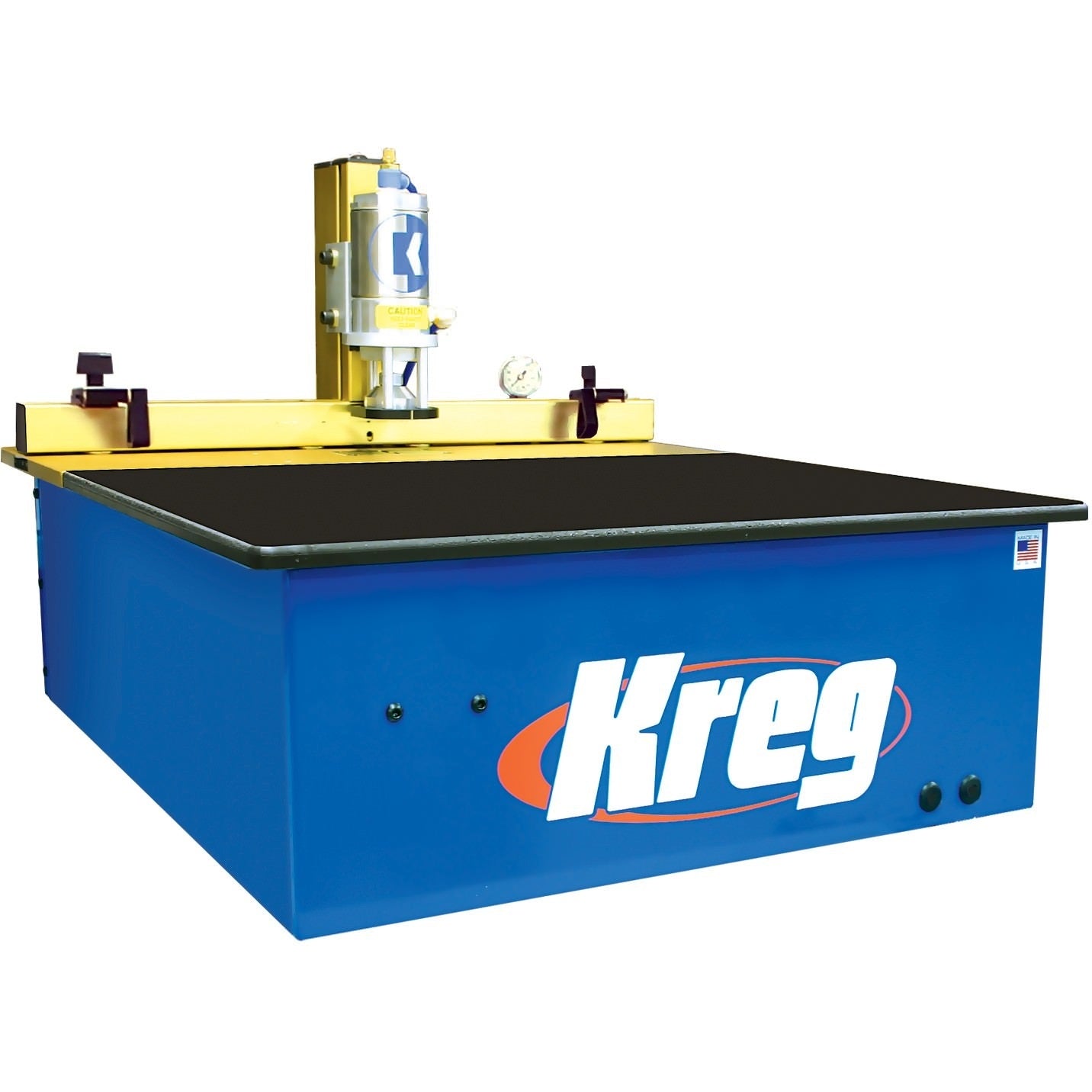

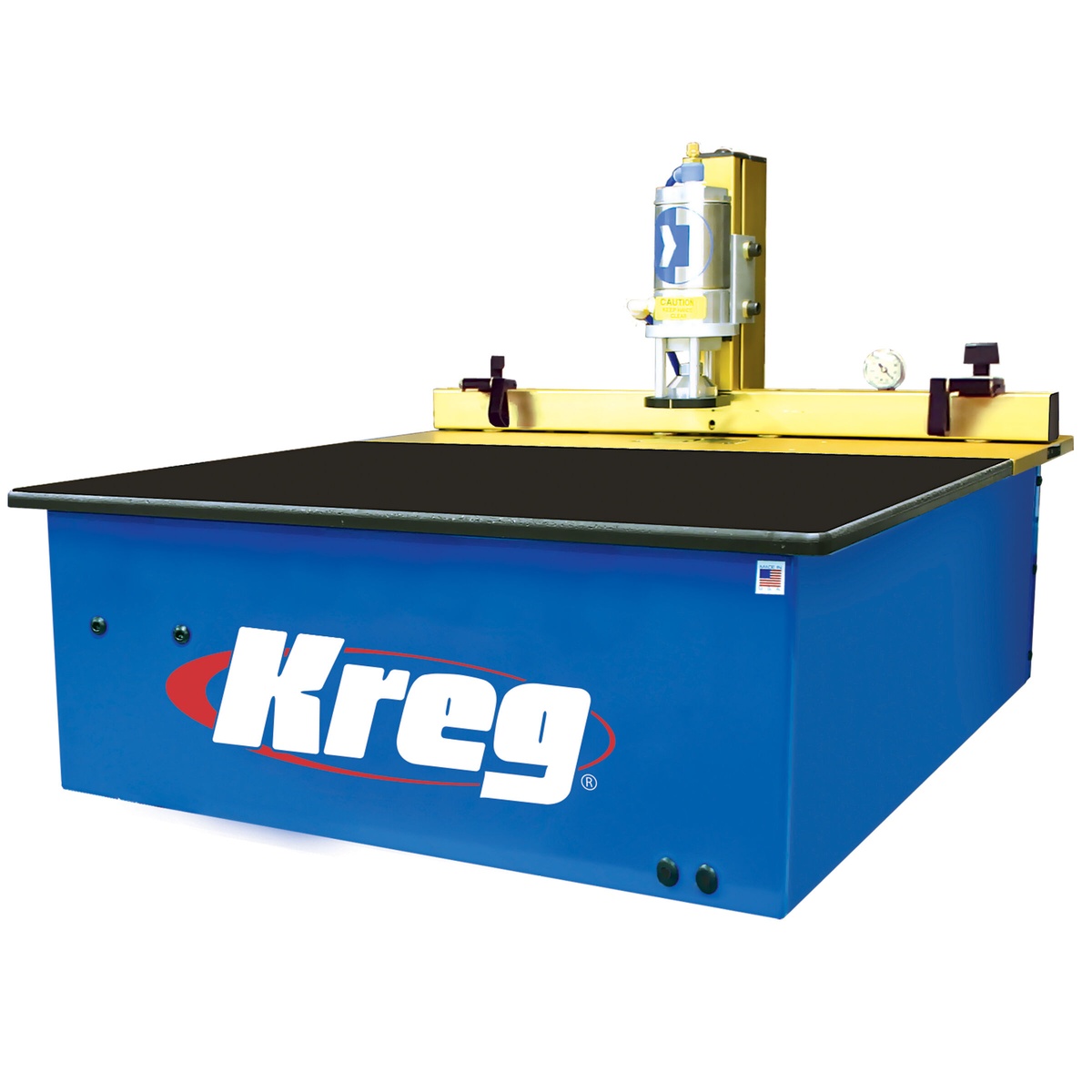

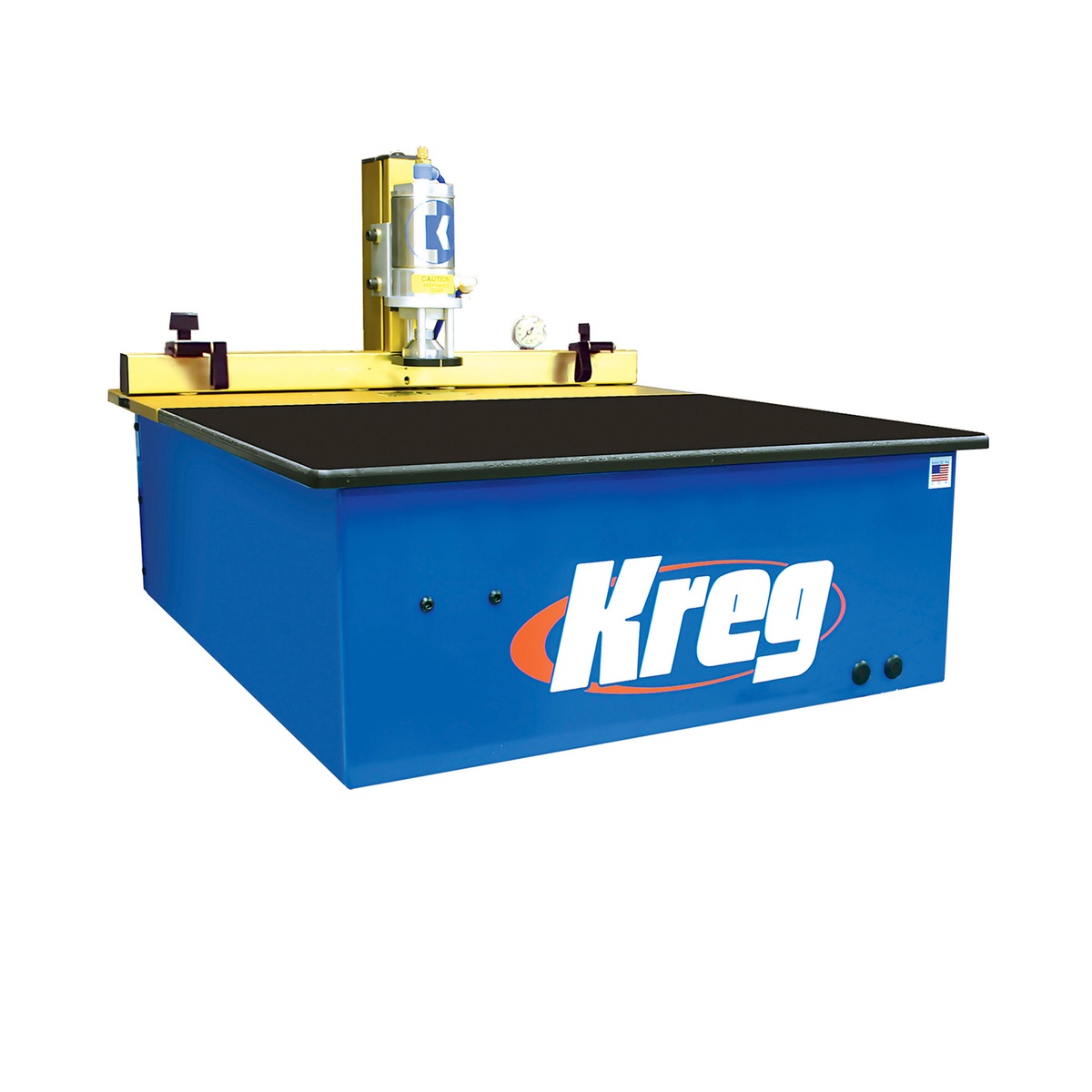

The Kreg DK1100 TP Benchtop Single-Spindle Pneumatic Pocket-Hole Machine, Model DK1100TP, is a compact production machine for drilling one pocket hole at a time with fast, consistent results. This is a pocket-hole machine designed for high-repeat joinery work in woodworking and cabinet shops. If you need a dedicated setup for pocket-hole joinery without giving up a lot of floor space, this benchtop unit is built for exactly that job.

Kreg positions the DK1100 series as its industry-standard single-hole platform, and the practical advantage here is straightforward: you get industrial-grade drilling performance in a smaller bench-mounted package. The pneumatic setup uses a foot pedal for one-touch operation, which keeps your hands free to position stock and maintain a steady workflow. In real shop use, that means quicker cycle times on rails, face frames, panels, and repeat parts where consistency matters more than gadget count.

The layout is built around easy positioning and repeatability. Swing stops let you place pocket holes across rails of different widths with less measuring between cycles. When you move to panel work, those stops swing out of the way so the machine adapts instead of slowing you down. The fence adjusts from the top side of the machine, which is a smart detail because it makes setup more direct when you are changing material thickness or dialing in screw placement.

Material range is another strong point. The adjustable fence is designed to center a screw in material from 1/2 inch to 1-1/2 inch thick, and the clamp hold-down adjusts for stock up to 4 inches thick. That gives this machine flexibility for common woodworking stock sizes while still staying focused on production pocket-hole drilling rather than trying to be an all-in-one station.

Kreg also built this machine with durability in mind. Hardened-steel drill guides are there for a reason: they help maximize drill bit life, which matters when the machine is running day after day. Kreg states that the industrial-grade motors are designed for long-lasting service, quick operation, low noise, and reliable output in high-production environments. For a shop owner, that translates into less downtime pressure and a more predictable process on repeated joinery tasks.

Jobsite practicality here is really shop practicality. The compact frame and 8 inch table height make the machine easier to build into a workbench or move when your layout changes. A dust collection chute helps remove chips during drilling, which keeps the work area cleaner and helps maintain a smoother production flow. Quick drill bit changes are handled with the supplied Allen wrench, and Kreg says bit swaps can be done in under 60 seconds, which is exactly the kind of detail that matters when the machine is earning its keep.

The pneumatic system does require shop air, so this is not a plug-and-play tool for every user. Kreg specifies a compressor capable of producing 8 CFM at 120 PSI at a 50% duty cycle. That makes the DK1100TP a better fit for established woodworking shops, cabinet operations, millwork production, and serious custom builders who already have air infrastructure in place.

Who should buy it? If you are running repeat pocket-hole joinery and want better speed, cleaner workflow, and more consistent positioning than a manual jig setup can offer, this machine makes sense. If you only drill pocket holes occasionally, it is probably more machine than you need. But for cabinetmakers, furniture shops, and production-minded woodworkers, the Kreg DK1100 TP Benchtop Single-Spindle Pneumatic Pocket-Hole Machine is built to save time where it counts.

Kreg DK1100 TP Benchtop Single-Spindle Pneumatic Pocket-Hole Machine for shops that want speed without a giant footprint

This is the kind of machine that earns its spot when pocket-hole joinery is part of the daily workflow, not just an occasional task.

• Who it's for: Cabinetmakers, furniture builders, and production-minded woodworkers who drill a lot of pocket holes and already have compressor capacity in the shop.
• Why it stands out: You get industrial-style single-hole production, hardened-steel drill guides, swing stops, and bench-friendly size in one package.
• Worth knowing: This is a pneumatic machine, so shop air is not optional. If you do not have a compressor that can meet the 8 CFM at 120 PSI requirement, plan for that before you buy.

• What kind of air supply does this machine need? Kreg specifies a compressor able to produce 8 CFM at 120 PSI at a 50% duty cycle.
• What material thickness can it handle for centered screw placement? The adjustable fence is designed to center a screw in material from 1/2 inch to 1-1/2 inch thick.
• How thick can the clamp hold-down accommodate? The clamp hold-down adjusts to allow materials up to 4 inches thick to be drilled.
• Is this a freestanding machine? No. This is the benchtop version with an 8 inch table height, designed to be built into a workbench or moved as needed.
